Home Brew Forums > Home Brewing Beer > Electric Brewing > 220V --> SSR --> 5500W Heating Element Question
Reply

LinkBack Thread Tools
Old 05-17-2012, 10:53 PM   #1
danmeljeff
Feedback Score: 0 reviews
Recipes

Join Date: May 2012
Location: Thousand Oaks, California
Posts: 5
Default 220V --> SSR --> 5500W Heating Element Question

I'm in the process of building my electric brewery. I've been researching the various ways to supply power to the heating elements (1x SSR, 2x SSR's, Switch to Mechanical Relay to SSR).

It seems like using a switch and mechanical relay is the preferred method, mostly due to safety.

My initial thought was to run both hot leads to the L1 post of the SSR, and then from the T1 post, split the wire and connect it to each post of the heating element. Since there is no neutral wire in play (just a ground wire), I can't see why this wouldn't work.

Having not seen anybody else wire it up this way, I'm fairly certain it isn't appropriate. However, I'm hoping someone can tell me why.

Thanks,

Jeff

__________________
danmeljeff is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:04 AM   #2
Junkster
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: North Central, Ohio
Posts: 508
Liked 30 Times on 21 Posts
Likes Given: 3

Default

I don't think I follow what you have in mind - can you post a drawing?

__________________
Junkster is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:20 AM   #3
conpewter
Feedback Score: 0 reviews

conpewter's Avatar
Recipes

Join Date: Nov 2007
Location: East Dundee, Illinois
Posts: 5,109
Liked 41 Times on 36 Posts
Likes Given: 7

Default

I may not quite understand what you are saying, but DO NOT run both hot leads to one post on the SSR... they'll short out and trip your breaker. You want to run one of the hots through the SSR, the other connects directly to one side of the element. The manual switch (I have a 30 amp Double pole double throw switch) is for turning off both sides of the 220V feed.

When you cut one of the hots the element will be inactive. With my element you can touch the wort, element etc when one hot is cut, but cutting both when you are going to mess with it is a good idea none the less.

Also I really recommend having a GFCI breaker or some sort of GFCI in line to protect you further.

__________________

"People should not be afraid of their governments. Governments should be afraid of their people." - V

Primary: Nothin
Secondary: Shady Lord RIS, Water to Barleywine, Pumpkin wine, burnt mead
Kegged: Crappy infected mild
Bottles: Apfelwein, 999 Barleywine, Oatmeal Stout, Robust Porter, Robust smoked porter, Simcoe Smash

conpewter is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:28 AM   #4
l3asturd
Feedback Score: 0 reviews

l3asturd's Avatar
Recipes

Join Date: Dec 2011
Location: Visalia, CA
Posts: 464
Liked 8 Times on 7 Posts
Likes Given: 2

Default

Here's my example of a similar setup:

__________________
l3asturd is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:33 AM   #5
danmeljeff
Feedback Score: 0 reviews
Recipes

Join Date: May 2012
Location: Thousand Oaks, California
Posts: 5
Default

excuse the drawings...unfortunately, it's the best I could come up with. Also, I know I left out the ground wires...just trying to simplify it.

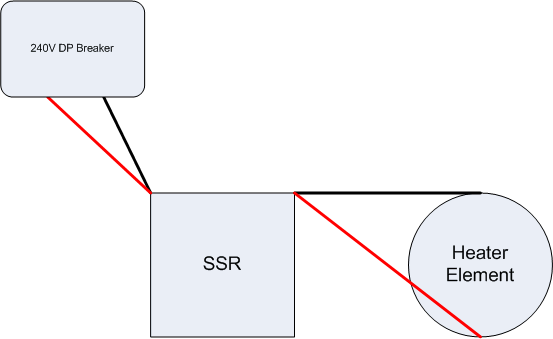

My proposed method:



Suggested method using 1 SSR:


Thanks in advance for the enlightenment I'm sure I'm about to receive :-)

__________________
danmeljeff is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:34 AM   #6
cscade
Feedback Score: 0 reviews

cscade's Avatar
Recipes

Join Date: Feb 2009
Location: Wooster, Ohio
Posts: 456
Liked 15 Times on 12 Posts
Likes Given: 1

Default

l3asturd; your diagram is identical to Kal's design (theelectricbrewery). It's a good design.

To the original poster; what you're talking about is a dead short, and certainly will not work. It also shows a dangerous lack of understanding. Please, please do a lot more research before you start fiddling with this stuff. Be safe!

__________________

Seeker Brewing Co.
est. 2008
Build Thread - Blog
cscade is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:55 AM   #7
passedpawn
Waste Allocation Load Lifter - Earth Class
Feedback Score: 0 reviews

passedpawn's Avatar
Recipes

Join Date: Apr 2009
Location: ☼ Clearwater, FL ☼
Posts: 18,816
Liked 3283 Times on 2046 Posts
Likes Given: 2802

Default

OP: Although those two wires are both 120V (wrt gnd), they are AC and 180 degree out of phase. Like previous posters said, it's a dead short.

__________________
Hey goomba I love how you dance the rumba
But take some advice paisano learn-a how to mambo
If you're gonna be a square you ain't-a gonna go anywhere.
passedpawn is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 02:30 PM   #8
milesvdustin
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Pensacola, Florida
Posts: 631
Liked 11 Times on 11 Posts
Likes Given: 23

Default

You can't run both legs of your 240 off one post on the ssr. Putting both there will cause a short and probably some fire. Basically the ssr controls one leg while the other is constantly there. You should have a switch between the ssr and element as well, so the element gets no power until you are ready to start heating water.

__________________
Quote:
Originally Posted by djsethall View Post
It's like a big hot douche for my brewery.
milesvdustin is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 03:49 PM   #9
ajm163
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Denver, CO
Posts: 194
Liked 6 Times on 4 Posts

Default

or you could just get a dual output relay to control both hot legs like this one

http://www.mouser.com/ProductDetail/...9xaE0LNJOrs%3d

__________________
ajm163 is offline

Reply With Quote Quick reply to this message
Old 05-18-2012, 04:08 PM   #10
Bsquared
Feedback Score: 0 reviews

Bsquared's Avatar
Recipes

Join Date: Oct 2006
Location: San Diego
Posts: 1,811
Liked 55 Times on 51 Posts
Likes Given: 22

Default

For added safety I, and others interrupt the red line in your second drawing with a Mechanical relay. I have this relay, but there are others you can use. I control it with a selector switch that will close it when I want power to that element. I have a micro controller (BCS-460) that controls the SSR, which is the main controller for the element.

__________________
Bsquared is offline

Reply With Quote Quick reply to this message
