Default How to put fittings on a Chillus Convolutus CFC

Hey all-

I've been slowly gathering parts for my rig build....today I needed to make it so that my high temp hoses with qd's would fit on my Chillus Convolutus.

Here's what it looks like at MoreBeer, selling for $155:



Not to be confused with the ChillZilla CFC, selling at NB for $190:



See the difference with the fittings? I guess the designers of both figured it would be easy to just slip a hose over the wort in/out. In truth, it is, but I use quick disconnects with silicone tubing....so I needed a quick and easy way to use the chiller. They're both pretty much the same chiller, but I think I prefer the B3 version because all fittings are facing forward. This makes for a better interface if you have it on a shelf on your rig and are taking hoses on/off with qd's. Plus it's cheaper


ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 01:31 AM   #2
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,691
Liked 68 Times on 50 Posts
Likes Given: 11

Default

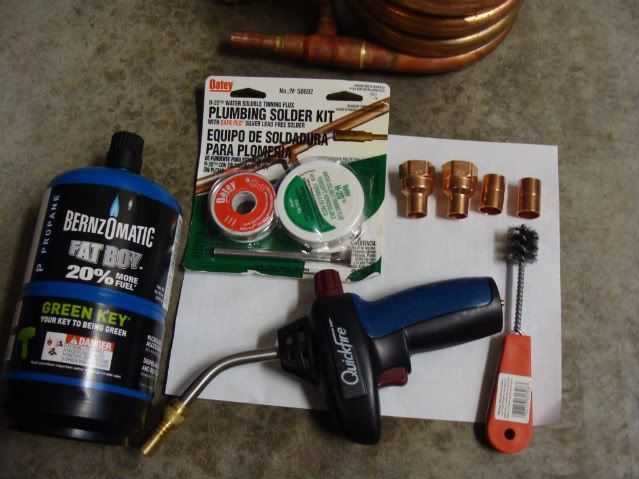

Here's the parts and equipment I started with:



I used a basic propane torch with flux and solder, as well as a wire brush. The fittings include:

2) 1/2"FIPxSweat adapters
2) 1/2" x 1/2" couplers with the crimp, or "stop" in the center

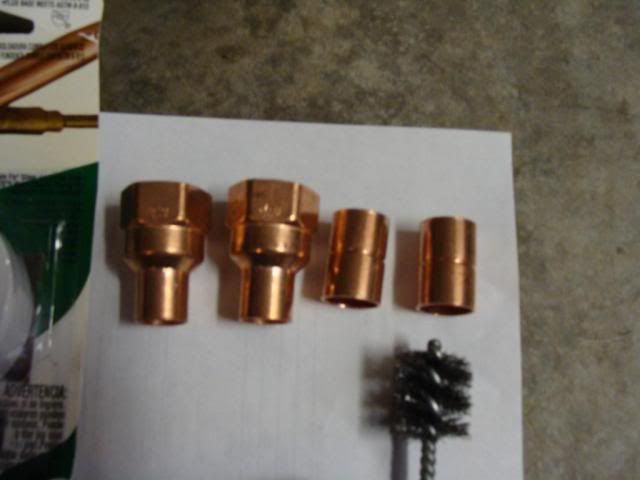

Here's a closer look:



NOTE: The inner tubing of the Chillus Convolutus is a really odd size. It's smaller than 1/2", but bigger than 3/8"...something like 7/16". You can't fit a 1/2" coupler over it snugly; it's a bit loose. That's why I was a little nervous about soldering a joint with a big gap. I hope it doesn't leak!


ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 01:38 AM   #3
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,691
Liked 68 Times on 50 Posts
Likes Given: 11

Default

Next, I prepped all the surfaces to be joined. I used the wire brush and sandpaper,making it look bright and shiny:



Don't ask me what the chiller was originally brazed with. All I know is that it didn't even flinch when heated. I like to think it's solid gold.

Then, I brushed on some flux on the areas and set the fittings in place.

I heated the joints for a good while with the torch, getting them super hot...and melted the solder in. The 1/2" couplers at the end fit the adapters like a glove, so the joint came out beautiful and didn't require much solder. The chiller outputs were an odd size, so there was a bit of a gap to fill on the inboard side of the coupler. I just kept the joint heated and kept laying in the solder until it was packed. It didn't turn out very pretty...



And yet another jacked up looking joint:



Notice how it turns down slightly? Gravity caused the loose fittings to hang on the tubing rather than fitting snugly in place. When I soldered it, the top needed more solder, so I had to go back and forth and pack it in.
