To Windscreen or not to windscreen..

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

madcow_number_6

Well-Known Member
Joined
May 28, 2010
Messages
92
Reaction score
1
I've been using a Bayou burner SP-10 for the last several brews and I'm tickled pink with the way puts out. That is, when there is no wind anyway. The unit comes with a built in *cough* "windscreen" *cough* but it does't block anything gustier than a mosquito fart. Pondering this on my last brew day I realized I was sitting atop an empty 30gal steel grease drum I rescued from the scrap bin at work. The drum is wide enough, and my pot (7gal) narrow enough, that I could cut slits to accommodate the burners' legs and still keep 1 to 1 1/2 inches of clearance the full circumfrence for the pot. maybe add a hole on the leeward side big enough to light the burner through. Not only cure any windy day problems but add better heating for the winter months..

Thoughts? Suggestions? Snide remarks?


lylo

Well-Known Member
Joined
Mar 26, 2011
Messages
198
Reaction score
12
Location
Lacombe

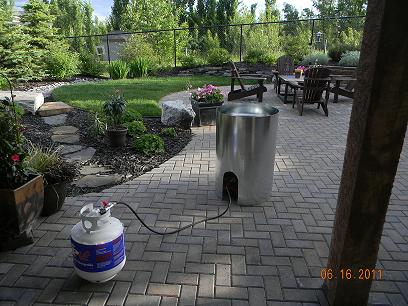

I made this out of tin and works great on the frozen north!



OneHoppyGuy

Well-Known Member
Joined
Nov 16, 2009
Messages
1,648
Reaction score
43
Location
Concord
You need to provide venting at the top of the shroud/bottom of the kettle for air intake or you will choke your flame.


OP
madcow_number_6

madcow_number_6

Well-Known Member
Joined
May 28, 2010
Messages
92
Reaction score
1
Good advice, thanks. I'll see what I can whip up with this thing


william_shakes_beer

Well-Known Member
Joined
Oct 14, 2010
Messages
2,852
Reaction score
317
Location
Maryland
I have a KAB10 with the same problem. I solved it by raising the wind screen. Remove the 4 burner support screws, bend 2 halves of 25 GA sheet steel and strap down with an aviator clamp, then drill and reinstall the burner and support screws. The air still flows from beneath the burner up. Works like a champ.
