Somewhat cheap RIMS tube Build... <$60

[martyjhuebs]

Just bought my supplies to build a RIMS tube so I figured I'd post what I have. I bought all my stainless pipes and fittings from amazon and my element from Lowes. Only thing you would have to figure out is the thermocouple assembly.

1X SS 316 pipe fitting, Hex Plug 1" $2.80
2X 304/304L SS Pipe Fitting Bushing, Class 3000, 1"X1/2" $2.91 Each
1X SS 316/316L Pipe Fitting, Nipple 1"X10" $11.97
2X Shark bite UC120LFA Threaded Male Adapter 1/2"x1/2" $2.52 Each
2X SS 316 Cast Pipe Fitting, Tee, Class 150, 1" Female $5.30 Each

Free shipping over $35 if you pick the right items.

1X Hot water heating element 120v 1500w $10.97 (with tax)

I would recommend that a 240v 4500w be installed instead, they are only $2 more and will give you a longer element with 1125w at 120v. I would also recommend a thicker washers for the element unless you want to silicone the gap.



[martyjhuebs]

Pictures didn't attach...

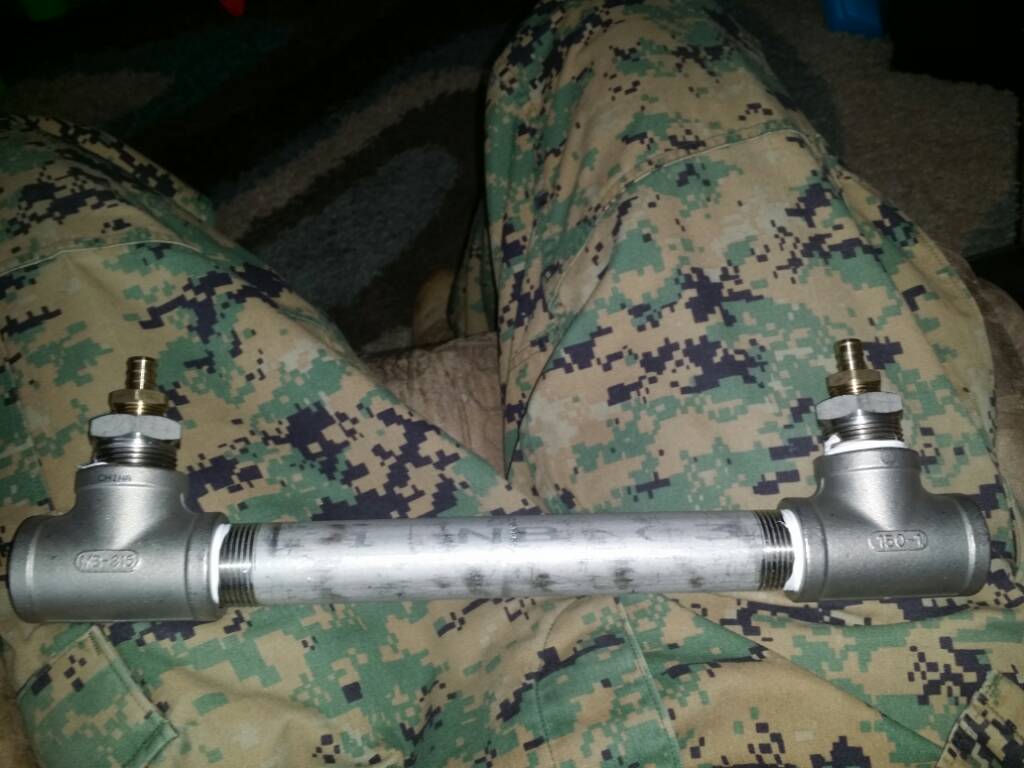

View attachment 1455117086239.jpg

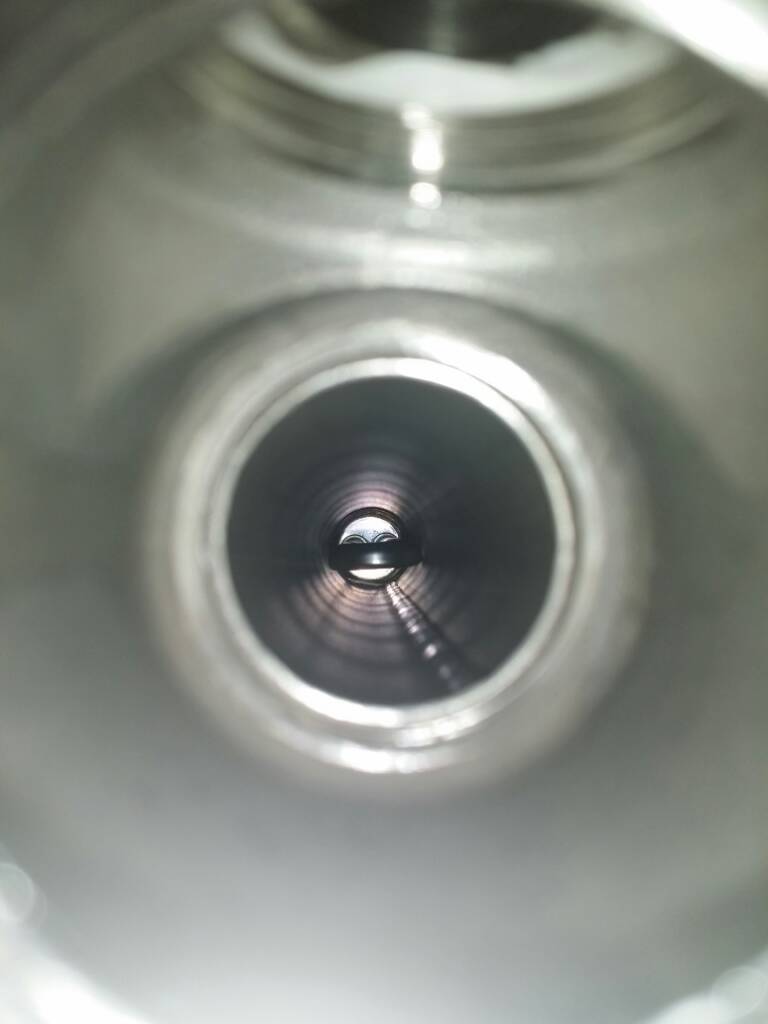

View attachment 1455117116509.jpg



[stever1000]

Hows this working for you?



[martyjhuebs]

I have used it once and it worked perfectly. My PID on the other hand sucks but I was able to correct a mash temp with it and my beer came out really clear. I upgraded to a 240v element at the last minute to make sure I didn't scorch. Totally worth the money for the whole system



[stever1000]

Awesome! I will have to check out Amazon for some parts!
