Nope, Jon. I just started brewing a year ago and am gathering components for my own brew rig. Seen your intriguing thread and noticed you were local. Small world. I see you're going to Gambrinus as well, Maybe I'll catch you there sometime. Keep up the good work and keep us posted.
Roxton Garage/Brewery build
- Thread starter RoxtonBrewing
- Start date
Help Support Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum:
Nope, Jon. I just started brewing a year ago and am gathering components for my own brew rig. Seen your intriguing thread and noticed you were local. Small world. I see you're going to Gambrinus as well, Maybe I'll catch you there sometime. Keep up the good work and keep us posted.
i wondered this as well. maybe b/c of the electric element? i would think it could still have been mounted lower.
OP
OP
RoxtonBrewing
Well-Known Member

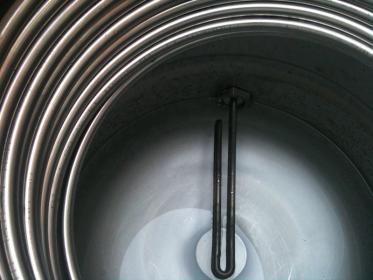

It could have been mounted lower. Part of the problem was just bad planning.
I had actually punched the top hole before I had finished the coil and thought I would have about 25 to 30% more coils in it. I thought it would have been taller and that the bottom would have been lower.
Next one I build will be better.
Oh well, I will just have to put more water in to cover it. I am using a 5500 element, so I don't worry about heating the extra water.
I had actually punched the top hole before I had finished the coil and thought I would have about 25 to 30% more coils in it. I thought it would have been taller and that the bottom would have been lower.
Next one I build will be better.
Oh well, I will just have to put more water in to cover it. I am using a 5500 element, so I don't worry about heating the extra water.
J-Malone
Well-Known Member
aaaahhh, no worries! Looks fine, I was just wondering if there was a strategic advantage to it that I hadnt thought of. Thanks
Thanks to RB, I'm now back into brewing. So much so, that I just volunteered myself to be in charge of the control box. RB was gracious enough to accept my offer so now we're going to be "partners".
The first item I needed was the box itself. We wanted to keep it all SS and since those can be rather pricey, I decided to build it myself. I work at a wholesale food distributor (where his rig table came from) and we have a large pile of scrap metal around back from where we do freezer/dishwasher/etc installs. There was a 12ft long SS sandwich prep station that's been sitting for two years and the drawers from that made the perfect raw materials. I then bought some SS mig wire and started cutting/welding/grinding.
I'm less than a novice welder so flap disks are my friends. I have to mount the back plate, make/install the door and figure out how to mount it to the rig. I've got most of the internals ordered so in the next week or two, I can also start wiring. RB will also have to do his special polishing routine to this baby so it will shine like his keggles.
-casey
The first item I needed was the box itself. We wanted to keep it all SS and since those can be rather pricey, I decided to build it myself. I work at a wholesale food distributor (where his rig table came from) and we have a large pile of scrap metal around back from where we do freezer/dishwasher/etc installs. There was a 12ft long SS sandwich prep station that's been sitting for two years and the drawers from that made the perfect raw materials. I then bought some SS mig wire and started cutting/welding/grinding.
I'm less than a novice welder so flap disks are my friends. I have to mount the back plate, make/install the door and figure out how to mount it to the rig. I've got most of the internals ordered so in the next week or two, I can also start wiring. RB will also have to do his special polishing routine to this baby so it will shine like his keggles.
-casey
Btw.. your garage looks nicer than my kitchen right now
I made some more progress tonight.
I made the backplate from a computer case cover from the first computer I owned. I got it 1993. I'm glad I hung on to it. Never throw away any metal. It'll be useful sometime.
Remove two set screws and you'll be able to remove the box from the mounting pole if you want.
Rounded off the straps a little.
I found these great collars in the scrap pile at work.
It was a pretty good night in the building. Now all I have left to do is to wait from the SS hinge to arrive and figure out how to mount it to the rig table.
I made the backplate from a computer case cover from the first computer I owned. I got it 1993. I'm glad I hung on to it. Never throw away any metal. It'll be useful sometime.
Remove two set screws and you'll be able to remove the box from the mounting pole if you want.
Rounded off the straps a little.
I found these great collars in the scrap pile at work.
It was a pretty good night in the building. Now all I have left to do is to wait from the SS hinge to arrive and figure out how to mount it to the rig table.
OP
OP
RoxtonBrewing
Well-Known Member

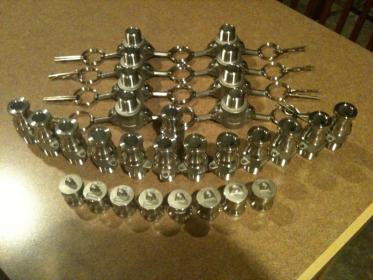

Decided to change out the QC on the keggles.
The ones I had been getting were really getting expensive.
Went with the cam/groove option.
Should work well.
The ones I had been getting were really getting expensive.
Went with the cam/groove option.
Should work well.
jrathfon
Member
subscribed, always fun having picture threads (and getting in on them early)!
OP
OP
RoxtonBrewing
Well-Known Member
Have had to put the build on hold.
When the wife wants you to put down 1500 sq ft of wood floors, you have to go with it if she is on board for your brewery build.
When the wife wants you to put down 1500 sq ft of wood floors, you have to go with it if she is on board for your brewery build.
OP
OP
RoxtonBrewing
Well-Known Member
Almost done with the floor project.
Looking forward to getting back to the brewery build.
Looking forward to getting back to the brewery build.
AdamCanFly
Well-Known Member
Subscribed.
Subscribed...
I'm in the process of doing the same thing....
Do you by chance have a part list for all your SS for the HLT & MLT?
I'm in the process of doing the same thing....
Do you by chance have a part list for all your SS for the HLT & MLT?
OP
OP
RoxtonBrewing
Well-Known Member
lonepalm,
I do not have a parts list made up, but I actually used Kal's build as a guide.
You can find his build here..........
http://www.theelectricbrewery.com/
He has the best site for following an electric build.
I "stole" a lot of his ideas. He has a good parts list to follow.
If you need additional info, you can PM me and i will be happy to help an any way possible.
I do not have a parts list made up, but I actually used Kal's build as a guide.
You can find his build here..........
http://www.theelectricbrewery.com/
He has the best site for following an electric build.
I "stole" a lot of his ideas. He has a good parts list to follow.
If you need additional info, you can PM me and i will be happy to help an any way possible.
- Joined
- Dec 9, 2008
- Messages
- 555
- Reaction score
- 51
Looking good!
rdann87
Well-Known Member
Very nice. I like the all SS approach.. very sexy
OP
OP
RoxtonBrewing
Well-Known Member
I have been told that if you are going to do something, do it right the first time.
I have also been told that I always go overboard on everything I build.
I guess there is a little truth to it.
I just figure SS will give it that "cool" look.
I have also been told that I always go overboard on everything I build.
I guess there is a little truth to it.
I just figure SS will give it that "cool" look.
Lucky_Chicken
Well-Known Member
it does give that cool look! just wish i had the time and resources to do that.
I hear you... I've been gathering parts for a modified version of Kal's build (less amp meter and volt meter)... when it was all said and done, I was $50 in parts away from duplicating his plan exactly, so I said F-it and I just bought those parts now too!
Might as well go with a tried and true system!
- Joined
- Mar 28, 2010
- Messages
- 501
- Reaction score
- 48
Awesome build! Can't wait to see more updates!
OP
OP
RoxtonBrewing
Well-Known Member
Got the control panel from Squatch, and it looks great. He did a wonderful job putting it together.
Got it polished and ready to be wired.
Got it polished and ready to be wired.
Great looking build thus far getting me motivated to start back again on my eHERMS build too....think I have a few honey do list things to tackle first myself....and a few more loads of wood for winter, keep us posted looks great!!!
DevineBrew
Active Member
Looking great.
Subscribed!
Subscribed!
All of the components are in. I started wiring it last night. I'm going to take my time and test it out as I go so there won't be (hopefully) any surprises at the end. The main power relay and the power switch works. I must say, the CLUNK it makes when you turn it on is quite satisfying. I'll post more as I get further along.
And the wiring continues. It sure takes a long time. I still have a lot of organizing to do but that should be pretty easy since I have been paying attention to wire length. Everything works so far and I've been lucky and kept all of the magic smoke inside the components.
Lucky_Chicken
Well-Known Member
I sometimes have trouble with that majic smoke... looking great! keep up the good work
OP
OP
RoxtonBrewing
Well-Known Member
Ok, getting back on track working on this project. Getting the other more important ones (priority set by SWIMBO) around the house done, so I can concentrate more on this one.
Table/Brewstand is almost done. Got the legs cut to lower the height and to accommodate the casters.
Still need to punch holes for control panel mount and paths for wiring/hoses.
The control panel is taking shape.

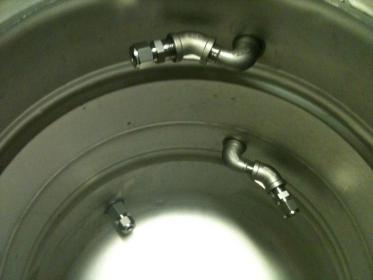

And all the hardware and tubes have been added to the keggles.
Table/Brewstand is almost done. Got the legs cut to lower the height and to accommodate the casters.
Still need to punch holes for control panel mount and paths for wiring/hoses.
The control panel is taking shape.
And all the hardware and tubes have been added to the keggles.
Attachments
The controllers and timer have power now. This is really helping with two people attacking this build. I have to wire the alarm circuit and the temperature probes and the control panel will be done.
D_Ranged_Eskimo
Well-Known Member
Subscribed! Nice looking build!
OP
OP
RoxtonBrewing
Well-Known Member
It's alive!!!!!!!!!
n00tz
Member
Subscribed. Your thread has me rethinking going with Blichmann kettles on Kal's plans. The converted and polished Sanke's just look so much better IMO.
Hoppopotomus
Cedar Hollow Brewing
Beautiful job so far, I'm going down this exact same path very soon. Like yourself, I find myself juggling other projects as well, especially those that my wife puts to the top of the list. She has been supportive of my brewing and my brewing projects, so I have to keep her happy. I'm just wrapping up my basement finishing project and then I'm building the brewery on the unfinished side of my basement this winter. Just started the keggle conversions, but realized that I need to finish one project (the drop ceiling in my basement) before I start another. I have read every last bit of Kals website and find it to be an excellent resource. Again, great work on your build and I look forward to more pics as it progresses.
More progress to report. The control panel is now mounted to the table!
We decided this was the best mounting point. It can swing back when it's being stored.
The pipe grommet (McMaster-Carr for $1.67) makes for a clean installation.
The welds should polish nicely since I used stainless steel welding wire.
The mounting points are very sturdy. If I have to, I can add some more but that will make that one leg permanent. That's why there is only two.
Backside shot.
We decided this was the best mounting point. It can swing back when it's being stored.
The pipe grommet (McMaster-Carr for $1.67) makes for a clean installation.
The welds should polish nicely since I used stainless steel welding wire.
The mounting points are very sturdy. If I have to, I can add some more but that will make that one leg permanent. That's why there is only two.
Backside shot.
OP
OP
RoxtonBrewing
Well-Known Member
Well, we are getting closer and closer.
Just need to finish up a little bit of the wiring from the panel and add the pumps/chiller.
Just need to finish up a little bit of the wiring from the panel and add the pumps/chiller.
I can almost taste the beer now. I'm so pumped!
Casey
Casey
thomasgorff
Well-Known Member
This is probably the coolest thing I have ever seen in my life! Are you following any sort of plan with this? If so, is there any detailed information on the web for this type of set up? What is the cost behind this setup?
OP
OP
RoxtonBrewing
Well-Known Member
We followed a lot of Kal's build on www.theelectricbrewery.com but added a bit of our own designs in it.
There are 100s of threads to help you out on this site. I don't think I would have even tried this without help from here and people local with previous experience.
BTW, welcome to Homebrewtalk.
Great place to learn.
There are 100s of threads to help you out on this site. I don't think I would have even tried this without help from here and people local with previous experience.
BTW, welcome to Homebrewtalk.
Great place to learn.
