Also I think the glycol loss is from the HEX actually beginning to leak. It got worse for me as time went on. If I had a zymatic still I would replace the plate chiller.
This is a pic of the one that was in my machine. I am sure you can find something equivalent.


Attachments

Yaowei

Member
Joined
May 26, 2020
Messages
5
Reaction score
1
Mike might know better as he has probably done this more recently, but from what I recall you need to have a Philips screw driver, and for the front there's nuts that are pretty far up to keep the machine top on to near the display. I think the nuts might be 5/16 or 3/8. I forget if you have to remove that part though I think you can take the whole lid off with top. A long extension is good. Also a hex key set because one of the bolts holding the drip tray and case on is hex. In addition if you have it a pex clamp cutter but some strong cutters would work as well to remove their pex style hose clamps. Get some hose clamps too because you are going to have to replace those clamps. The hoses to the in and out ports on the machine on the inside need to be removed to get the lid totally off. The heating element is all the way in the bottom along with glycol pump. I found it easiest to fill a cup with glycol and run the 12v pump with extra hose to get all bubbles out. It is kinda a pain. Be careful too because the sheet metal in there is unfinished and sharp. It can cut you.
Thank you so much for the information! I will give it a go and see.


TallDan

Internet Hobo - Sheepmaster
Lifetime Supporter
Joined
Jan 6, 2013
Messages
15,633
Reaction score
6,893
Location
Northbrook
I'd take it for $100....
So, it appears that it's never been used at all, not even unpacked. Also doesn't appear to come with a keg.

Any important pieces that I need to make sure are in there? I'm assuming that no keg is included but I have corny kegs. Based on my quick reading in this thread and elsewhere, it looks like i should be able to create an account on picobrew's website and get going?

Am I crazy for spending any money on this right now, or am I crazy to not get it for $100? :)



Mike Howard

Supporting Member
HBT Supporter
Joined
May 22, 2018
Messages
399
Reaction score
147
Location
Texas
Its a great buy at $100... Did it come with the two black hoses hat attach to the right side? That is also an older machine, as you can see by the faceplate, the newer machines did away with the fermenter image.

Not sure about the account setup, as I'm not sure support is still around and I'm not 100% sure, but I think they need to match your username with the machine id.

However, very soon you will have a couple of options to avoid Picobrews servers altogether, so if you can't get it going right now, you soon will.


Mike Howard

Supporting Member
HBT Supporter
Joined
May 22, 2018
Messages
399
Reaction score
147
Location
Texas

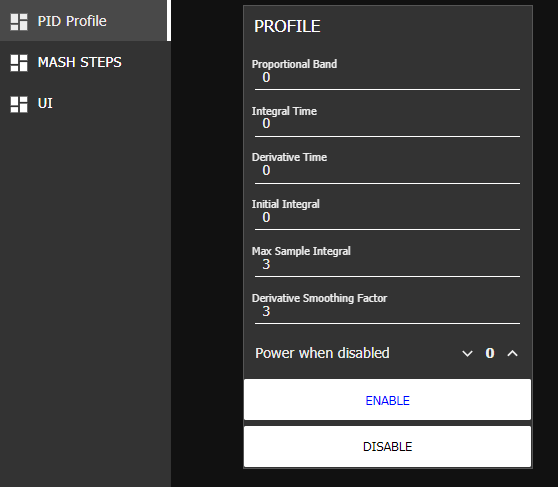

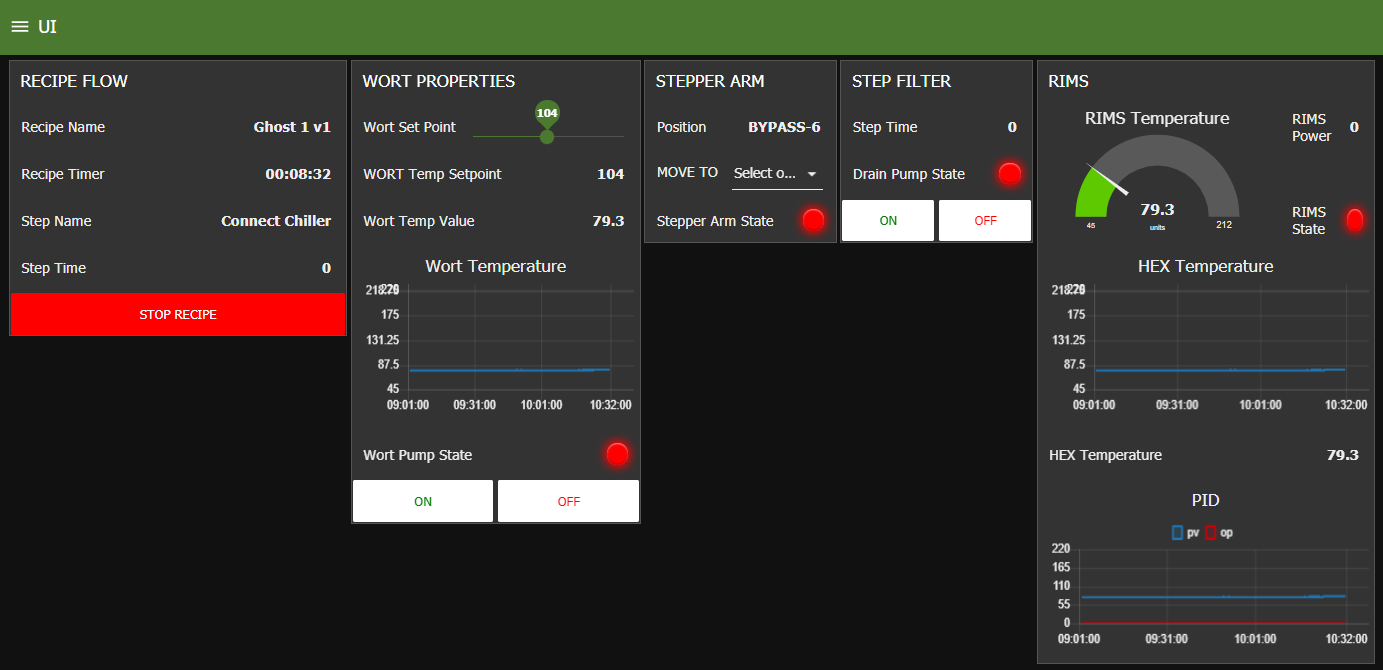

FYI, I've got an Alpha version of my offline software I am developing controlling my Zymatic (with the exception of the stepper arm) and I am nearing the Beta testing phase. The software reads in the Zymatic beerXML file and mimics the process flow from there. It all looks good right now and the operation seems to be smooth. It's not ready for other user testing at this point but I am nearing that. It will be fully open-sourced and it is written in Node.js running on a Raspberry Pi. I'll have a complete write up on the mod and installation for anyone who wants it, once I have completed my internal testing.

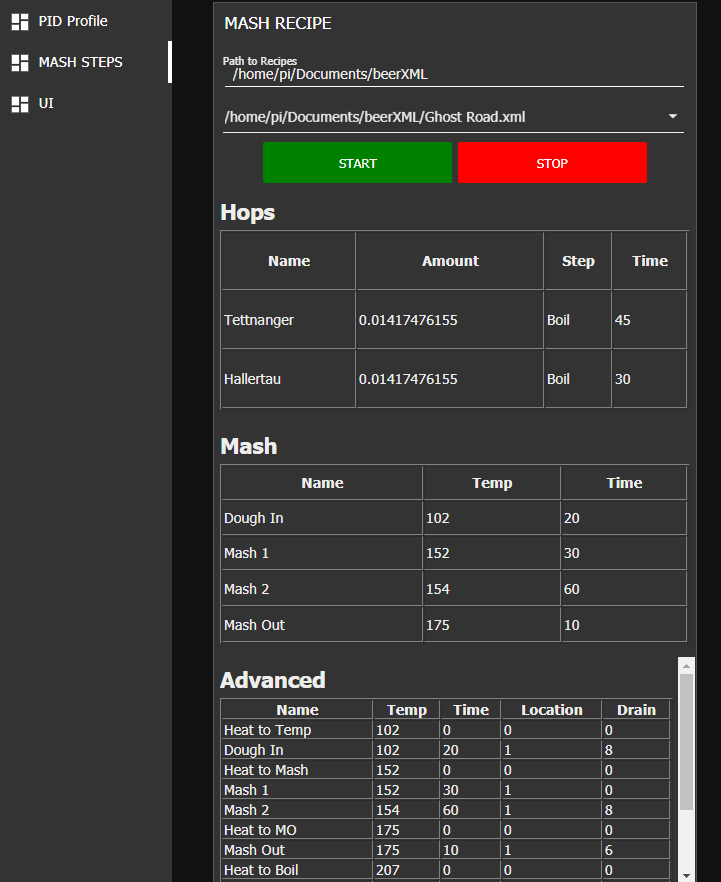

Mash Steps.PNG




Attachments

TallDan

Internet Hobo - Sheepmaster
Lifetime Supporter
Joined
Jan 6, 2013
Messages
15,633
Reaction score
6,893
Location
Northbrook
Its a great buy at $100... Did it come with the two black hoses hat attach to the right side? That is also an older machine, as you can see by the faceplate, the newer machines did away with the fermenter image.

Not sure about the account setup, as I'm not sure support is still around and I'm not 100% sure, but I think they need to match your username with the machine id.

However, very soon you will have a couple of options to avoid Picobrews servers altogether, so if you can't get it going right now, you soon will.
Picked it up today. It has the hoses. Seller says it was never used, but it looks kinda like it was used once, cleaned and put away. Went to register it on picobrew's site, and it says that it's associated with another account, so I put the info in a message to picobrew support. Guess I'll find out soon if anyone answers!


chiefwigms

Well-Known Member
Joined
Jun 8, 2012
Messages
114
Reaction score
34
anyone have a wireshark capture of a recent zymatic session by chance? I based my code off Tom's github zymatic server, but I'd just like do to a replay and make sure mine works... the capture i thought I had from my last brew a while ago is corrupt.


Biff

New Member
Joined
Jan 24, 2020
Messages
1
Reaction score
1
Hello Mike Howard. I was going to give up on my Zymatic, but your efforts to make offline brewing a reality have re-energized me to keep it around and get it going again. Can you send me your procedure on the Zymatic repair/upgrade for the glycol loop? Many thanks in advance!


Joe T

New Member
Joined
May 28, 2020
Messages
1
Reaction score
0
Hi Mike. I'm also getting the error 1 message. Could I get a copy of your repair procedure? Thanks!


chiefwigms

Well-Known Member
Joined
Jun 8, 2012
Messages
114
Reaction score
34
FYI - added zymatic support for firmware 1.1.14 (tested!). If you have an old laptop, just wire it w rj45 and add "127.0.0.1 picobrew.com" to your hosts file- no wifiz/pi needed

Last edited:

David I.

New Member
Joined
Aug 23, 2018
Messages
1
Reaction score
1
FYI, I've got an Alpha version of my offline software I am developing controlling my Zymatic (with the exception of the stepper arm) and I am nearing the Beta testing phase. The software reads in the Zymatic beerXML file and mimics the process flow from there. It all looks good right now and the operation seems to be smooth. It's not ready for other user testing at this point but I am nearing that. It will be fully open-sourced and it is written in Node.js running on a Raspberry Pi. I'll have a complete write up on the mod and installation for anyone who wants it, once I have completed my internal testing.
Wow, incredible work Mike. This is exciting


jmorrell80

New Member
Joined
Jun 19, 2020
Messages
1
Reaction score
1
After letting my Zymatic sit on the shelf for almost a year since moving, this thread has helped me greatly in getting it going again, and fighting fatal error #1. There have been several mentions of the nylon washers going from the machine to the hoses. Mine are still in place but I'm wondering if it might help to replace them. Does anyone know what a suitable replacement is?


Mike Howard

Supporting Member
HBT Supporter
Joined
May 22, 2018
Messages
399
Reaction score
147
Location
Texas
After letting my Zymatic sit on the shelf for almost a year since moving, this thread has helped me greatly in getting it going again, and fighting fatal error #1. There have been several mentions of the nylon washers going from the machine to the hoses. Mine are still in place but I'm wondering if it might help to replace them. Does anyone know what a suitable replacement is?
Probably this: Flare Fitting - Washer

But I've never had to replace them....yet.


chagtie

Member
Joined
Apr 23, 2020
Messages
10
Reaction score
2
Is there any updates as to if PicoBrew has closed its doors? If so does anyone know what will become of the website and the server to run the machines?

If they close could we all set up a cloud funding site to purchase the site and server?

I see that great work is being done on creating stand-alone software (thank you so much !!) is there away to download and upload all the public recipes, as I am kinda novice and find tremendous value in them?

Joined
Sep 19, 2017
Messages
289
Reaction score
124
Location
Charlotte
We have about six months before the mothership goes dark. Once that happens you will have to have a personal server to use your machines. I doubt they will sell the server and domain name due to it being part of the IP Portfolio. Someone may purchase it and put it back online but if so I am certain it will be a paid service. The personal server is the way most will go. There is a way to upload recipes from my understanding. They are still working the bugs out of everything at the moment.

Is there any updates as to if PicoBrew has closed its doors? If so does anyone know what will become of the website and the server to run the machines?

If they close could we all set up a cloud funding site to purchase the site and server?

I see that great work is being done on creating stand-alone software (thank you so much !!) is there away to download and upload all the public recipes, as I am kinda novice and find tremendous value in them?


MW_Maverick

New Member
Joined
Jun 22, 2020
Messages
1
Reaction score
1
Location
Columbus OH
@Mike Howard Fantastic work! I've also started receiving the fatal error #1 but was able to push through with preheating the strike water. I'm interested in pursuing the long term fix of replacing the glycol - can you send me your procedure? Thanks for everything you're doing!


MVazquez

New Member
Joined
Jan 3, 2012
Messages
2
Reaction score
0
Location
Raleigh
@Mike Howard Thank you for the useful information in this thread. My Zymatic has had the fatal error #1 for some time now. There is a large gap between the wort temperature and heat temp and a gurgle. It now also has developed a leak. I am guessing that it has a glycol leak.

Could you please send me some information on how to open the unit and resolve the glycol leak. Thank you in advacnce.


memphisbrews

Member
Joined
Jun 24, 2020
Messages
5
Reaction score
3
Mike, do you mind posting the glycol solution? I am having the same issue as MVazquez and am currently having to preheat my water to make the Zymatic work.

Joined
Sep 16, 2019
Messages
10
Reaction score
3
I can't help but think of all the people here that were asked to do several deep clean cycles when the solution was to top off glycol.
Sure the fix might no be easy to do by everyone but at least they could have offered instructions like Mike has done. I bet all of these machines were already out of warranty when they first got the error anyway.


Mike Howard

Supporting Member
HBT Supporter
Joined
May 22, 2018
Messages
399
Reaction score
147
Location
Texas
I can't help but think of all the people here that were asked to do several deep clean cycles when the solution was to top off glycol.
Sure the fix might no be easy to do by everyone but at least they could have offered instructions like Mike has done. I bet all of these machines were already out of warranty when they first got the error anyway.
Their service department had no clue this was an issue...I broke the news to them, among other things.


Mike Howard

Supporting Member
HBT Supporter
Joined
May 22, 2018
Messages
399
Reaction score
147
Location
Texas
OFFLINE SOFTWARE UPDATE:

I've got the Stepper Arm working for each position finally and I am working on synchronizing it to the encoder so it can rehome itself and allow for fine tuning of positioning. Once that is complete I'll move on to water testing to make sure the PID is working and determine the default values. I added process blocking to the RIMS unit so it could not activate without the Glycol pump running or the Wort pump running and I added a new chart to monitor the STD DEV of the three temp sensors. The warning and error values still need to be determined after some trial runs along with some other process blocks to prevent system damage and common mistakes. The controller works off of BeerSmithXML files or Picobrew Recipe Crafter beerXML output but should work with any beerXML file.



TREY206

Member
Joined
May 2, 2020
Messages
13
Reaction score
6
Had to tear apart my Z today to solve some issues. Glycol was issues for the Z also. 6 hours to figure it out and 5 minutes to fix. My brain is still smoking.

Joined
Sep 19, 2017
Messages
289
Reaction score
124
Location
Charlotte
I thought the Z series was running a closed water system not a glycol system?

I know the original ZyMatic was a glycol system.

Had to tear apart my Z today to solve some issues. Glycol was issues for the Z also. 6 hours to figure it out and 5 minutes to fix. My brain is still smoking.


TREY206

Member
Joined
May 2, 2020
Messages
13
Reaction score
6
Lmao. If thats the case its running with 1/3 glycol now! Couldnt find any info so I used the zymatic solution. You have any details about the Z specs?
