Oops... one inch hole for weldless fitting

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

BarnabyHooge

Well-Known Member
Joined
Jul 15, 2008
Messages
153
Reaction score
0
Location
Chicago ~ Rogers Park
I screwed up and drilled one inch hole on a keggle for the weldless fitting instead of the 7/8. I managed to use the right one for all three of mine, but the first time I drill the hole for someone else, wrong size. Crud. I didn't even realize I had a 1" hole saw.:mad:

The set up still seems to work and I'm not getting any leaking out of the wall joint and it seem pretty solid. The only think that irks me a little is that the o-rings seem to be creeping out a lot more than mine do.

Anyway, I'd really like to plud the hole and give this guy a proper bulkhead/spout. Has anyone tried to plug one of these before? I was thinking a couple of stainless washers bolted together with some silicone material might do the trick, but I thought I'd see if anyone else had any experience.

L

OP
B

BarnabyHooge

Well-Known Member
Joined
Jul 15, 2008
Messages
153
Reaction score
0
Location
Chicago ~ Rogers Park
Not sure where I'll get hi-temp silicone washers, but I was thinking of trying to find some silicone bakeware on sale. It may not look great, but it'll work.

OP
B

BarnabyHooge

Well-Known Member
Joined
Jul 15, 2008
Messages
153
Reaction score
0
Location
Chicago ~ Rogers Park
It's a lenox bi-metal. Standard issue at Lowes/HD. I had actually used a 3/4 bit for my earlier kegs, and dremeled out the hole until the nipple fit perfectly. Worked great.

I only wish I would have remembered that I bought a 1" for a different use. That's what you get for assuming, I guess.


TBORBrew

Member
Joined
Feb 5, 2010
Messages
10
Reaction score
0
Location
Florida
I had no problem going through a stainless megapot with a HD Rigid brand bi-metal hole saw. Actually cut easier than step bit. I prefer the hole from the step bit / dremel though.


klyph

Well-Known Member
Joined
Dec 9, 2009
Messages
1,792
Reaction score
53
Location
North Pole, Alaska
Huh, I've been saving up for a stainless capable hole saw ($$$) but I guess I can just give it a go with the bi-metal.

Joined
Apr 23, 2009
Messages
34,111
Reaction score
13,124
Location
☀️ Clearwater, FL ☀️
If you get a sheet of this you'll have plenty of gasket material:

8615K82
Oil-and Water-Resistant Buna-N/Vinyl Rubber FDA-Compliant, 1/16" Thick, 12" X 12", 70A DuroIn stock at $7.86 Each
go to home depot and look around for "rubber packing sheets". They're red. Plumbing aisle. Mine has them for under $1. about 4x6". I cut custom gaskets. Used them on a boil pot, about 20 batches, still good.

OP
B

BarnabyHooge

Well-Known Member
Joined
Jul 15, 2008
Messages
153
Reaction score
0
Location
Chicago ~ Rogers Park
I'd be a little worried about how food safe they are, otherwise that's a great solution.


go to home depot and look around for "rubber packing sheets". They're red. Plumbing aisle. Mine has them for under $1. about 4x6". I cut custom gaskets. Used them on a boil pot, about 20 batches, still good.


AnOldUR

fer-men-TAY-shuhn
Lifetime Supporter
Joined
Mar 12, 2007
Messages
6,853
Reaction score
856
go to home depot and look around for "rubber packing sheets". They're red. Plumbing aisle. Mine has them for under $1. about 4x6". I cut custom gaskets. Used them on a boil pot, about 20 batches, still good.
This might work fine, but the stuff I linked to is FDA compliant and good to boiling temperatures. The HD red packing sheets are only rated to 170 degrees.

Joined
Apr 23, 2009
Messages
34,111
Reaction score
13,124
Location
☀️ Clearwater, FL ☀️
This might work fine, but the stuff I linked to is FDA compliant and good to boiling temperatures. The HD red packing sheets are only rated to 170 degrees.
Yea, after I posted I realized that I had no idea what the temp rating was. However, like I said, it is on an older pot that I used many, many times. Many, many times.


bf514921

Well-Known Member
Joined
Dec 29, 2009
Messages
276
Reaction score
2
Location
Central City

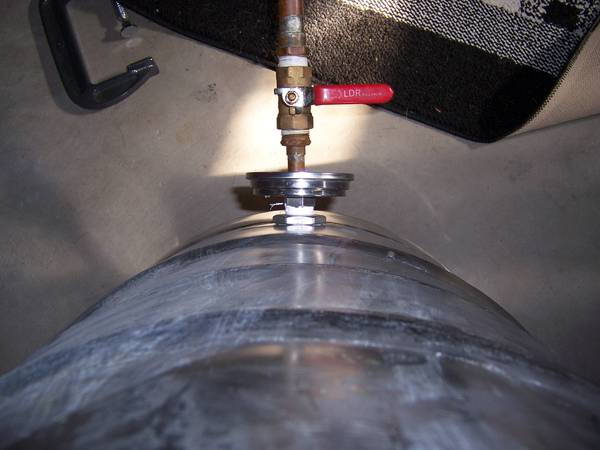

Had a similar type problem, i wanted to add a thermometerr to my mastun, but the existing hold was to big for the 1/2 in npt fitting and a weldless fitting, but i had an extra 1" weldless fitting for an electric element, bouthg one of these, http://www.buyfittingsonline.com/Fittings/item6281.htm
and used my wledless electric fitting on the inside,
http://www.weldlessfittings.com/kettlefittings.html scroll to the bottom of the page for the fitting
NO!!!! washer on the outside, or oring.
it does require a 1.25 inch hole not 1", so you might be able to do the same sort of thing. i will get a pictrue posted shortly


firebird77

Well-Known Member
Joined
Jan 7, 2010
Messages
99
Reaction score
1
Location
Philadelphia
Yea, I was gonna say just use a nipple that is big enough to fill the hole, which is threaded inside to the diameter you need. Essentially it will be the same setup as always, just uses a larger bulkhead and a reducer.
