I convinced my soon to be wife that I was going to brew all the draft beer for our wedding in July. So, because I am supplying all the beer I need a keezer and she said yes and ok'd my build and the extra beer brewing budget to come out of the wedding fund...

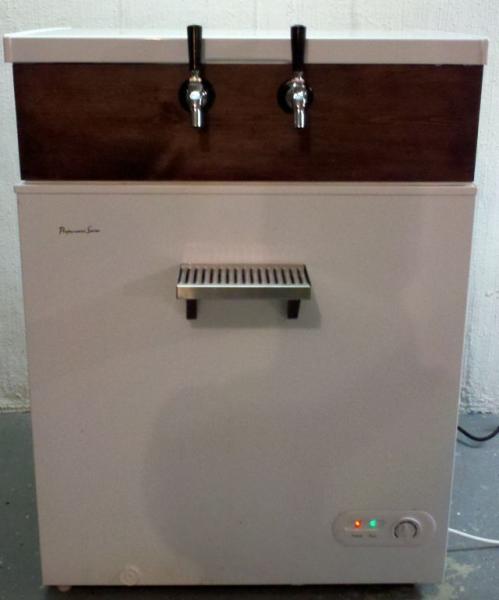

I Built a simple 5.2 cu.ft keezer, that will hold 3 (maybe 4 if I get inventive, will explain) with 2 taps.
I wanted to be able to have 2 beers on tap with the ability to force carb/hold on pressure the 3rd without having it tapped and switch out easily by the bartender during the wedding if one of the kegs empties.

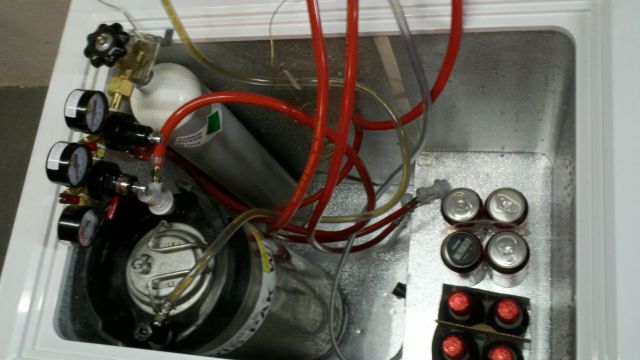

After much hunting I tried to maximize the space inside the small freezer, built a 8" collar, carved some of the foam from the lid, and I hunted down a 7# co2 tank that is as tall as a corny but much thinner, as a result....I can put 2 ball or pin lock kegs in the lower section, and 1 on the hump. If I want to use a combo of ball lock and Pin lock(or converted pin lock) I can fit 4. 2 pin lock(converted ball lock) and 1 normal ball lock will just fit very tightly on the bottom and 1 either ball lock or pin lock on the hump. But I digress, I have siliconed the lid to the collar, attached it with a reinforcement plate on the back and gasketed with rubber window gasket. I also built it so the whole collar and lid tip up to make it easier to load in the kegs.
I Built a simple 5.2 cu.ft keezer, that will hold 3 (maybe 4 if I get inventive, will explain) with 2 taps.
I wanted to be able to have 2 beers on tap with the ability to force carb/hold on pressure the 3rd without having it tapped and switch out easily by the bartender during the wedding if one of the kegs empties.
After much hunting I tried to maximize the space inside the small freezer, built a 8" collar, carved some of the foam from the lid, and I hunted down a 7# co2 tank that is as tall as a corny but much thinner, as a result....I can put 2 ball or pin lock kegs in the lower section, and 1 on the hump. If I want to use a combo of ball lock and Pin lock(or converted pin lock) I can fit 4. 2 pin lock(converted ball lock) and 1 normal ball lock will just fit very tightly on the bottom and 1 either ball lock or pin lock on the hump. But I digress, I have siliconed the lid to the collar, attached it with a reinforcement plate on the back and gasketed with rubber window gasket. I also built it so the whole collar and lid tip up to make it easier to load in the kegs.
