Baspronick
Active Member

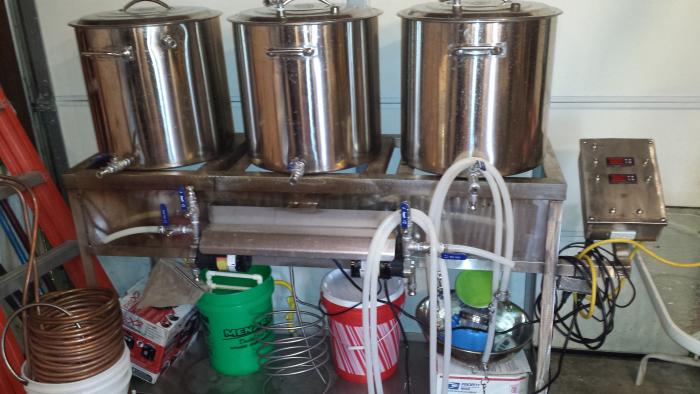

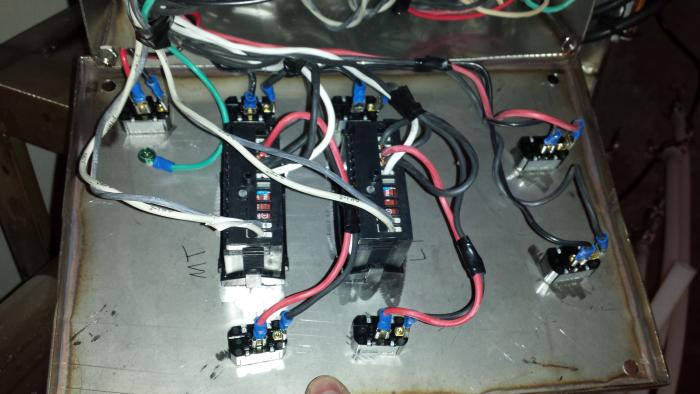

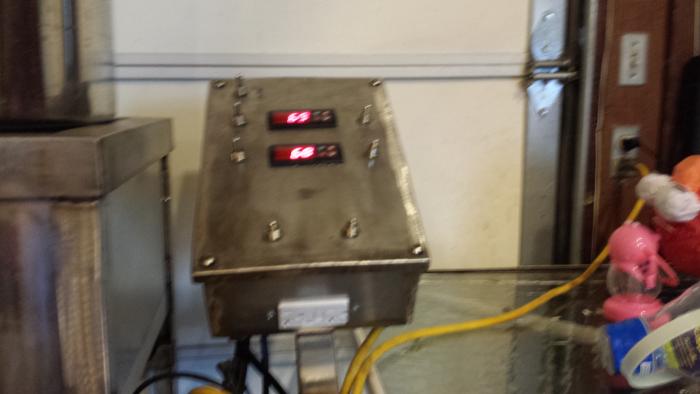

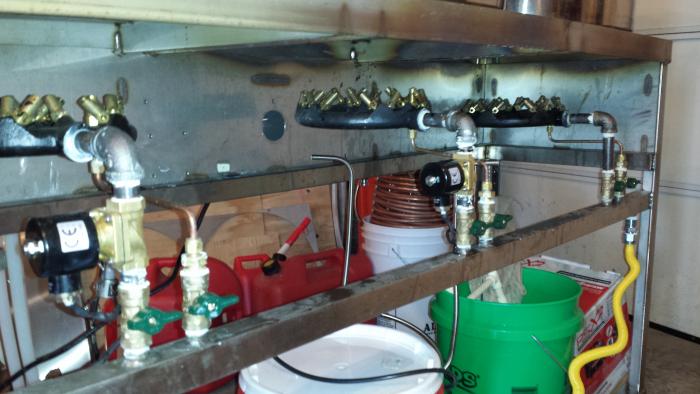

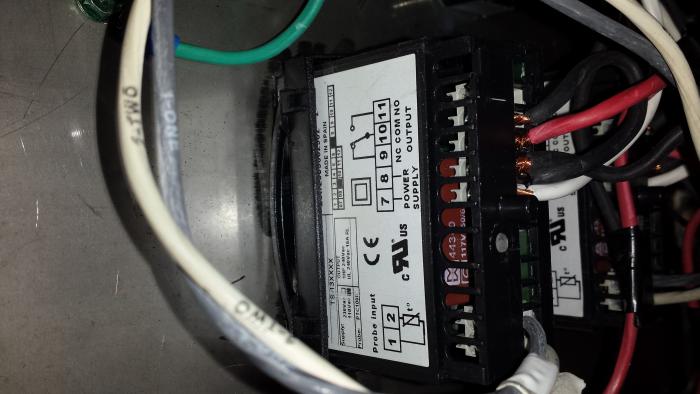

hello, I am having an issue with my love controllers on my brutus stand that I just built. My problem is that my burners will not kick off when they reach the set point. I am not real familiar with temperature controllers, so im hoping that I am just overlooking something silly, and that someone can help. My settings are as follows: r0= 1, r1= -50, r2= 180, d0= ht, d2= 30, d8= 8, c0= 0, c1= 0, c3=5, P1= 0, H5= 0, t0= 150. My wiring is as follows: Probe goes into 1 and 2. My neutral goes to 7, and my hot into 8, along with a jumper in 8. That jumper goes into 10. my output wire then goes into 9, nc, with nothing into 11, no. If I could get some help here it would be greatly appreciated.
