Ive been using a pulley /motor system (bought everything at tractor supply but the motor and mill) for my old 2 roller cereal killer which is exact same mill as the kegco 2 roller mill and made by the same factory who makes the 3 roll kegco and keg king mills...
Its been about 4 years now and many sacks of grain and theres zero wear on the bearings that I can see. The belts however have worn out on me. the motor I have is non reversible and rotates the wrong way for direct drive.

Monster mill actually recommends the bearing upgrade if a person wants to use one of their mills with a pulley /belt drive system.


ancientmariner52

Supporting Member
HBT Supporter
Joined
Apr 6, 2014
Messages
1,283
Reaction score
1,117
Location
Western Arkansas
Side loading will quickly destroy bronze bushings. Properly sized ball bearings will handle reasonable belt tension pretty much indefinitely. You probably have ball or roller wheel bearings on whatever you're driving, and they carry the load just fine. V belts don't need to be super tight, they grip the tapered groove by bulging out where they wrap around the pulley.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY

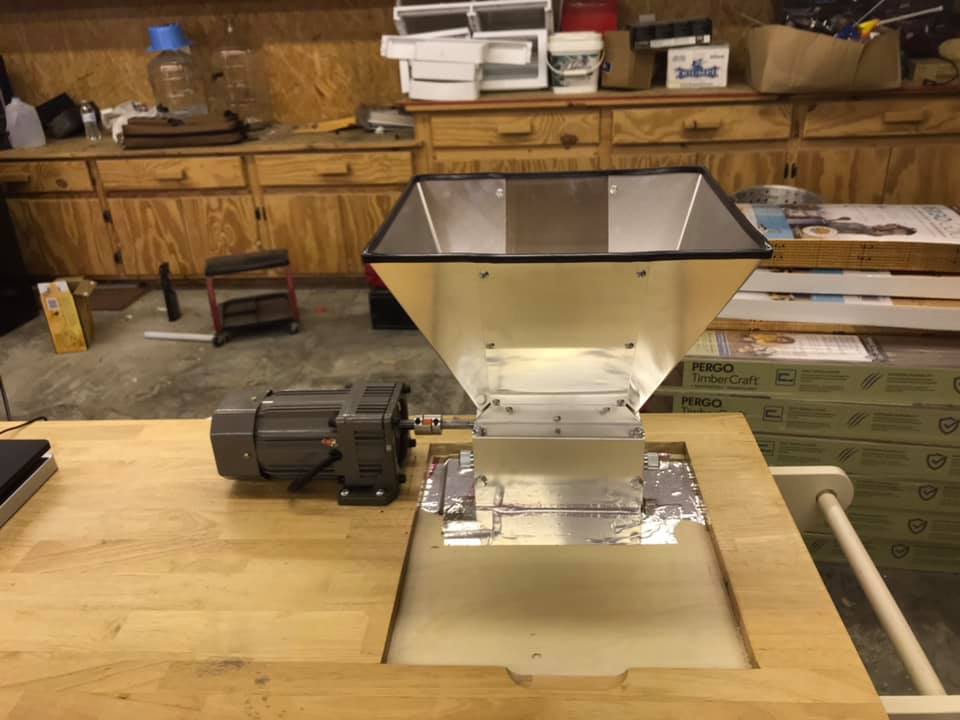

Just wanted post an update that Ive motorized my kegco with a 170rpm 1/6hp gear reduction motor and drum switch for reverse. I have pushed over 600lbs of grain through it thus far with zero adjustments or tinkering after the first use. the knurling is still sharp and its working flawlessly.


gnor

Well-Known Member
Joined
Aug 23, 2014
Messages
122
Reaction score
15
Where did you buy your motor?


TNJake

Well-Known Member
Joined
Dec 6, 2018
Messages
162
Reaction score
62
Location
knoxville
So I read someone using 6mm screws and a couple others using 8mm screws.
Anyone know the hole pattern for the base?
I ordered the kegco 3 roller mill yesterday and I'd love to fabricate something at work in time to use it on arrival.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
So I read someone using 6mm screws and a couple others using 8mm screws.
Anyone know the hole pattern for the base?
I ordered the kegco 3 roller mill yesterday and I'd love to fabricate something at work in time to use it on arrival.
I believe I did the paper pencil rubbing thing myself to get the screw hole layout when I made mine. I dont remember for sure since the mill is at the brewery but I remember the screw had 10mm heads on them if it helps.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
So another update, we've put over 3,600lbs of grain through or kegco 3 roller at the brewery now and havent had to so much as even blow it off with compressed air yet... everything is holding up and working perfectly


LittleRiver

Well-Known Member
Joined
Jul 3, 2017
Messages
1,081
Reaction score
1,227
So I read someone using 6mm screws and a couple others using 8mm screws. Anyone know the hole pattern for the base? I ordered the kegco 3 roller mill yesterday and I'd love to fabricate something at work in time to use it on arrival.

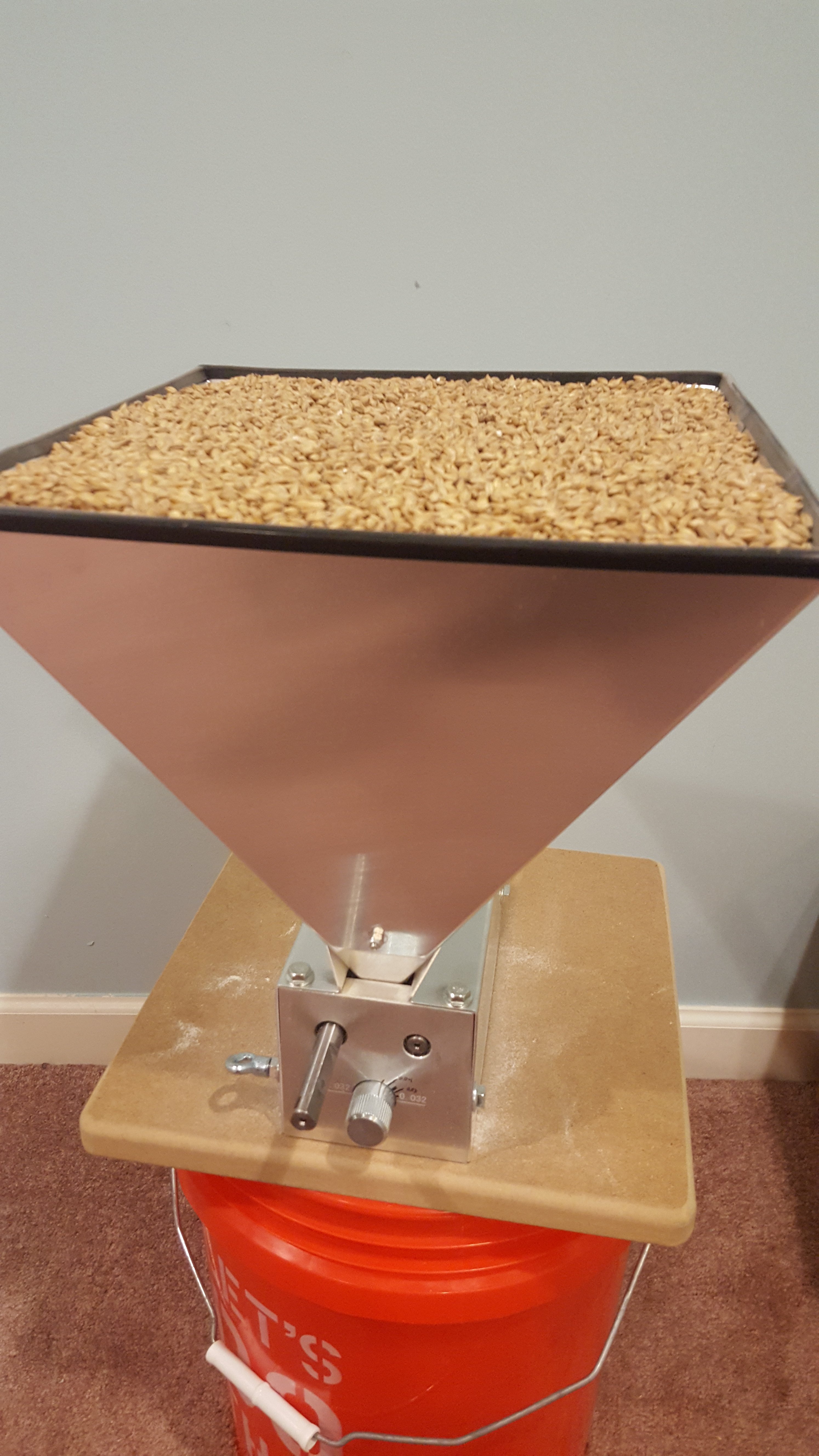

I believe they now ship with a simple baseplate that fits on top of a standard 5gal bucket, so you should be able to use it right away (though you'll probably still want to make your own baseplate, to better control dust).

The hole in the baseplate I made for mine is 5.8" x 3.25". The hole pattern is x 6.53" x 2.85". I measured the hole pattern just now from the top of the screw heads, so it should be good, but oversize your holes a bit to be safe. Screws are definitely M6, I just checked them with a thread gauge.

I located the short edge of the hole 2.125" from the edge of the baseplate. That positioning works well for driving it with a drill, and also allows the manual crank lever to be used (though I've never used it).

IMG_20171208_141928_981.jpg IMG_20171208_142146_496.jpg


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
I had to use 6mm. Mine is more recently purchased than anyone else who commented.

For what it's worth, the layout is the same as the monster mill (I'm using a monster mill base).

Cheers
My understanding is the only differences between this clone and the MM3 is the fact that the kegco is metric since its foreign made vs US. The hopper extension bolt on as well.
Oh almost forgot the biggest difference, the kegco uses sealed ball bearing as the standard option... Its a rather expensive upgrade option from mm to the "PD pro series mills" at $479 with no hopper or handle. As the standard mm3 uses bronze bushings..

Last edited:

TNJake

Well-Known Member
Joined
Dec 6, 2018
Messages
162
Reaction score
62
Location
knoxville
I believe they now ship with a simple baseplate that fits on top of a standard 5gal bucket, so you should be able to use it right away (though you'll probably still want to make your own baseplate, to better control dust).

The hole in the baseplate I made for mine is 5.8" x 3.25". The hole pattern is x 6.53" x 2.85". I measured the hole pattern just now from the top of the screw heads, so it should be good, but oversize your holes a bit to be safe. Screws are definitely M6, I just checked them with a thread gauge.

I located the short edge of the hole 2.125" from the edge of the baseplate. That positioning works well for driving it with a drill, and also allows the manual crank lever to be used (though I've never used it).

View attachment 631865 View attachment 631866
Thank you! You are awesome!
I have access to all kinds of steel and aluminum fabrication equipment at work so I might over-engineer something on Solidworks.


scottland

Well-Known Member
Joined
May 17, 2010
Messages
2,112
Reaction score
166
Location
Chandler
I just bought one of those.

Quality seems quite nice. The blue plastic came off pretty easy if I went nice and slow.

I can confirm, the rollers are definitely not hardened steel. I’m not sure where that notion came from, but they are definitely not. A file digs right into the roller. Files should skate across hardened steel.

With that said, I think it’s going to be just fine for what I hope to get out of it. My Barley Crusher lasted 10 years. If I can get 15 years out of this mill, I’ll call it a win.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
I just bought one of those.

Quality seems quite nice. The blue plastic came off pretty easy if I went nice and slow.

I can confirm, the rollers are definitely not hardened steel. I’m not sure where that notion came from, but they are definitely not. A file digs right into the roller. Files should skate across hardened steel.

With that said, I think it’s going to be just fine for what I hope to get out of it. My Barley Crusher lasted 10 years. If I can get 15 years out of this mill, I’ll call it a win.
There are different grades of hardness in different steel making and working technics. A file is designed to be some of the hardest steel out there like a hardened knife blade.

They are cold rolled steel and are in fact much harder than the barley crusher rollers according to others experience and judging by the noticable wear on the barley crusher my business partner at the brewpub owns that he only used for homebrewing vs the lack of any wear on the motorized kegco 3 roller we have now been using to brew 3bbl beers every week for just over a year and likely put somewhere between 8,000 and 10,000bls of grain through at this point.

Ive only seen two negative reports on this forum about rollers on the kegco-malt munchier-cerieal killer- northern brewer mills (all are made by the same company) one report was of a damaged bearing the owner was able to replace. The other report was very vague and as first it was the friend of the guy who had the bad experience but he couldnt remember which mill it was, then later in another thread it was that guy who stated it he had issues with a "cheap chinese" mill he owned along with his friends experience on a similar mill... But in yet another thread the same guy stated He bought the MM3 instead of the kegco because it was only a "couple bucks more" and then went on to bash chinese made hardware in all three threads so personally I take that feedback with a grain of salt.

Last edited:

scottland

Well-Known Member
Joined
May 17, 2010
Messages
2,112
Reaction score
166
Location
Chandler
Hey, I’m not bashing the mill, I’m happy with my purchase.

Im just stating, none of the official documentation states the rollers are heat treated or hardened, and my empirical evidence supports that.

We don’t need to get into a pissing match on metallurgy, but these are not heat treated rollers. A single pass with a file digs right in, hardly different than my barley crusher rollers. Cold rolling or working mild steel will increase its hardness, but it’s not the same as a higher carbon steel or tool steel that’s been heat treated.

With that said, the knurling is much more aggressive, and the 1.5” diameter rollers should improve the angle the grain pulls into the mill. This is a much better mill than the BC, and the steel hardness doesn’t concern me. Hardened rollers are likely overkill for a 1.5” 3roller mill in the home brew setting.

I just wanted to clear up the info for anyone trying to compare apples to apples pricing with a similar mill. I would not compare these to other ‘heat treated rollers’. But this mill is less than half the price of a 3 roller heat treated mill, so it sorta makes sense.

The amount of grain you’ve put through yours is impressive. That’s 500 batches at my scale, which would be like 20-30 years of brewing, so that’s fantastic news.

What do you have your gap set at?


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
Hey, I’m not bashing the mill, I’m happy with my purchase.

Im just stating, none of the official documentation states the rollers are heat treated or hardened, and my empirical evidence supports that.

We don’t need to get into a pissing match on metallurgy, but these are not heat treated rollers. A single pass with a file digs right in, hardly different than my barley crusher rollers. Cold rolling or working mild steel will increase its hardness, but it’s not the same as a higher carbon steel or tool steel that’s been heat treated.

With that said, the knurling is much more aggressive, and the 1.5” diameter rollers should improve the angle the grain pulls into the mill. This is a much better mill than the BC, and the steel hardness doesn’t concern me. Hardened rollers are likely overkill for a 1.5” 3roller mill in the home brew setting.

I just wanted to clear up the info for anyone trying to compare apples to apples pricing with a similar mill. I would not compare these to other ‘heat treated rollers’. But this mill is less than half the price of a 3 roller heat treated mill, so it sorta makes sense.

The amount of grain you’ve put through yours is impressive. That’s 500 batches at my scale, which would be like 20-30 years of brewing, so that’s fantastic news.

What do you have your gap set at?
Im not disagreeing with you I was simply stating actual work hardened or cold rolled is a form of hardening. Anyone who has accidentally work hardened the side of their brewing kettle while drilling the hole in the side can tell you that.

They do advertise cold rolled steel I think that and hardened cold rolled steel is all Ive seen some resellers advertise. The thing is the barley crusher advertises "1018" cold rolled steel rollers too and these are definitely harder than what they are using.

Are there any home brewing mills that you know of that state they have high carbon or tool steel rollers? I know MM stated theirs are cold rolled as well.

I actually have one, unfortunately despite the rollers being black carbon steel, the mill was very very poorly made so poorly made I demanded my money back and the seller didnt even want to pay for return shipping.


scottland

Well-Known Member
Joined
May 17, 2010
Messages
2,112
Reaction score
166
Location
Chandler
MM states theirs are heat treated 1144.

‘Cold rolled’ and ‘heat treated’ are typically not used interchangeably.

You’re absolutely correct, cold working steel increases tensile strength at the cost of ductility. But that is not the same heat treating and tempering.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
Good to know There are a few reports of monster mill owners claiming rollers wore out and they had to replace their Mills . they are far and few between and of course we are going on testimonials and assumptions. For all we know it could have been the bushings that wore out which are more likely.. I do have the mm 3 as well as the kegco I can try the file technique and see how it reacts
I know I know that I've had my Cerial killer for 6 years now and the roller still look new. I also know it's from the same manufacturer as the Keiko 3 roller which I've put all that green mentioned above through and those rollers still look new so whatever they're doing it's working.

Last edited:

scottland

Well-Known Member
Joined
May 17, 2010
Messages
2,112
Reaction score
166
Location
Chandler
If you do test your roller. Pull it out of the body, and test the corner of it. No needed to mess up some perfectly good knurling.


Blazinlow86

Well-Known Member
Joined
Oct 19, 2016
Messages
1,680
Reaction score
731
I just bought one of those.

Quality seems quite nice. The blue plastic came off pretty easy if I went nice and slow.

I can confirm, the rollers are definitely not hardened steel. I’m not sure where that notion came from, but they are definitely not. A file digs right into the roller. Files should skate across hardened steel.

With that said, I think it’s going to be just fine for what I hope to get out of it. My Barley Crusher lasted 10 years. If I can get 15 years out of this mill, I’ll call it a win.
The rollers definitely aren't anything special in my experience. The one I borrowed didn't have alot of miles on it but already couldn't feed/grip the grain at tighter gap settings however if your located in america for the price it's hard to beat . Occasionally the monster mills go on sale for similar pricing if your not in a hurry and prefer supporting american manufacturing but of course for some that's not a option. Cheers

Last edited:

augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
MM states theirs are heat treated 1144.

‘Cold rolled’ and ‘heat treated’ are typically not used interchangeably.

You’re absolutely correct, cold working steel increases tensile strength at the cost of ductility. But that is not the same heat treating and tempering.
Just checked monster mills site myself.

The standard monster mill 3 mills use standard 1144 alloy steel thats NOT heat treated and they do not recommend using thier regular sub $300 mills for high volume or commercial use like Ive been using the kegco for myself for the last year.
Here is a quote from monster mills website..

"We DO NOT recommend this mill with our standard steel OR our 303 stainless steel rollers for ANY commercial application. We recommend our HEAT TREATED steel rollers available on our Pro series mills for all COMMERCIAL applications. Heat treated rollers last 10X as long as stainless, or our regular steel."
for the heat treated version you have to pony up $350 for the base without the hopper of crank or base plus shipping (and thats on sale right now with $40 off) and then to get the ball bearing upgrade like the kegco has standard your looking at $450 plus shipping plus $45 for the hopper and $30 for the crank handle to make the comparision more accurate between the kegco and the MM3

So in conclusion, $530 plus shipping from MM (for the MM3 pro PD) will get you the same features and accessories as the kegco offers for $150 shipped minus confirmation of any advantages of the unknown metalurgy of the "cold rolled" steel used on the kegco mill... I for one have no doubt after putting almost 10,000lbs of grain through mine that they are worth every penny of the $140 I paid on sale shipped.

and you just heard from that one person Ive ever heard report the rollers wore out on a kegco mill above... (on his friends) mill that he would never buy because the MM is only a couple bucks more and american made.

Last edited:

day_trippr

A bad time to be an empath.
Joined
May 31, 2011
Messages
32,645
Reaction score
13,592
Location
Stow, MA
[questions that arose when my well-used BC had lost its grip in its original configuration]
Is there a process that allows post-tooled hardening of rollers?
Could one send their (new) steel rollers somewhere to have them hardened?
Would they have to send their first born child with the rollers? ;)

Cheers!


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
Lifetime Supporter
Joined
May 14, 2014
Messages
10,187
Reaction score
6,216
Location
Renton
Ok folks, things started getting personal here, and posts have been deleted. Keep your comments on-topic, and DO NOT question the motives of, nor denigrate other members.

doug293cz
HBT Moderator


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
[questions that arose when my well-used BC had lost its grip in its original configuration]
Is there a process that allows post-tooled hardening of rollers?
Could one send their (new) steel rollers somewhere to have them hardened?
Would they have to send their first born child with the rollers? ;)

Cheers!
I am curios about this as well... if it were as simple as heating them with a torch or stuffing them into a hot firepit Id be all over it.

Last edited:

scottland

Well-Known Member
Joined
May 17, 2010
Messages
2,112
Reaction score
166
Location
Chandler
[questions that arose when my well-used BC had lost its grip in its original configuration]
Is there a process that allows post-tooled hardening of rollers?
Could one send their (new) steel rollers somewhere to have them hardened?
Would they have to send their first born child with the rollers? ;)

Cheers!
I’m not sure if the juice is worth the squeeze for a mill at this price point. Time will tell, but I think it’s going to last longer then I need it to.


Pete S

Member
Joined
Jul 3, 2020
Messages
14
Reaction score
5
...Blue plastic was not difficult to remove, each section peeled off in one piece.








:ban:
I got mine today. I ordered it from Beverage Factory. As far as I can tell, the components haven't changed from when you got yours. What was radically different from your description, was that the blue protective film was a royal PITA to remove from the aluminum, it left lots of sticky adhesive on the surface of the aluminum, and the adhesive is not water soluble. In addition to that, due to how the aluminum parts are stamped out, there were sharp raised burrs on the edges of one side of each aluminum part.

I haven't even assembled it yet. Assembly should be fairly easy, even though they don't supply printed instructions anymore. Removing the blue film from all of the parts took me over an hour, no kidding. After checking to see if all of the left behind adhesive is water soluble (it's not), I used a citrus oil based solvent to dissolve the adhesive, then washed the parts with soap and water in the sink, used a coarse diamond wetstone to knock down the worst of the burred edges, then washed the aluminum swarth away with soap and water again. A fine flat file would have been faster to remove the burrs, but I couldn't find mine. Total time so far is over two hours. Actual assembly should be 10-15 minutes. The quality of the heavy three roller portion, appears to be very good for the price.

It seems like most people are quite happy with theirs, and I'm guessing that I will be as well when it comes to actual long-term use of the mill, but the blue film, adhesive, and poor stamping quality of the aluminum hopper parts, was making me regret purchasing this. There's not a single mention of what I just described in the reviews on the Beverage Factory website and every single review is either 4 or 5 stars, so they must be only allowing the most favorable reviews to appear. Not to dissuade anyone from purchasing this mill, I think it will be very good in use, but I've already unsubscribed from Beverage Factory emails and I don't intend to order from them again, because their reviews can't be trusted.


LittleRiver

Well-Known Member
Joined
Jul 3, 2017
Messages
1,081
Reaction score
1,227
I've been using my Kegco 3 roller for about 4 years now.

I am very happy with it, because I have not had a single problem with it.

I adjusted the gap when I received it, and have not had to adjust it since. It just works, each and every time.


Pete S

Member
Joined
Jul 3, 2020
Messages
14
Reaction score
5
Now that I have the parts cleaned up, I imagine that I will be very happy with it in the end, but what a PITA it was removing the blue film and adhesive. The blue film on mine looked just like that in previous photos, but maybe mine sat in a scorching hot warehouse for weeks? I don't know. I just wanted to add my experience, so others weren't surprised if they experienced the same thing.

Without having used it yet, or any other mills for that matter, would I choose it again? Maybe, but I guess I would factor in a couple hours of my time into the cost of the Kegco 3-roller mill compared to other mills. I'm not sure if anyone showed it in prior responses, but mine came with a black enameled steel plate that's designed to sit over a 5 gallon bucket, which the mill would attach to. I would happily give up the bucket mount in exchange for my two hours of time dealing with blue film and adhesive.

Last edited:

day_trippr

A bad time to be an empath.
Joined
May 31, 2011
Messages
32,645
Reaction score
13,592
Location
Stow, MA
I have to laugh because the Cereal Killer mill I bought a year and a half ago is still sporting the blue plastic film on the base bin.
When it arrived I tried peeling a corner off the bin and the degree of resistance indicated I was facing a chore best avoided if possible.
I think it looks cool - like it's blue anodized :D

Cheers!


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,207
Reaction score
2,240
Location
North Tonawanda NY
Now that I have the parts cleaned up, I imagine that I will be very happy with it in the end, but what a PITA it was removing the blue film and adhesive. The blue film on mine looked just like that in previous photos, but maybe mine sat in a scorching hot warehouse for weeks? I don't know. I just wanted to add my experience, so others weren't surprised if they experienced the same thing.

Without having used it yet, or any other mills for that matter, would I choose it again? Maybe, but I guess I would factor in a couple hours of my time into the cost of the Kegco 3-roller mill compared to other mills. I'm not sure if anyone showed it in prior responses, but mine came with a black enameled steel plate that's designed to sit over a 5 gallon bucket, which the mill would attach to. I would happily give up the bucket mount in exchange for my two hours of time dealing with blue film and adhesive.
I dont know if the monster mills have the blue protective plastic over the aluminum but if you bought that mill with the hopper and handle for about $300 would you feel better about not having the inconvenience? Honestly for every person upset about the film theres another OCD person who would send the mill back for having scuffed aluminum if it wasnt there.. I found if you peel the film back instead of away mine came right off both my mills that had it.


Pete S

Member
Joined
Jul 3, 2020
Messages
14
Reaction score
5
I dont know if the monster mills have the blue protective plastic over the aluminum but if you bought that mill with the hopper and handle for about $300 would you feel better about not having the inconvenience? Honestly for every person upset about the film theres another OCD person who would send the mill back for having scuffed aluminum if it wasnt there.. I found if you peel the film back instead of away mine came right off both my mills that had it.
No, I wouldn't spend $300 to get the same mill without the blue film on it, and I understand why they machine the aluminum with the blue film on it, but this this isn't a complicated piece of machinery to assembly, yet that blue plastic added roughly 2 hours to the process, unless I had just left it on, like they did in the assembly instructions. Something clearly is different between when I got mine and when other people did. The blue film was very hard to remove, regardless of how I tried to pull it off, 1/4 of the adhesive was left behind. I can't recall in all of my years ever having to spend so much time assembling something so simple.

I would have looked harder at other mills if 1) I knew how much of a PITA this one would be due to the adhesive problem 2) if I had known that Beverage Factory was filtering out negative reviews. Maybe I still would have ended up with this mill, but I haven't been impressed with the "unboxing" part of it. Ironically, I now have light scuff marks all over the aluminum, from the process of removing all of that adhesive. I could care less about the light marks from a Scotch-brite pad, but sticky adhesive all over it, I wasn't loving that.


mikehoover

Active Member
Joined
Feb 4, 2008
Messages
30
Reaction score
7
To remove the blue plastic, use a dowel of appropriate length and thickness (pencil?). Get the edge started and the rest is made easier.


Attachments

Tobor_8thMan

Well-Known Member
Lifetime Supporter
Joined
Feb 15, 2013
Messages
2,046
Reaction score
968
Location
Go 97 miles and take a left...
How is the Kegco mill different than the Keg King mill? Seem the same to me. Why then do homebrewers like their Kegco mill when I've had numerous frustrations with my Keg King?

See thread


Top
