Glycol Temp Control Set Up

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

changchuyo

Member
Joined
May 27, 2014
Messages
18
Reaction score
9
Location
Miami
Hello everyone.

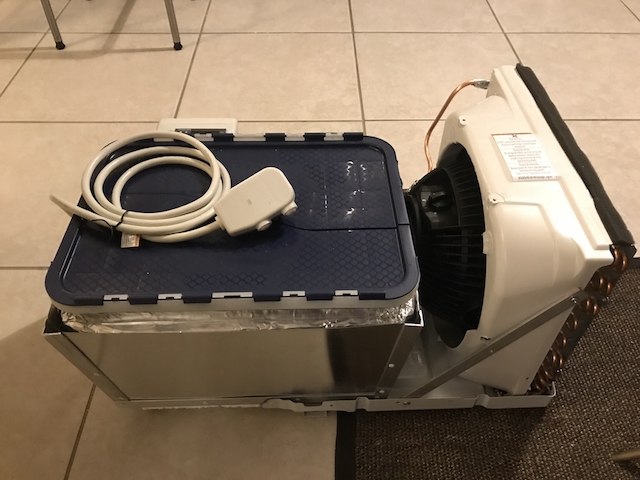

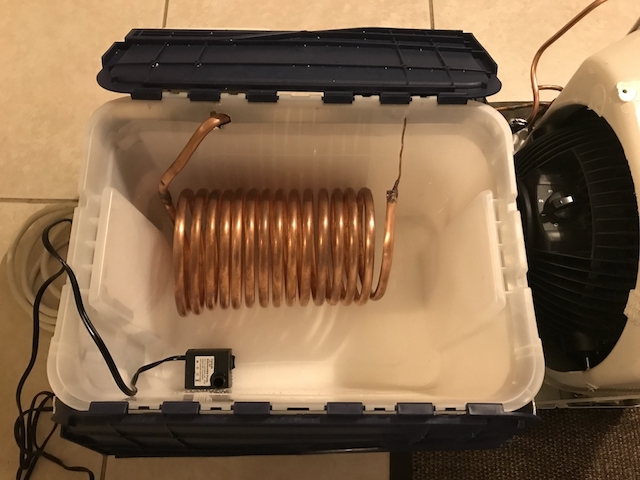

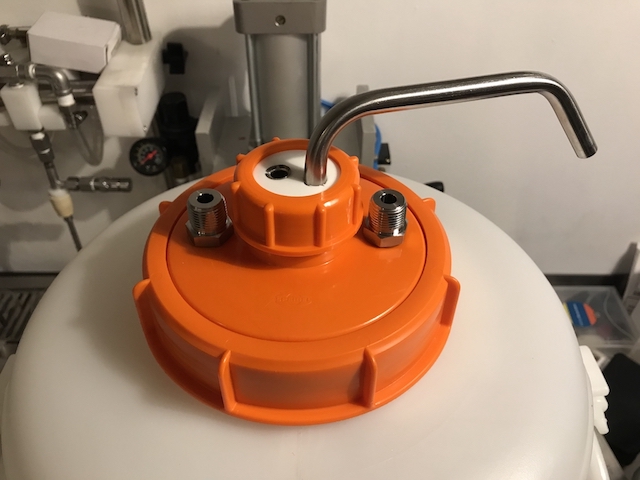

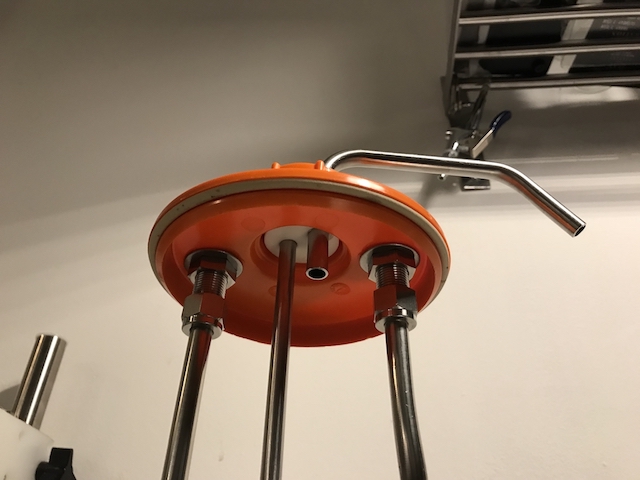

I got inspired in part by this thread and decided to build my own glycol chiller and custom Speidel fermenter glycol coil .

Cheers!


Attachments

Curtis K.

Member
Joined
Nov 2, 2018
Messages
15
Reaction score
8
Hello rdavidw & changchuyo,

What size SS tubing did each of you use? The link posted by rdavidw is to 1/2-inch OD tubing, and the tubing in changchuyo's photos looks like it could be 1/2-inch. I'm asking because 10-inch coils is the smallest diameter I see in stock coils on the Stainless Brewing web site. Can they bend 1/2-inch into a 4-1/2-inch diameter coil?

Thanks guys!


yowzers

Well-Known Member
Joined
May 4, 2017
Messages
164
Reaction score
55
Location
Denver
I wouldn't get too concerned about the size of the coil. I use a single loop that is 22 inches long (roughly 38 inches total submerged) and I can cool to low 40's using only ice water. If I had glycol at 15 or 20 F I'm sure I could cold crash to low to mid-30's no problem.


SanPancho

Supporting Member
HBT Supporter
Joined
Dec 17, 2014
Messages
2,495
Reaction score
712
Location
SF
Just a little advice- you dont want to mix air and glycol. It lowers efficiency, taxes your chiller. Avoid splashing, air gaps, bleeds, etc. Keep reservoir closed and sealed tightly.

In tiny systems like this its maybe not a big deal but just a warning from someone who’s made that mistake.

And to op, have you considered just running a traditional manifold setup? One big supply/return manifold, with your individual fermenter supply feeds controlled by solenoids? Only drawback would be youd need the chiller running constant.


changchuyo

Member
Joined
May 27, 2014
Messages
18
Reaction score
9
Location
Miami
Hello rdavidw & changchuyo,

What size SS tubing did each of you use? The link posted by rdavidw is to 1/2-inch OD tubing, and the tubing in changchuyo's photos looks like it could be 1/2-inch. I'm asking because 10-inch coils is the smallest diameter I see in stock coils on the Stainless Brewing web site. Can they bend 1/2-inch into a 4-1/2-inch diameter coil?

Thanks guys!

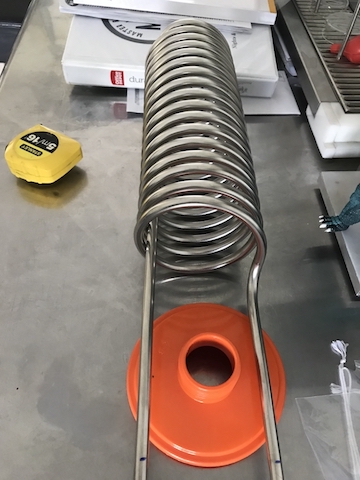

Hi, the coil is 3/8" and the coil radius is 4". It fits perfectly!

Regards!


Curtis K.

Member
Joined
Nov 2, 2018
Messages
15
Reaction score
8
Hi, the coil is 3/8" and the coil radius is 4". It fits perfectly!

Regards!
Thanks so much changchuyo, 3/8" will work perfect with my existing system. Now I know what to ask for when I order.

Cheers!


Ryan A

Member
Joined
May 6, 2018
Messages
7
Reaction score
0
Hello everyone.

I got inspired in part by this thread and decided to build my own glycol chiller and custom Speidel fermenter glycol coil .

Cheers!

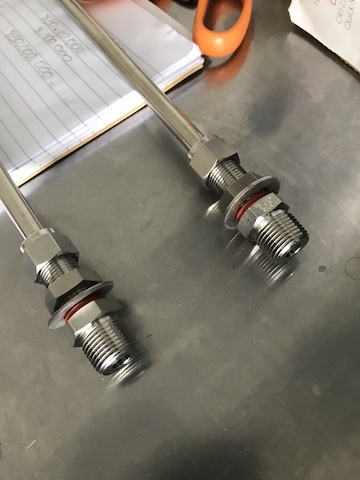

How are the compression fittings working out in terms of cleaning? Do you wish you had used a rubber stopper like rdavidw used? I decided to back a kickstarter for a glycol chiller that seems decently priced, but I'm still figuring out the rest of what I need. Thanks for the advice!


changchuyo

Member
Joined
May 27, 2014
Messages
18
Reaction score
9
Location
Miami
How are the compression fittings working out in terms of cleaning? Do you wish you had used a rubber stopper like rdavidw used? I decided to back a kickstarter for a glycol chiller that seems decently priced, but I'm still figuring out the rest of what I need. Thanks for the advice!
Hi Ryan_A,

These are not ideal sanitary fittings but with a careful cleaning with PBW, warm water and a brush you can get it perfectly clean. The rubber stoppers also work but I do prefer a more reliable seal.

About the glycol chiller are you backing on kickstarter, is it the Stasis? it looks great but my DIY is around $250 :)

Cheers!!!


Ryan A

Member
Joined
May 6, 2018
Messages
7
Reaction score
0
Hi Ryan_A,

These are not ideal sanitary fittings but with a careful cleaning with PBW, warm water and a brush you can get it perfectly clean. The rubber stoppers also work but I do prefer a more reliable seal.

About the glycol chiller are you backing on kickstarter, is it the Stasis? it looks great but my DIY is around $250 :)

Cheers!!!
Yes, the Statis is the one I am backing. What chiller are you using and how loud is the compressor? What HP?


Ryan A

Member
Joined
May 6, 2018
Messages
7
Reaction score
0
What kind of tape did you use to seal up the reflectix on your speidel? I'm thinking about using two lengths and making a cross, then drawing them up the sides of the speidel and taping the corners together except one side with velcro so I can remove it for cleaning.

OP
rdavidw

rdavidw

Well-Known Member
Joined
Oct 15, 2011
Messages
162
Reaction score
58
Location
Frederick
I used reflectix brand tape that was sold with the reflectix roll. Works ok but the tape comes undone after a year or so of getting wet while cleaning. Overall happy with the setup.


changchuyo

Member
Joined
May 27, 2014
Messages
18
Reaction score
9
Location
Miami
What kind of tape did you use to seal up the reflectix on your speidel? I'm thinking about using two lengths and making a cross, then drawing them up the sides of the speidel and taping the corners together except one side with velcro so I can remove it for cleaning.
I used aluminum foil tape, works fine but have to replace it after 8 or 9 months.


Ryan A

Member
Joined
May 6, 2018
Messages
7
Reaction score
0
Thanks to both of you for the replies. I'm going with the Reflectix tape with the plan to make it into a jacket with a velcro side that will allow me to remove it before cleaning. I guess I'll have to come back here in a few years to let y'all know how that turned out.


glenm

Member
Joined
Nov 13, 2015
Messages
5
Reaction score
1
Location
San Carlos
I'd been thinking of adding a coil just like this, but I was worrying the weight of the coil would be too much for the plastic Speidel lid. Is it no problem, or did you make the coil tall enough it rests on the bottom?


changchuyo

Member
Joined
May 27, 2014
Messages
18
Reaction score
9
Location
Miami
I'd been thinking of adding a coil just like this, but I was worrying the weight of the coil would be too much for the plastic Speidel lid. Is it no problem, or did you make the coil tall enough it rests on the bottom?
Hi,

I’ve been using it for a year and the lid is still perfect.
Remember that if you’re using Speidel you’re trusting German quality...!!!

Go ahead you’ll have no regret.

cheeers!!!🍻

OP
rdavidw

rdavidw

Well-Known Member
Joined
Oct 15, 2011
Messages
162
Reaction score
58
Location
Frederick
Hi,

I’ve been using it for a year and the lid is still perfect.
Remember that if you’re using Speidel you’re trusting German quality...!!!

Go ahead you’ll have no regret.

cheeers!!!🍻
Same with me, after many years of use no problems with the lid supporting the full weight of the coil.


Ryan A

Member
Joined
May 6, 2018
Messages
7
Reaction score
0
Ditto about the lid thing. It's definitely sturdy enough, just make sure you make your holes with enough clearance from the edge and no bigger than they absolutely have to be. I used a step bit.

One problem that I have now, though, is the airlock doesn't show any bubbling. I used #5.5 bungs and cut a line down one side to put them on the coil, under the fittings. The first time, I did it dry. The second time, I used keg lube to try to seal it up a little better. The weight of the coil pulls it down tighter. I'm concerned that where the gas is coming out from CO2 could let O2 in. Has anyone else had problems like this?

OP
rdavidw

rdavidw

Well-Known Member
Joined
Oct 15, 2011
Messages
162
Reaction score
58
Location
Frederick
Ditto about the lid thing. It's definitely sturdy enough, just make sure you make your holes with enough clearance from the edge and no bigger than they absolutely have to be. I used a step bit.

One problem that I have now, though, is the airlock doesn't show any bubbling. I used #5.5 bungs and cut a line down one side to put them on the coil, under the fittings. The first time, I did it dry. The second time, I used keg lube to try to seal it up a little better. The weight of the coil pulls it down tighter. I'm concerned that where the gas is coming out from CO2 could let O2 in. Has anyone else had problems like this?
I have two and never had a leak except one time I forgot to tighten down the cap at the top after cleaning. Want to post a photo of your lid setup?


X-man

New Member
Joined
Jul 29, 2020
Messages
1
Reaction score
0
Hello everyone.

I got inspired in part by this thread and decided to build my own glycol chiller and custom Speidel fermenter glycol coil .

Cheers!
Hi changchuya, would you be willing to walk me through putting your system together? This looks awesome, and I saw in another post you've got $250 into it. Congrats!
