Hi guys,
I struggled with the fermentation temperature control issue for quite some time. A while back I was able to obtain a 7.5 gal conical on ebay but my keezer was too short to handle it. What to do? I didn't want to buy another freezer or refrigerator so I decided to do what the big boys do, build a jacketed conical.
Conical fermenters are wonderful devices for saving labor and preventing exposure of your beer to nasties like oxygen, light, and undesirable microbes. Also, being able to bottom dump yeast, trub and dryhops with the turn of a valve handle is, well amazing. The problem is that most of the chest freezers out there will not handle a conical fermenter. They are just too short. Enter the jacketed conical.

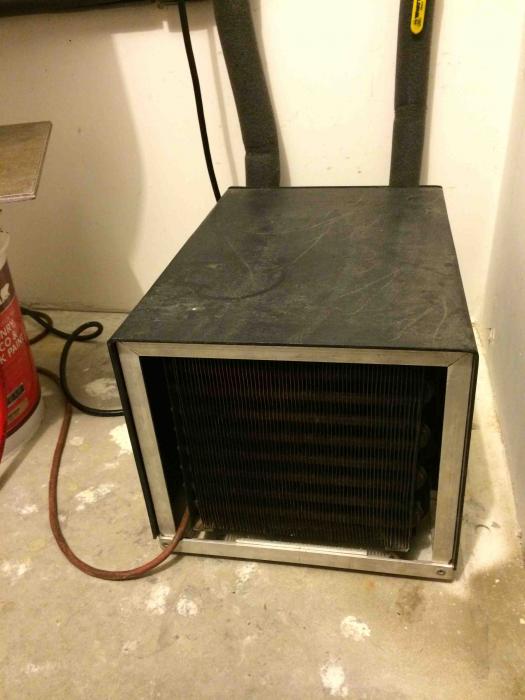

The components for this build are fairly straightforward. You need a source of cooling, a pump, a heat exchanger, and a temperature controller. In addition to these components you will need various fittings and copper piping to deliver your coolant to your fermenter. I, after some trial and error, settled on a 1/3 hp aquarium chiller as my source of cooling. These chillers offer in line chilling and can be had on ebay or craigslist. I found mine on craigslist for $190.

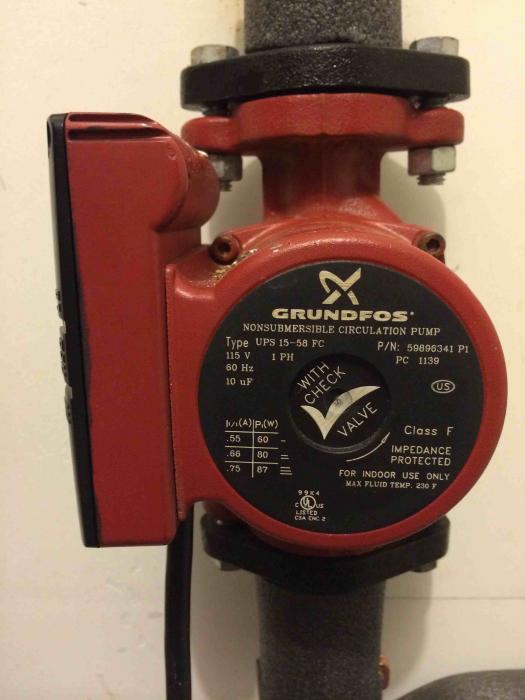

For my pump I chose a variable speed Grundfos UPS 15-58 FC recirculating pump of the type used for radiant floor heating.

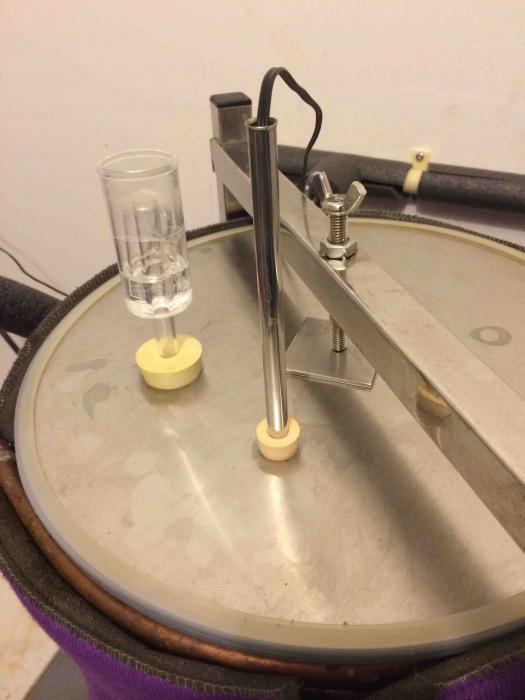

The heat exchanger is simply 25 of ½ OD soft copper tubing. The copper tubing is wound around the conical and then insulated or jacketed with a recycled yoga mat or some such insulator. To achieve a snug fit to your conical do two things. First, flatten your tubing a bit (not too much!!) using a piece of large diameter pipe. Roll the larger pipe along your copper tubing until you achieve a uniform oval type shape the length of the tubing. This helps to increase the surface area in contact with your conical. Remember, DO NOT deform the very ends of the copper. You will need to sweat fittings on the ends and they need to stay nice and round. Second, wind your tubing around something round that is slightly smaller than the diameter of your conical. I used a 5 gallon bucket. The reason for this is that when you coil the copper it tends to rebound a bit and will hold a diameter slightly larger than the object you coil it around. Ideally when you are finished your coil should be just a tad smaller than your conical diameter so when you install it you have to spread it a little and then it snaps back and grips your conical making good contact. For temp control I used an STC-1000 dual controller. I wired the box for heat and cool but, living in Arizona, I dont have much use for fermenter heat.

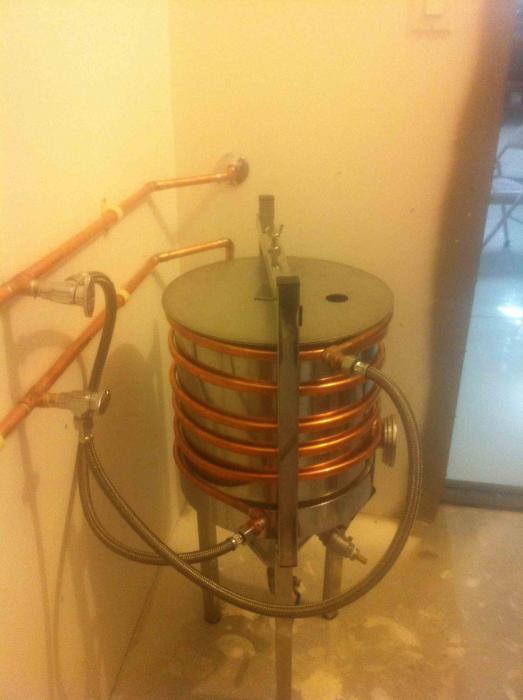

(Note: This photo shows an initial configuration with the chiller on the other side of the wall. It didnt work as there was just too much piping and heat gain during the hot months here in AZ.)
Putting it all together. This is where some basic plumbing and wiring skills come in handy. Youll need to configure your piping so as to make a cooling loop that is preferably as short as possible. The longer the piping runs, the more cold you will lose to the surrounding environment. My system is set up as close as I could get the components together. It can consistently cool the fermenting wort to 20-25º below ambient. The trickiest part of the plumbing is deciding how to configure the system so that you can prime your pump without to much hassle. I still havent perfected this aspect but I used a filler neck with a shut off valve that sits higher than my pump and it works ok. The actual loop theoretically starts at the output of your pump and makes its way to the top of your cooling coil on the fermenter. I used plain old ball stop valves and braided faucet supply lines to transition from the hard copper on the wall to the coil on the fermenter. Note: ½ rigid copper and ½ soft copper do not share common dimensions so when shopping for fittings be sure to test them on the soft copper and use adapters or reducers as required. Now the coolant flows through the coil and exits at the bottom of the fermenter coil through another braided line to the hard copper return line to the intake of the pump. This is your basic cooling loop. Notice that I omitted the inline cooling source (in my case an aquarium chiller). The chiller may be located pretty much anywhere in the loop and mostly depends on space and the geometry of where you locate your system. I have successfully put the chiller upstream and downstream of the pump. Installing your chiller will require some fittings to accommodate the different size tubing of the chiller and your loop (I used ½ copper for the loop with various fittings to connect to the pump and the chiller) A little imagination and a few trips to the hardware store will get you there.

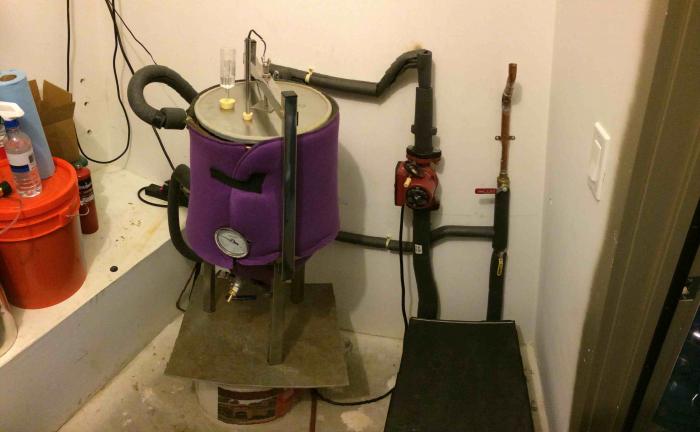

(Please excuse the bucket and tile fermenter stand. I needed to get a Two Hearted clone going ASAP and am still building out the fermentation room! Keeping the fermenter on a stand allows easy gravity powered racking.)
