Ok.... Hope I did this right...
Need some help in the building and planning stage of my build.

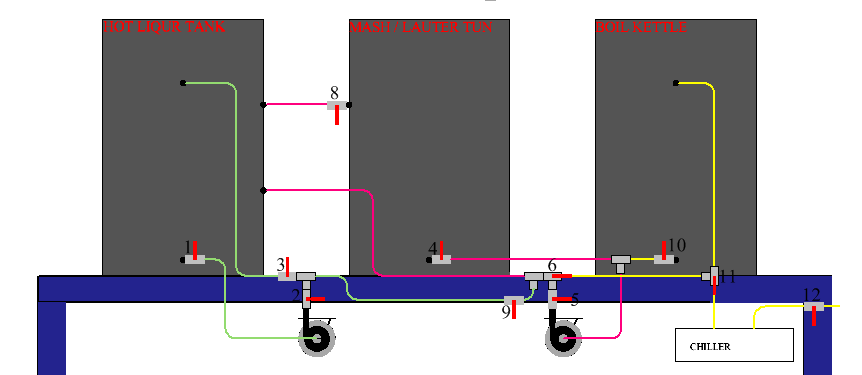

In the picture you can see my layout. Dose it make since,
or should I make some changes?
The flow will be like this
HLT valve 1,2,3 open to recirculate the HLT
MLT valve 4,5,6,8 open to recirculate MLT
#6 is a 3 way ball valve open in the flow to MLT
valve 10 will be close
At mashing out
Close valve 3 and open 9 to circulate the wort out of the coil.
BK valve 10,5,6,11 be open to whirlpool the wort.
After the boil valve 11 flow be switch to chiller
Valve 6 and 11 are 3 way ball valves
