Nice work! Apparently no one on here likes 3D printing. The possibilities with these devices seem endless. Do you have future projects you are working on?

What would you estimate the cost is to enter the 3D printer market?


DivrDwn

Active Member
Joined
Mar 5, 2013
Messages
39
Reaction score
1
I love the idea here. You could really get creative with this. Keep us posted please.


dlaramie08

Well-Known Member
Joined
Feb 27, 2011
Messages
431
Reaction score
95
Location
Robards
Any possibility of this being food safe?


Sent from my iPhone using Home Brew


aeviaanah

Well-Known Member
Joined
Jul 1, 2012
Messages
1,549
Reaction score
171
Looks great! Are you using PLA or ABS? How do you like your I3 Prusa?
Your getting ballzy printing two at once!

Ive been using PLA on my tap handles and havent had much experience with ABS. I think using acetone vapor to smooth the part would make a great handle. I went with a Makergear M2.

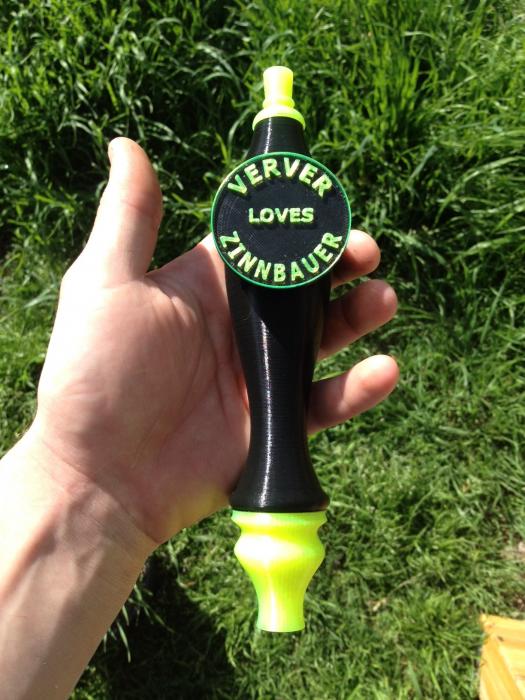

This is the tap handle I am working on. All parts can be removed and fit snugly enough to stay together without glue. I'm still working on the face plate and face plate to backing plate connection, that will change in size and text. I'm also trying to model so no support is required.

I use Autodesk Inventor.





MNSmitty

Well-Known Member
Joined
Dec 12, 2011
Messages
184
Reaction score
29
Location
Mound
Both of those are really great handles!
Ive been thinking of making one myself. I have a Prusa Air 2 XL.
Ive had better luck printing in PLA than ABS. Although I have gotten some good prints with 618 Nylon.


Airplanedoc

Well-Known Member
Joined
Sep 1, 2011
Messages
1,883
Reaction score
395
Location
Illinois
Those are both pretty cool. I had no idea it took so long to 3d print. I don't know what I expected, just surprised it was 8+ hours for 2 tap handles. I guess I am just used to machining such large parts (4000 lb castings), there was a disconnect for me.

I think in the near future 3d printing will be a huge technology.

OP
D

digitalpeer

Member
Joined
Mar 4, 2012
Messages
12
Reaction score
7
Location
Las Vegas
Any possibility of this being food safe?
This is debatable. Much like the sassafras roots used in rootbeer recipes, and the FDA has already made their statement on that.

My answer is no for several reasons. There are actually standards for food safe products and I don't know of any print material, ABS or PLA, that would ever meet them. Not to be confused with some ABS made products being food grade. While only somewhat related, ABS and maybe PLA fumes are known to be toxic. This creates an unknown for me when it comes to the cooled part.

Would I use a printed airlock that actually doesn't come in contact with the beer? Maybe in a bind. Would I use a printed fitting or tap to run my wart, cool or hot, through? Absolutely not.

OP
D

digitalpeer

Member
Joined
Mar 4, 2012
Messages
12
Reaction score
7
Location
Las Vegas
Looks great! Are you using PLA or ABS? How do you like your I3 Prusa?
Your getting ballzy printing two at once!
Very nice design.

I'm using ABS and as a first hobby printer, I love the i3 Prusa. Not a complaint. It's been a nice learning experience and the build is easy. I am very satisfied with the quality/cost ratio. The new MendalMax 2.0 would be the next iterative step. It's both a big jump in quality and cost though.

Printing 2 at once definitely has its issues. I have noticed on some prints it allows the layers to cool too much (while printing the other one) and this results in weak layer adhesion.


aeviaanah

Well-Known Member
Joined
Jul 1, 2012
Messages
1,549
Reaction score
171
Which slicer are you using?

There may be an option to print one part at a time then jump to the next.

If your using Slic3r go to output options under print settings and check "complete individual objects"


Sent from my iPhone using Home Brew

OP
D

digitalpeer

Member
Joined
Mar 4, 2012
Messages
12
Reaction score
7
Location
Las Vegas
Those are both pretty cool. I had no idea it took so long to 3d print. I don't know what I expected, just surprised it was 8+ hours for 2 tap handles. I guess I am just used to machining such large parts (4000 lb castings), there was a disconnect for me.
The print time was THE most surprising thing to me getting started into 3D printing. From what I've seen, it's also surprising to others. It's sort of one of the unspoken weaknesses with printing a model layer by layer out of a .4mm hole. Simple, small prints, like the size of a golf ball, take maybe 30 minutes. Others, well, i've started leaving prints going at night and wake up in the morning like it's Christmas with a new object on the printer. Only a matter of time before that bites me (doing this is not recommended).

OP, have you tried speeding up prints?
Turns out, I've spent a lot of time on this. I have different nozzle sizes. I've printed at different layer heights and speeds. I've adjusted temperatures. I've played with every setting possible in Slic3r. It's pretty much a balancing act. The faster you go, generally the more sloppy the prints get and you have to start playing with other factors to accommodate. The easiest thing to do is increase layer height. In the end, I decided a high quality print is most important to me 99% of the time.

OP
D

digitalpeer

Member
Joined
Mar 4, 2012
Messages
12
Reaction score
7
Location
Las Vegas
Which slicer are you using?

There may be an option to print one part at a time then jump to the next.

If your using Slic3r go to output options under print settings and check "complete individual objects"
You are absolutely correct. As long as you pay attention to not hitting the other object with the extruder (there's a setting for that too). Slic3r is an awesome piece of software and it supports almost anything you can imagine.


ultra_cas

Well-Known Member
Joined
Mar 2, 2014
Messages
106
Reaction score
32
Location
South Burlington
This is great. I was thinking of doing this, we have a maker space here that has this, as well as a business that offers it, but don't yet know the cost.


aeviaanah

Well-Known Member
Joined
Jul 1, 2012
Messages
1,549
Reaction score
171
Digital peer, what else have you printed??


Sent from my iPhone using Home Brew

OP
D

digitalpeer

Member
Joined
Mar 4, 2012
Messages
12
Reaction score
7
Location
Las Vegas
Very cool! Do you own the printer, or using it somewhere else?
I got an i3 Prusa as a kit and put it together. You could save some money by sourcing the parts yourself, but it's a lot of work. Expect to spend a weekend or two just putting it together. And then many moons to get the thing calibrated so you can print something beyond a blob of plastic.

Digital peer, what else have you printed??
I've printed all of the plastic parts that are for the printer itself. Most of them upgrades in some fashion. Easy to make backups and improvements to your printer, with your printer. Printed quite a few things off thingiverse, like a tablet stand and hex wrench handles. Printed little boxes to hold tiny things like drill bits. There's more here.


thatjonguy

Now with 57.93% more awesome!
Joined
Mar 14, 2011
Messages
5,460
Reaction score
1,179
Location
Minnow
So you guys that have a printer want to pimp it out for a tap handle prototype? Let me know what you would want...might be a few months, if I need it.


gerty

New Member
Joined
Jun 25, 2014
Messages
1
Reaction score
0
Location
Houston
So you guys that have a printer want to pimp it out for a tap handle prototype? Let me know what you would want...might be a few months, if I need it.
If you can design something I'll give it a shot on our Gigabot. Size is of no concern. ;)

I gave this one a shot for a company BBQ we're planning: http://www.thingiverse.com/thing:260854/#files


https://www.dropbox.com/s/4o803kd8rqkusl9/Photo Jun 25, 21 13 20.jpg


https://www.dropbox.com/s/s6c3wvbcsply1vr/Photo Jun 25, 21 13 23.jpg

It needed support underneath and wasn't as solid as I would have liked. Sure would like to learn how to take a scan from 123D Catch and merge it with a plain tap handle. I can totally see a customized version for every beer - my dog, an actual hop cone that is in that beer, the meme of the week - the possibilities are endless!

Anyways, if you have a cool design you want me to help prototype, I'm happy to pimp out the Gigabot...
-Chris
[chris (at) re3d.org]
