So I just fired up my brutus 10 build with honeywell smart valves for the first time after completing all of the wiring. Everything went great besides one thing. For some reason the hot surface igniter on the hlt and mashtun would not start up, yet I can hear an audible click from the valve and I am getting gas flow to the pilot valve. I some how stumbled apon putting one burner on the auto position with the 3 way switch and the other burner on the on position then all of a sudden they worked! Can anyone please help me understand what is wrong with the wiring. I have the auber 2362 pids. The burners do turn on and off with the desired temp set on the pids and the auto/off/manual function is working properly.

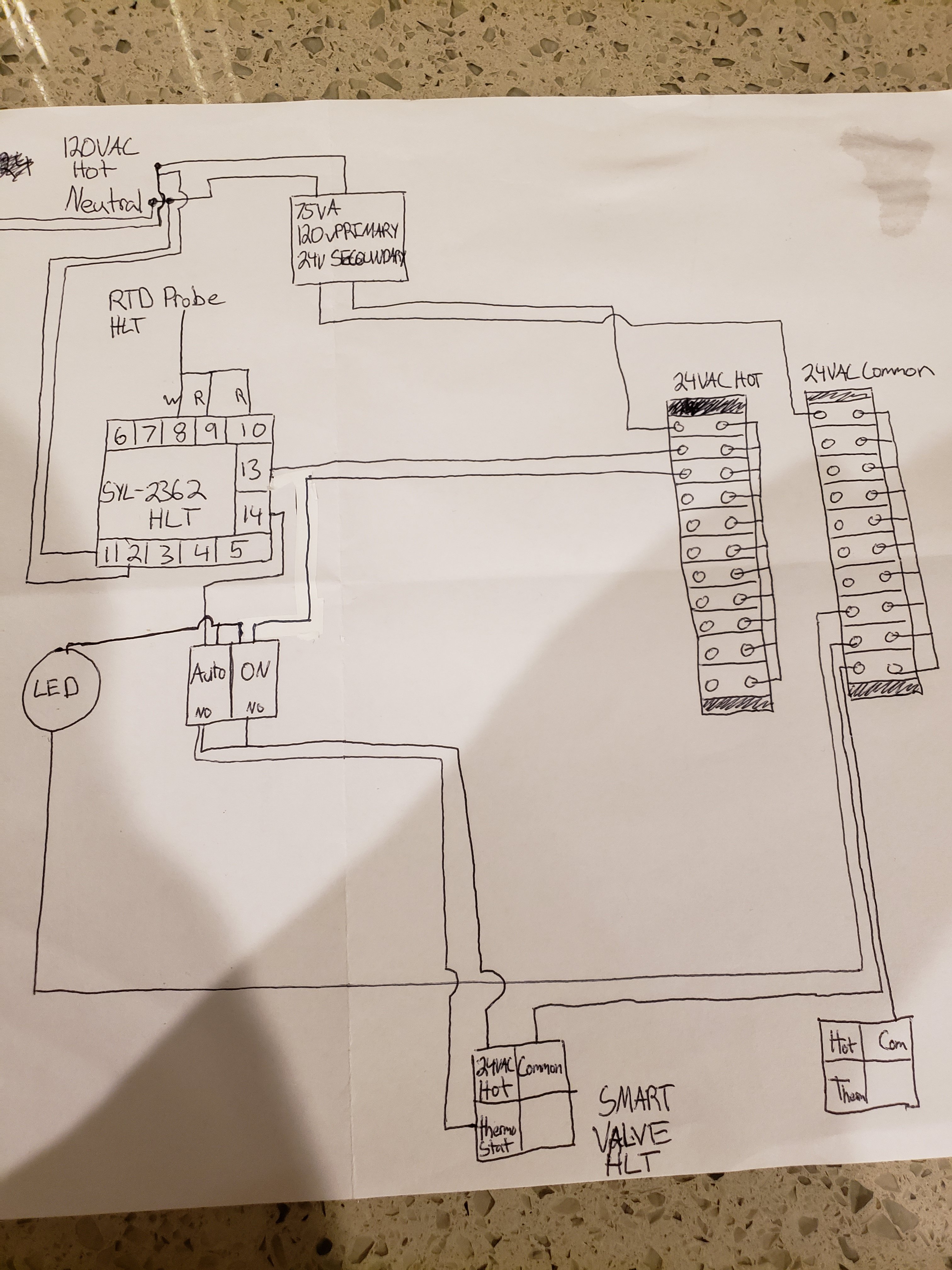

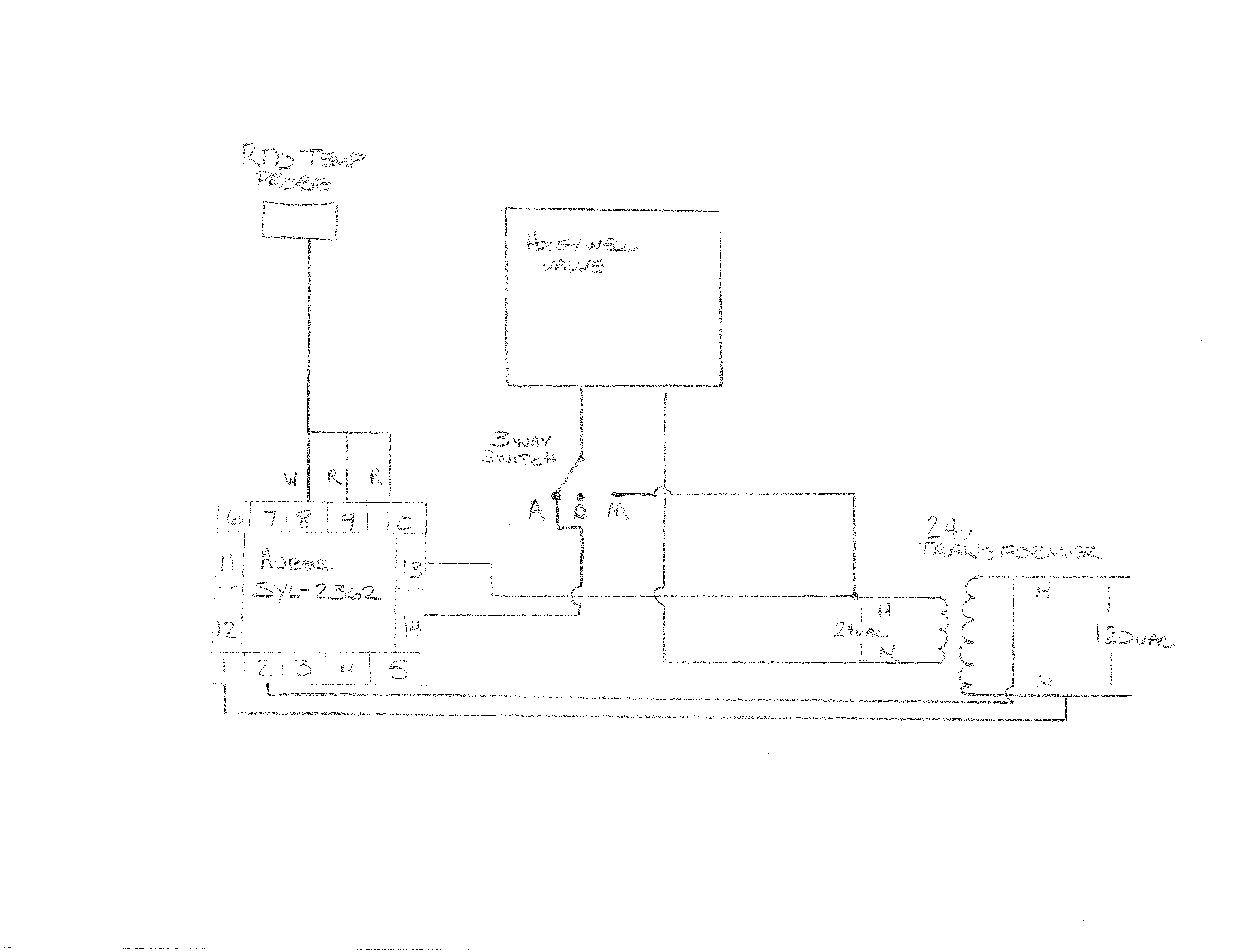

On a side note I couldn't find a single wiring diagram were to put the thermostat wire from the smart valve so I hooked it up to the 3 way switch on the auto side of the contact block
