Gas & Electric Single Tier Brew stand Build

[Chief449]

Long time follower and now ready for additional feedback and support on the wiring and gas plumbing for my mobile beer machine!

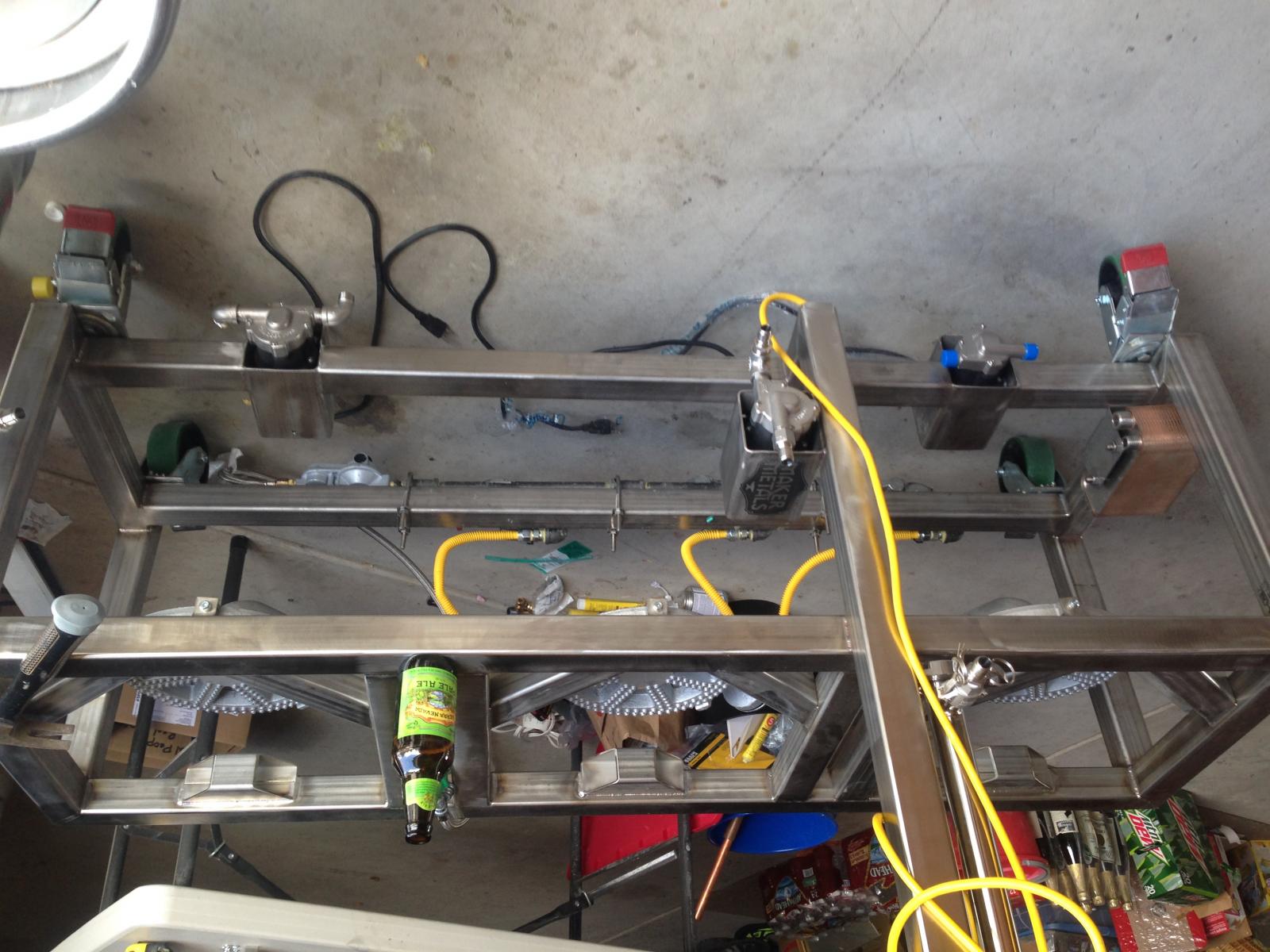

I am using the Honeywell control valves for the propane (I have to be mobile - hence the big ASS wheels), RIMS to help with the MLT - With research from this site and a lot of the pieces and parts from Kal (Which I did donate/purchase his book), but could really use help with my semi custom wiring.

Thanks so much!

View attachment Visio-FLB_CONTROL PANEL_26DEC2014.pdf



[Chief449]

I still need to wire in the Relay for the RIMS, the Timer and the buzzer - all this semi-automation/control is driving me crazy...



[day_trippr]

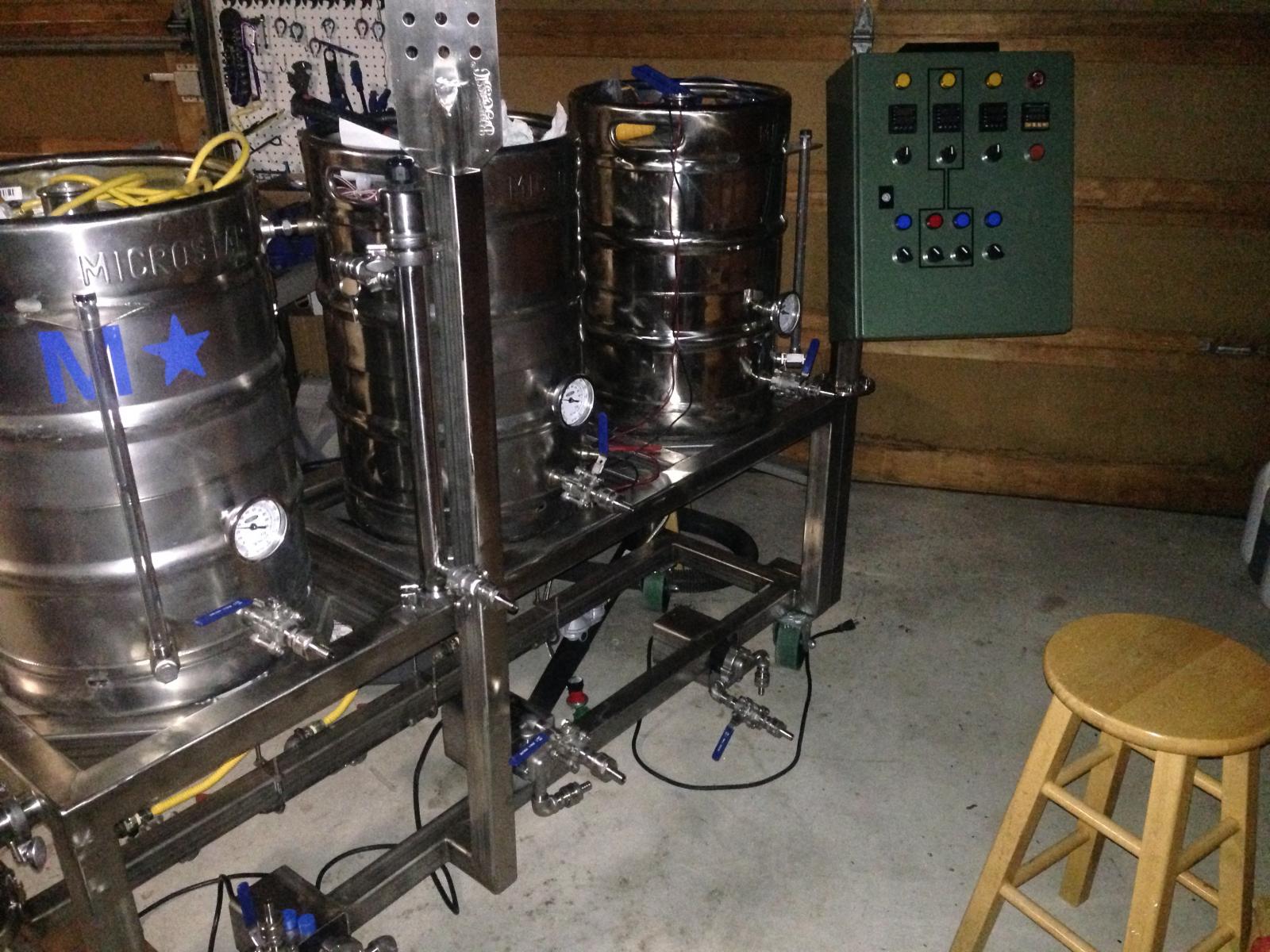

That's a sweet looking frame that'd be even sweeter if it's stainless.

fwiw, the pump head in the middle and the one on the right are up-side-down.
Inlet side should always be below the outlet side.

No idea on the wiring - too tiny to read...

Cheers!



[MrNatural]

double post



[MrNatural]

The .pdf download is much easier to read and can be zoomed. Being unfamiliar with the PIDs, I can't offer an opinion.



[Chief449]

Frame is all Stainless - looks like the PDF is the best file to view - Thanks (been on this for about two years - pump heads are not set yet been trying out different layouts along the way, just have to reposition the heads and secure)

thanks again
