Old 11-21-2011, 01:32 AM   #21
joenads
Recipes

Aug 2011
summerville, sc
Posts: 122
Liked 2 Times on 2 Posts

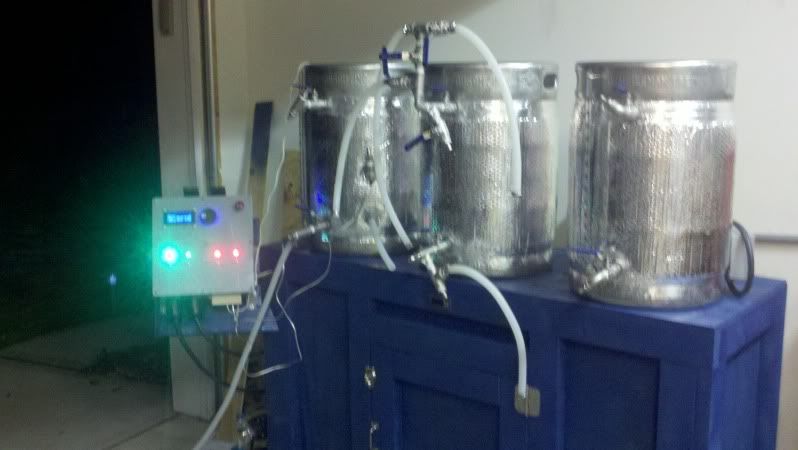

Another little teaser...

This was taken before I hooked my pumps up. I have water tested the pumps and boiled about 10 gallons. I have an issue with one of my pumps. It tends to start squealing when the water heats up. I switch the pumps around the squealing followed the pump...I need to find some SAE 20 oil and see if that takes care of it, but I noticed that the shaft of the pump has some perpendicular movement whereas the one that doesn't squeal doesn't move... If any one has any suggestion, please let me know. I've also ordered a brown ale and an IPA ingredient kit to get some pilot batches going! I've got a few friends that are willing to sell me some carboys so I can't wait to build up my supply of beer.


Reply With Quote
Old 11-23-2011, 02:43 PM   #22
joenads
Recipes

Aug 2011
summerville, sc
Posts: 122
Liked 2 Times on 2 Posts


Picture time:

A few of the whole setup.










Testing out the heating elements.


Mash tun with "splatter screen" false bottom.


My chugger pumps.


Some of the control panel.




Reply With Quote
Old 11-23-2011, 02:44 PM   #23
joenads
Recipes

Aug 2011
summerville, sc
Posts: 122
Liked 2 Times on 2 Posts


And my ferm chamber/stand.







Grains come in Friday, unfortunately I'll be out of town till Monday. Getting excited to give my system a full test run!


Reply With Quote
Old 11-24-2011, 05:11 PM   #24
joenads
Recipes

Aug 2011
summerville, sc
Posts: 122
Liked 2 Times on 2 Posts


Man, I thought I had some decent enough beer porn to not have any comments...


Reply With Quote
Old 11-28-2011, 09:44 PM   #25
lonepalm
Recipes

Dec 2010
Raleigh, NC
Posts: 219
Liked 7 Times on 5 Posts


scribed...

nice build i have been looking for examples of a ferm cham/brewstand


Reply With Quote
Old 12-01-2011, 06:47 AM   #26
mach9
Recipes

Dec 2010
Stockton, CA
Posts: 40

Quote:
Originally Posted by joenads View Post
Man, I thought I had some decent enough beer porn to not have any comments...
Nahh its just you've gone and made a huge percentage of us jealous! Nice setup, been toying with an all electric setup myself. And integrating the ferm chamber into the stand just makes too much sense


Reply With Quote
Old 12-01-2011, 06:51 AM   #27
mach9
Recipes

Dec 2010
Stockton, CA
Posts: 40

Question, what feature or function made you go with the brewtroller...ive been researching it vs using pid controls, and don't know which way I want to go.


Reply With Quote
Old 12-01-2011, 12:40 PM   #28
Lucky_Chicken

Lucky_Chicken's Avatar
Recipes

Jul 2011
Bloomfield, IA
Posts: 795
Liked 37 Times on 27 Posts


I like the phone cords for temp sensor disconnects! I'll probably borrow that!


Reply With Quote
Old 12-01-2011, 02:04 PM   #29
joenads
Recipes

Aug 2011
summerville, sc
Posts: 122
Liked 2 Times on 2 Posts


Quote:
Originally Posted by mach9 View Post
Question, what feature or function made you go with the brewtroller...ive been researching it vs using pid controls, and don't know which way I want to go.
I went with the brewtroller mainly for the potential to expand to more heating/pumps/auto valves/temp sensing, even though I'm really only using it for monitoring temp and pid control on the HLT. It seemed like the board and supporting boards were the same price as 2 PID controls, so I figured the options would be nice. It also fits nicely in the control box.
Quote:
Originally Posted by jtsims21 View Post
I like the phone cords for temp sensor disconnects! I'll probably borrow that!
Don't know where from, but I also borrowed that idea


Reply With Quote
Old 12-01-2011, 05:18 PM   #30
nhwrecker
Senior Member

nhwrecker's Avatar
Recipes

Sep 2011
Nashua, NH
Posts: 601
Liked 74 Times on 56 Posts


Hi Joenads,
like your idea of the fermentation chamber stand as well. Do you have any more build pics of that? Is it all 2x4 framework and plywood? Did you work on the overall size/design based on the stand, or on what you needed/wanted to ferment?

What are the interior dimensions, and are you heating and cooling in SC, or just worried about keeping it cool? I'm in the process of designing one, and my NH basement is already in the 50's, and I need to get a unit built that can keep temps up, before I even worry about keeping them cool.

Thanks, and yes, keep the pics coming.
