Default Propane valves and a sealed gas tube

Morning all!

I need some help here as I am trying to figure out how to make a sealed square tube for propane dispersion to two honeywell valves. So what I need to know is:

- What size/type input port to mount on the sq. tube so that I can hook a propane tank up to it.

- If I am using a 30 PSI propane tank (standard grill propane tank correct?) what size honeywell valves could I use? - I was thinking 1/4" in/out? Do they make those? I have found 1/2" valve assemblies, but no 1/4". Lastly, do I need special couplers for these or do I just mount 1/4" OD threaded pipe to the tube?

Any input on this would be great.

Thanks all!

The attached image shows the basic structure that I would run with. The "threaded" bumps outs are all 3/4" long and are just there for example purposes.

__________________
Kord78 is offline

Reply With Quote Quick reply to this message
Old 01-04-2012, 08:43 PM   #2
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

DON"T
Square tube is not rated for gas usage.

__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 01-06-2012, 07:26 PM   #3
Kord78
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: Manchester, Connecticut
Posts: 26
Default

OK, a little more info on that OHG? What type of tubing would you suggest?

I am seeing tons of people using square tube - bunches of threads, the Brutus system uses square tube, etc.

Thanks!

__________________
Kord78 is offline

Reply With Quote Quick reply to this message
Old 01-06-2012, 07:37 PM   #4
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

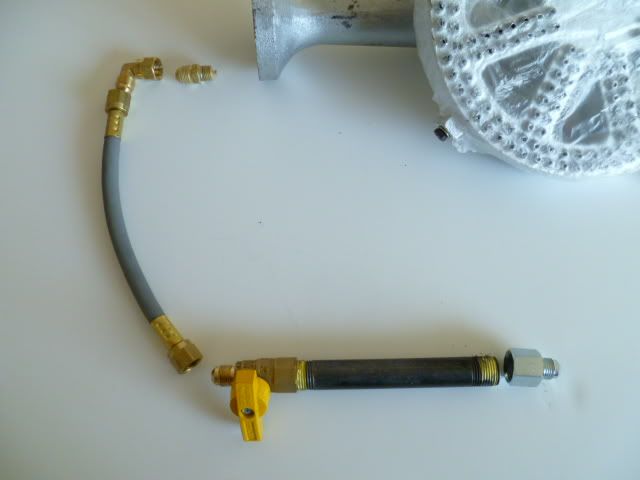

Black iron pipe available at any hardware or home improvement store, that is what is design to be used for gas. Don't use galvanized either, the zinc reacts with the gas.
Just because we see something doesn't mean it's safe.
Gas is very dangerous, why risk injury?

The last thing a redneck says before he dies: "Hey, watch this!"
__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 01-06-2012, 08:01 PM   #5
dutchoven
Feedback Score: 0 reviews

dutchoven's Avatar
Recipes

Join Date: Mar 2011
Location: SF Bay Area, California
Posts: 630
Liked 8 Times on 8 Posts
Likes Given: 4

Default

Those home-welded gas tubes make me nervous ... It's like strapping a pipe bomb to your stand ...

__________________
dutchoven is offline

Reply With Quote Quick reply to this message
Old 01-06-2012, 08:10 PM   #6
KurtB
I may be drunk, but I'm not sure.
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: South Elgin, IL
Posts: 733
Liked 39 Times on 33 Posts
Likes Given: 69

Default

Quote:
Originally Posted by OneHoppyGuy View Post
The last thing a redneck says before he dies: "Hey, Hold my Beer and watch this!"
Fixed that for you...

__________________

Beer is like porn. You can buy it, but it's more fun to make your own.

KurtB is offline

Reply With Quote Quick reply to this message
Old 01-07-2012, 05:36 PM   #7
billtzk
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Dallas
Posts: 1,627
Liked 22 Times on 20 Posts
Likes Given: 6

Default

I made my brewstand and manifold out of 2x2 inch mild steel square tubing, 1/8" inch wall, like Lonnie Mac's original Brutus except that I used mild steel instead of stainless.

I drilled holes with a step-bit to just barely bigger than the outside diameter of the weldable steel 1/2 inch NPT couplings I bought. They were weldable steel couplings, smooth cylinders, not like the cast iron fittings you find at HD or Lowes. I don't recall where I got them, but maybe McMaster Carr. I couldn't find anything like that locally.

Then I made a little jig to hold them in place and I just welded them in. I didn't do anything special to seal off the ends of the manifold. I just welded it to the legs on either side.

I leak tested it when I made it, and again a couple of months ago. No leaks. I'm using natural gas, not propane. Square tubing may not be rated for gas, but it is working fine for me. The low pressure gas, whether NG or propane, is certainly not going to pose a problem.

That said, I do worry about my welding prowess and the continued leak-free operation of the manifold. That's why I test it now and then. It was my first ever welding project, and my welds are definitely not the best. I wouldn't go that route again. In my opinion, it is just as easy and more versatile to use 100% black pipe for your manifold, and just clamp it to the back of the stand.

__________________

Reality is a crutch for people who can't cope with drugs. -Lily Tomlin

billtzk is offline

Reply With Quote Quick reply to this message
Old 01-07-2012, 09:07 PM   #8
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 10,420
Liked 1247 Times on 1006 Posts

Default

Can black pipe be welded to a mild steel brew stand?
And if it could be done, would that be perceived as unwise?

Cheers!

__________________
day_trippr is online now

Reply With Quote Quick reply to this message
Old 01-08-2012, 01:26 AM   #9
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

Quote:
Originally Posted by day_trippr View Post
Can black pipe be welded to a mild steel brew stand?
And if it could be done, would that be perceived as unwise?

Cheers!
Not sure I understand the question... do you mean welding the fittings on to turn the frame into a manifold or attaching the pipe to the stand?

__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 01-08-2012, 01:28 AM   #10
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 10,420
Liked 1247 Times on 1006 Posts

Default

Quote:
Originally Posted by OneHoppyGuy View Post
Not sure I understand the question... do you mean welding the fittings on to turn the frame into a manifold or attaching the pipe to the stand?
Weld the pipe directly to the stand.

Cheers!
