Old 06-04-2012, 06:19 PM   #1
Lennie
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Hannibal, MO
Posts: 555
Liked 10 Times on 10 Posts
Likes Given: 1

Default Cleaning Tri-Clamp Butterfly Valves

I've used my Brewhemoth conical for four batches now and decided I'd better take off the valves and clean them. I tried to disassemble them but even though I removed the bolts holding the two halves of main body together, the handle part wouldn't allow them to come apart. Does anyone have a schematic or can you describe how to get these apart? Or is it even possible to do this? Looks like theres a rubber gasket material in the center that the butterfly valve seats on.

__________________
Lennie is offline

Reply With Quote Quick reply to this message
Old 06-05-2012, 07:07 AM   #2
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,291
Liked 64 Times on 54 Posts
Likes Given: 126

Default

Quote:
Originally Posted by Lennie View Post
I've used my Brewhemoth conical for four batches now and decided I'd better take off the valves and clean them. I tried to disassemble them but even though I removed the bolts holding the two halves of main body together, the handle part wouldn't allow them to come apart. Does anyone have a schematic or can you describe how to get these apart?
Not a Brewhemoth owner.

All my butterfly valves from different manufactures disassemble the same way.
Quote:
Or is it even possible to do this?

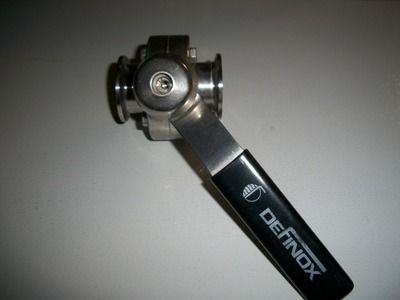

The first thing you have to remove the screw, set screw or bolt from the handle.






The hard part is the handle removal, requires a flat screwdriver and force.
Some valves have a square or rectangular shaft.



Quote:
Looks like theres a rubber gasket material in the center that the butterfly valve seats on.
After you remove the four bolts and a little force the valve comes apart.
The gasket looks like the black one or the white silicone.
I just replaced the gasket a few weeks ago.





The butterfly valves don't need to be disassembled for cleaning like the ball valves.
No dead space for any material or fluid buildup.

Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 06-05-2012, 12:58 PM   #3
Lennie
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Hannibal, MO
Posts: 555
Liked 10 Times on 10 Posts
Likes Given: 1

Default

I was just overlooking the screw on the handle piece. I have the one like your last handle pic and all the holes obscured the presence of that screw. Plus I wasn't sure I needed/wanted to take it apart. Thanks much for the great advice, that explains it for me.

__________________
Lennie is offline

Reply With Quote Quick reply to this message
