After doing some searching and reading. I decided that I would build my own mash tun instead of buying.
Pretty easy build. Knocked it out in about 10-15 mins.

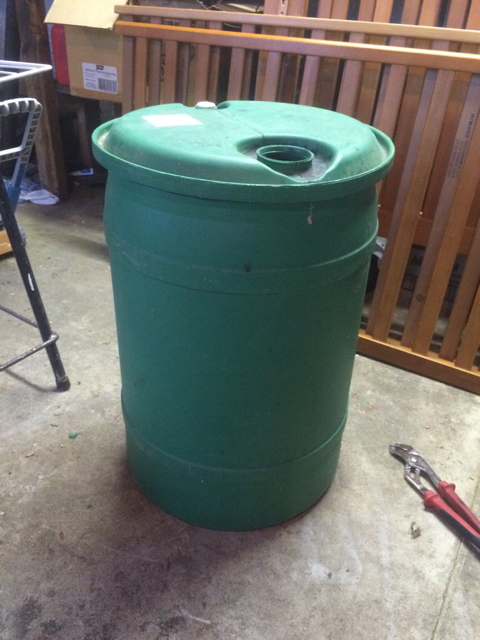

Started with a 60L HDPE barrel
View attachment ImageUploadedByHome Brew1429340277.257246.jpg

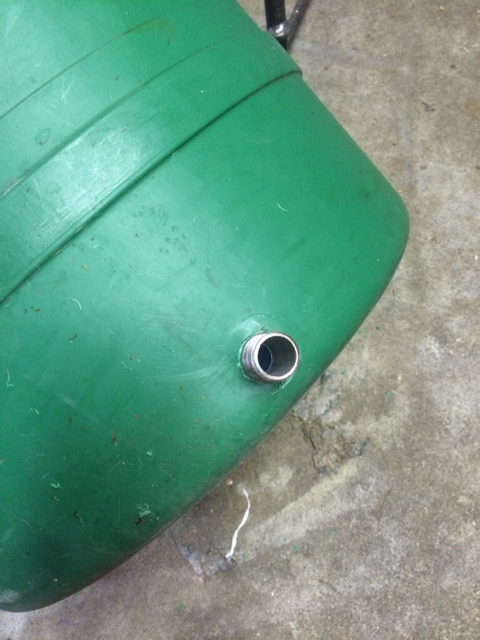

Cut the top off and put a 1/2" SS nipple through the bottom.
View attachment ImageUploadedByHome Brew1429340345.160197.jpg

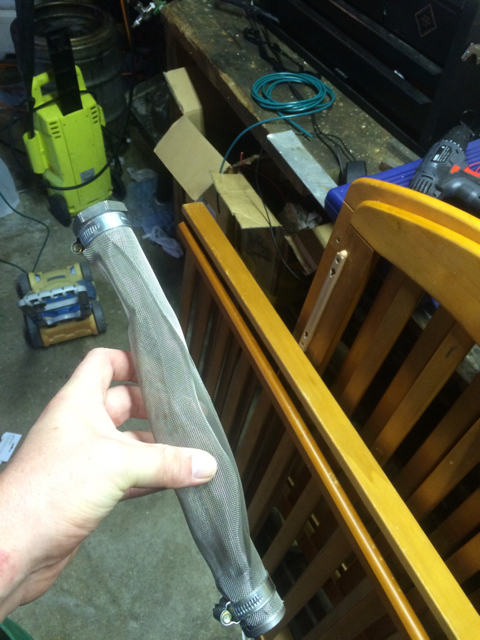

Then I made up a drain tube out of a 3/4" socket, some SS wire screen, a 1" plug and two hose clamps.
View attachment ImageUploadedByHome Brew1429342336.369148.jpg

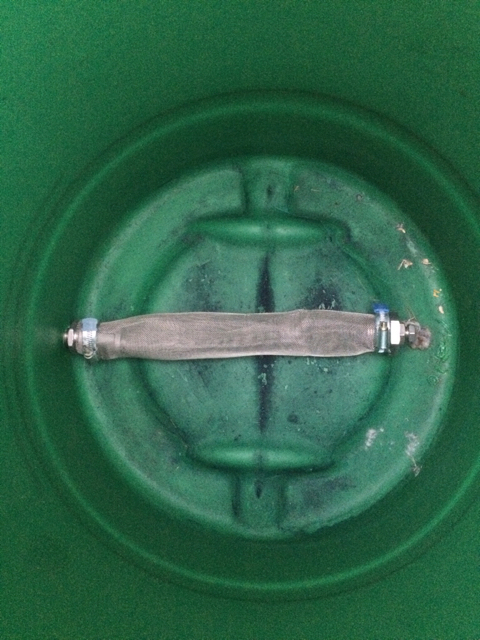

Connected it to the nipple.
View attachment ImageUploadedByHome Brew1429342406.406151.jpg

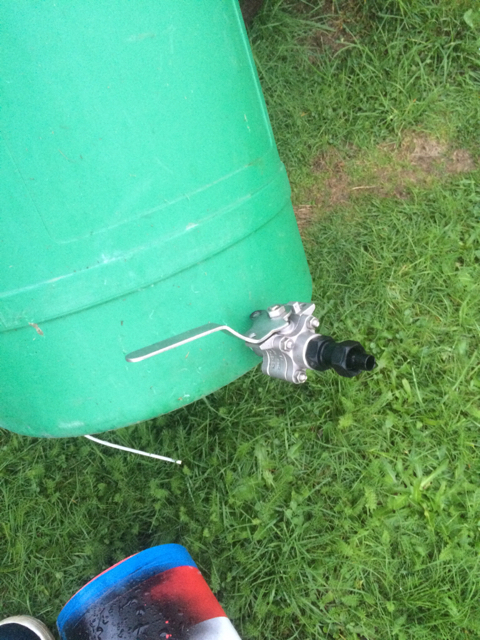

And put a 1/2" ball valve on the out side with a hose barb.
View attachment ImageUploadedByHome Brew1429342496.263635.jpg
One day I may get round to insulating it better. But for now it holds heat pretty well. And I can wrap a spare duvet around it.
