Replacement firmware for iSpindel (GravityMon)

[mper]

I have done some updates to the gravitymon.com page and started to add a few relevant blog posts on the new gyro but also how to build an ESP32 based device. Gravitymon.com. More will come and if you have suggestions for topics let me know.

I have also added my own flasher to the site which from v2.2 also helps with configuring the wifi settings using the serial connection. All my projects will be adapted to use this approach in the future.



[mper]

Gravitymon v2.2 is now released, available in my webflasher on gravitymon.com and brewflasher.

https://github.com/mp-se/gravitymon/releases/tag/v2.2.0

Gravitymon Gateway is also updated to v0.7 which adds support for Pressuremon as well.

https://github.com/mp-se/gravitymon-gateway/releases/tag/v0.7.0



[larsh]

Gravitymon v2.2 is now released, available in my webflasher on gravitymon.com and brewflasher.

https://github.com/mp-se/gravitymon/releases/tag/v2.2.0

Gravitymon Gateway is also updated to v0.7 which adds support for Pressuremon as well.

https://github.com/mp-se/gravitymon-gateway/releases/tag/v0.7.0

Updated one of my spindels from 2.1 to 2.2 successfully. Also modified the voltage divider to 220k/220k. One small issue when changing/saving voltage factor: Displayed voltage does not update, unless I go Home and then back to Device-Hardware. This is with Firefox v140, have not tried other browsers. My correct Voltage factor ended up to be 2.06



[mper]

Updated one of my spindels from 2.1 to 2.2 successfully. Also modified the voltage divider to 220k/220k. One small issue when changing/saving voltage factor: Displayed voltage does not update, unless I go Home and then back to Device-Hardware. This is with Firefox v140, have not tried other browsers. My correct Voltage factor ended up to be 2.06

Did you change it on the hardware page or use the "calculator" ?



[larsh]

Did you change it on the hardware page or use the "calculator" ?

Fiddled with factor number on the hardware page until I got the correct voltage. Saved after each change. Forgot the calculator under Other - Tools :-(



[mper]

I have fixed a few bugs in the v2.2 release,

https://github.com/mp-se/gravitymon/releases/tag/v2.2.1



[larsh]

I have fixed a few bugs in the v2.2 release,

https://github.com/mp-se/gravitymon/releases/tag/v2.2.1

s2 mini/ mpu6050. I am not sure what happens. Have tested 2.2 and 2.2.1. Both versions sends mqtt data while in config mode. Out of config mode: silence. I have also noticed that the s2 mini gets a bit warmer (around 35C) than in v2.1. Battery drains much quicker than normal. Checked the battery, internal resistance and capacity is ok. If I revert to v2.1, it works as expected again



[mper]

s2 mini/ mpu6050. I am not sure what happens. Have tested 2.2 and 2.2.1. Both versions sends mqtt data while in config mode. Out of config mode: silence. I have also noticed that the s2 mini gets a bit warmer (around 35C) than in v2.1. Battery drains much quicker than normal. Checked the battery, internal resistance and capacity is ok. If I revert to v2.1, it works as expected again

Sounds strange, i have not tested the s2 mini in the latest versions, have you calibrated the voltage factor after upgrade? Does the device to into wifi setup mode? I will have a look when I get im back home again



[larsh]

Sounds strange, i have not tested the s2 mini in the latest versions, have you calibrated the voltage factor after upgrade? Does the device to into wifi setup mode? I will have a look when I get im back home again

Voltage factor calibrated - via the tool this time I did ota upgrades. It did not go into wifi setup mode. Wifi config was kept, so no need either.
No hurry. The unit I'm playing with is just for testing



[Masahiko]

Hello , folks !
Are you going to write RAPT PILL BLE compatible mode for transmission data ?
Anyone tried it ?



[mper]

Hello , folks !
Are you going to write RAPT PILL BLE compatible mode for transmission data ?
Anyone tried it ?

It would be possible if there is a specification on the data format, but i havent seen that



[koomber]

Fantastic project this.

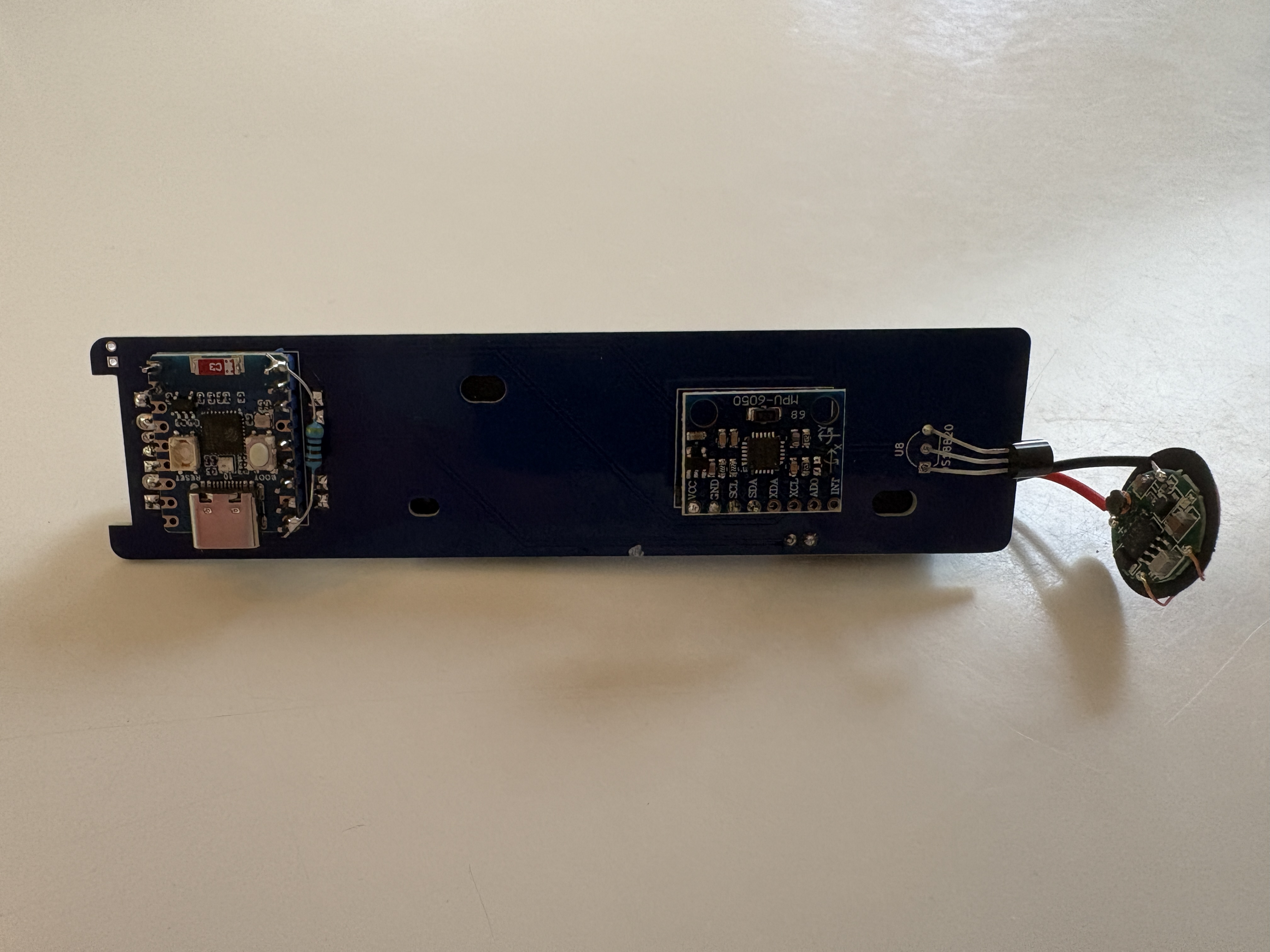

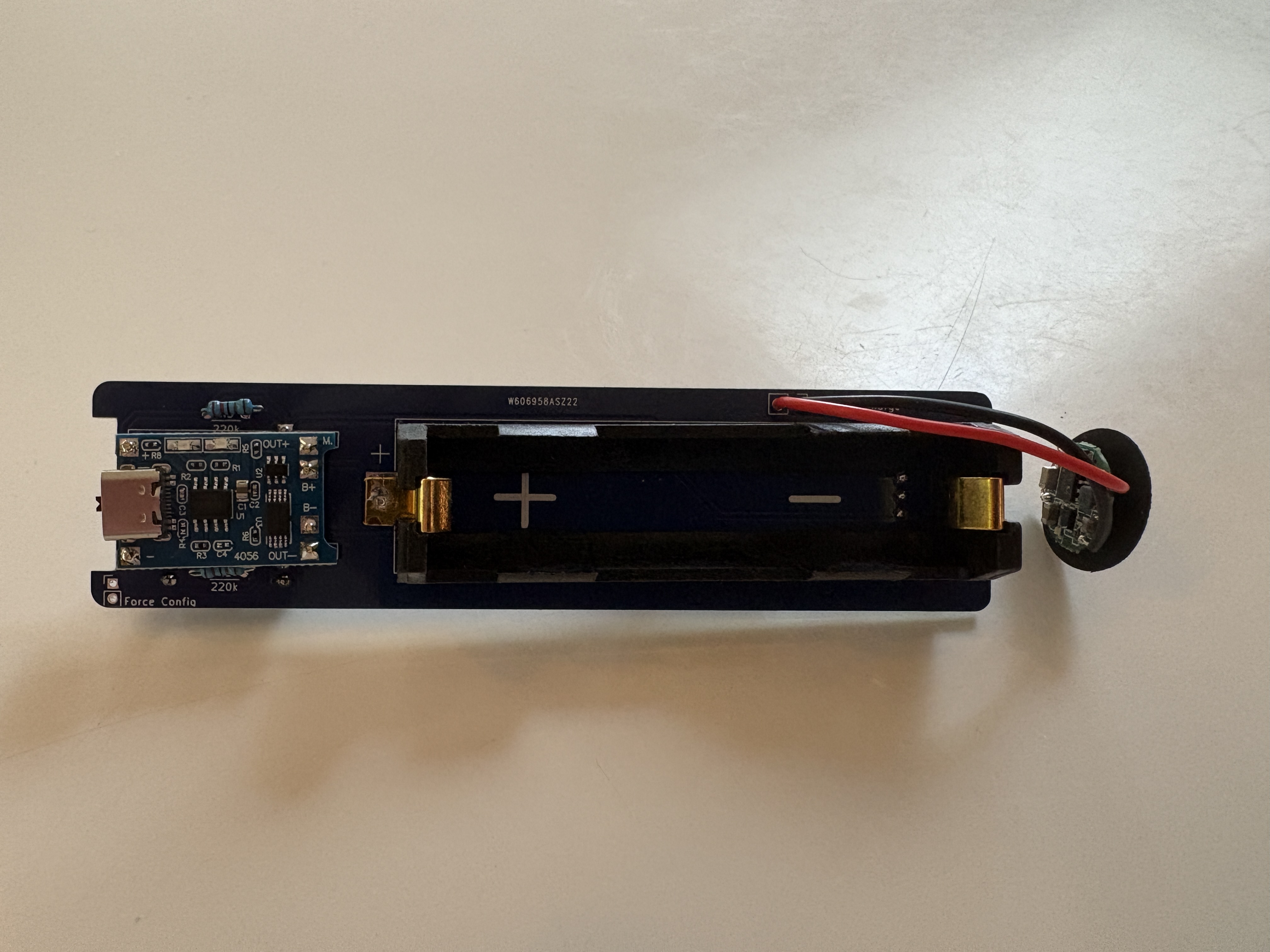

Currently putting together a build using an S3 supermini. Still learning coding with arduino so getting this going has exposed me to some new concepts (got stuck on build environments and adding a new board) but ive managed to create a new build environment for the super mini, flash it and get it reading from the gyro and charging using the supermini's built in charging circuit. Plan is to get it charging off a wireless charger and transplanted to a rapt pill.

Long term goal is to have it communicate with a temperature controller build via ble which will then forward the data via wifi or similar. Hopefully get some pressure monitoring (rough and ready qualatitive) via a cheap bluetooth tpms cap on the spunding valve.

Thanks for sharing this build. It is phenomenal.



[mper]

Fantastic project this.

Currently putting together a build using an S3 supermini. Still learning coding with arduino so getting this going has exposed me to some new concepts (got stuck on build environments and adding a new board) but ive managed to create a new build environment for the super mini, flash it and get it reading from the gyro and charging using the supermini's built in charging circuit. Plan is to get it charging off a wireless charger and transplanted to a rapt pill.

Long term goal is to have it communicate with a temperature controller build via ble which will then forward the data via wifi or similar. Hopefully get some pressure monitoring (rough and ready qualatitive) via a cheap bluetooth tpms cap on the spunding valve.

Thanks for sharing this build. It is phenomenal.
View attachment 884002

Thanks, feel free to check out my other brewing projects at gravitymom.com.



[Tartan1]

Thanks, feel free to check out my other brewing projects at gravitymom.com

Great project been following along, link correction gravitymon.com. ?
