New Tower Beer Line Q

[jneub007]

Hello all,

Long time reader and subscriber, first post. I'm hoping you can help me out.

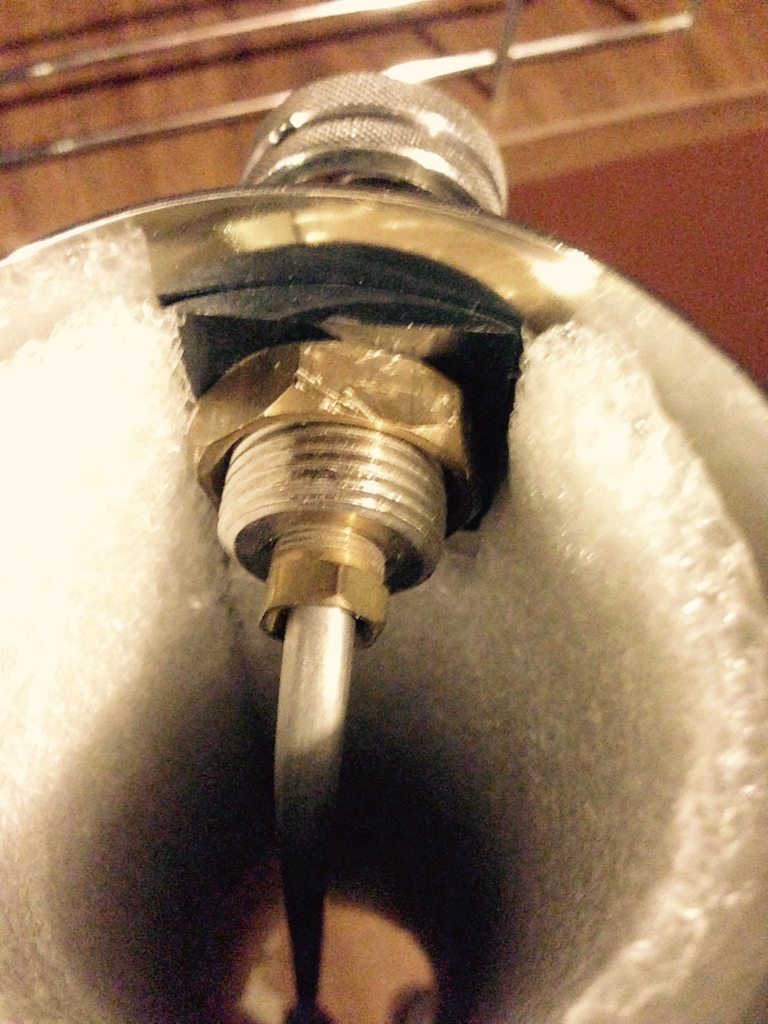

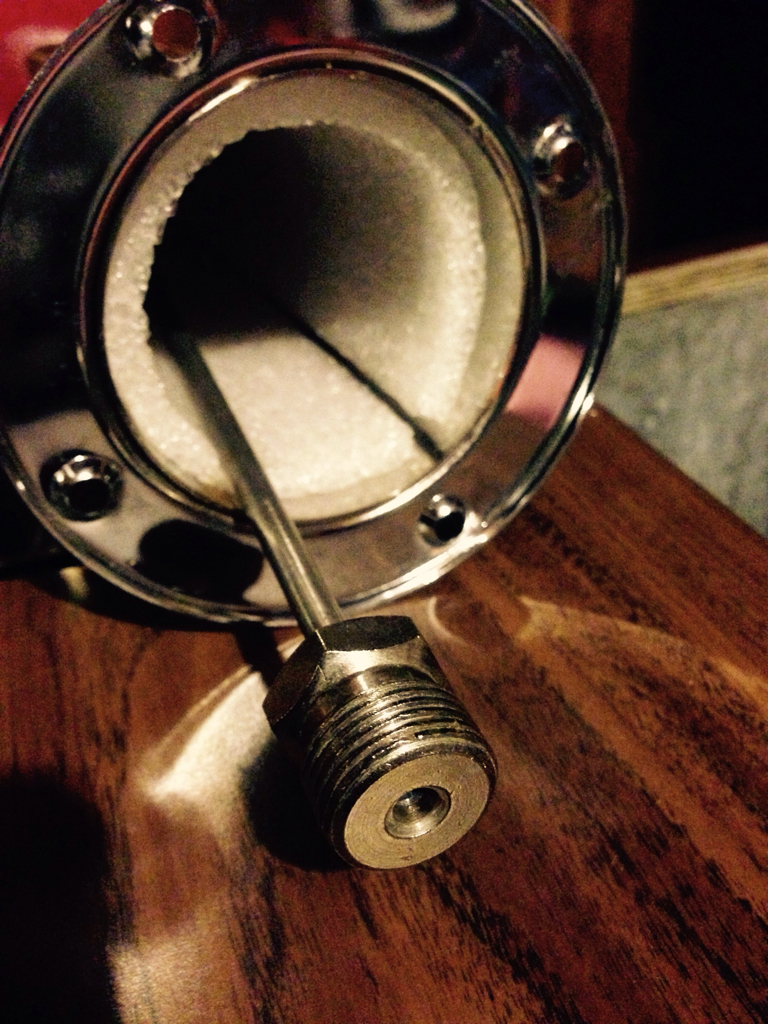

I'm putting together my first kegerator and going the keg route, and a friend gave me a new shiny tower which is like to use - however, the elbow shank connects to a long stainless line (about 16" long) ending in a 7/8" male threaded end. See the pics.

I bought a barbed tail and neoprene spacer, but it doesn't fit and I feel like I'm missing something. Any ideas? I want to connect to a 3/16" barb for my beer line! Help!

Thanks guys...View attachment ImageUploadedByHome Brew1420767393.911709.jpgView attachment ImageUploadedByHome Brew1420767409.078797.jpgView attachment ImageUploadedByHome Brew1420767424.588742.jpg



[LLBeanJ]

You need a 7/8" beer nut, a barbed tailpiece, and a rubber washer (which would look very similar to that black washer in your first pic) to go with it.

Hex nut
Tailpiece
Washer

Edit: Alternatively, you could use a tubing cutter and cut off the SST tube just above the 7/8 fitting, slide your beer line over the tube, and secure with a hose clamp.



[gbarker121]

A 90 degree barbed tail piece would help in that tight space.

Edit: Ignore me. I was paying attention to the wrong end...



[jneub007]

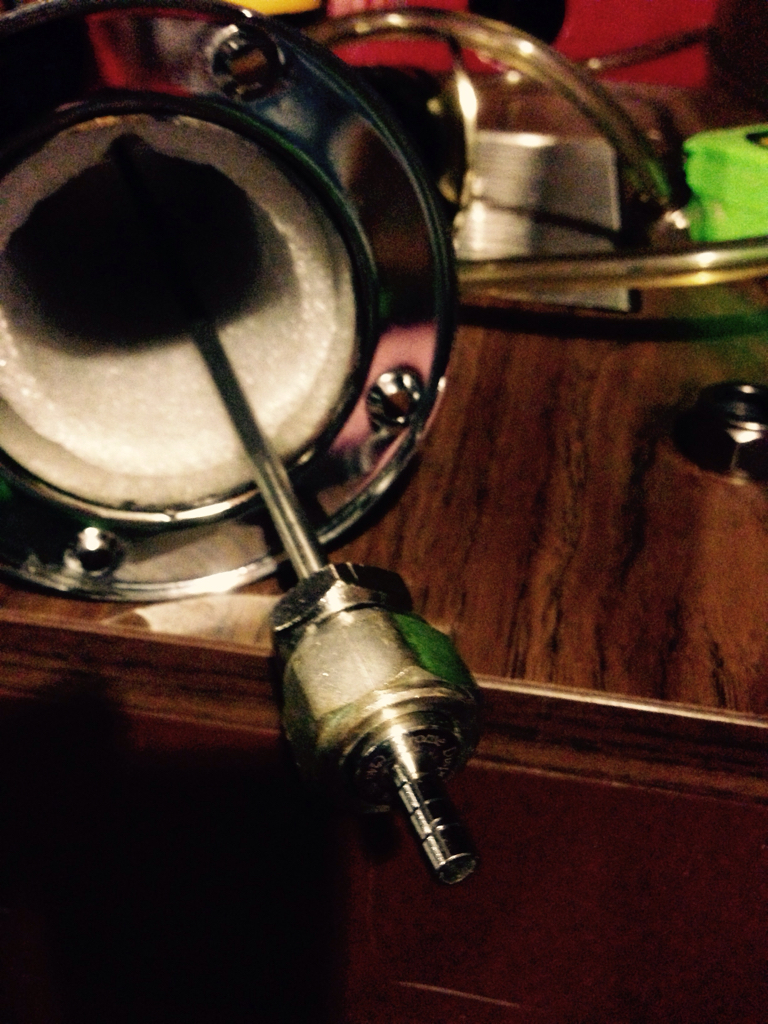

Thanks LLBean... I tried another beer nut and had the washer and barbed tailpiece. I think we're golden. (At least until I test for leaks)

Hey, I appreciate it!View attachment ImageUploadedByHome Brew1420771063.996782.jpg



[LLBeanJ]

That's it!
