Need some help with RTD probes please!!

[Nichols2127]

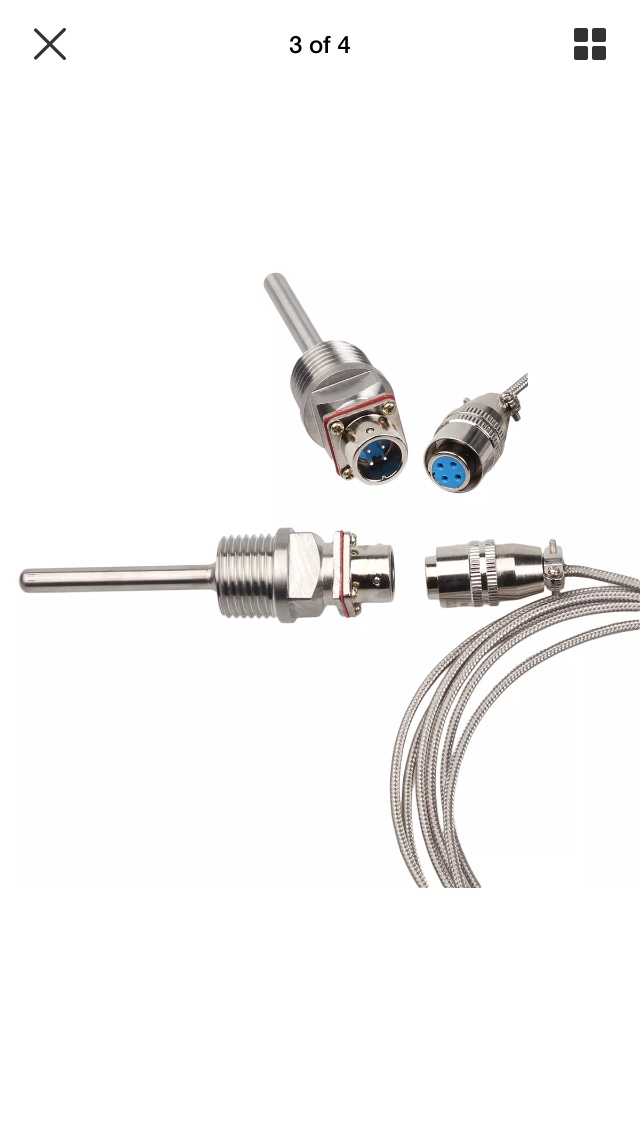

Hey guys, thanks for taking time to help me out! I’m not very handy and know nothing about electrical but what I am looking for is a probe like the one below except with 3 prongs vs 4. The reason being, my current system already has this and of course there are 3 prongs. I want to use that same cable for mash AND boil temps so I can just switch it out between the 2. Add a new port in the boil kettle and the rest is history. Thanks for any advice!!



[mongoose33]

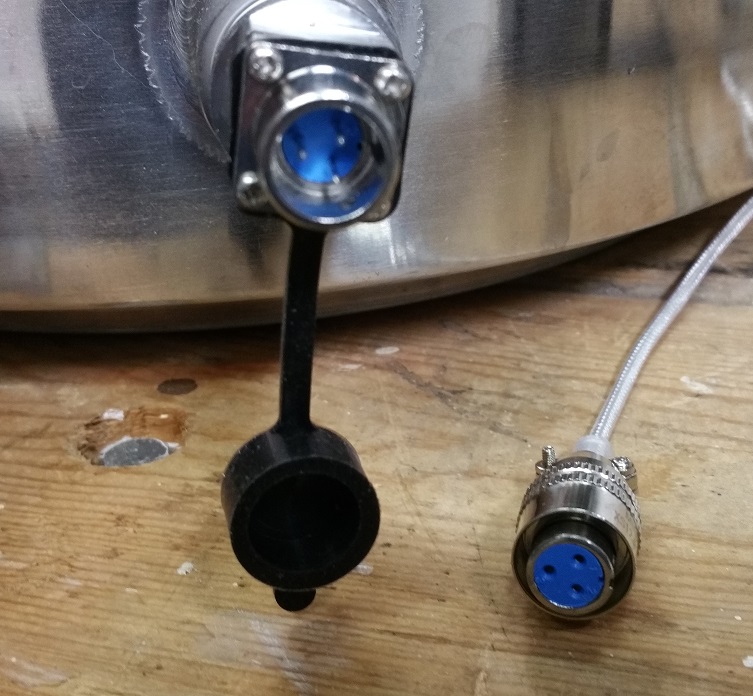

I just bought and put together a kit from Auber Instruments. The probe has 3 prongs.

This is what it is.

The particular one I have is the PT100-L601/2NPT with a probe about 2 1/2 inches long.

This is the page on which I ordered it; dropdown menu for sensor:

https://www.auberins.com/index.php?main_page=product_info&cPath=64_66&products_id=678



[Nichols2127]

Ironically enough I looked on their page last night and just happened to find this! I grabbed a 6” water tight probe (knowing now it is 3 prong). Thank you so much for your quick reply Mongoose!! Looks like you are doing pretty much what I am too (using a Blichmann Breweasy). Happy Brewing!



[Nichols2127]

Mongoose, what size hole did you punch for that? Thanks!



[mongoose33]

Mongoose, what size hole did you punch for that? Thanks!

It's a welded 1/2" NPT port. If you get a bulkhead that will accommodate that, the bulkhead will indicate what size.

BobbyM has some that are 13/16 and 7/8. I think this is what you need:


https://www.brewhardware.com/product_p/truebulkheadfem.htm



[Nichols2127]

Do I need a bulkhead, or can the probe be run directly into the side of the kettle? Probably less likely to leak with a bulkhead I would imagine.



[mongoose33]

You need a bulkhead or a welded port.

I have a couple of Bobby's bulkheads on a different kettle. They are unbelievably solid.



[BitterSweetBrews]

Do I need a bulkhead, or can the probe be run directly into the side of the kettle? Probably less likely to leak with a bulkhead I would imagine.

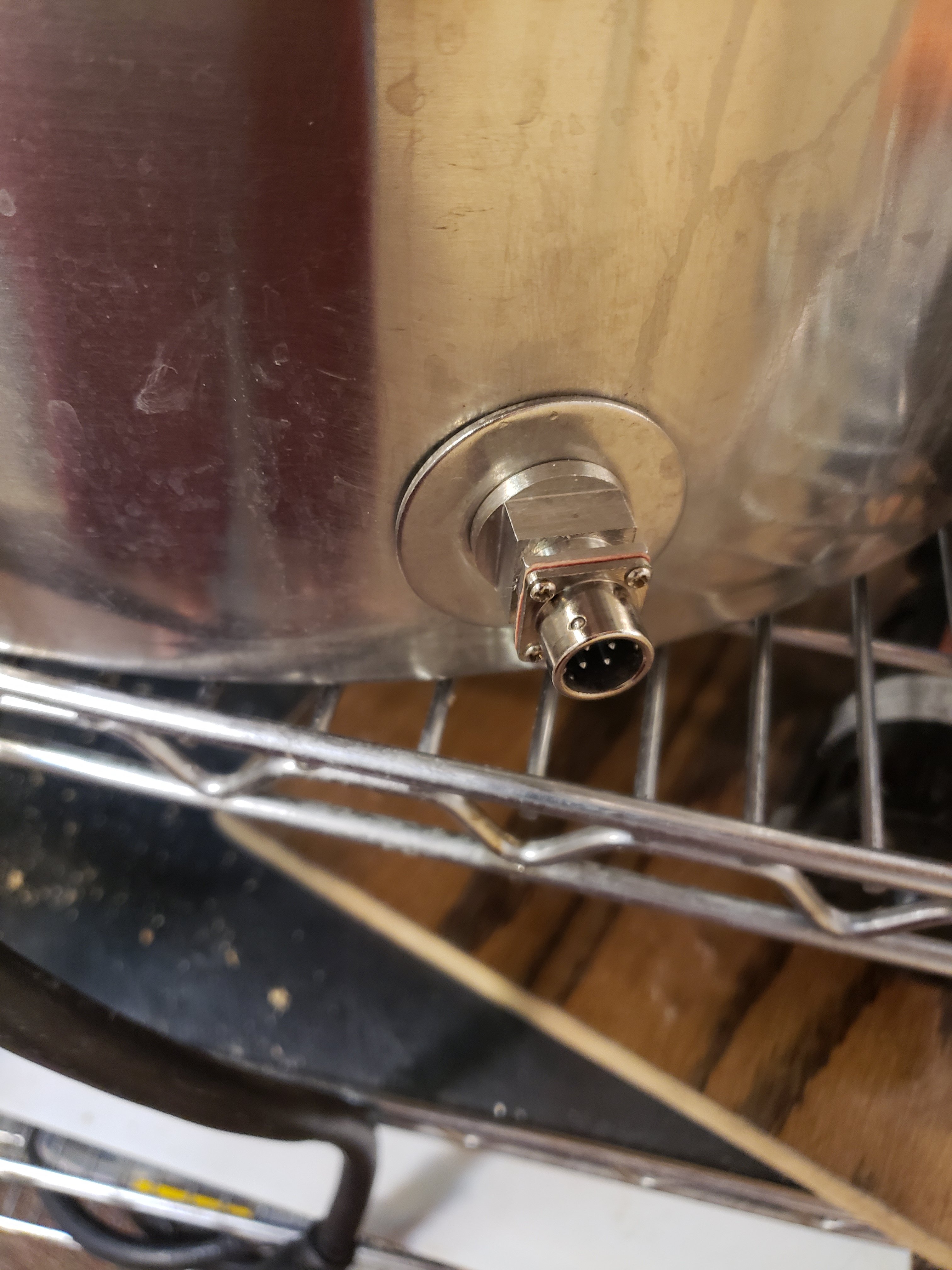

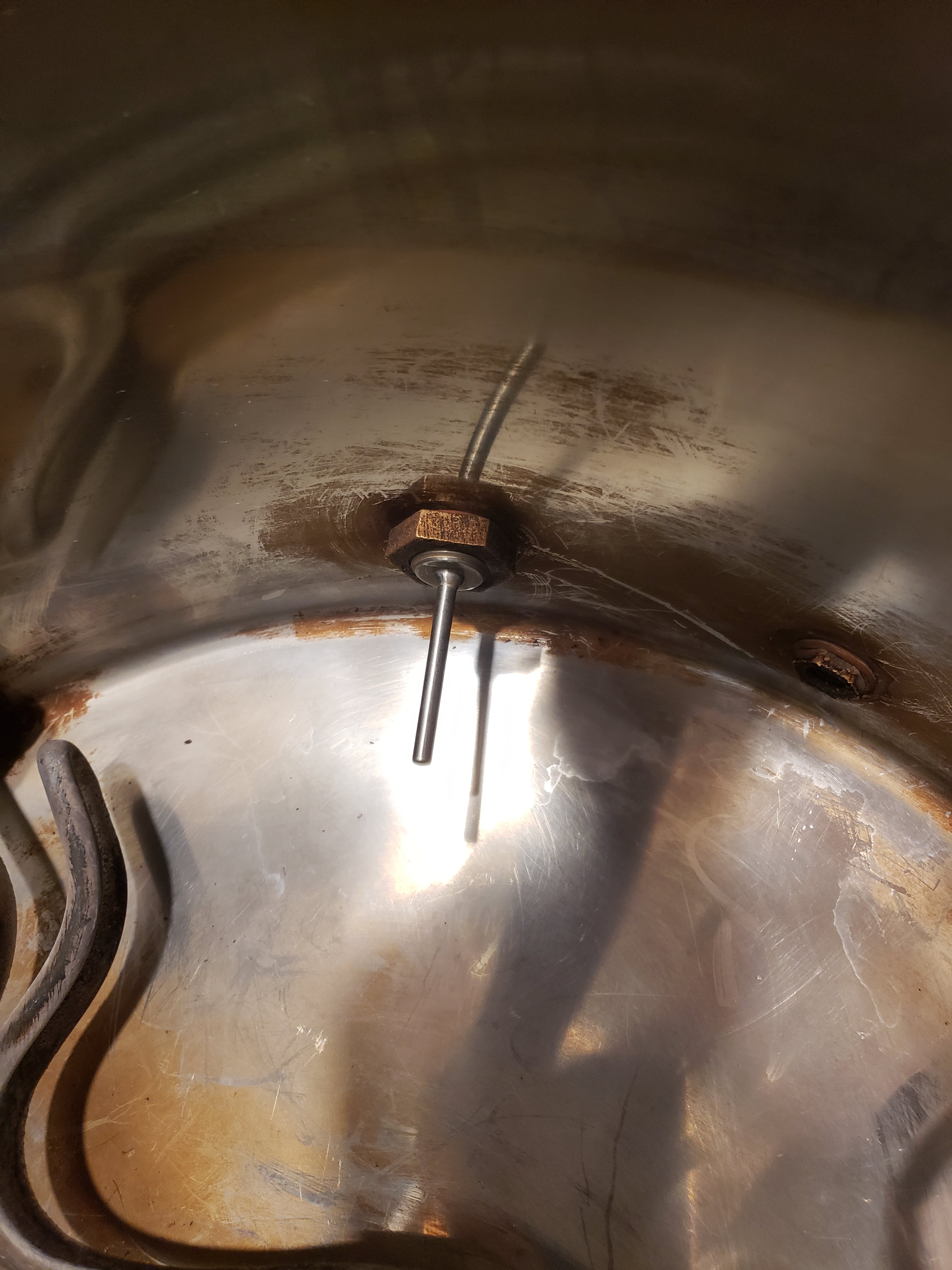

You can mount it directly to the side of the kettle without a bulkhead. Get a 1/2" locknut (SS if you can), a silicone or rubber o-ring and a 3/4" SS washer for the outside. It will seal fine and work well. I have done at least a half dozen done like this. It will go - locknut - o-ring - kettle side - washer - probe.
