Fairly new to forum and FIRST al lgrain setup, please help!!!

[bennyhead]

Hello Everyone,

I have posted once before and got good feedback, hopefully this will turn out the same.

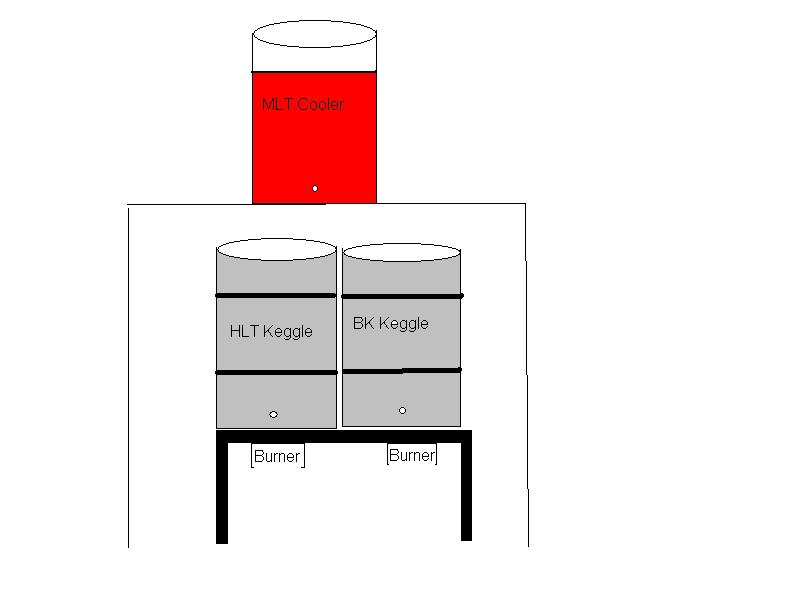

I am proposing my first all grain brew setup, i have a dbl burnder stand that has been welded with angle iron. I have 2 keggles which both will be fitted with valves, dip tubes, false bottoms, etc. I have 1 Rubbermaid cooler which is fitted with a valce and stainless braid setup. I have drawn a picture using paint and am looking for insight. I do not want to buy a pump for now if I do not have to. Can anyone tell me how this setup could work without using a pump...??I am ok to all ideas including bucket sparging, etc. It just seems like alot to draw up and I am overthinking it..Thank in advance!



[Hammy71]

When I first stated all grain (no pumps), I just moved my water around with a food grade bucket (the same ones we ferment in). It involved a lot of heavy lifting, but got the job done. Basically what you have here. There are huge threads on here about the rigs people build and use. Your drawing is very typical and your on your way.



[brewmadness]

Cut that burner stand in two and build a 3 tier system....???
