I glued mine so it's 3 pieces, a middle section and 2-3 sided sections.

I didn't want to jack around putting it together everyone I brew.

Might not have been the best choice in hind sight


Sent from my iPhone using Home Brew
Well to be fair, I haven't even built one of these yet. I'm actually tackling that this weekend. But from what I can see on the guides, most people didn't glue, especially due to exposing the wort to the glue.

I guess I'll find out soon how well it works without glue. I would figure that as long as you don't rough it up, that it'll work well without glue.


atimmerman88

Well-Known Member
Joined
Feb 27, 2012
Messages
1,262
Reaction score
390
Location
Quad Cities
I figured...

You can use PVC glue with potable water without issue so wort @ approx 170 shouldn't be too terrible if using the right glue.


gl_az

Well-Known Member
Lifetime Supporter
Joined
Jun 7, 2010
Messages
136
Reaction score
52
Location
Arizona
I just roughed up the insides of the fittings and outsides of pipe sections a bit and used a tiny dab of hi temp, food safe silicone to 'glue' them together. Just make sure to let it fully set and off gas for a while befre using. It holds them plenty well enough and you can still pull them apart if you really need to, just roll the silicone off and re-glue.

I did my manifold as two halves that slide together and I put some tiny stainless set screws through the 4 removable ends to hold 'em together for a little extra safety. You only need these things to come apart once during a brew session to understand the frustration in getting them put back together again under 20 pounds of 155 degree + mash. DAMHIKT. Now it works perfectly and is easy to pull apart for cleaning after each brew session.


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0
Sorry for possibly a silly question, but the piece that connects the manifold to outside of the mashtun, what is it? all I see is a black piece and some sort of adapter?


nickmv

Well-Known Member
Joined
Mar 1, 2010
Messages
780
Reaction score
70
Location
Memphis
Sorry for possibly a silly question, but the piece that connects the manifold to outside of the mashtun, what is it? all I see is a black piece and some sort of adapter?
I believe you're referring to a 1/2" NPT close nipple.

A weldless valve kit consists of, in order from inside cooler to out:

Coupler -- Washer(s) -- Silicone Gasket

that assembly then fits onto a close nipple, which pokes through the hole in the mashtun. Once outside the mash tun, the following (again inside to out) goes on the outside portion of the close nipple:

Silicone Gasket -- Brass Nut and/or Washer (s) -- Ball Valve -- Any Valve Fitting




Hope that helps.


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0
Thanks I've been holding off buying the components. Now I can go tomorrow and have a beer day on sunday/monday


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0
So I ran into a problem and I'm hoping I'm just missing something stupid. I built the manifold and set up the 5G rubbermaid. The problem I'm having is that there is not enough space beneath the FiP to slide the manifold, I haven't bent the cpvc piece but i don't think that'll help...


nickmv

Well-Known Member
Joined
Mar 1, 2010
Messages
780
Reaction score
70
Location
Memphis
So I ran into a problem and I'm hoping I'm just missing something stupid. I built the manifold and set up the 5G rubbermaid. The problem I'm having is that there is not enough space beneath the FiP to slide the manifold, I haven't bent the cpvc piece but i don't think that'll help...
Pics pics pics, please.

Also, why are you saying that bending won't help? If that's the case, sounds like something went wrong with the build itself.

I built mine with parts from Home Depot and Ace, on a Home Depot 10gal cooler (most likely a rubbermaid or Igloo if I had to guess), and I didn't even have to bend the tube at all -- the thing just fit.

Edit: Pic very important, because I'm curious as to what you've got set up at the valve area (on the inside), specifically how far your coupler or whatever you've got, is sticking out from the cooler inner wall


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0

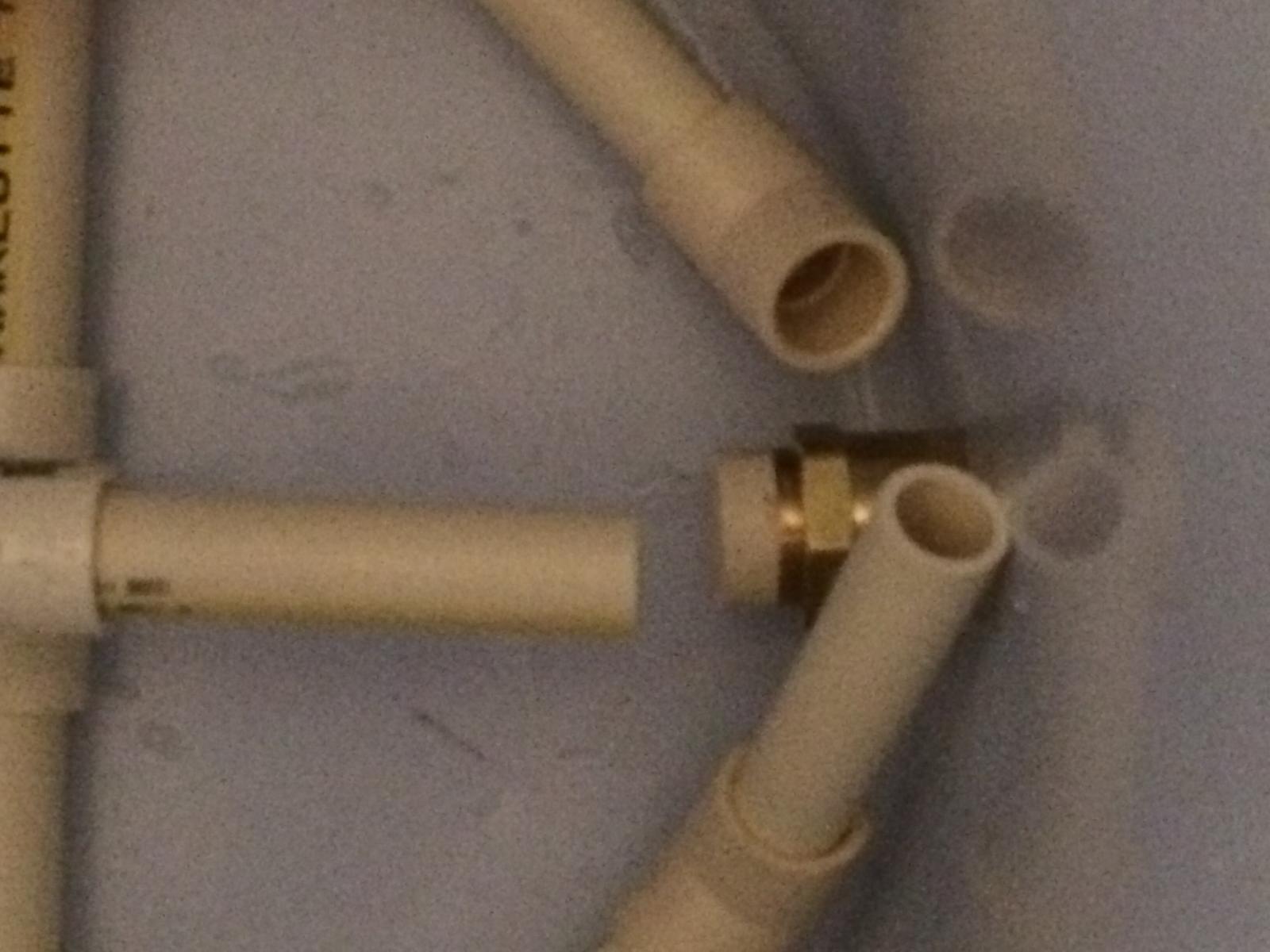

That's the pic I could get from my phone. I can bend the pipe to the fip but the front edge of the manifold runs right across the fip. I think I'm going to just split the pipe and add a 90 degree joint to bend around it



nickmv

Well-Known Member
Joined
Mar 1, 2010
Messages
780
Reaction score
70
Location
Memphis
That's the pic I could get from my phone. I can bend the pipe to the fip but the front edge of the manifold runs right across the fip. I think I'm going to just split the pipe and add a 90 degree joint to bend around it
OK, as I suspected -- your manifold is way too big. Did you follow the directions the OP posted? Because his was sized for a 10gal I believe.

To give you an example (I'm too lazy to go into the 110F shed and grab a pic), mine for a 10gal easily fits inside my cooler, and sits slightly off-center towards the side AWAY from the valve, and the distance between the valve assembly and the nearest edge of the manifold is probably 3-4 inches.

Simply put, your is too big for a 5gal. Just cut it down to size, making equal cuts to all sides.


nickmv

Well-Known Member
Joined
Mar 1, 2010
Messages
780
Reaction score
70
Location
Memphis
That's the pic I could get from my phone. I can bend the pipe to the fip but the front edge of the manifold runs right across the fip. I think I'm going to just split the pipe and add a 90 degree joint to bend around it
OK, so looks like your manifold is way too big. I bet you built yours from the directions. I believe the OP had a 10gal cooler though, which is considerably larger in diameter.

You just need to trim down your manifold's overall size ---- that, or if you have room on the other end of the inside of the cooler (I cant see it in the photo), replace the tube that runs from the manifold to the valve with a longer one.


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0
Alright, thanks for your response. I finally made it to a computer. I actually built it off of a 5gal post within this thread but I think I was too cautious with my measuring. So after relooking at it, I think I can shave off about a 1/2" from the width, and perhaps I can cut from the angled pipes to get some more room if needed. Thanks again.

One more question, my pipes have printing on them, do I need to clean them up?


nickmv

Well-Known Member
Joined
Mar 1, 2010
Messages
780
Reaction score
70
Location
Memphis
Yeah I'd focus on the 8 side pieces first, trimming them down with equal cuts to both ends. I'd try to stay away from cutting the 45 degree angled connectors -- those aren't really meant to be cut, and are much thicker CPVC. Not to mention, you need those angle pieces intact so the thing can fit together without falling apart.

As for the printing -- don't bother. It'll slowly come off over time, and isn't really worth trying to tackle. Stickers on the other hand.....


rel322

Well-Known Member
Joined
Oct 30, 2013
Messages
46
Reaction score
0
Oh I don't mean that I'll cut the 45* connector, but the pipes that connect them so that i can gain more space. but I'll edit this post after I finish the trimmings.


DIXIEBOY1

Active Member
Joined
Mar 10, 2014
Messages
43
Reaction score
1
Location
Germany (for now)
Does the pvc and glue used.to connect the pieces together not leach dirty dirties into your brew? Also, why pvc over something like ss or copper?


atimmerman88

Well-Known Member
Joined
Feb 27, 2012
Messages
1,262
Reaction score
390
Location
Quad Cities
SS and copper are more costly and more difficult to work with than plastic.

If you use the correct primer and glue you won't have any issues. Use stuff that's rated for potable wayer


Sent from my iPhone using Home Brew


atimmerman88

Well-Known Member
Joined
Feb 27, 2012
Messages
1,262
Reaction score
390
Location
Quad Cities
I ended up glueing mine into 3 separate pieces so I could clean it easier. Been working well for 2 years


Sent from my iPhone using Home Brew


gl_az

Well-Known Member
Lifetime Supporter
Joined
Jun 7, 2010
Messages
136
Reaction score
52
Location
Arizona
I glued mine together in 2 halves that come apart for easy cleaning, then I used a few tiny stainless screws to pin the parts together. You don't want it coming apart with 20+ pounds of 160 degree mash in there. DAMHIKT :-\


kidrocking79

New Member
Joined
Oct 2, 2017
Messages
2
Reaction score
5
After reading the thread, I decided to go another route. It is nearly impossible to find any cpvc here in Long Island. So I went copper. Even though it cost me more than probably 5 setups in cpvc, it was worth it. It's super sturdy, works extremely well and most importantly.. I had so much fun making it yesterday. Thank you OP for your insight, help and dedication to the Hobby.
