Chapman ThermoBarrel Reviews

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

jpmess

Active Member
Joined
Jul 23, 2015
Messages
27
Reaction score
4
Funny, I was just reading this thread thinking the same thing! I've got a huge styrofoam shipping box that I put my brew kettle in to keep mash temps and it usually drops 1.5-2 degrees over a 60 minute mash. I'm not complaining, I love my simple simple system, but damn these things are pretty!


foodplusbeer

Well-Known Member
Joined
Apr 17, 2011
Messages
167
Reaction score
12
Location
stamford
I don't see why you'd BIAB in this. You can't apply direct heat to it so you'd either have to install a heating element or just drain it and transfer to a boil kettle, which defeats the purpose of the BIAB.


mdime

Well-Known Member
Joined
Mar 22, 2013
Messages
79
Reaction score
13
I agree that these aren't really suited for BIAB. Personally, I modified mine to add a Blichman auto sparge to the top and created a kettle mash system like the Brew Easy. works great for that.


Peruvian802

Well-Known Member
Joined
Jul 23, 2012
Messages
1,875
Reaction score
575
Location
Green Mountains
I'd consider BIAB in it as they are a great shape and it should hold temps quite well due to the insulation.


drgonzo2k2

Really Awesome User
Lifetime Supporter
Joined
Jan 14, 2015
Messages
1,086
Reaction score
315
Location
Santa Cruz
I agree that these aren't really suited for BIAB. Personally, I modified mine to add a Blichman auto sparge to the top and created a kettle mash system like the Brew Easy. works great for that.
Hey, that sounds pretty neat! Would you mind posting some pics and/or more details on your build?


mdime

Well-Known Member
Joined
Mar 22, 2013
Messages
79
Reaction score
13
Hey, that sounds pretty neat! Would you mind posting some pics and/or more details on your build?
I'll try to remember to take a few pictures when I get a chance but there isn't much to it. The only mod to the thermobarrel is to open up the top port to attach a 1/2" coupler for the autosparge.

You can get all of the details of how it works (and how to use it) by downloading the Breweasy manual off of the Blichmann website. The only difference with what I built is that my thermobarrel doesn't sit directly on the kettle and also I don't have a temperature controller.


drgonzo2k2

Really Awesome User
Lifetime Supporter
Joined
Jan 14, 2015
Messages
1,086
Reaction score
315
Location
Santa Cruz
I'll try to remember to take a few pictures when I get a chance but there isn't much to it. The only mod to the thermobarrel is to open up the top port to attach a 1/2" coupler for the autosparge.

You can get all of the details of how it works (and how to use it) by downloading the Breweasy manual off of the Blichmann website. The only difference with what I built is that my thermobarrel doesn't sit directly on the kettle and also I don't have a temperature controller.
Thanks, yeah, I downloaded the manual and took a look, but I guess where I got hung up was the no temperature controller. So you just adjust the flame (assuming you use a gas burner) and try to manually keep things at your desired mash temp?

A photo of how you connected the autosparge would be great if it's not too much hassle.


mdime

Well-Known Member
Joined
Mar 22, 2013
Messages
79
Reaction score
13
Thanks, yeah, I downloaded the manual and took a look, but I guess where I got hung up was the no temperature controller. So you just adjust the flame (assuming you use a gas burner) and try to manually keep things at your desired mash temp?

A photo of how you connected the autosparge would be great if it's not too much hassle.

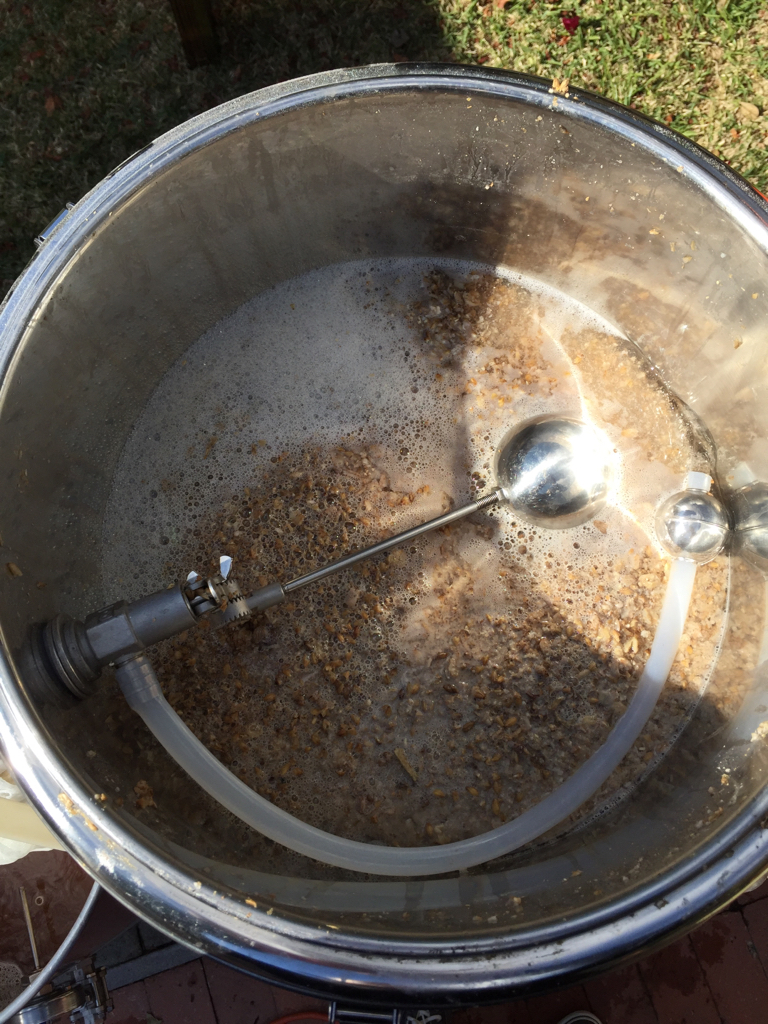

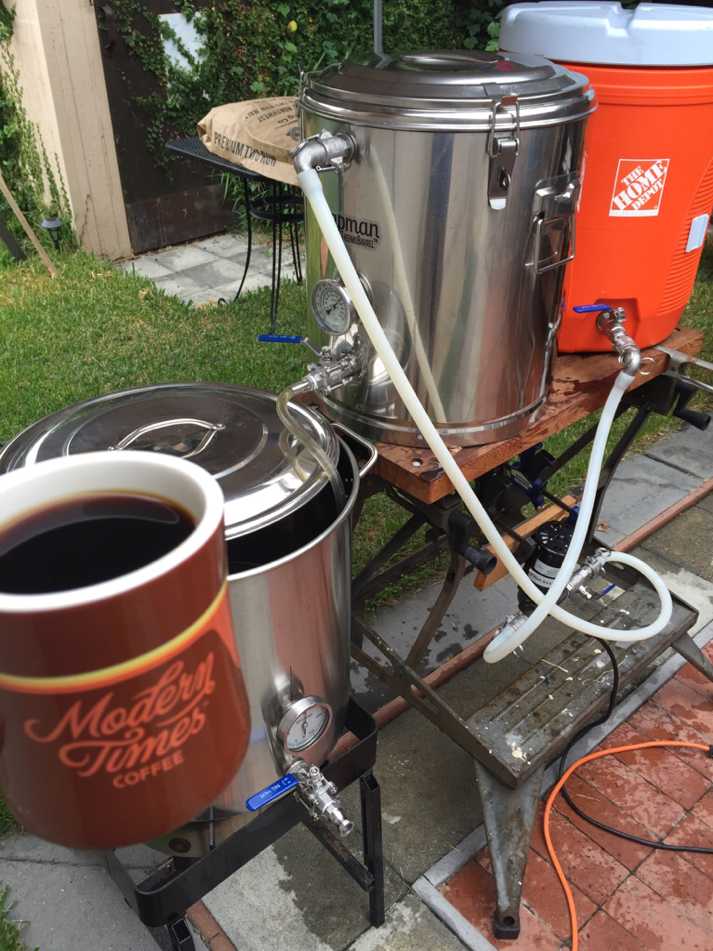

The pictures Val214 pretty much show how my autosparge is connected. The only difference with my system is that there's no cooler and the pump is connected to re-route the kettle drain back to the top of the thermobarrel.

The lack of a temperature controller definitely makes it more work to get the temps dialed in and I can't really walk away while mashing. That said, it's a pretty time efficient system because it's effectively no-sparge.


drgonzo2k2

Really Awesome User
Lifetime Supporter
Joined
Jan 14, 2015
Messages
1,086
Reaction score
315
Location
Santa Cruz
The pictures Val214 pretty much show how my autosparge is connected. The only difference with my system is that there's no cooler and the pump is connected to re-route the kettle drain back to the top of the thermobarrel.

The lack of a temperature controller definitely makes it more work to get the temps dialed in and I can't really walk away while mashing. That said, it's a pretty time efficient system because it's effectively no-sparge.
Thanks! Now I'm intrigued, what sort of efficiency do you usually get with that sort of system?


mdime

Well-Known Member
Joined
Mar 22, 2013
Messages
79
Reaction score
13
Thanks! Now I'm intrigued, what sort of efficiency do you usually get with that sort of system?
I normally get in the low 70's but I think it definitely varies just as much as with traditional systems. Supposedly the biggest factor is water treatment (residual alkalinity in particular) because of the much larger volume of water in contact with the mash.

In full disclosure, I haven't used this system in about six months and have since gone to a fully electric BIAC system from Brewha. It's a similar full-mash type recirculating system but involves less heavy lifting which, due to back problems, was severely limiting my brewing.


d_flyer

Active Member
Joined
Aug 15, 2015
Messages
33
Reaction score
5
Now that some people have been using these for a while, do any 15 gallon users have any updates? I am pretty close to buying a 15 gallon. Has anyone made any volume etchings?


rubiconbrewer

Active Member
Joined
Apr 19, 2012
Messages
39
Reaction score
2
Location
Solon
I was just wondering how people were still liking their mash tuns after a few years? I like the design of the mash tun but unsure whether to get this or SS brewtech infussion.

Is there not any volume etchings? From what I've read I haven't been clear on that, but it looks like maybe not.

Also not sure what to think about the fact that its 201 stainless and not 304 stainless. Anybody having any issues because of it?
