Brewtius Maximus/The Braxton 10 – Complete Single Tier Build

[rekoob]

You Sir are the MAN!



[BraxtonBrewery]

You Sir are the MAN!

Haha. Thanks!



[BraxtonBrewery]

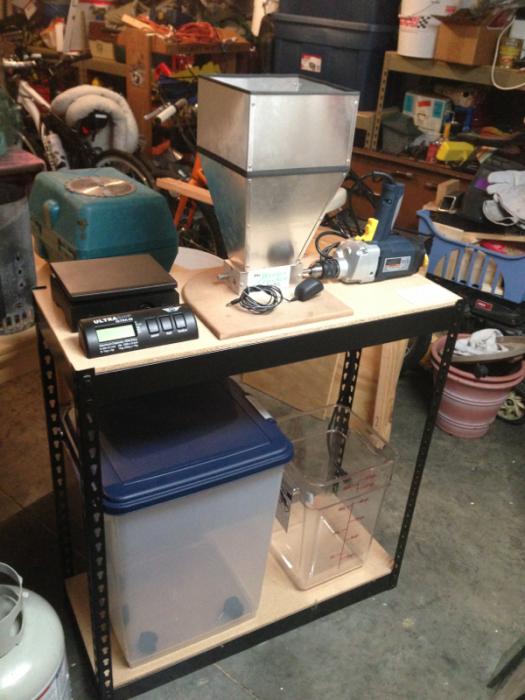

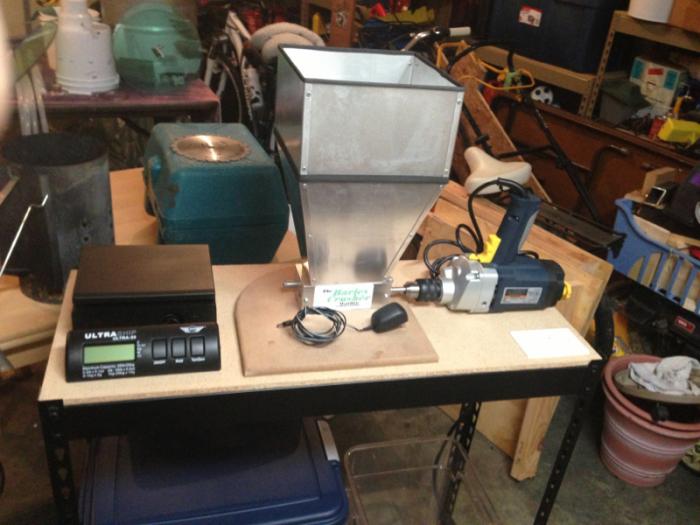

I got to work on the grain mill station today since everything came in. I need to make a few changes, and to raise a shelf, throw some casters on it and that's all. Wiring is done. I got the idea from a different poster mentioned earlier. I think it looks great.

Next up: control panel, ferm chamber modifications, and brew stand finalization.

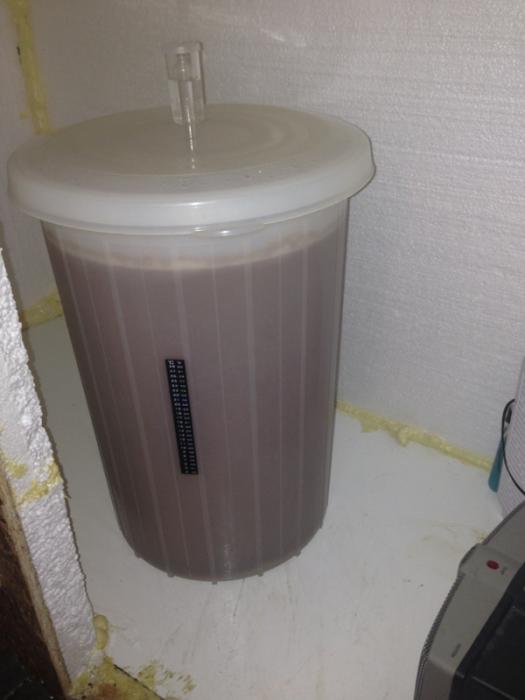

Also - that's the first batch from the new stand fermenting away!



[Dragonman]

How did you make out with the burner heights? If I remember right there was some concern with it being too close to the pots.



[BraxtonBrewery]

How did you make out with the burner heights? If I remember right there was some concern with it being too close to the pots.

Bought 3 windscreens from brewers hardware. Mounted them at the lowest point on those. Also added 1/2" aluminum bar stock to raise the kegs off the stand. Offers more o2 and keeps my paint from searching.



[AMMODOG]

Could you post pictures of the burners from below possibly, especially with the changes you made? What do you think you would do differently from the start to avoid the bar stock? Great job, you got me thinking I can do this now. Do you happen to have a master list for the rookies out here?



[texashomer]

BB, When you find a minute please share an update on other tweaks you've made after a few more brew days. How many brews do you have on the rig at this point? I'm close to finishing my build and I'm pretty sure I'll have to make some burner height adjustments. Any guidance from your experience would be appreciated.



[BraxtonBrewery]

Sorry it has taken me so long to get back to my fellow Homebrewers.

I love the rig but if I had to do it all again there is alot I would change. I love the drawers but they make removing the pumps and plate chiller a pain. I just got the panel up and running, I just need to get the gas valve mounted and hooked up to test run with water. Will try to brew this weekend. Over all, Its great and I love it. I have a dozen brews on it.



[BrokenDog]

Subbed for reference in the near future.



[sweetcell]

great design. i'm working on my rig at the moment and was wondering:

Well. Time for another update... It's almost brew ready!
http://cdn.homebrewtalk.com/attachm...mplete-single-tier-build-image-1861919939.jpg

how did you attach that thermometer to the T? is it water-tight? ok with the heat?



[HDIr0n]

great design. i'm working on my rig at the moment and was wondering:


how did you attach that thermometer to the T? is it water-tight? ok with the heat?

It looks like he used compression fittings



[BraxtonBrewery]

Check out brewhardware.com. He has everything you need to get that setup. It's worth the price. I use it everywhere during brewday.



[sweetcell]

HDIr0n & BraxtonBrewery, thanks for the insights.

if he's using a compression fitting to attach the thermometer, the ring must be really damn small... those thermometers have long needle probes (http://www.amazon.com/dp/B0021AEAG2/?tag=skimlinks_replacement-20) so the ring would need to fit that.

does brewhardware.com have compression fitting that small? if so, i wasn't able to find them.

(update: yes, brewhardware does indeed have them: http://brewhardware.com/thermometers-71/153-probecompression2)



[JacquesG]

Hi, BB. I ama relatively new home brewer and love your rig. But, I'm debating on the relative value of buying a rig or making one like you did - custom and all. Can you share how much dough you have in the brew stand, including the welder (Ive never welded before, but I'm handy) and other tools? I have my pumps, burners, kegs, quick-cam locks, tubing thermometers, etc (thanks, Bobby from NJ). I'm trying to talk my wife into this for my upcoming birthday and would rather get it than spend weeks shopping for parts, etc. Was it worth it for you? Brew on!



[BeerGuy1000]

Very nice rig like the control panel. I want to do something like that, did you any trouble setting it up? What kind of honeywell valves do you have



[ADevalk]

This is exactly what a Packers fan's setup would look like! Nice job my man! What enclosure and mount did you use for the PID/Control center?



[globetrekker]

Ok maybe two actually! I am still in the planning stages of my build and I have to ask why you have the three Keggles so tightly pitched together? I am give them a good 4 inches in between. Yes i know this means more steel but then I have room for lines and such. One more question as I do know they are low cost but if your going through all the trouble Why Keggles? They are hard to clean and Blichman or Stout tanks are very easy to clean and really nice too boot. Great build don't mean to be critical just like to know everyones thought process.



[sidepart]

Kind of interested in this build. Where do people source the steel for stuff like this? He needed 44' of steel tubing. That's maybe about $250 worth of steel. Wonder where one could try and find scrap steel for that kind of thing.



[Trillium]

Ok maybe two actually! I am still in the planning stages of my build and I have to ask why you have the three Keggles so tightly pitched together? I am give them a good 4 inches in between. Yes i know this means more steel but then I have room for lines and such. One more question as I do know they are low cost but if your going through all the trouble Why Keggles? They are hard to clean and Blichman or Stout tanks are very easy to clean and really nice too boot. Great build don't mean to be critical just like to know everyones thought process.

Sounds like your design is similar to mine. Stout tanks and 6" apart due to the handles on the sides and for room to eventually hard plumb it. Go with Stainless!!! The cost is not much more than steel and is easy to weld even with a cheap Everlast Tig welder ( and fun too )



[GoodDogShelby]

If I know Braxton, to get the steel he probably stole guard rails off a highway in front of a church!!

We have to get Braxton to post pics of the latest version of his rig. He's made some changes/additions since those last pics were taken.



[noisycm]

The Braxton Kickstarter is going on currently. $100 pledge to brew on the now-pilot brewery from this thread. See below for some of the changes made. Kickstarter ends October 30, 2014.

https://www.kickstarter.com/projects/1860927270/braxton-brewing-company-building-the-taproom-of-th
