Brewtius Maximus/The Braxton 10 – Complete Single Tier Build

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Brewtius Maximus/The Braxton 10 – Complete Single Tier Build

I’m going to try to document this whole build, but there may be some time between posts. I’ll keep it updated as much as I can. I’ve scoured the forums for different ideas, and I’ve taken what I like and plan on building a combination of the things I like. Now it’s my time to post.
I brew on a simple wooden 3 tier gravity stand, very simple, but very tall:



I made some pretty good beers on it, but it is time for a change. So I hopped on a few different design programs, and what I ended with can be seen here:

Front View


Angle view


The Back


Water Plumbing


The Bottom, with propane plumbing


With Kegs

A single tier, 3 burner, 2 pump keggle stand. The propane and water will be hard plumbed, and the “control” panel will be a simple build, not much automation. A couple switches for pumps, igniters for the various burners and maybe a timer or two. I also thought that it would be nice to have a drawer and shelf for various things as well – plus diamond plate looks sweet.

I have already ordered my pumps: 2 stainless steel inline Chuggers, and the plate chiller that BobbyM sells 30 plate long. These should arrive sometime this week, pictures upon arrival.I plan on ordering the steel within the next week, and my buddy and I are going to weld it.

Please feel free to give me your advice or ask any questions.

:mug:


Chriso

Broken Robot Brewing Co.
Joined
Oct 31, 2007
Messages
4,622
Reaction score
80
Location
Someplace
Is that SketchUp or something else? SketchUp makes me cry, I'm trying to find a better app to model my DIY projects in. (No talent whatsoever with this stuff...)

Also, I'm subscribed and watching for your progress, best luck to you on your build!


2BeerSpeer

Well-Known Member
Lifetime Supporter
Joined
Jul 14, 2011
Messages
793
Reaction score
38
Location
Mt. Airy
i want to build something just like this too but would like the keggels to be stored under the burners when not in use. Good Luck on the build!Love the drawer idea...

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Thanks for the feedback so far! Those pictures where taken from Sketchup, but the design started in ACADD and pro/ENGINEER. It was just a lot easier for me to take a couple snap shots from Sketchup and finish customizing the build, i.e. the diamond plate. It's not all that hard to use - it just takes practice. With being a full time student - majoring in mechanical engineering, and working 2 jobs it gets a little hectic, but these programs are what I utilize the most. But the one nice thing about sketchup is most of the short cuts are the same as ACADD.

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
I'll have all sorts of updates coming next week(Steel, and other misc parts ordered)

Later tonight I'll post up the dimensions of the top I reworked. This way you can tell me if I've done anything wrong. I wanted 1" on all sides and in between kegs. I just rounded the keg size up to 17".


skunker

Member
Joined
Feb 15, 2011
Messages
14
Reaction score
0
Location
San Diego
Looks great, might need to borrow the design.

What is the purpose of the hard plumbed supply water to all 3 pots?

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Looks great, might need to borrow the design.

What is the purpose of the hard plumbed supply water to all 3 pots?
Not really sure yet. It will just be nice, I may adjust the water plumbing when I get to that step. I want to have 1 inlet from the hose leading to all the plumbing. filter in/out, cleaning etc. Maybe chiller as well, but i'm not sure how I'm going to run my "cool down" phase yet. Either going to be A) Pre chiller or B) fill the HLT with ice water and recirculate with one of the pumps.

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

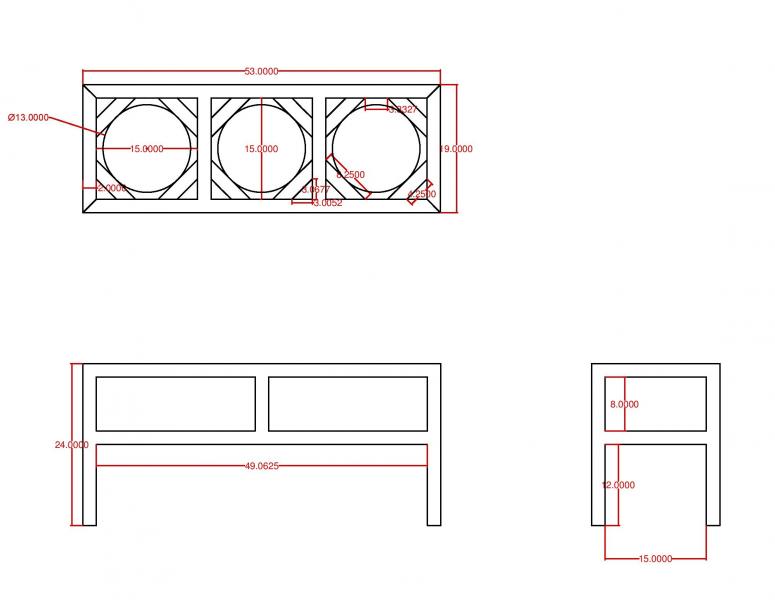

Here are the dimensions that I have reworked. This should give me plenty of space, and make a very clean, nice looking, compact rig.

My next post will be my cut list. Hopefully very soon after this one.

New Correct Dimensons-page-001.jpg

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Burner Shrounds - 40.8407"X8" (X3)

Diamond Plate - 53" X 19" + 18" X 6"

Steel Tubing Cuts

(12) 8.25" (45 degree cuts) =99"
(2) 53" (45 degree cuts) =106"
(2) 19" (45 degree cuts) =38"
(5) 15" cuts =75"
(4) 24" cuts =96"
(2) 49.0625" cuts =98.053"
(2) 8" cuts =16"
__________________________________________
(29) Cuts =528.053"
=44.1'


GoodDogShelby

Well-Known Member
Joined
Mar 18, 2012
Messages
218
Reaction score
31
Location
Erlanger
.

What is the purpose of the hard plumbed supply water to all 3 pots?
I'm betting that it is so he doesn't have to use push in fittings that always pop loose and spray down other guys in his brew club during a brew-outs.

Just a hunch (& maybe an inside joke!)

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
I'm betting that it is so he doesn't have to use push in fittings that always pop loose and spray down other guys in his brew club during a brew-outs.

Just a hunch (& maybe an inside joke!)
That's good reasoning to start with, that's for sure!

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

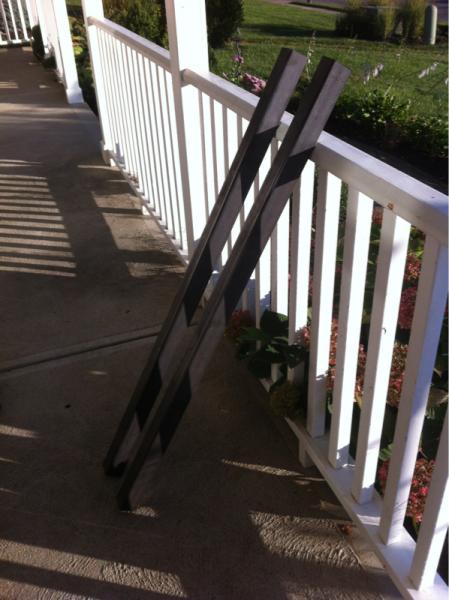

Picked up the majority of the raw materials today before work. 48' of 2X2 11gauge (1/8") thick square tube and the diamond plate shelf. Now it's time to get cutting and welding to get this thing built!




OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

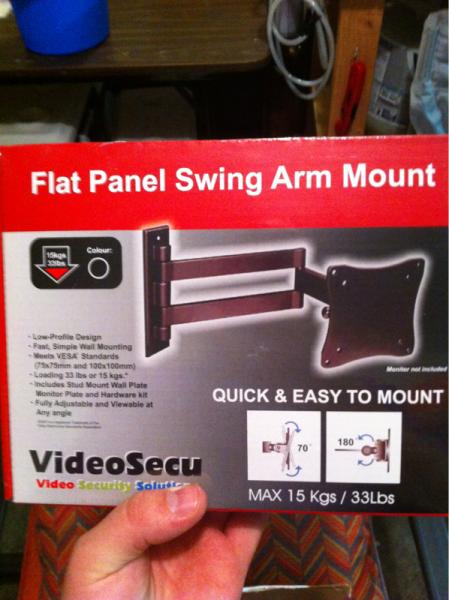

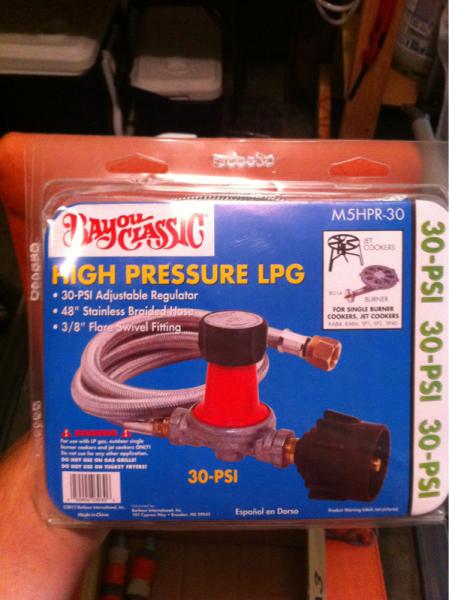

The UPS man is getting me warmed up for the stuff I'll be getting next week. The first picture is how I'm going to mount my control panel, followed by my regulator, and one of the 3 sets of garden hose quick disconnects for ease of connectivity when chilling or moving the garden hoses around.

Ordered but not yet here: 3 banjo burners, 2 SS chuggers, 30 plate chiller, fittings, cams, control panel enclosure, and the drawers.








OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

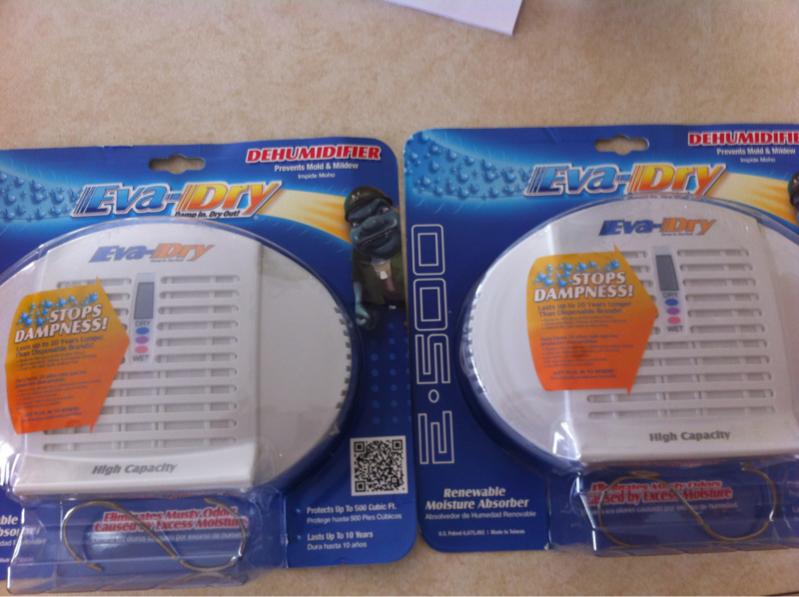

Yesterday I got a couple more packages. Got my 3 banjo burners and my 2 Eva drys for my Keezer.

Tomorrow I'm cutting all my steel and hope to have it welded by next weekend. We will see how that goes!




OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

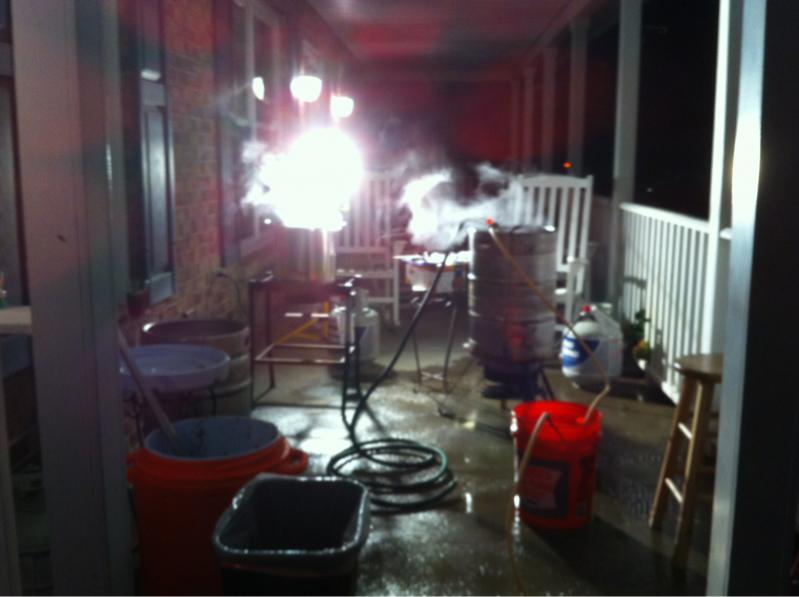

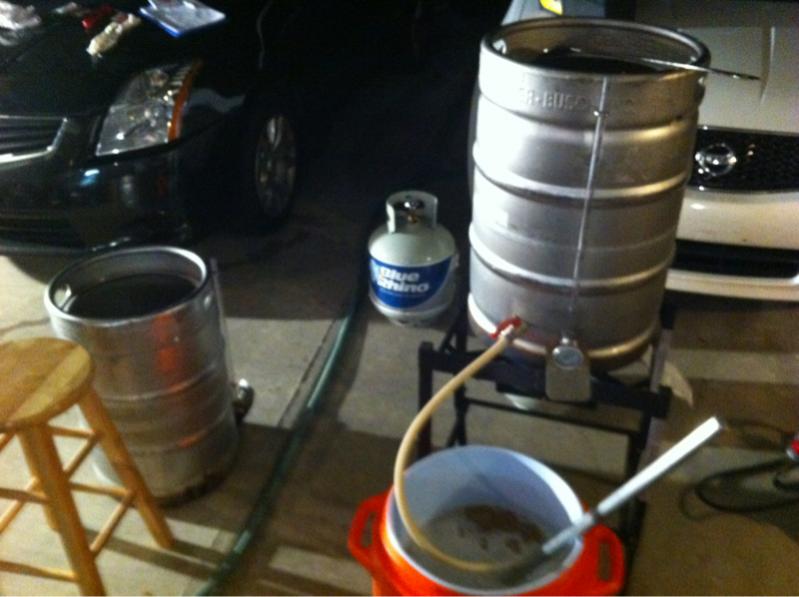

Got a lot done today. Last night I was up until about 12:30 for an Impromptu brew night. My garage was taken over with "stuff" Between getting a new patio poured and brewing stuff, I couln't get my stand out. So I didn't use it. Everything went well.

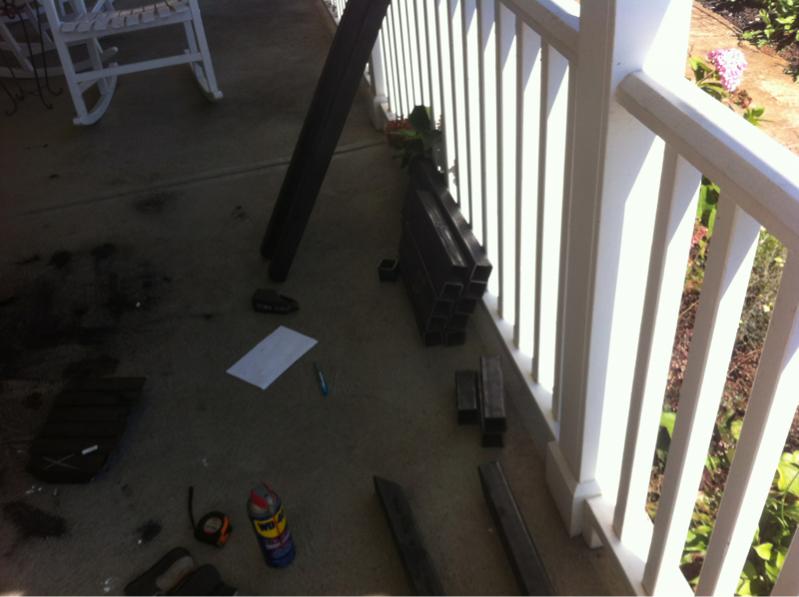

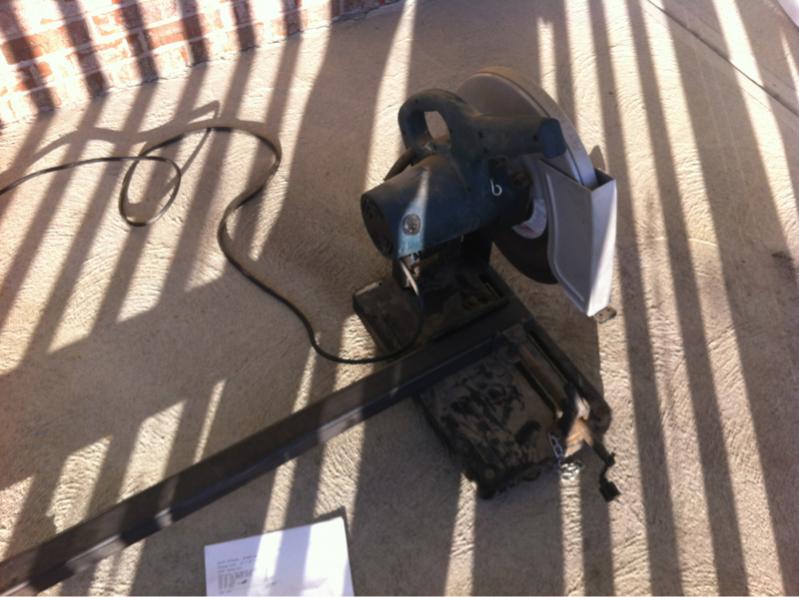

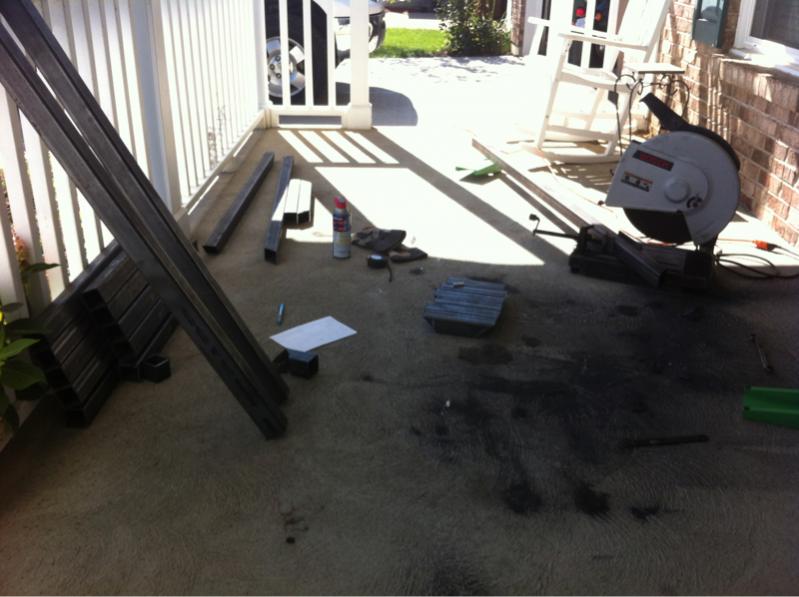

On the progress, I went to my local tool rental place and rented a chop saw for $23 for the day. It came with a blade on it and I bought an extra one for $12. So for $35 plus tax, i was able to get all my steel cut.

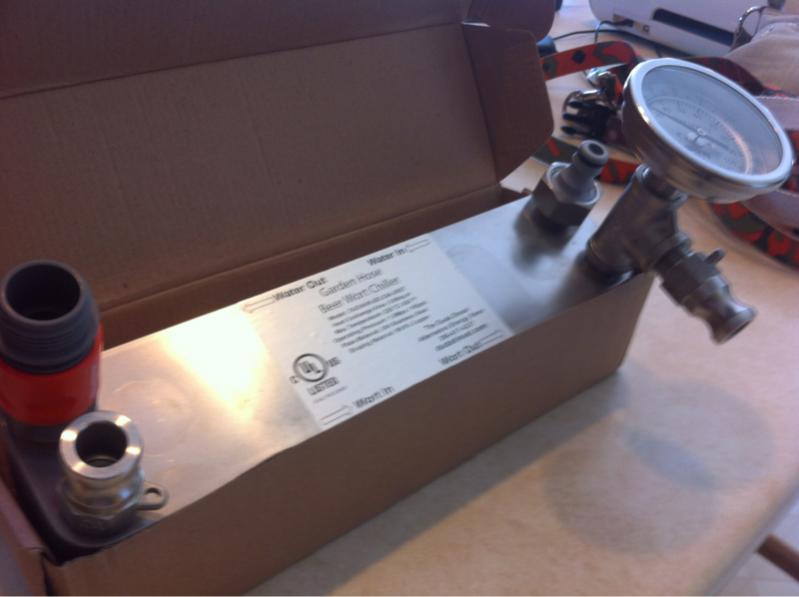

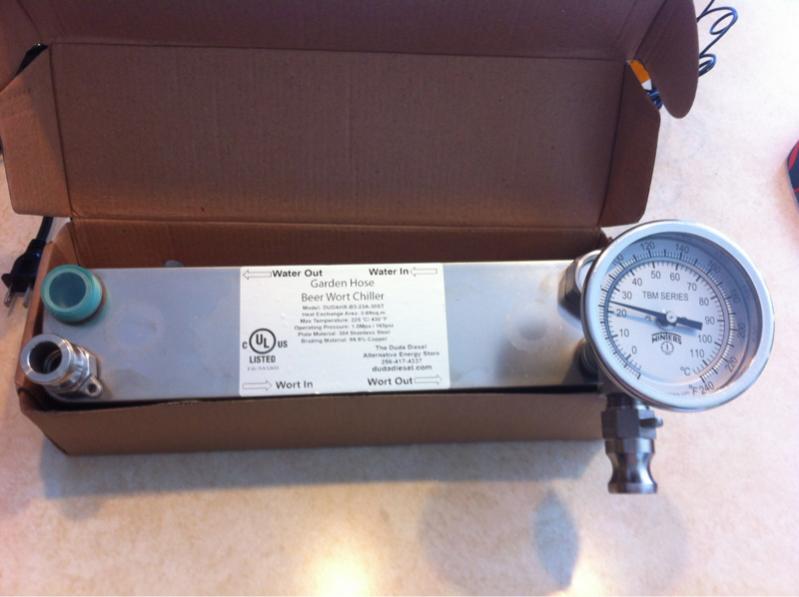

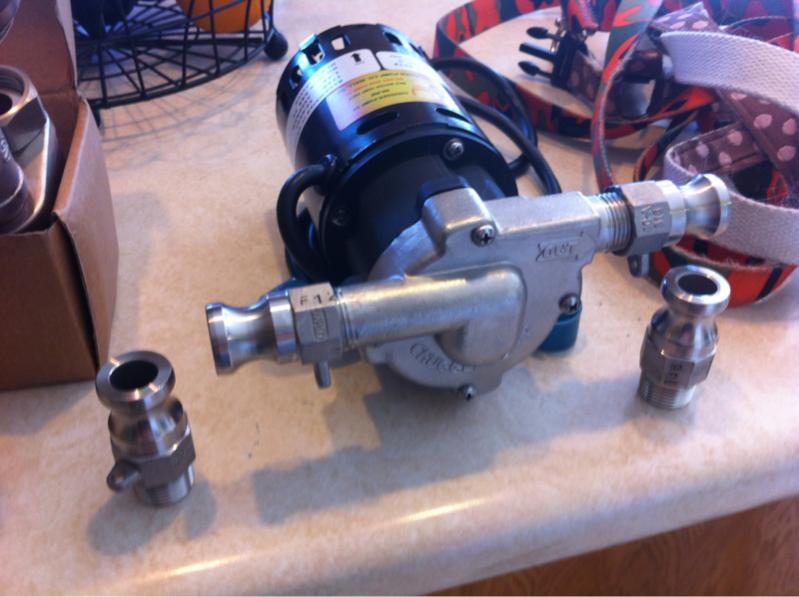

Then... Half way through the steel cutting my postman delivered the first box of my goodies! My pumps and plate chillers. I was pumped. Can't wait to start welding and get it all put together.

Lastly is the rough.. and I mean very rough lay out of how the top shelf where the kegs sit will look. I'll square everything up and make sure its a tight fit before I weld it. All those 45 degree cuts were tough, the saw guide kept changing it self on me.

Let me know what you think, and I'll keep you posted as I make progress - I'm not sure when I will be able to get it all welded.






















OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

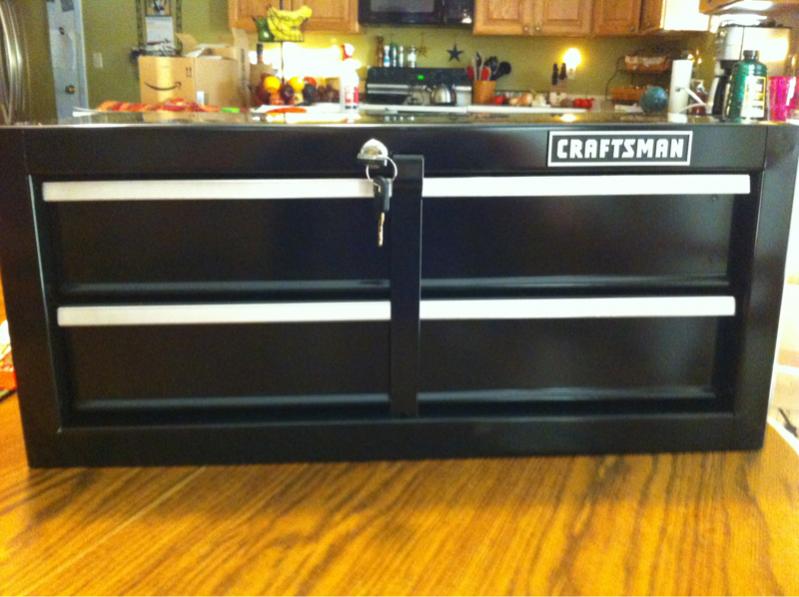

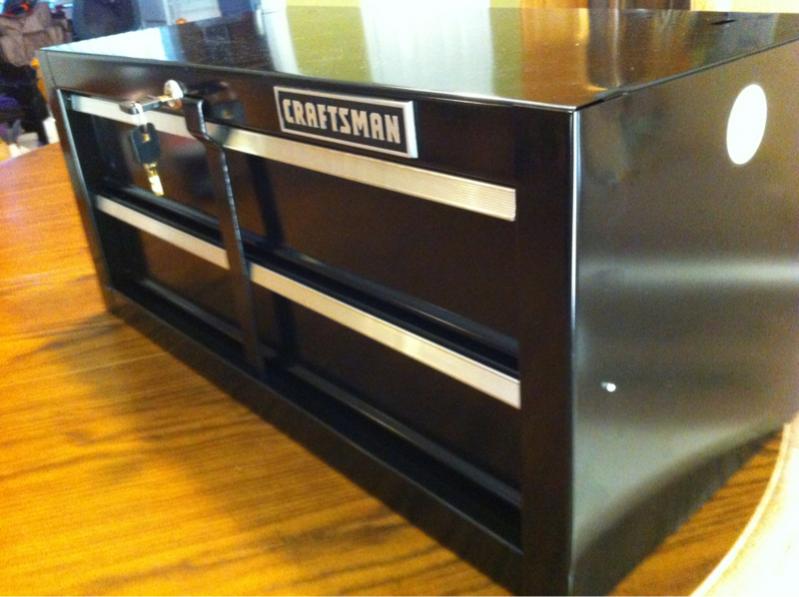

I probably got the best deal of all on the set of
Drawers I purchased. I found them by accident at Sears on clearance, and they were $40 shipped, originally $120. I love a good deal. Not only where they on clearance, they fit the dimensions I needed them to fit just about perfectly. Also they are a "sub box" part to a full Craftsman tool Chest assembly. So if anything is going to be able to take a beating - its these draws.

I can't wait to get the whole thing built and brew on it.







slakwhere

Well-Known Member
Joined
Dec 6, 2009
Messages
762
Reaction score
21
Location
Salt Lake City
you probably will want a ball valve on the output of that pump to be able to manage the flow. helps with sparging, fly sparging, recirculation, etc.

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
you probably will want a ball valve on the output of that pump to be able to manage the flow. helps with sparging, fly sparging, recirculation, etc.
Absolutely, they just haven't came in yet - I have all new fittings, valves, dip tubes/etc. on the way! (including the pump valves). Thanks for the tip!

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7

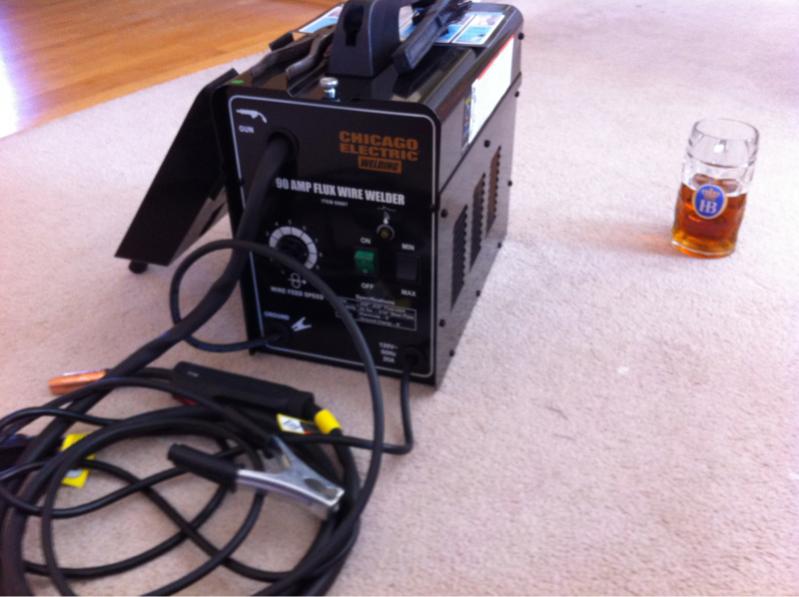

Had a change in plans on how it's going to be welded. So I went to harbor freight and picked up a cheap welder. Hopefully the stand will be erected by this weekend!

I also picked up a few more things from BobbyM at brew hardware including the mash tube and poly edging. Pictures soon!

Also had another no stand impromptu brew session on Friday. Trying to make sure I has enough beer to last while the brewery will be down for a few weeks.





GoodDogShelby

Well-Known Member
Joined
Mar 18, 2012
Messages
218
Reaction score
31
Location
Erlanger
By all the water on the ground, can I assume you popped another push in fitting?

You mentioned dip tubes, what other changes or additions are you going to make to your keggle?

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
By all the water on the ground, can I assume you popped another push in fitting?

You mentioned dip tubes, what other changes or additions are you going to make to your keggle?
Well Dip tubes on all, false bottom on the third (mash tun) and a mash tube, two angle tubes for the BK for whirlpooling and all will have cams. Eventually I'll add some thermocouples. But other than that some thermometers and I'll be set.



GoodDogShelby

Well-Known Member
Joined
Mar 18, 2012
Messages
218
Reaction score
31
Location
Erlanger

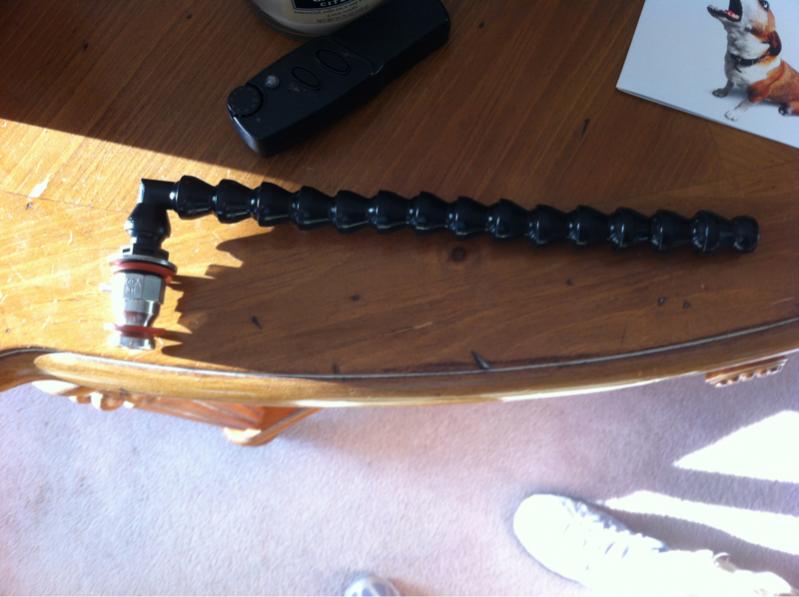

ooooh. Loc-Line for a dip tube. I've seen or thought of that before. I like it. Where are you getting your loc-line?

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
ooooh. Loc-Line for a dip tube. I've seen or thought of that before. I like it. Where are you getting your loc-line?
brewhardware.com he has different kits for it. This one came with the Loc-Line and the Cam Lock A. He has a cooler outfit as well.


Lumpyyyyy

Well-Known Member
Joined
Jan 12, 2012
Messages
239
Reaction score
6
Location
Windham
What type of pump did you buy? Are those chuggers? I've been trying to figure out which ones I should go with.

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Thanks for all the kind words everyone! I will begin welding this week, as I made some adjustment cuts at school (I'm a Mechanical and Manufacturing Engineering Student). It's a sweet band saw and I should have used it from the start.



Lumpyyyyy

Well-Known Member
Joined
Jan 12, 2012
Messages
239
Reaction score
6
Location
Windham
Thanks for all the kind words everyone! I will begin welding this week, as I made some adjustment cuts at school (I'm a Mechanical and Manufacturing Engineering Student). It's a sweet band saw and I should have used it from the start.
Props for the ME choice. I graduate '10 with an ME degree. Love my career field!

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
Thanks, the stuff I learn is really cool, but I am not sure what I plan on doing when I get out. I have 2 jobs as well - one in the brewery at Hofbrauhaus and my LHBS. If I do make it in the brewing industry I told my self I wanted a degree and a back up plan just in case. Plus it helps get a better job in brewing.


bmunos

Well-Known Member
Joined
Feb 22, 2011
Messages
304
Reaction score
12
Location
Tulsa
How thick is the steel you are using? Not sure if you already said....

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
How thick is the steel you are using? Not sure if you already said....
It's 11ga, which is 1/8" wall. Definitely going to be over built, but It would stand up to the job with no issues. Welding begins tomorrow morning around 6 or 7 am.
:rockin:

OP
B

BraxtonBrewery

Well-Known Member
Joined
Sep 6, 2008
Messages
107
Reaction score
7
The post you have all been waiting for! I got started on welding this morning and got pretty far. You can see the progess I made, almost done with the top. All I have to do is finish welding the corner braces and clean up some of the other welds. All I can say is that it ways a ton! Hopefully I can finish welding and cleaning the welds on Monday and prep it for painting.

I have a little welding experience but not much, I think they are okay.

Let me know what you think!
