Aussie brewery build

[Driller]

Hi All,

Have been following this forum for a few years now and have gained so much knowledge here and for this I thank everyone who share thier builds and ideas here.

I am now onto building my second brewery my first was a 50lt HERMs sytem made from Kegs. I am now building a 300lt or 80gal brewery. I still have not decided what kind of circulating system to use( I am open to opinions please ). I am building this with the possibility of going commercial nano brewery or just have a kick ass home brewery!!

The main specs are

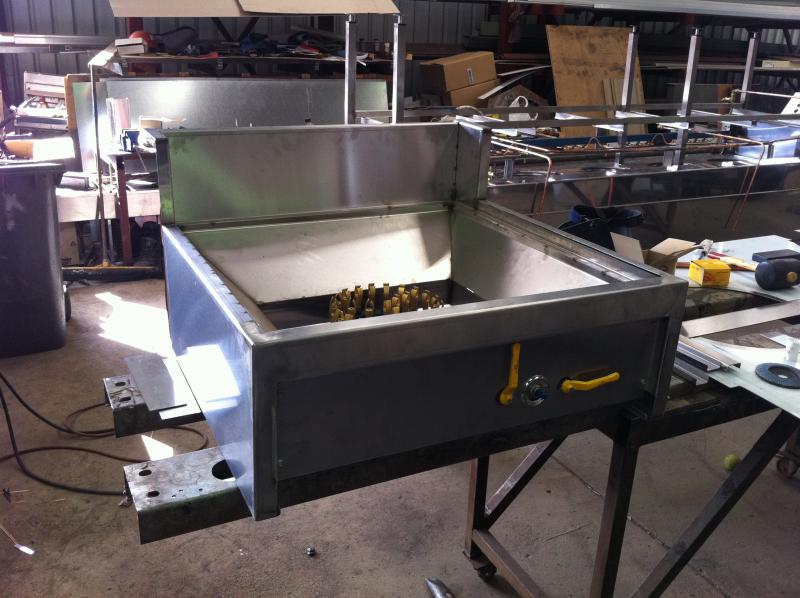

400lt or 105 gal insulated direct fired Kettle

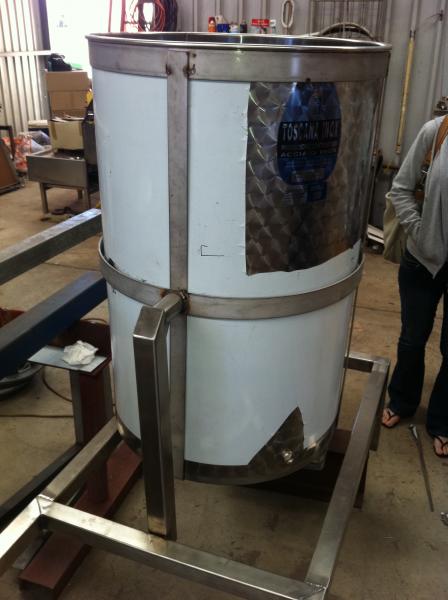

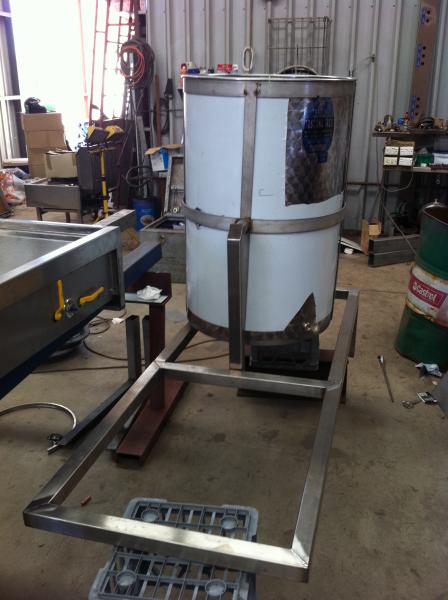

300lt or 80 gal insulated mash tun mounted on a tipper
200lt or 52 gal HLT electricaly heated 2 x 3500w elements

I want to use a instant hotwater system to save on gas and power usage for intial strike temps.

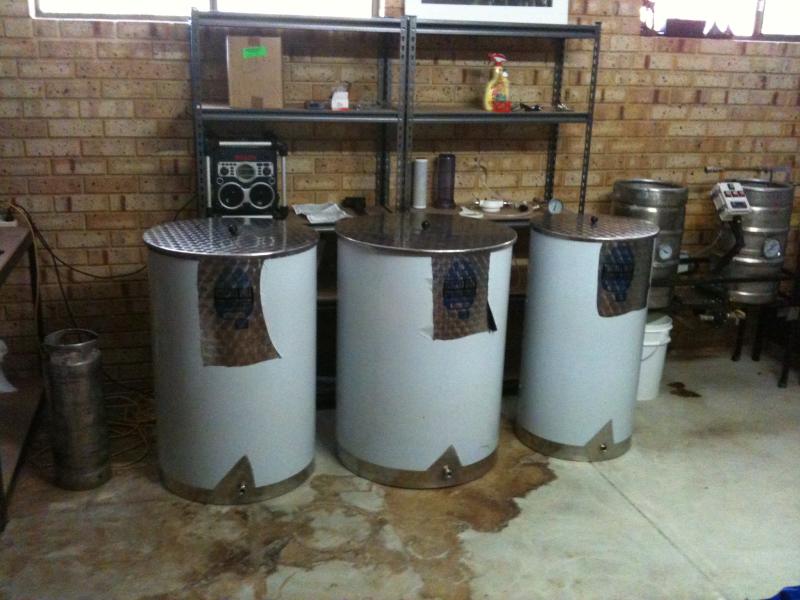

Anyway here is the progress so far..



[wildwest450]

Awesome build! You're going to love the electric hlt, why not electric for the bk? I love my all electric setup, and am partial to herms. 80 gallons, good grief.


_



[Driller]

A few more pics



[JetSmooth]

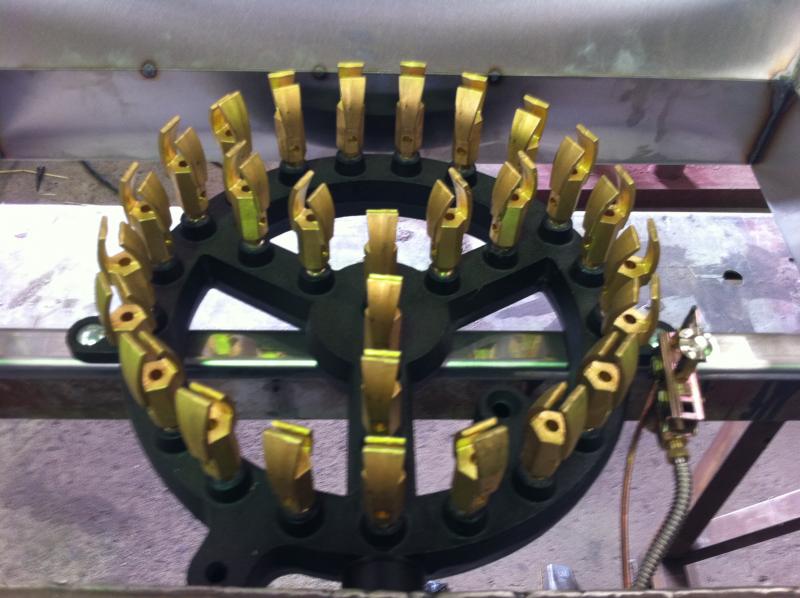

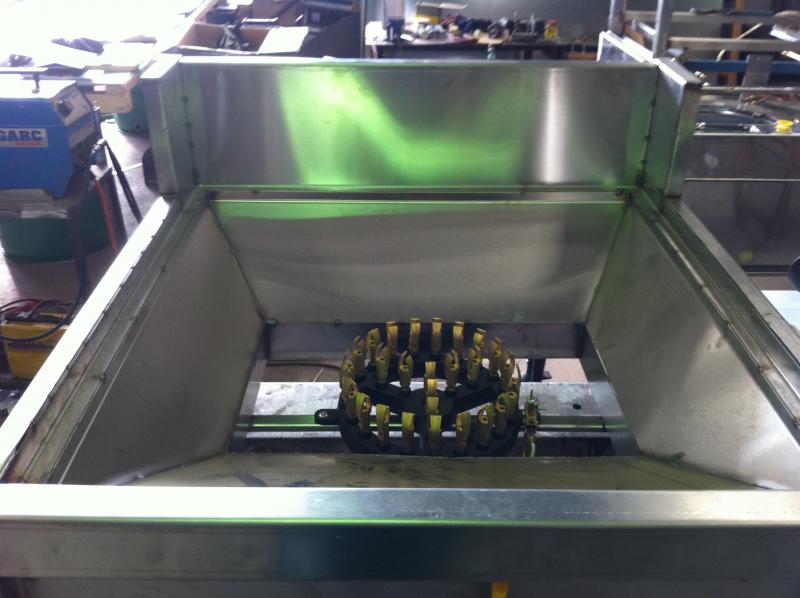

That burner is like something out of a superhero movie.



[Driller]

The burner is good for about 180 - 200 BTU's / h



[Driller]

Sorry 180,000 - 200,000 BTU's / h



[Clann]

Man, I want a big boy brewery:rockin:



[mrbobble]

Holy smokes! That is awesome! I've never seen a burner like that.



[Hockadays]

Looks pretty good, i'm in oz too, where did you get those tanks from and how much? I'm looking to upgrade my system to 150L.

Hockadays



[Driller]

I got them from my local home brew store TWOC about $1800 for the lot, wich is dirt cheap for new stainless tanks in Australia, They are actually open top wine fermentation tanks from italy. I have found that wine tanks are a lot cheaper than purpose built brewing tanks.



[Driller]

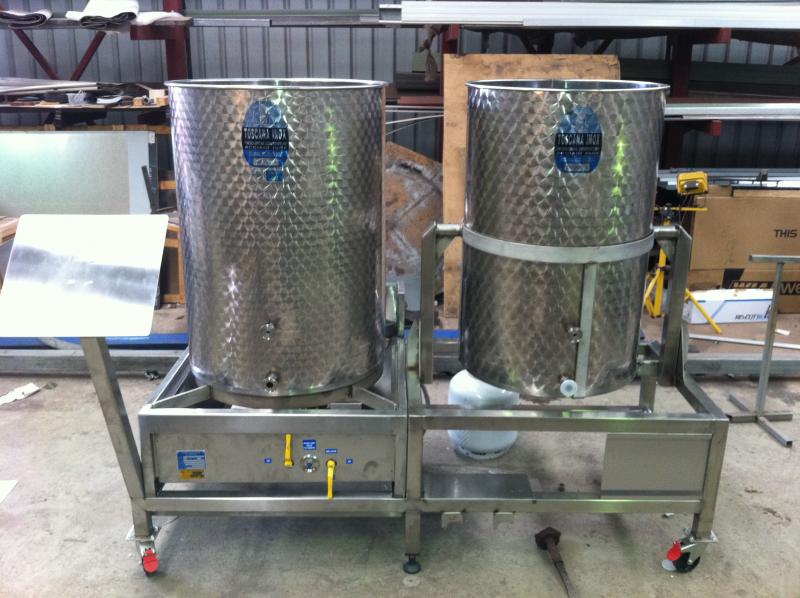

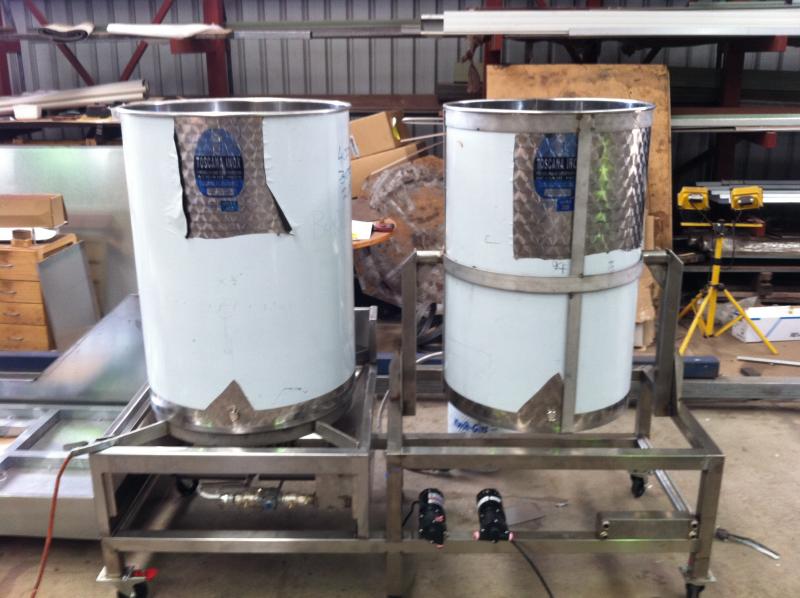

Ok, so the welding is all done now!! Just have to install fittings and the control panel, and we'll be ready to rock and roll! I've bought some 200L cone bottom tanks that will become the fermenters. I'll post some more photos as soon as I get them.



[TubBrewer]

Just curious if you ever turned this setup into a commercial nanobrewery and how many kegs you can produce in 1 brew batch?

Tubrewer
