Show us your Kegerator

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

dpatrickv

Well-Known Member
Joined
Apr 17, 2012
Messages
558
Reaction score
77
Location
Omaha
I'm finally able to contribute to this. Just a basic 4 tap system but got them all filled and in the fridge last night. Perlicks will come soon enough...




Joined
Jan 14, 2014
Messages
23
Reaction score
2

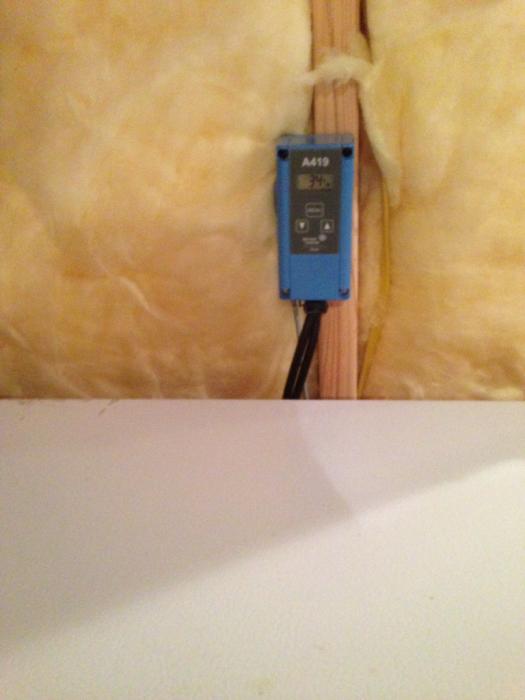

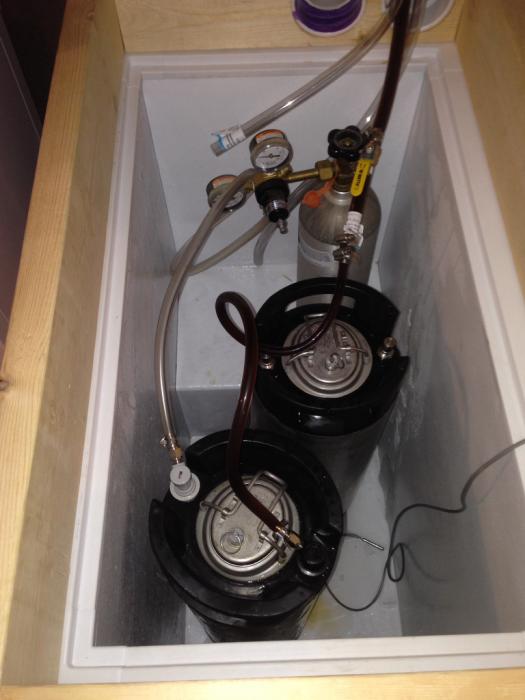

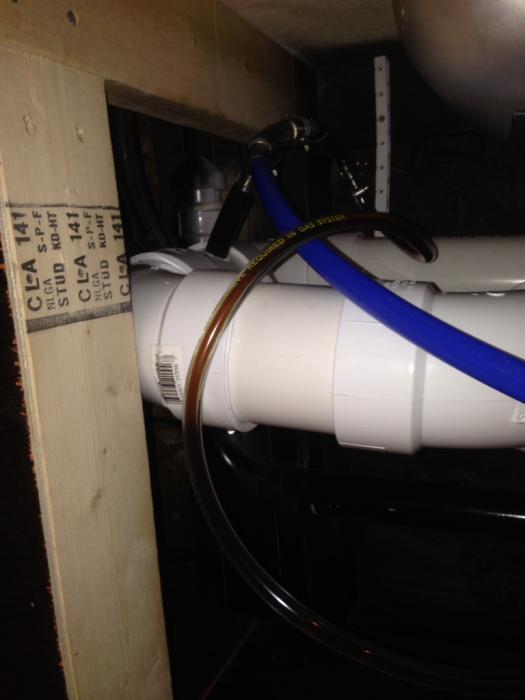

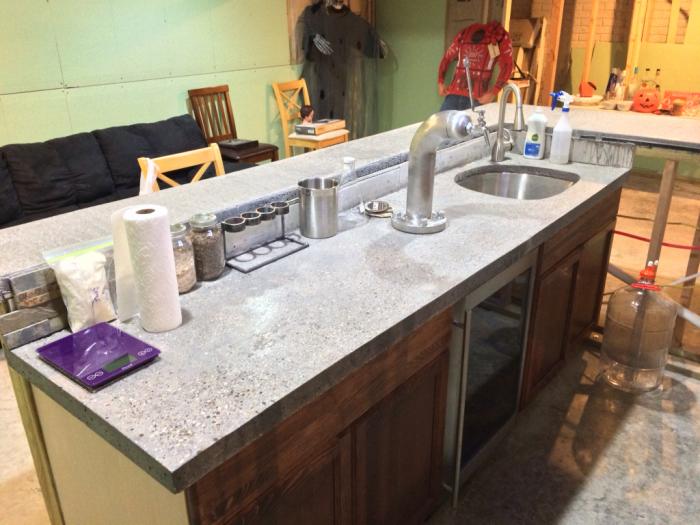

Hello folks, I finished my basement and built a bar down there. To conserve space and to be closer to my brewing area, I wanted to have my keezer in the unfinished portion of my basement--50'feet away from the faucet. I ran the beer lines through a loop of 3" PVC which goes from the keezer, to the faucet, and back to the keezer--100 feet in total. The beer lines run through one side of the PVC to the faucet and there is a radon mitigation fan on the other side blowing into the keezer which causes cold air to be sucked in the other end containing the lines. Due to compressor workload, I only run the fan while the party is on. I plumbed the lines to the tap water supply so that I can push the beer back into the keg when the party is over, keeping it fresh until next time. To carefully control the rate of push back so that no water enters the keg, I installed several valves. An effective, cheaper alternative method to glycol. The beer stays cold at the faucet while pouring, however, I am in the process of designing a chilling system which will sit at the end of the lines by the faucet. I planing on using 3 peltier plates attached to a cold plate. Have a look.

Note: only one of my 3 lines is currently plumbed--the others will come soon. Also, the cheap party pourer was used only for testing purposes. My beer tower will come soon.

ImageUploadedByHome Brew1396147498.620321.jpgImageUploadedByHome Brew1396147513.656277.jpgImageUploadedByHome Brew1396147525.189369.jpgImageUploadedByHome Brew1396147538.560799.jpgImageUploadedByHome Brew1396147552.563701.jpgImageUploadedByHome Brew1396147564.420512.jpg



Sent from my iPad using Home Brew

Joined
Jan 14, 2014
Messages
23
Reaction score
2

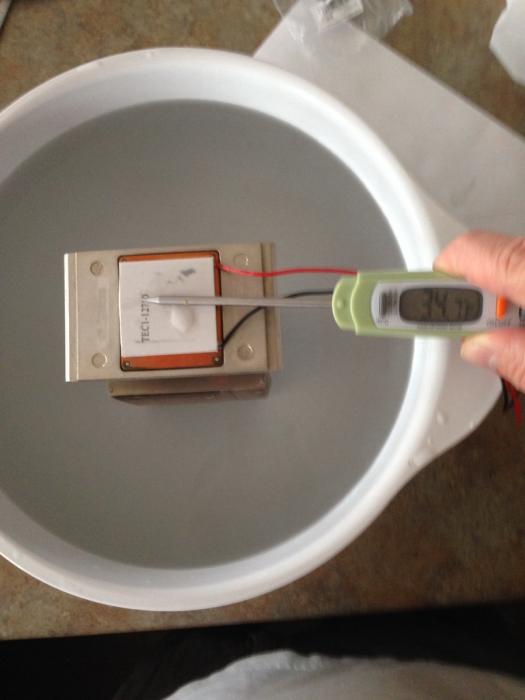

I will post more information on the pelters once I get my cold plate chiller built. I can tell you that I brought one plate to work so I could test it's draw. At 12 volts it's pulling 6 amps. I have a 430watt computer power supply that I will use to power 3 of these since it's capable of pushing out 20 amps at 12 volts. This is definitely not something you want to run 24/7 for sake of your utility bill.


Sent from my iPad using Home Brew


dmarc85

Well-Known Member
Joined
Apr 5, 2013
Messages
284
Reaction score
63

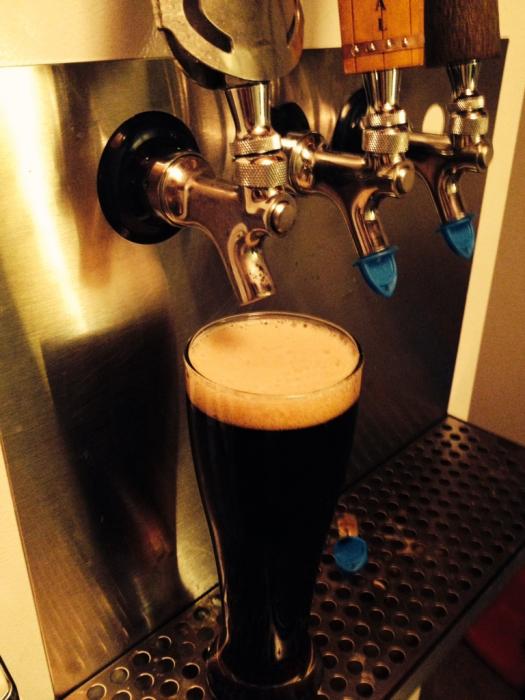

Just a little beer porn :)
ImageUploadedByHome Brew1396512485.470431.jpg


Sent from my iPhone using Home Brew


Vetter

Well-Known Member
Joined
Mar 14, 2014
Messages
50
Reaction score
8
Location
Vestaburg

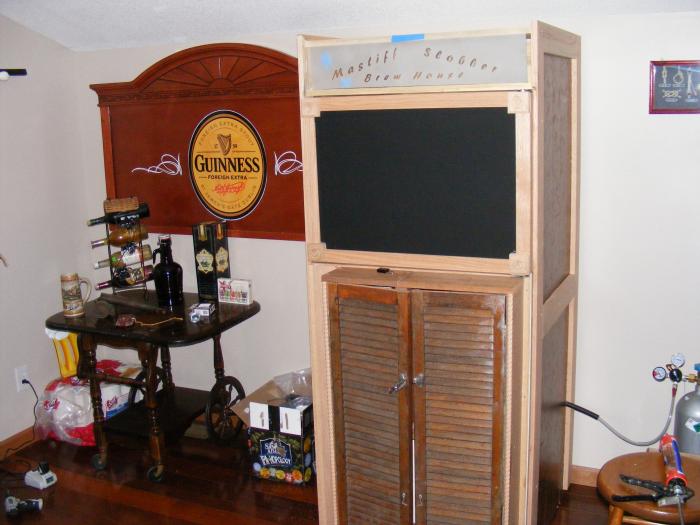

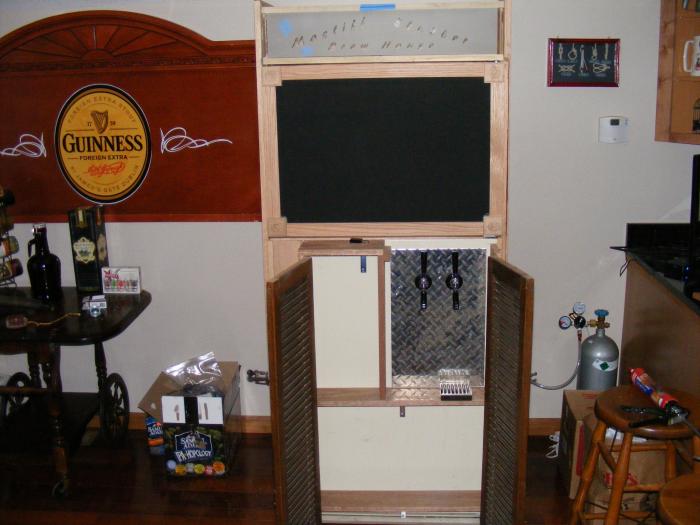

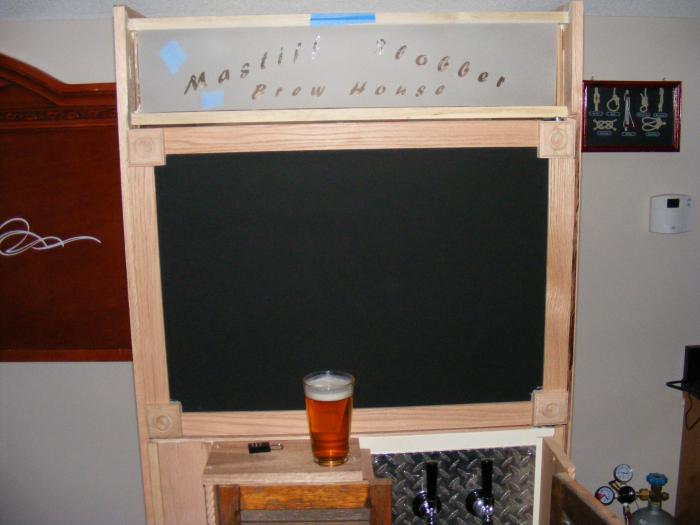

This is my work in progress. I had the fridge in the garage, and was tired of things freezing, with such a cold winter this year. So I moved it into the dining room, and need to make it look like something other than a 1997 Whirlpool. The doors are from a old boat I had, they covered the cuddy cabin, I was looking for a use for them, everything else was left over stuff I had, the sides are left over hard wood flooring.









edwarski

Member
Joined
Mar 4, 2012
Messages
14
Reaction score
0

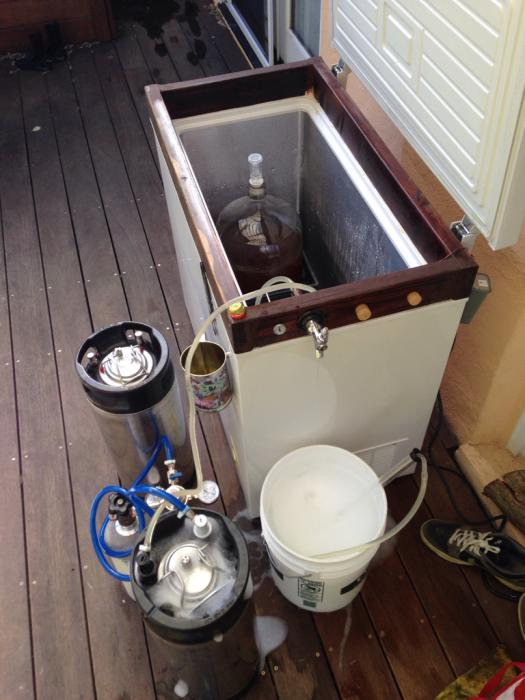

Here's mine. Cleaning kegs for some IPAs right now ImageUploadedByHome Brew1396740149.229219.jpg


Sent from my iPhone using Home Brew


Cursed67

New Member
Joined
Apr 6, 2014
Messages
1
Reaction score
0
New pics of mine, now that it's in use:





And with a glass of all-grain hefe, currently on the right tap:

What fridge brand and model did you use. There seems to be lots of room inside


Sent from my iPad using Home Brew


FarmerChuckNorris

New Member
Joined
Jan 20, 2014
Messages
3
Reaction score
0
Close up of the tap handles and the custom swirled stainless steel plate I made.
ImageUploadedByHome Brew1397095518.779976.jpg


Sent from my iPhone using Home Brew


Jmarsh544

Well-Known Member
Joined
Nov 1, 2008
Messages
289
Reaction score
41
Location
Costa Mesa

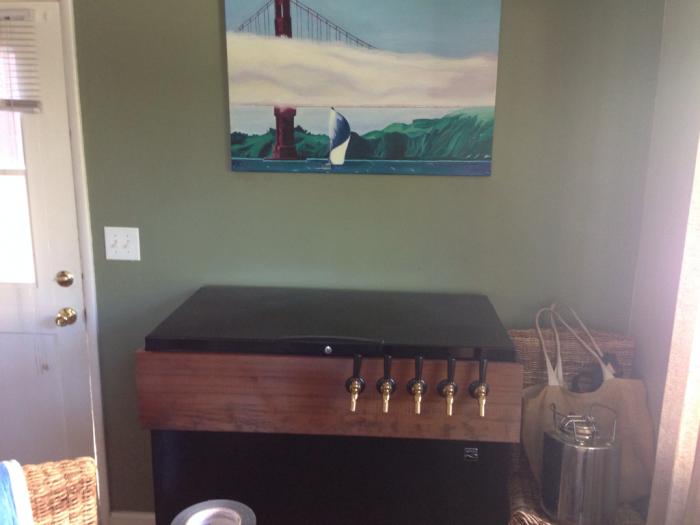

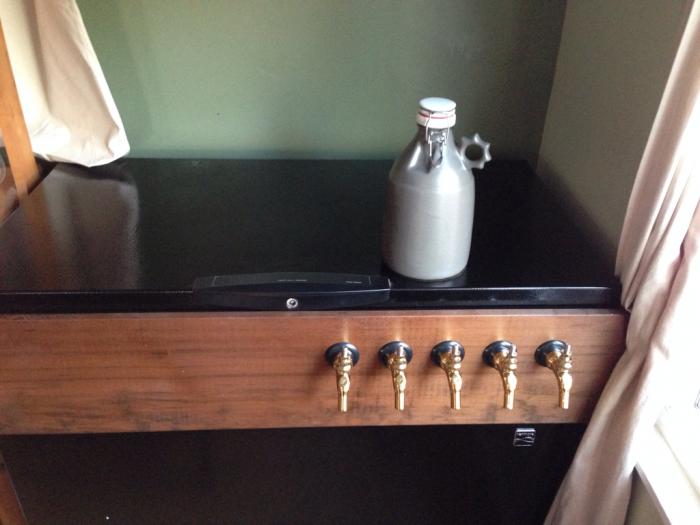

Just finished mine up, I used the 8.8 cu. ft. From kmart...

ImageUploadedByHome Brew1397325313.149651.jpg

ImageUploadedByHome Brew1397325327.901513.jpg

ImageUploadedByHome Brew1397325342.699529.jpg


Sent from my iPhone using Home Brew


dmarc85

Well-Known Member
Joined
Apr 5, 2013
Messages
284
Reaction score
63
Someday my wife will let me run my beer taps through the wall; I'll call it my glory hole!


Sent from my iPhone using Home Brew


YoKramer

Active Member
Joined
Mar 21, 2014
Messages
41
Reaction score
10
This is what it looks like after tons of help from some family this weekend I suck at building things with wood so needed the help. Built a 2x8 wooden frame for the inside and then faced it with a 1x10. Made slots for the shelf brackets in the back of the 1x10 so you wouldnt see it on the front.




After that it needed 1 more touch that I forgot I bought years ago that works perfect for this.


Next Im gonna get a vinyl cut that says "PACKERS" for in the yellow stripe, a Packers bottle opener for the right of the collar and it should be done.


amfukuda

Well-Known Member
Joined
Apr 17, 2013
Messages
352
Reaction score
136
Its a 1:1,000,000 chance a naked stripper pops out of the keezer. Still havent hit the lucky pull though ;)
I need to install that feature and you give me the plans you used


Sent from my iPhone using Home Brew


YoKramer

Active Member
Joined
Mar 21, 2014
Messages
41
Reaction score
10

Kdog22

Well-Known Member
Joined
Apr 16, 2013
Messages
333
Reaction score
34
Location
Spring
Nothing special, or pretty, but I just finished my first kegerator conversion this past sunday on a free fridge that works perfectly.





I plan to just slap on a magnetic dry erase board to lable what's in there for now.


lukebeulah

Well-Known Member
Joined
Apr 12, 2011
Messages
67
Reaction score
6
Location
Colorado Springs
Wow, that's like popping the hood and seeing a shiny 454 under the hood. Nice hardware.



Charlie- great looking keezer. Love the paint on that- very nice.

Sent from my iPad using Home Brew


ersogoth

New Member
Joined
Apr 29, 2013
Messages
4
Reaction score
1
Location
Denver

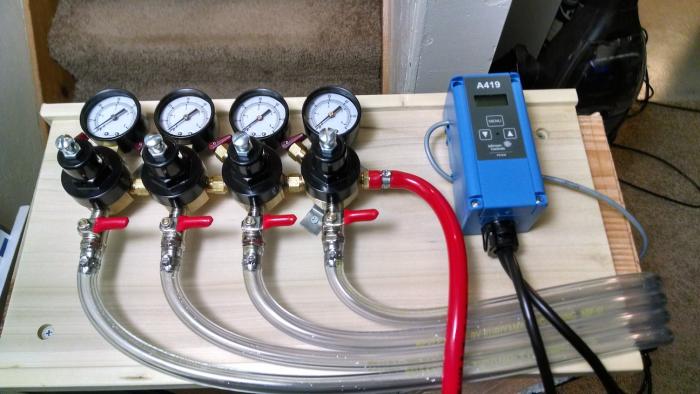

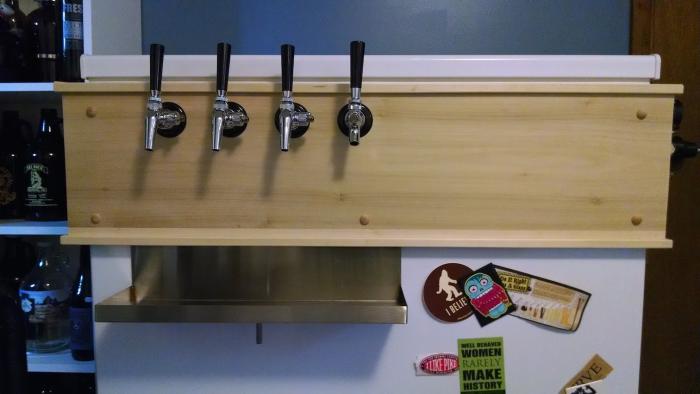

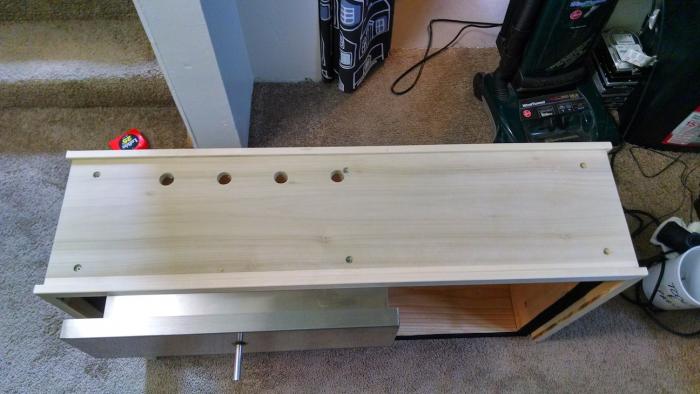

I have been working on this for over a year. I started with a single faucet, and added the fourth one this last weekend. I also upgraded to a four-way regulator and also added the drip tray and front facade.

I am very happy with how it has turned out. The freezer has room for a total of five kegs, and I am planning on putting in a nitro faucet on the far right side.
