Homebrewery setup

[aclockworkblue]

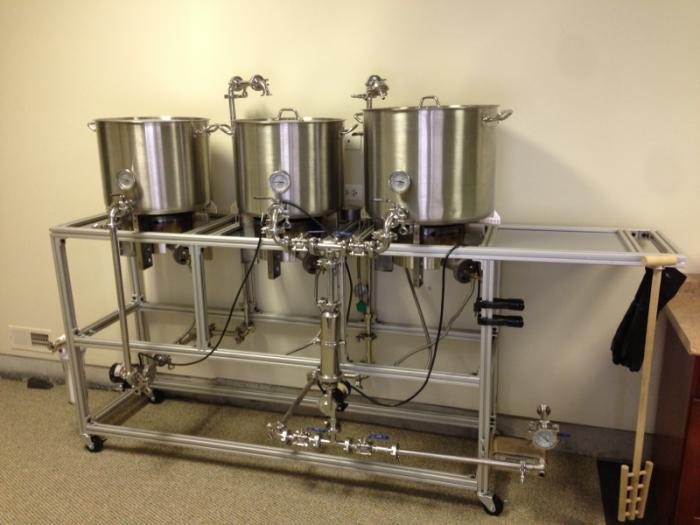

I finally finished my rig! More info and pictures to follow if interested.



[amandabab]

Shiny



[Bigbeavk]

Great Job!



[Cyclman]

Your efforts really show.



[fermentinginpa]

Nice job!



[aclockworkblue]

Thanks a lot!



[day_trippr]

Nice job on the design/build. I'm a big fan of essentially building a structure around Blichmann floor burners. It makes so many things easier. And the hard plumbing takes your rig up another notch or two...

Cheers!



[Genuine]

post more!!



[Setesh]

Wow, that's brew porn! Very nice work!



[IPAndy]

Did you build the frame yourself or did you buy it?



[jbaysurfer]

made of 80/20? cost estimate?

That's awesome man. Congrats on such a great result for all your hard work.



[aclockworkblue]

Thanks for your kind comments! I did build it myself using 80/20. I'm including some more pictures if the rig and brewery.



[aclockworkblue]

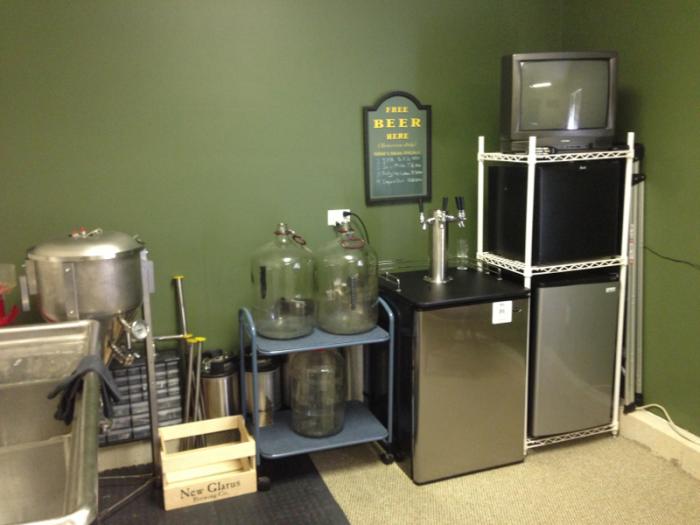

Brewery



[firerat]

I want to hang out at your house.....



[headwall]

Wow, beautiful!

Is that aluminum? Does the frame get hot when you brew?



[aclockworkblue]

Hey thanks a lot!

Yes it's made from 80/20 Aluminum.
No it is only warm to the touch after a 90min boil.
The burners are far enough away to not really heat it up.



[aclockworkblue]

Here's some more pics I took this evening.



[daksin]

That's pretty slick. Why the tri-clamps? Does it CIP? Also, do you brew inside or out?



[jbaysurfer]

Dude that sink is bad ass. You're doing it right. Jealous.



[aclockworkblue]

Yea, it does CIP.
I also hook up my conical to it and run cleaner in the closed system loop.



[headwall]

Hey thanks a lot!

Yes it's made from 80/20 Aluminum.
No it is only warm to the touch after a 90min boil.
The burners are far enough away to not really heat it up.

Good to know. I'm still trying to decide on a design for my brew stand. I might have to give this stuff some thought. May I ask why you settled on this particular design using the 80/20? Did you consider other materials/designs?



[aclockworkblue]

I did. I had a top tier and its made from the same stuff, I wanted a single tier system.
This stuff is strong as hell and light weight. I wanted something i can get around on my own. One person can wheel it around with ease.
PM me I can probably dig up my detailed diagrams somewhere if you're interested.



[brewmasterbates]

awesome!



[rexbanner]

LOL, that's nicer than my 1 bbl kal clone at my nanobrewery.

Good work.



[MNBrewDad]

Sweet set up! One day I hope to have something similar. Thank you for sharing



[limulus]

Dude that sink is bad ass. You're doing it right. Jealous.

I agree. The brew rig is beautiful, but that sink, that's the dream. I make my BIGGEST messes just trying to clean everything.



[AmandaK]

Am I missing something? Are you running propane indoors without ventilation? Surely I am missing something.



[waldzinator]

Am I missing something? Are you running propane indoors without ventilation? Surely I am missing something.

Literally about to post the same question! I didn't see a vent hood anywhere. Luckily, it looks like you have a comfy chair to pass out upon when the CO overwhelms you! Haha, JK!



[rjbank]

Awesome setup! Do you have ventilation?



[jbaysurfer]

Am I missing something? Are you running propane indoors without ventilation? Surely I am missing something.

He didn't actually answer that question. I'm assuming he's brewing outdoors, and doing the rest of the work (pitching, cleaning etc...) indoors.
