Contactor question

[penner]

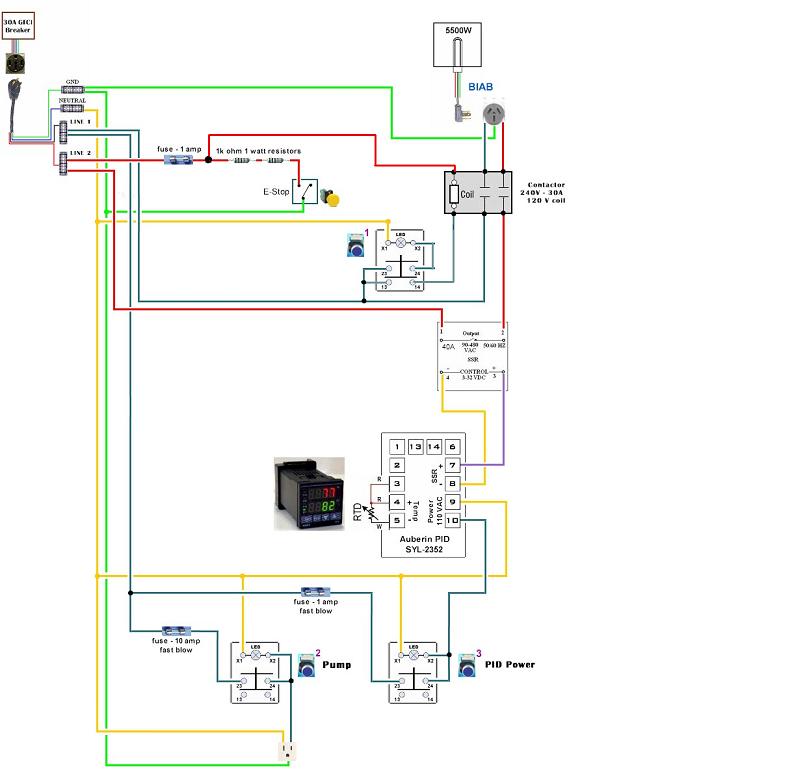

I accidently ordered the 2 pole 40 amp 240v coil contactor http://www.auberins.com/index.php?main_page=product_info&cPath=2_31&products_id=164 instead of the 2 pole 40 amp 120v coil contactor. I am building http://www.pjmuth.org/beerstuff/images/Auberin-wiring1-a4-5500w-BIAB-30d6.jpg. Will I be ok or do I need to have the 120v coil?

Thanks to PJ for all of your hard work. I would never have been inspired to try an a e-brewery without you and all the knowledgeable people in this forum.



[Brumateur]

Sure, you just need to make minor adjustment to the diagram. Connect a second coil terminal to another hot instead of neutral.



[ingchr1]

Sure, you just need to make minor adjustment to the diagram. Connect a second coil terminal to another hot instead of neutral.

I think just connecting the other hot to the other side of the coil would cause the LED to always be on, including the coil to always have 120V across it.



[Brumateur]

If switch 1 has two NO contacts you can connect 240V contactor this way:



[augiedoggy]

the last two pages of this thread might help as I believe you made the same mistake as one of the posters here... he post diagrams of how he fixed it.

https://www.homebrewtalk.com/f170/svebs-build-492860/index6.html



[penner]

I have an extra NO block laying around. I believe I can make this work.

Thanks!



[Brumateur]

the last two pages of this thread might help as I believe you made the same mistake as one of the posters here... he post diagrams of how he fixed it.

https://www.homebrewtalk.com/f170/svebs-build-492860/index6.html

My solution is very similar to that one. Mine just a little bit simpler and safer.
