Wiring on high voltage side of SSR

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

thisguy0605

Member
Joined
Feb 10, 2013
Messages
7
Reaction score
0
I’ve searched the net and this forum extensively and haven’t found the specific answer I’m looking for so here’s my question.

When wiring a SSR, if there is no polarity indicated on the high voltage side, does it matter which terminal the power supply connects to? Every diagram I’ve seen has it connecting to terminal 1, but the Hosehead 5BC I have has it wired to terminal 2 with a jumper to the second SSR (also terminal 2). Any help would be appreciated. Thanks!

Joined
Apr 23, 2009
Messages
34,390
Reaction score
13,433
Location
☀️ Clearwater, FL ☀️
I’ve searched the net and this forum extensively and haven’t found the specific answer I’m looking for so here’s my question.

When wiring a SSR, if there is no polarity indicated on the high voltage side, does it matter which terminal the power supply connects to? Every diagram I’ve seen has it connecting to terminal 1, but the Hosehead 5BC I have has it wired to terminal 2 with a jumper to the second SSR (also terminal 2). Any help would be appreciated. Thanks!
If it's an AC SSR, there is no polarity on the load side.

(DC SSRs exist, but you shouldn't find them on this forum or for brewing use; the terminals on AC SSRs are going to marked with "~", typically).


craigmw

Well-Known Member
Joined
Dec 29, 2012
Messages
338
Reaction score
73
Location
Villa Park
Assuming we are talking about an SSR that switches AC current, there is no polarity and thus either terminal can be connected to the line and either to the load. I believe convention is to usually wire terminal 1 to the line and terminal 2 to the load, but since the current is alternating, it doesn't really matter.

OP
T

thisguy0605

Member
Joined
Feb 10, 2013
Messages
7
Reaction score
0
Awesome! That’s what I suspected but just wanted to confirm.

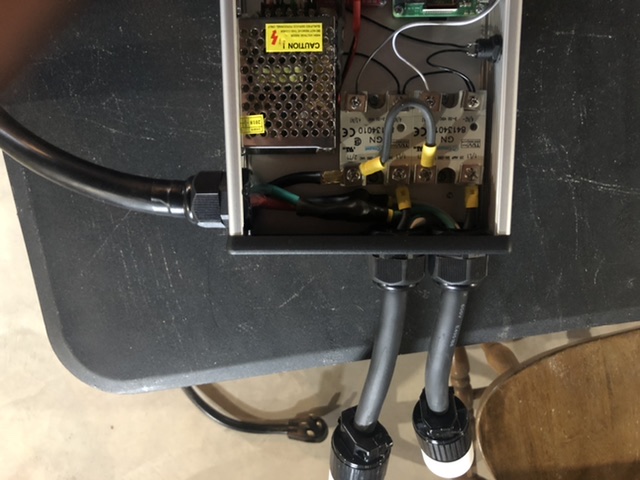

With the hosehead, there’s two 25amp AC SSR’s. The 50amp supply is wired to terminal 2 on the one and there’s 30amp rated wire connecting each SSR. I’m planning a new build and don’t want to base the wiring off of this if it’s incorrect. See below.
