I've seen several other people posting about Jamil's Whirlpool Immersion Chiller, but I've just gotta say, this has improved my beer noticeably.

It chills very quickly and can chill down to 50^F easy. I don't have to worry about sanitizing my CFC. My late hop additions are much more pronounced in an IPA I recently made, compared to previous batches.


barleywade

Well-Known Member
Joined
Nov 2, 2009
Messages
65
Reaction score
0
Location
Minnesota
How are you transfering from your boil kettle to your fermenter after using this method?

OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville
I use a pump to recirculate and then the same pump to go to my fermenter. Will take pics of my setup tomorrow.


barleywade

Well-Known Member
Joined
Nov 2, 2009
Messages
65
Reaction score
0
Location
Minnesota
That would be great. I am thinking about also upgrading to this method and am unsure if I want to go with a plate or possiblu a CFC.

OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville

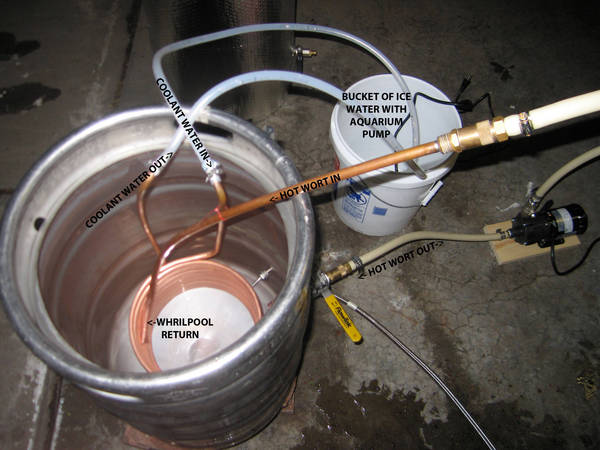

Sorry about the delay. Here's a pic of how I do it.



At the bottom of the ice bucket of there's an aquarium pump like this. Start off with a big bag's worth of ice (I use my freezer and accumulate a big bag over the week leading up to brew day). For the first 10 minutes or so (of a 5 gallon batch) I don't return the hot water from the IC to the ice bucket--I direct that into another bucket or my mash tun for cleaning. After that 10 minutes (or whenever the water returning from the IC is about 120 or so) I start returning to the ice.

I've built several CFCs and used the heck out of them. They're nice, but this is nicer. You cool the whole wort down much quicker than you would with a CFC. With a CFC you'd be leaving a big amount of your wort at near boiling temps for a long time.

Here's some great info on this.


MacBruver

Well-Known Member
Joined
Feb 20, 2009
Messages
612
Reaction score
7
Location
Orange County, CA
You have the line coming back in labeled "cooled wort return"- are you using both a CFC and an immersion chiller?

OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville
Sorry, that's obviously wrong. Just wort return, minus the cooled.

OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville
Thanks for the correction Mac. I edited the pic to fix the problem and hopefully make it a little clearer.


Brew-boy

Well-Known Member
Joined
May 31, 2006
Messages
2,271
Reaction score
18
Location
Lapeer, Michigan
I been using the JZ whirlpool for awhile now and I love it. I don't need the ice to get my beer down to 60F my well water works just fine. I am going to hard plumb my kettle with a quick disconnect and get rid of the long copper piece the goes inside the chiller. When chilling is done I will whirlpool again to "Try" and get a hop cone in the middle.


barleywade

Well-Known Member
Joined
Nov 2, 2009
Messages
65
Reaction score
0
Location
Minnesota
That is a nice set up! I don't want to be a PIA but could you take a picture of the aquarium pump and it's connections? I am a visual person and not very good at setting these kinds of things up.


Henrythe9th

Well-Known Member
Joined
Mar 11, 2010
Messages
326
Reaction score
6
Location
Redmond OR
I Have used mine twice now,, boil to 58f in 21 min for the last 13gall batch,,
I need a bigger pump to get a better whirlpool going (working on that)
ya Pumps are really nice to have..
a pic of my cooler 30 1/2 copper + fitting cost me around 100.00 to build




OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville

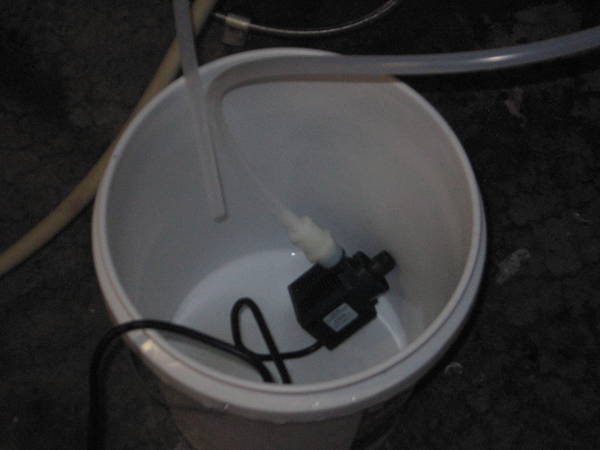

Sure. No PIA at all. I already had the pic but figured you'll need to get the fitting at your local hardware store to fit whatever aquarium pump fittings you have.



I had to get a plastic coupling to fit the outlet on the aquarium pump and then a little hose barb adapter to go from the female coupling to the hose. Basically, once you get the aquarium pump, put a little water in the bottom of a bucket, plug in the pump and submerse the pump to see which side is the inlet and which is the outlet. Then go to the hardware store and figure out what kind of hose you want to use to go from your pump to your IC. You'll need to adapt from the aquarium pump's outlet to that hose size. I'd take your pump to the store with you. Just make sure to get some hose that easily slips over the ends of your immersion chiller if that's how you want to do it. (see my pic for how I did it). There are any number of ways you could do it though. Everyone sets up their system a bit differently.

OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville
Henry, I love how that hangs over the pot's edge and how the whirlpool is attached. Did you just solder that hot wort return arm onto the IC?


barleywade

Well-Known Member
Joined
Nov 2, 2009
Messages
65
Reaction score
0
Location
Minnesota
Dogagge,

Thanks for the picture! I was contemplating going the CFC or plate route but I am thinking this will be way easier to sanitize and just as effective. This will also be more effective in the summer in MN when I am brewing 10 gallon batches.


Henrythe9th

Well-Known Member
Joined
Mar 11, 2010
Messages
326
Reaction score
6
Location
Redmond OR
its all silver soldered,, had to use a oxy-acy torch to get the copper tubing hot enough to join the tubes together,, hold the oxy torch far away till it sweets and apply,, I bent the tubing around a 6 gal bucket then fit the hard tubing to the boil pot as I was making it, I'm going to notch the lid so it closes, maybe
I did crimp the end or the wort return flatter to get a better whirl-pool going
more pics


OP
doggage

doggage

Well-Known Member
Joined
Dec 7, 2008
Messages
462
Reaction score
6
Location
Fayetteville
Ok, so I probably wouldn't be able to do the same with a regular torch and solder? Might give it a try. I'd like to extend the arms on my chiller and solder on my return tube so I don't have to finagle everything everytime to get it all just right.


Csuho

Well-Known Member
Joined
Jun 22, 2008
Messages
360
Reaction score
5
Location
Springfield, TN
to bring this thread back up I have soldered brass to copper with a regular torch but it took forever.
