tubing for march pump

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Joined
Aug 27, 2009
Messages
1,684
Reaction score
175
Location
Half a mile from Tucson
Half inch will work. You'll need two barbed hose fittings, 1/2 FNPT to 1/2 barb for both ends of the pump head. Or you can stick a ball valve on the flow out end and barb out of that but then you'd need a 1/2 MNPT instead of female...


TwoHeadsBrewing

Well-Known Member
Joined
Feb 28, 2008
Messages
3,949
Reaction score
52
Location
Chico, CA
I've used the 1/2" Silicone tubing that you can get from Austin, MoreBeer, McMaster, and lots of other places. It's heat tolerant to 450F, certified food grade, is translucent so you can see the flow of water/wort, and flexible. I've been using it for almost a year now, and no complaints so far. It's spendy at about $2.10/foot, but it's the right stuff for the job and worth it IMHO. You can grab some cheap 1/2" NPT -> 1/2" barb fittings and some SS hose clamps, or use quick disconnects of varying flavors. I opted for semi-cheap brass QD's from McMaster-Carr.

http://www.austinhomebrew.com/product_info.php?products_id=10014
http://morebeer.com/view_product/17608//Tubing_-_Silicone_1_2"_ID_-_By_the_Foot



More info about the QD's:

Male NPT -> Male QD: $1.93 ea. - http://www.mcmaster.com/#6739k59/=48upat


Barb -> Female QD (straight): $6.47 ea. - http://www.mcmaster.com/#6739k64/=48uq4x


Barb -> Female QD (90 degree): $8.01 ea. - http://www.mcmaster.com/#6739k68/=48uqnw


Stainless Ball Valve: $13.00 ea. - http://www.greatbargain.net/order/shop2.html


1/2" Stainless Coupler (better than what I used): $4.00 ea. - http://www.greatbargain.net/order/f2.jpg

Joined
Aug 27, 2009
Messages
1,684
Reaction score
175
Location
Half a mile from Tucson
I use the silicone too but have the hi temp tan tubing NB sells on my old IC and that stuff works fine too. Prefer the silicone as it feels better in your hands and looks better too as it doesn't get as dirty it seems...

OP
shoebag22

shoebag22

Well-Known Member
Joined
Mar 19, 2008
Messages
266
Reaction score
3
Location
Virginia Beach
no problem guys... thanks for the great links... Would home depot or lowes carry that tubing...


HSM

Well-Known Member
Joined
Jan 23, 2009
Messages
460
Reaction score
9
Location
McMurray, PA

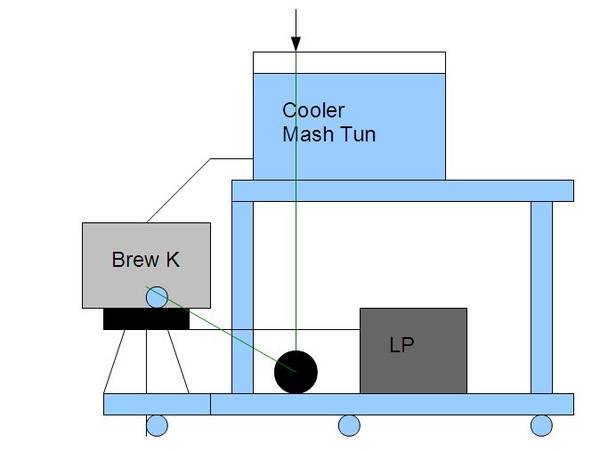

I'm trying to figure out the fittings i need based on this simpleton drawing:



Do I need any QD's on the pump for a RIMS setup?

I'm sure I need male QD's on everything else and can move the hoses around..

Crap drawing but can you see where I'm going and any advice on what I need?


HSM

Well-Known Member
Joined
Jan 23, 2009
Messages
460
Reaction score
9
Location
McMurray, PA
Male QD: Kettle (1), Cooler (1), Pump (2)
Female QD: 2 6' sections of tubing: (4)
I see that this would work, I'm just trying to wrap my mind around this.

Why do I need QD's at both ends of the pump? I'm not challenging you, I just don't know. Thanks!


TwoHeadsBrewing

Well-Known Member
Joined
Feb 28, 2008
Messages
3,949
Reaction score
52
Location
Chico, CA
I see that this would work, I'm just trying to wrap my mind around this.

Why do I need QD's at both ends of the pump? I'm not challenging you, I just don't know. Thanks!
You don't, but it's much easier to clean the hoses that way. You could use a barbed fitting and take the hoses off to drain/clean each brew day, but the male QD's are cheap.


jkeeton

Member
Joined
Oct 2, 2009
Messages
9
Reaction score
0
Location
St. Louis
I just got mine on Tuesday of this week. Haven't hooked it up yet, but got it. Just placed an order @ Mc Master as well. Still need the tubing. :)

If you need 1/2 stainless full couplings to weld in, check out
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=230340427857

john

If you are planning to buy the pump, check this item on E-bay. I just bought one at a very good price ($107.00 and free shipping!).

http://cgi.ebay.com/March-809-PL-HS...aultDomain_0?hash=item3355e9b05e#ht_574wt_939

Hope this help.


lanvp

Well-Known Member
Joined
Dec 7, 2008
Messages
121
Reaction score
5
Location
Corvallis
It definitely was a bargain a that price. It is the best price I have seen for a new March 809 pump. Let me know how it goes with your installation!:rockin:
