Maybe someone here can help me understand their manifold setup.



1. No valve on the left pump input. Will there be issues with flow into the pump or will one shut off valve be fine?
2. No valves on the brew kettle? Will the manifold valves keep everything nice and closed during the boil?

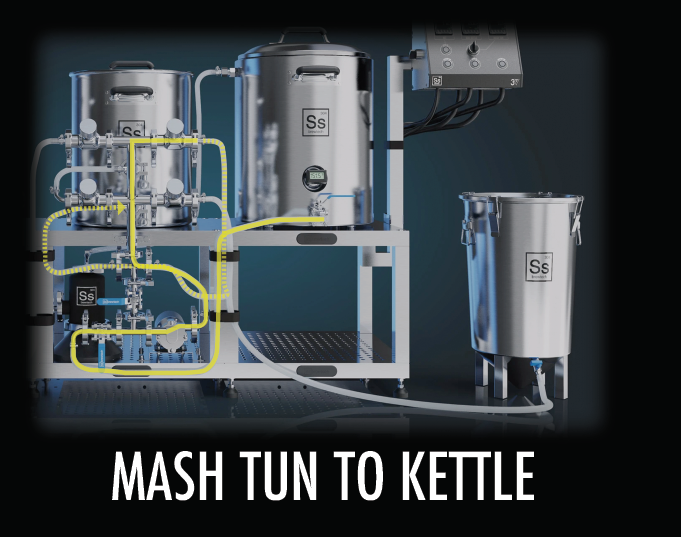

3. Based on the attached diagram, I can't figure out why they would run extra length for Mash Tun to Kettle instead of just going into the whirlpool port.

Any advice or insight is appreciated. Thanks.

OP
budaboff

budaboff

Well-Known Member
Joined
Feb 2, 2013
Messages
50
Reaction score
7
Reply from SS Brewtech:

1. On the HLT, there is a valve on the kettle, so it wouldn't be a huge deal. Just close it off when you aren't using it and it will be fine. You could always add another valve if you prefer.

2. This example doesn't have a valve on the bottom of the brew kettle, and that's ok but I personally would have one at the kettle. It's not like the pint of beer in the tubing will go anywhere since there are two valves in the path anyway, but it gives me some piece of mind.

3. You can absolutely go in through the whirlpool and save the 4th pathway for something like an inline chiller or filter. Just keep in mind that you would want to limit that valve opening when doing that, so you don't make a mess from the high powered pump. If you were to go through the bottom port /diptube/trub dam, you could have the flow going full bore out of the gate with minimized splashing.

OP
budaboff

budaboff

Well-Known Member
Joined
Feb 2, 2013
Messages
50
Reaction score
7


Fr8Dog

New Member
Joined
Sep 12, 2020
Messages
3
Reaction score
0
Thanks!
