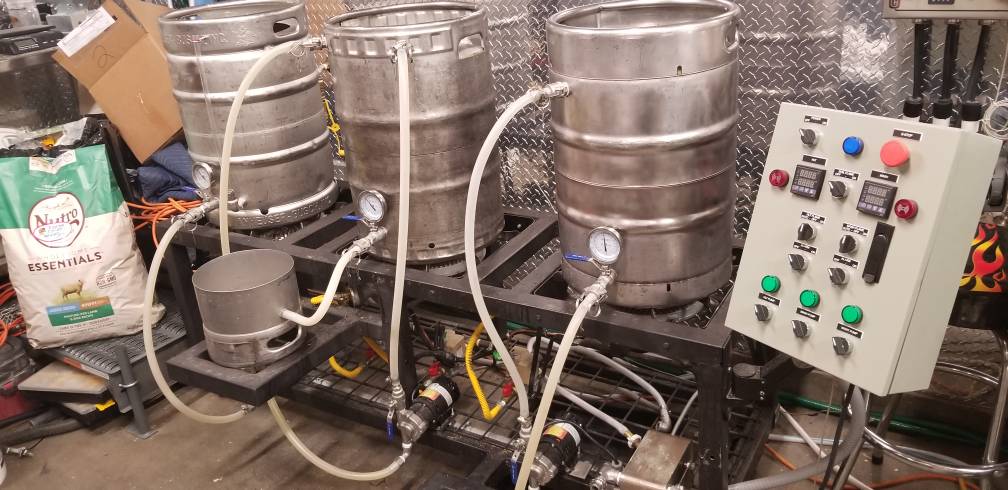

3 vessel single tier automated natural gas pilot brew system



3 stainless 15.5 gallon keggles all stainless hardware

1-HLT- weldless sightglass, pickup tube, ball valve, thermometer, temperature probe, camlock quick disconnects (keg shell legally purchased from a local distributor but has not been properly debranded yet.)

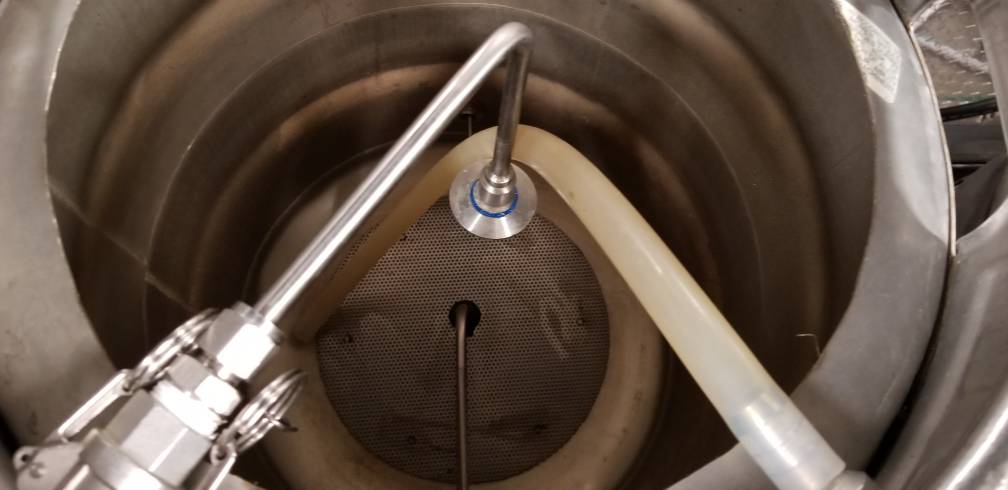

2-MLT- norcal custom stainless false bottom and pickup tube, ball valve, thermometer, ss brewtech fly sparge arm, temperature probe, cam lock quick disconnects for sparge and vorlauf (keg shell is blank unbranded)

3-Lauter Grant- stainless triclamp on bottom, used for lauter/vorlauf to get better clarity.

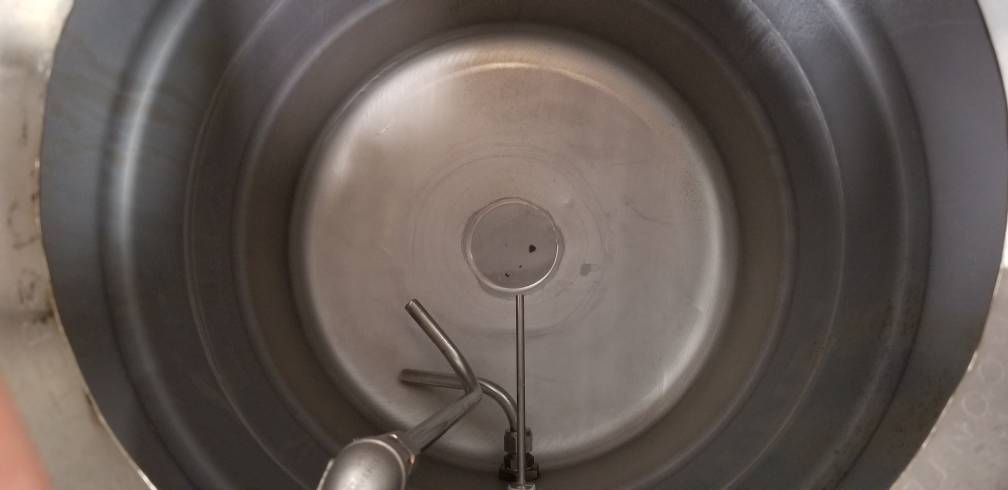

4-Boil Kettle- thermometer, whirlpool tube, side pickup tube, ball valve, camlock quick disconnects (keg shell is blank unbranded)

3 stainless head chugger pumps wired in conduit to control panel. Each pump has a ball valve to control flow.

3 bg 12 banjo burners converted to natural gas (propane orifices included)

3 honeywell natural gas automated valves with pilots controlled by control panel (can be converted to propane with additional parts not included)

Control panel custom built with 2 auber pid controllers for hlt and mlt with alarms that can be disabled. Both can also be controlled manually. Boil is manually controlled flame on/off. 3 pump switches. Everything runs off 110v.

Chiller- Blichmann thermonator plate chiller.

Stand was custom built out of 14ga 2x2 steel welded with 4 swivel non-locking casters. The lauter grant has its own shelf welded to the stand as well as another small shelf welded lower for a hop rocket. (hop rocket not included but may consider throwing it in for the right price.)

This is an awesome brew rig capable of up to 13 gallon batches. I have brewed many great beers with it but recently decided to go electric. I have countless dollars and hours into building this rig exactly how I wanted it. It would be great for a brewery pilot system or just a bad ass homebrew system. For those wondering about the natural gas, it is a ton cheaper than propane, and I was able to get plenty of btu out of the burners to bring a boil really fast. It is really easy and cheap to have a natural gas hookup added off your meter with a simple tee and valve. Then all you have to do is plug in the line and never worry about running out of propane. I literally never saw a difference in my gas bill even when brewing multiple batches a month.

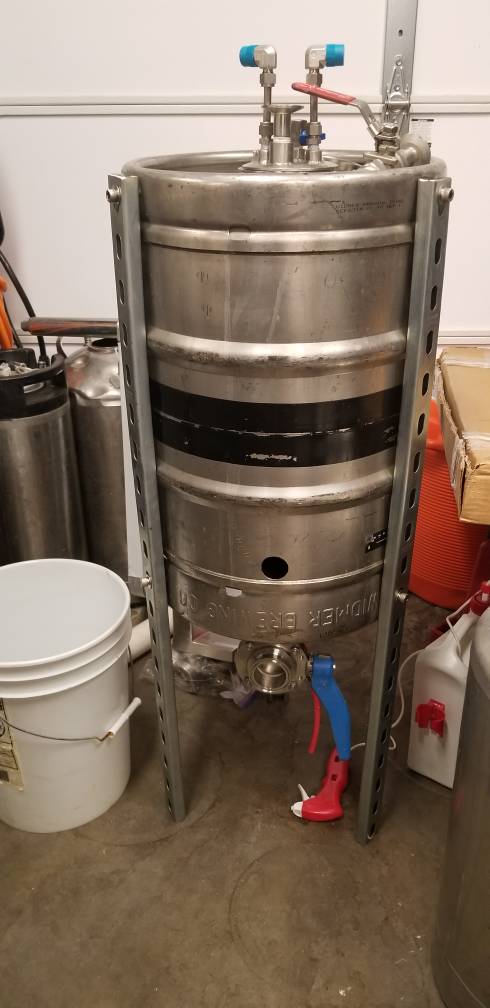

Also included is a custom built 15.5 gallon sanke fermenter. It has a 4” triclamp ferrule welded on top with a 3/8 chiller coil and thermowell for temperature control. A 2” tri clamp bottom dump, and a 1-1/2” triclamp racking port. I don’t have pictures of this yet because it isn’t complete. My sanitary welder is a little behind on projects and hasn’t been able to get the fittings welded up for me yet. I will add pictures as soon as it is complete.

Located in Albuquerque, nm. I will consider delivering to ca, az, ut, co, ok, or tx within reason with full payment upfront for the right price. I am asking $3000 obo Very motivated to sell. Feel free to ask any questions.

View attachment 1506140802953.jpg

View attachment 1506140818282.jpg

OP
Drumminguy81

Drumminguy81

Well-Known Member
Joined
Jun 19, 2015
Messages
709
Reaction score
247
Bump open to offers I need it gone fast to make room for the new setup

OP
Drumminguy81

Drumminguy81

Well-Known Member
Joined
Jun 19, 2015
Messages
709
Reaction score
247
Brew system sold! You can make an offer on the hop rocket if you want, not sure if I'm ready to sell or not
