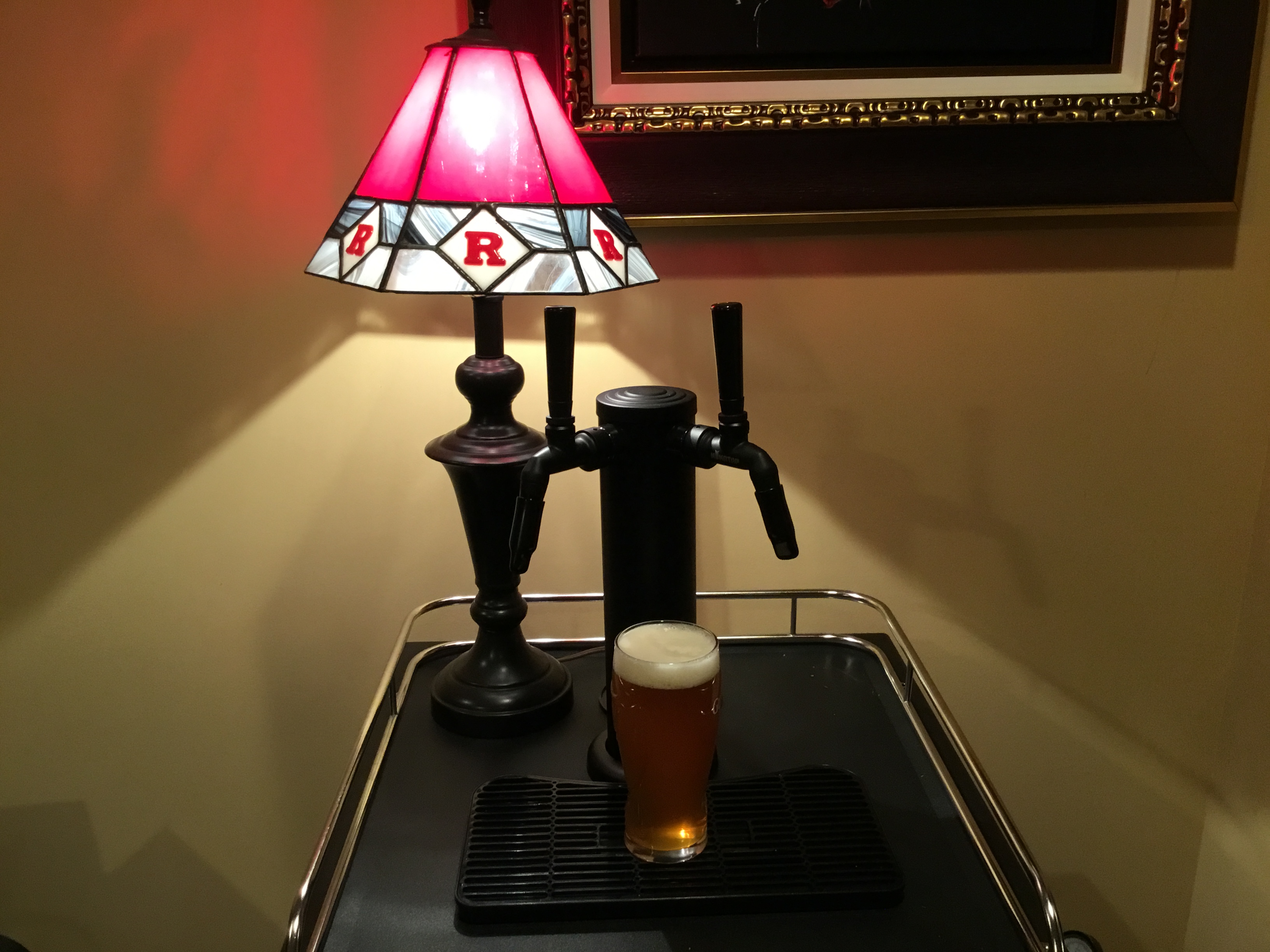

I finally put a drip tray on mine. Found a cheap one and found a scrap piece of plywood that was the exact size as needed. I will get a proper piece of wood and stain it to look nicer. I mean, I probably won't just leave it like this . . .



Tom R

Supporting Member
HBT Supporter
Joined
Jan 27, 2019
Messages
534
Reaction score
598
Location
S. Puget Sound
I finally put a drip tray on mine. Found a cheap one and found a scrap piece of plywood that was the exact size as needed. I will get a proper piece of wood and stain it to look nicer. I mean, I probably won't just leave it like this . . .

"There is nothing as permanent as a temporary solution". 😝
A quote from somebody famous, I'm sure.

And it looks like somebody stole one of your faucets!


KookyBrewsky

Well-Known Member
Joined
Feb 23, 2020
Messages
327
Reaction score
111
I haven't brewed in almost a year now because I was tired of bottling but I'm also cheap and was waiting for a deal....

I scored this bundle for $125 through OfferUp.

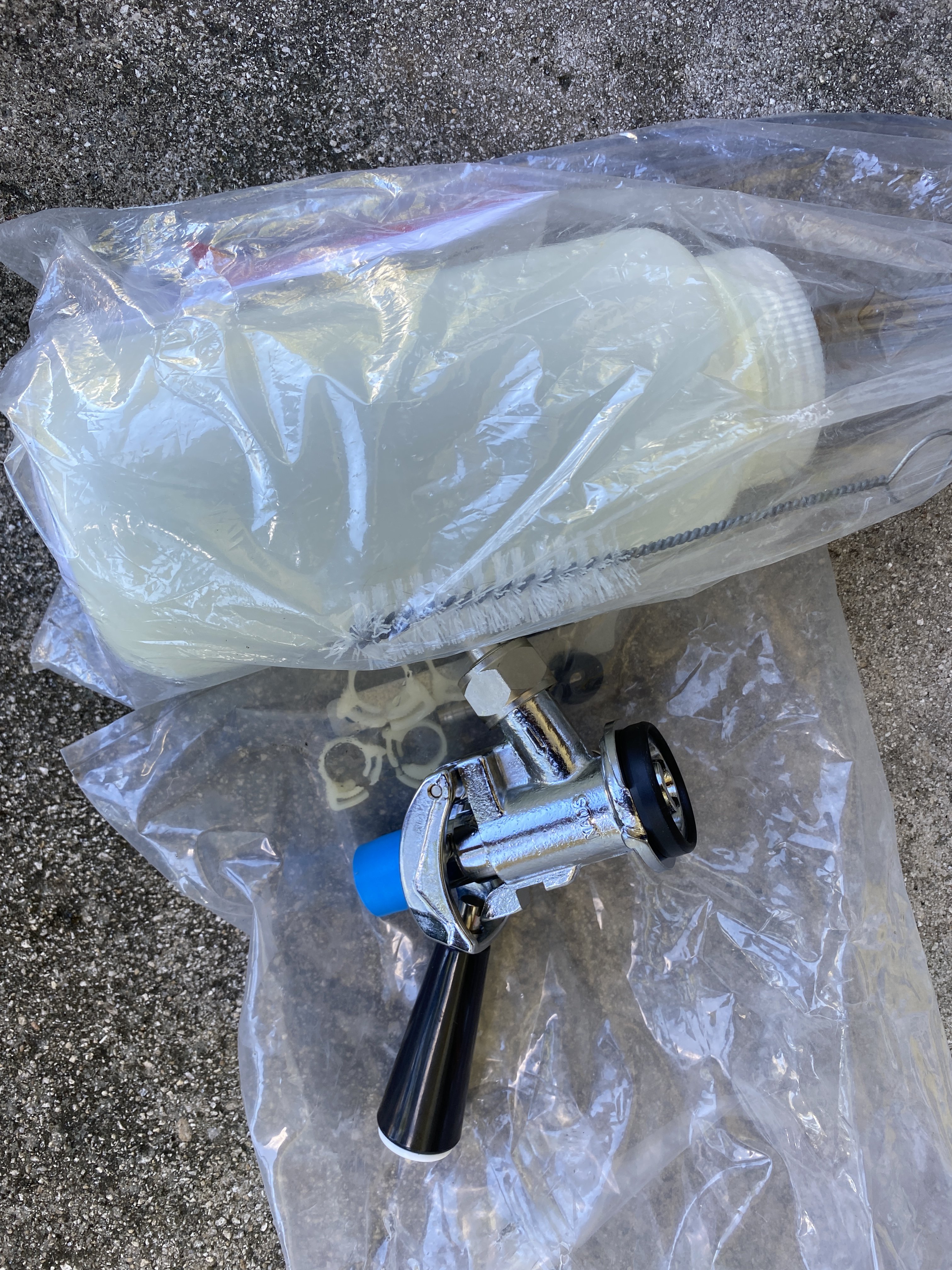

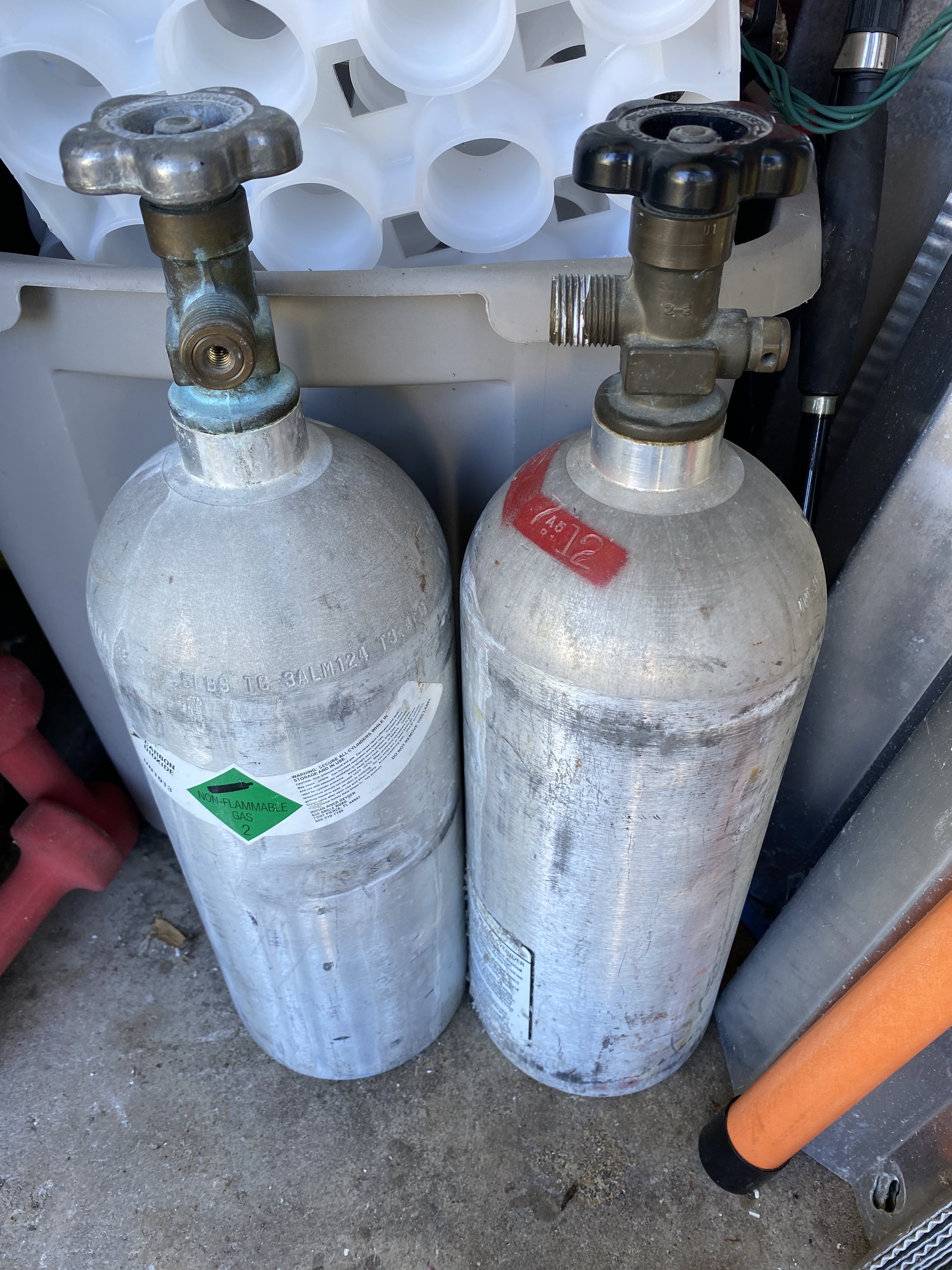

Came with Kegerator, Miller Lite handle, two CO2 tanks, and quite a few extras like spare parts and cleaning supplies.

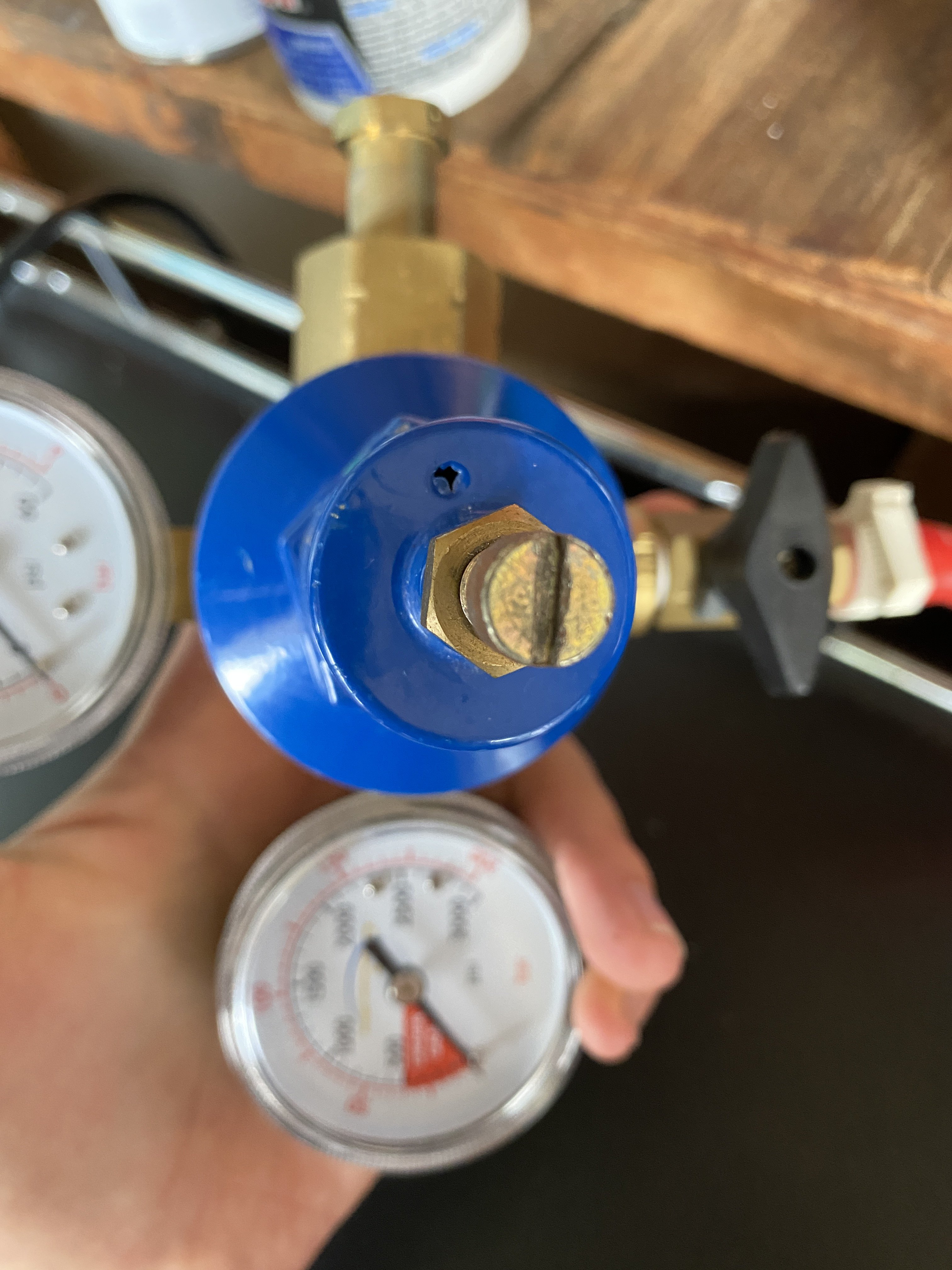

I do have a few questions though. First, on the Draught Technologies (who seemingly has no website even though it's made in the USA) has a hole in it. From what I can tell every regulator I see online has a hole in a similar place but they don't look as funky as mine. Does it seem alright? Second, there's a tiny gash inside. I figured it doesn't look like it hit anything important, nothing seems to be leaking, and it keeps temperature as I bought it when it was still running, ice cold at 34F. So I ordered some JB-Weld KwikWeld. Can anyone confirm that the location of the gash is benign and I can simply patch it up with this $5 epoxy?

If this is the case, I basically stole this bundle. Truly unreal. I have 2 used kegs on the way from AIH that I got for $45 each I think. Now I just have to order from Spike the closed transfer/carbonation bundle and I'm off to the races.

First brew day in about a year in 2 days once my yeast starter is going... I guess in the downtime I played with, and still play with, sourdough bread. I know a bit more about yeast and I'm switching to all organic beer. It's an early Christmas!



IMG_0882 2.JPG



Last edited:

k-os

Supporting Member
HBT Supporter
Joined
Jan 4, 2019
Messages
366
Reaction score
200
Location
Wisconsin
I do have a few questions though. First, on the Draught Technologies (who seemingly has no website even though it's made in the USA) has a hole in it. From what I can tell every regulator I see online has a hole in a similar place but they don't look as funky as mine. Does it seem alright?
This is the vent hole. Looks like yours has some excess paint/powder coat covering a bit of it. You could clean this up a bit using a small knife or drill bit while holding the regulator with the hole facing down.

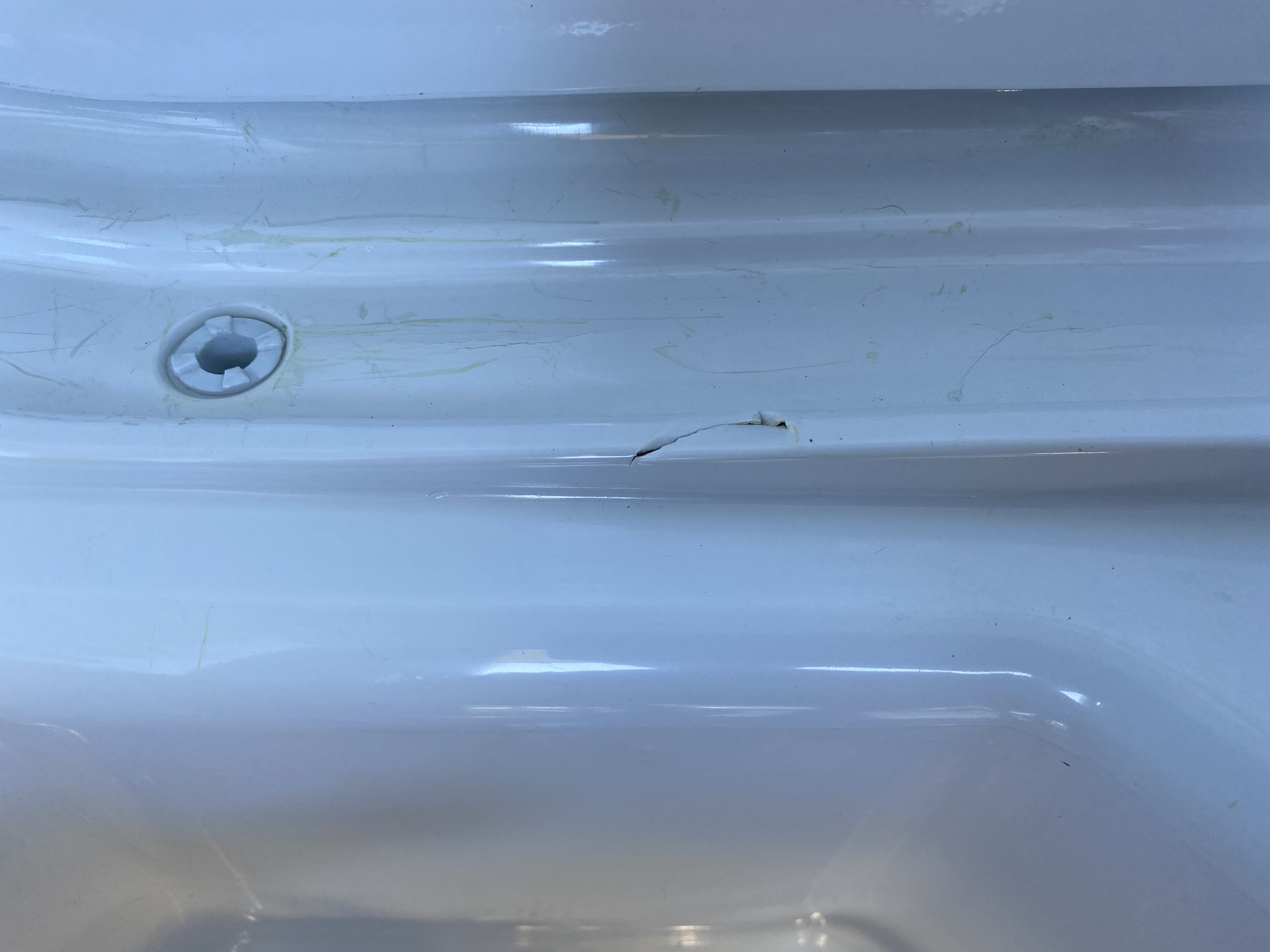

Second, there's a tiny gash inside. I figured it doesn't look like it hit anything important, nothing seems to be leaking, and it keeps temperature as I bought it when it was still running, ice cold at 34F. So I ordered some JB-Weld KwikWeld. Can anyone confirm that the location of the gash is benign and I can simply patch it up with this $5 epoxy?
This appears to just be the inside plastic body panel. The hole above it is where the condensation from the evaporator in the back drains to. Patching it up shouldn't be a problem.


KookyBrewsky

Well-Known Member
Joined
Feb 23, 2020
Messages
327
Reaction score
111
This is the vent hole. Looks like yours has some excess paint/powder coat covering a bit of it. You could clean this up a bit using a small knife or drill bit while holding the regulator with the hole facing down.



This appears to just be the inside plastic body panel. The hole above it is where the condensation from the evaporator in the back drains to. Patching it up shouldn't be a problem.
Amazing, that's what I gathered from research but wanted to ask for more opinions. Going to patch it up tonight. $125 to both keep me brewing and give me the best possible experience. Doesn't get much better than that. Haven't been this excited in a while. Instead of 50 bottles and still managing to get infections, I can clean a gigantic bottle very well and have carbonated beer in 24 hours. I just have to clean the garage a bit, it''ll stay there so I can share with the neighbors.

Joined
Nov 26, 2016
Messages
4,320
Reaction score
4,334
Location
Chicago

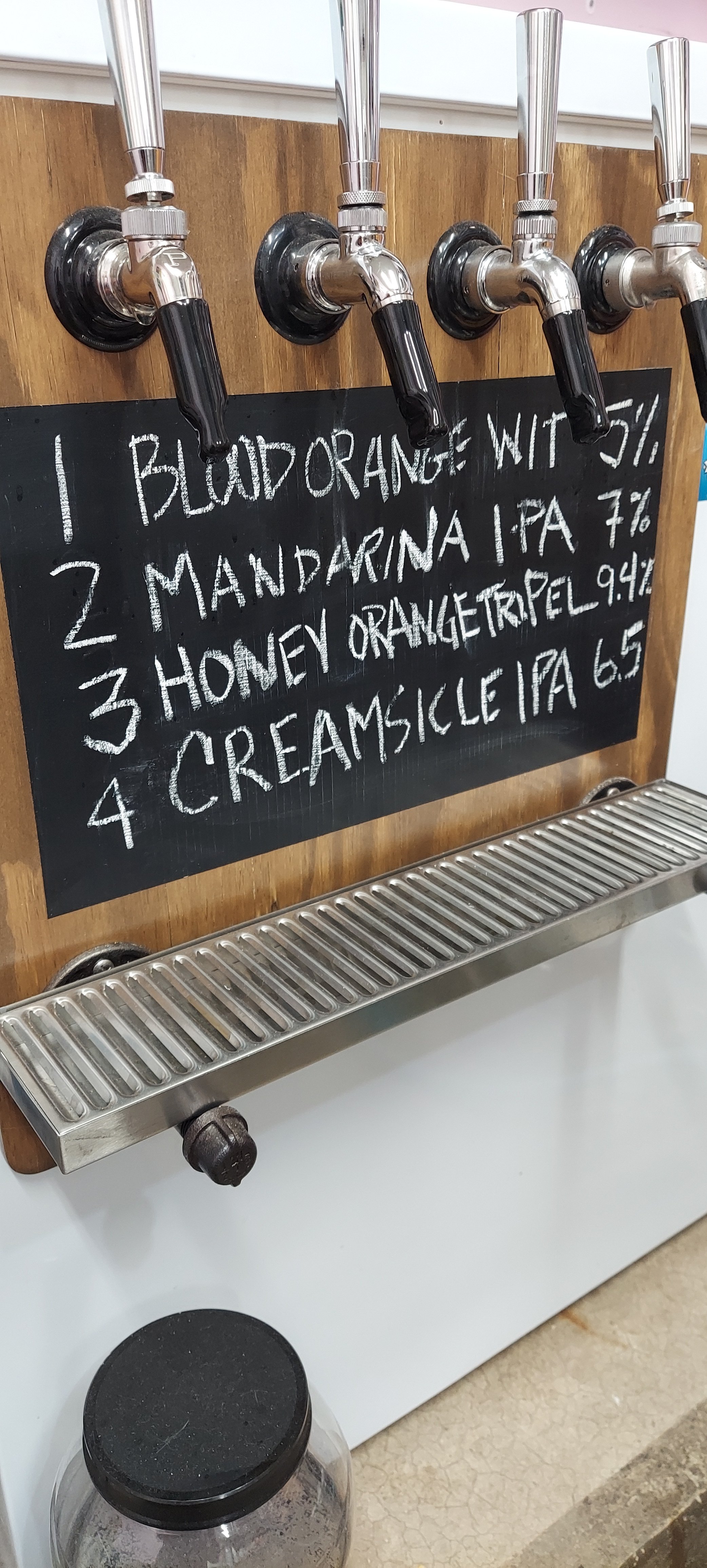

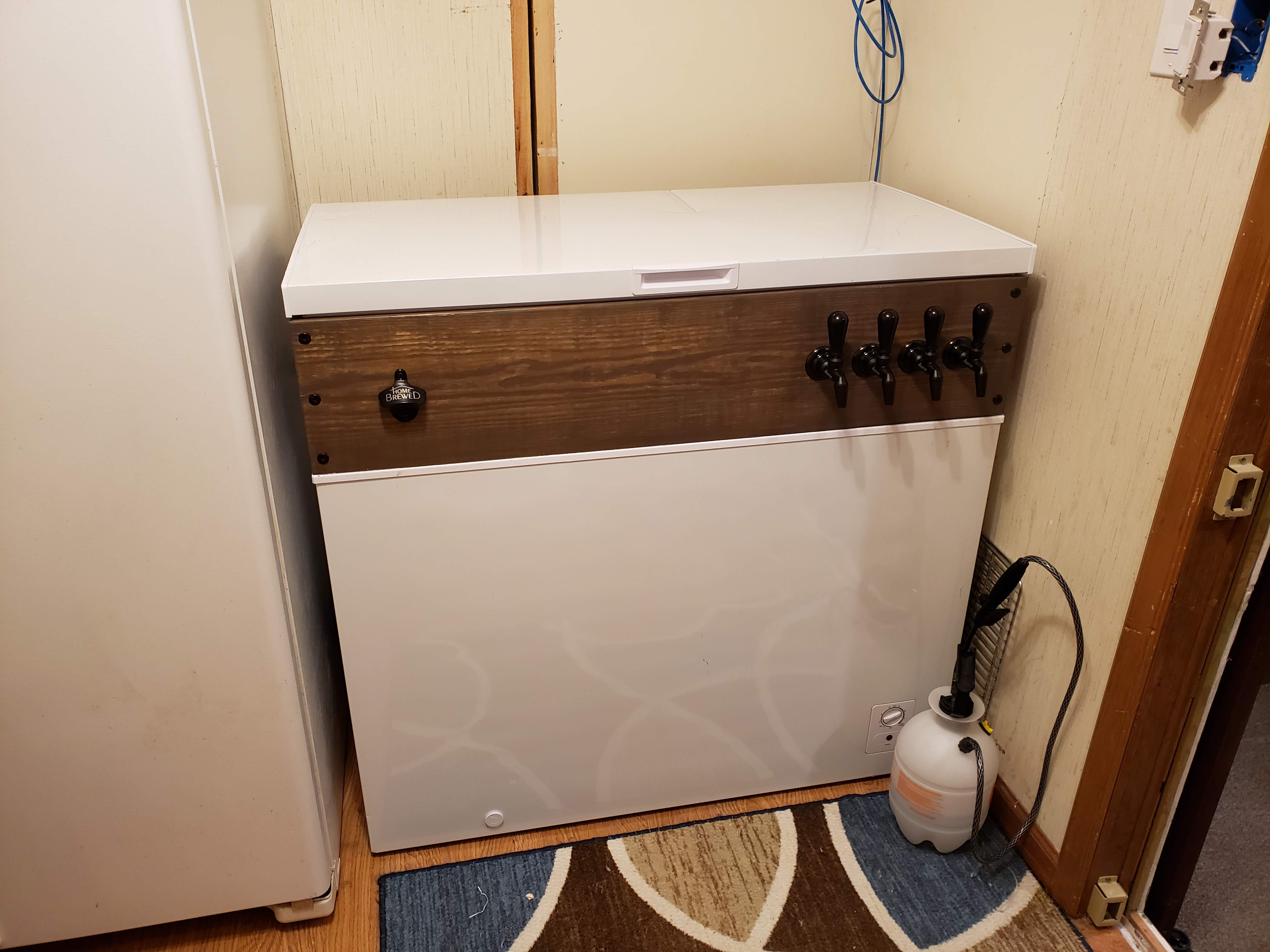

Looks great, really clean build. If you want to add a drip tray without spending a lot, check out my plywood and iron pipe support setup. The drip tray was ~$20 online, I'll dig up a link. No screws are used to attach it to the collar, the shanks act as bolts to secure it in place. If I had it to do over, I would have painted the entire plywood piece with chalkboard paint.


Last edited:

DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,870
Reaction score
971
Location
Paremata New Zealand
Looks great, I have the same model freezer which I intended to convert to keezer before lockdown but then it got snaffled for food. I stole about 20 percent for hops though.

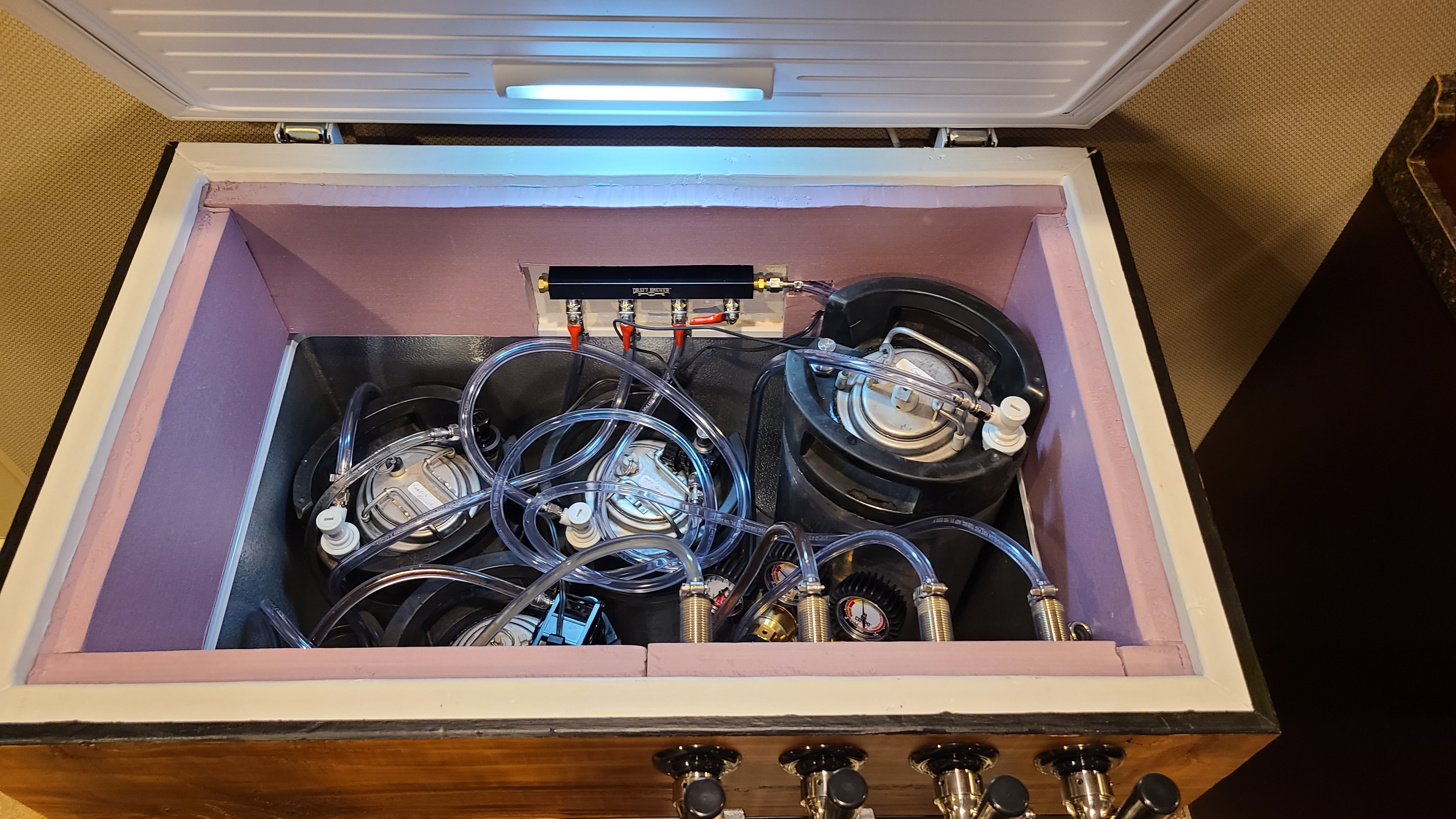

Had to convert this beast instead, takes 8 kegs.
Sadly black nukataps weren't available when I built this, they would have looked great.

The Stout on nitro tap is on the other side.


okwesbrewing

Member
Joined
May 1, 2020
Messages
15
Reaction score
61
Looks great, really clean build. If you want to add a drip tray without spending a lot, check out my plywood and iron pipe support setup. The drip tray was ~$20 online, I'll dig up a link. No screws are used to attach it to the collar, the shanks act as bolts to secure it in place. If I had it to do over, I would have painted the entire plywood piece with chalkboard paint.
A drip tray has been on the list to figure out. That looks neat and something I will keep in mind.
Love the all black taps, where did you get those?
Nukatap Stealth Bombers. I think they are technically discontinuing those in favor of the Punisher color combo. Got mine through Keg Factory but anywhere that carries Kegland stuff should have them.

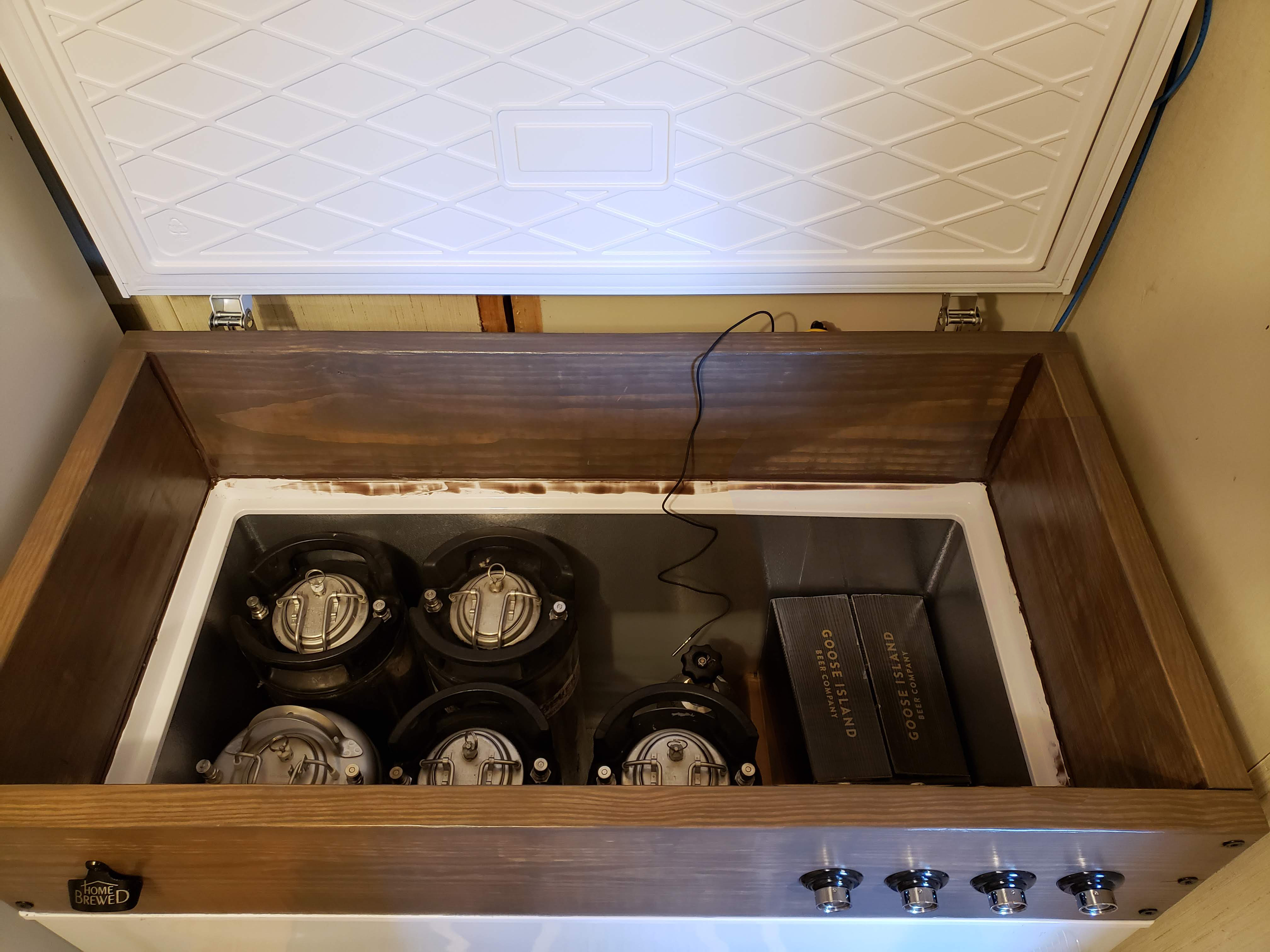

And found the pic where I was seeing how the kegs would fit in there.


chessking

Well-Known Member
Joined
Oct 27, 2011
Messages
599
Reaction score
909
Location
Aurora
Haven't been this excited in a while. Instead of 50 bottles and still managing to get infections, I can clean a gigantic bottle very well and have carbonated beer in 24 hours.
While technically you can force carbonate quicker with a high pressure over a shorter time, you still have to get the beer to a cold temp for this to happen, and that requires some time. Then, on a high pressure the keg needs to be rolled or otherwise agitated to speed this process up, and although you have some level of carbonation, Its not necessarily the best beer.
Setting the CO2 to serving pressure, getting the keg cold and leaving it alone for a couple of weeks at least gives the best results. The keg can settle out the fine particulate mater and the beer is carbonated perfectly.
I realize that with your first keg, you're anxious to try it, so knock yourself out, but if good beer on demand is what you want, you got to start thinking "Pipeline"

If you have room for two kegs in the keggerator you need at least three kegs. One serving, one cold conditioning and carbing up, and one full, waiting to go in. You then need your fermenter full, and waiting, so when the keg blows, the second goes on tap, the third goes in the cold and starts conditioning, and the first is filled to free up the fermenter. Now its time to brew. This process works regardless of your capacity. If the keggerator holds four kegs, you need at least five.

With this process, once the pipeline is full and functional, you don't brew any more than you normally would. You just have a lot more beer on hand than 50 bottles.

I'm not trying to discourage you, just letting you know you are leaving all your old problems (bottling) for a whole set of new ones. Enjoy the journey. Cheers.


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,681
Reaction score
20,600
Location
Stow, MA
While technically you can force carbonate quicker with a high pressure over a shorter time, you still have to get the beer to a cold temp for this to happen, and that requires some time. Then, on a high pressure the keg needs to be rolled or otherwise agitated to speed this process up, and although you have some level of carbonation, Its not necessarily the best beer.[...]
Beer does not have to be "cold" for a fast carbonation scheme to work, nor is shaking required. It is simply a pressure vs temperature problem that can be solved with higher pressure for higher temperatures...

Cheers!


chessking

Well-Known Member
Joined
Oct 27, 2011
Messages
599
Reaction score
909
Location
Aurora
Beer does not have to be "cold" for a fast carbonation scheme to work, nor is shaking required. It is simply a pressure vs temperature problem that can be solved with higher pressure for higher temperatures...

Cheers!
Ok, well nevermind


SLOPES

New Member
Joined
Jan 16, 2022
Messages
2
Reaction score
5
Boy o Boy, some of these builds are absolutely next level.

I am a new Brewer and new the forum (thanks for having me).

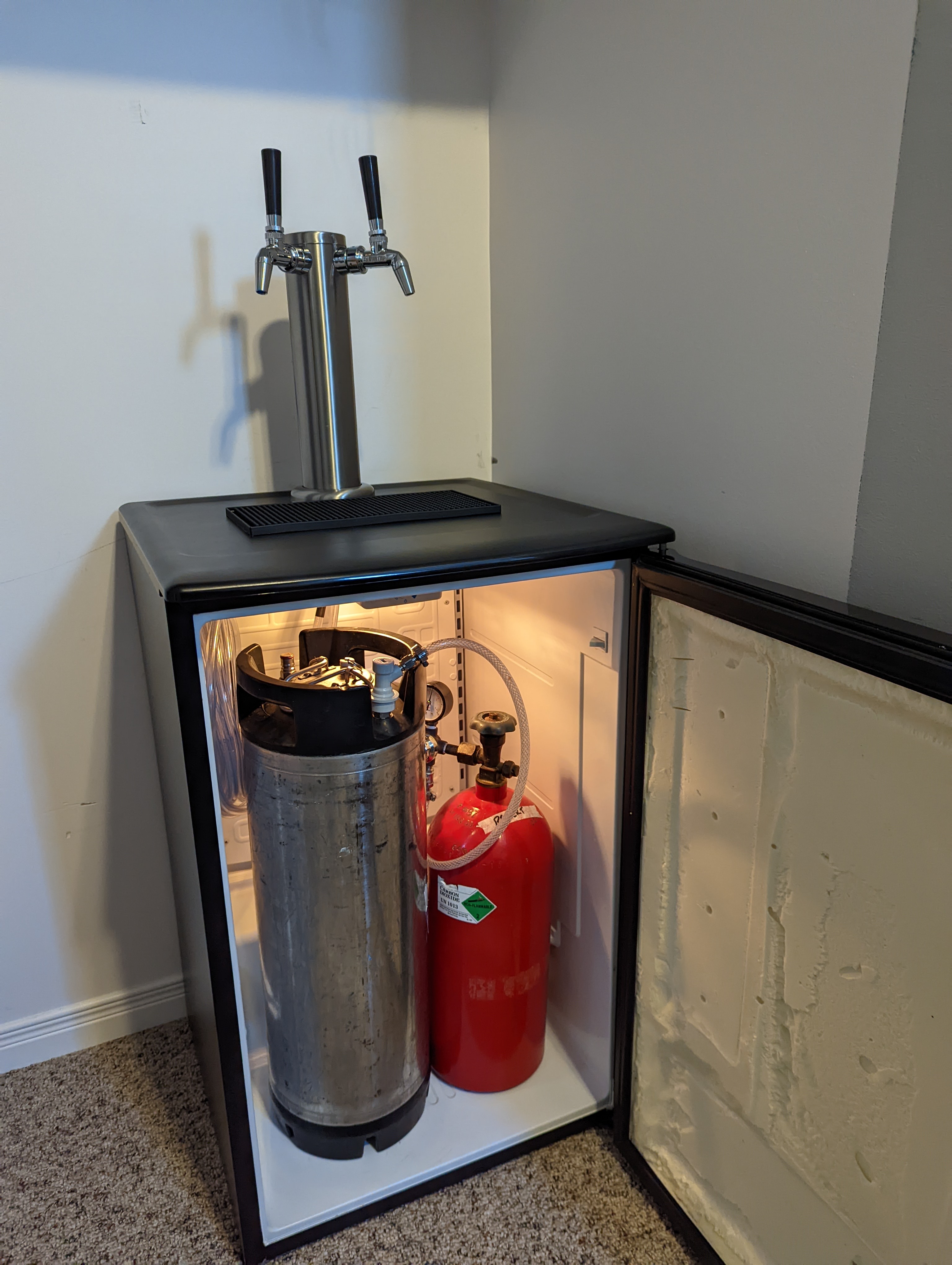

I built my first ever kegerator last week. Here are some pictures!

The batch in this keg is a SMASH West Coast IPA with cascade hops. Its absolutely delicious.

NOTE: I have a 5lb bottle that I will be utilizing to get my second keg in there, don't stress.
