Show me your tubes.

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
What do you guys use as your spout-to-bottom-of-keggle pipe? (what the hell do you call that thing?) SHow me pictures. I'm using a 3.5" tall by 6" long copper L and it's not 100% impressing me.


AleHole

Well-Known Member
Joined
Jan 4, 2007
Messages
339
Reaction score
5
Location
Seattle
I belive its called a pickup tube. I used a 1/2" diameter by approx 8 to 10 inch long piece of copper tubing that I bent to arch from the coupling to the bottom of the keggle. I then soldered a male end to it that screws into the coupling. Seems to work very good and sucks up every last drop of liquid as long as the outlet of the hose is below the inlet of the pickup tube. There is a picture in my gallery.


the_bird

10th-Level Beer Nerd
Lifetime Supporter
Joined
May 21, 2006
Messages
20,969
Reaction score
598
Location
Adams, MA
Cheesefood said:
What do you guys use as your spout-to-bottom-of-keggle pipe? (what the hell do you call that thing?) SHow me pictures. I'm using a 3.5" tall by 6" long copper L and it's not 100% impressing me.
I'm assuming that you've got a hose on your spigot and the end of the hose is below the bottom of the keggle? Remember, you're essentially siphoning once you get below the level of the spigot.


ColoradoXJ13

Well-Known Member
Joined
Dec 9, 2006
Messages
1,257
Reaction score
26
Location
Somerville
I did the L-pickup tube, it worked like gangbusters for my H2O test, drained every last drop, but neither of the brews I have done with actual wort and hops worked. The first one, I had two dishwasher filter things (sort of chain-mail made from ss) and it clogged immediately. The second batch had a home-made hop-stopper of sorts made from grease-guards and a steamer dish, that worked until it got to the level of the L-tube then lost siphon...maybe it wasn't tight enough? Still trying to work out the bugs, I want to go with stainless scrubber pads next time...my brew buddy wants to make this thing as complicated as possible (he is probably reading this now)...


WOP31

Well-Known Member
Joined
Feb 14, 2007
Messages
1,342
Reaction score
18
Are you talking about the pick-up in the kettle? I use a 1/2 inch copper pipe with a bazooka tube, works like a champ as long as i get a good siphon rolling.

Cheers


Here's my Tube for you:

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
Lil' Sparky said:
Cheese, exactly what's "not impressing you" about your pickup tube?
It fails to cuddle with me in bed at night.

What the heck do you think isn't impressing me? It didn't slurp up enough wort from my barleywine and I'm a gallon short in my carboy.

Joined
Jan 7, 2005
Messages
6,024
Reaction score
154
Location
Twin Cities, MN

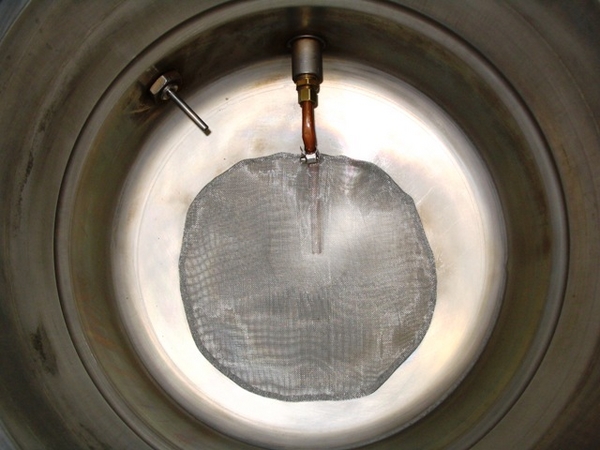

Mine is only a 3/8 copper pick-up. It's long enough to get to the center :). It's bent kind of S like so the DIY hopstoper can lay almost flat. dip tube opening is resting on the bottom but the opening is pointing towards the side. Wort wizard literally sucks it out so gravity is not an issue.



ColoradoXJ13

Well-Known Member
Joined
Dec 9, 2006
Messages
1,257
Reaction score
26
Location
Somerville
desertBrew said:
Wort Wizard. Best $25 spend I've made in '07. Or get a pump.
I cannot believe that they will get a patent for that, laboratories have been using water flow aspirator/vacuums for like 50 years....I guess it hasn't been applied to brewing yet...

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
Cheyco Libre said:
Petshops with lots of fish stuff sell them for around $5-8, even in Canada! Places which sell waterbed supplies do as well.
Right, it's called an aspirator.

Joined
Jan 7, 2005
Messages
6,024
Reaction score
154
Location
Twin Cities, MN
ColoradoXJ13 said:
I cannot believe that they will get a patent for that, laboratories have been using water flow aspirator/vacuums for like 50 years....I guess it hasn't been applied to brewing yet...
Everyone needs a marketing ploy :)

Cheesefood said:
Can't use them with a bucket though, right?
Right, and I believe it has to be glass. Otherwise it'll start compressing a Better bottle?

Cheyco Libre said:
Petshops with lots of fish stuff sell them for around $5-8, even in Canada! Places which sell waterbed supplies do as well.
Looked around forever and couldn't find one that didn't include a bunch of other fishy accessories so I decided screw it and bought it online. Under 10 minutes out of the keg to fermenter was worth it! Only problem is it starts to go too fast thru the CFC with my tap water heating up now.


Lil' Sparky

Cowboys EAC
Joined
Feb 6, 2006
Messages
3,952
Reaction score
95
Location
Honolulu, HI
Cheesefood said:
It fails to cuddle with me in bed at night.

What the heck do you think isn't impressing me? It didn't slurp up enough wort from my barleywine and I'm a gallon short in my carboy.
OK, you didn't say originally exactly what the problem was, just that you weren't impressed. Are you using some kind of filter or hopstopper that's getting clogged and breaking the siphon too early? What I'm really getting at is are you sure it's the pickup tube that's the problem? Will it drain the kettle empty if it's just water? If not, then the pickup tube isn't sealing right.


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,655
Reaction score
4,943
Location
Whitehouse Station
The DIY hopstopper worked wonders for the second batch in a row. My dip tube is a copper L like many others. I run it down to just about touching the bottom concave of the keggle. Because of this, I drilled about nine 1/8" holes around the circumference of the tube, right at the bottom. I leave maybe a half cup of wort behind. Of course, this is because the DIY hopstopper keeps it from clogging. Make sure your dip tube doesn't leak air where it meets the bulkhead. That'll kill a siphon quick.

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
Bobby_M said:
...Because of this, I drilled about nine 1/8" holes around the circumference of the tube, right at the bottom. I leave maybe a half cup of wort behind. Of course, this is because the DIY hopstopper keeps it from clogging. Make sure your dip tube doesn't leak air where it meets the bulkhead. That'll kill a siphon quick.
A couple of great suggestions here. Good call on the drilling. I think that might be a problem with mine, that the trub on the bottom jams up everything else.


WOP31

Well-Known Member
Joined
Feb 14, 2007
Messages
1,342
Reaction score
18
Cheesefood said:
How long is your down-tube?
About an 1 1/2" after the elbow plus the "T" with the screens on it. So another inch. it is only about 1/2 inch off the bottom of the kettle.

Cheers


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,655
Reaction score
4,943
Location
Whitehouse Station
It will only siphon until the wort level hits the highest opening in the tube. If that's 1/2" off the bottom, you'll leave a bit of wort. I have no idea how much that is in volume.

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
Right, but how far from the bottom of the keggle is your bulkhead? Mine's about 3-4" high.

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
Bobby_M said:
Mine is also 4" high but it has no affect on the siphon at all. It could be 10" high. It's all about how high the first air leak can be.
I might need to look at doing some soldering.


pjj2ba

Look under the recliner
Lifetime Supporter
Joined
Jul 25, 2006
Messages
3,373
Reaction score
231
Location
State College

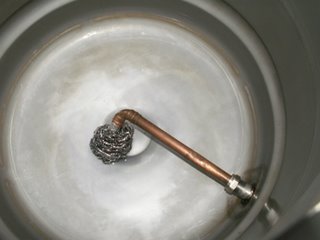

Here's my old one in my new pot. I'm going to cut down the length of copper tubing between the braid and the elbow. All of the copper parts are simply press fit together. It does a pretty good job, even with hop pellets



WOP31

Well-Known Member
Joined
Feb 14, 2007
Messages
1,342
Reaction score
18
Cheesefood said:
Right, but how far from the bottom of the keggle is your bulkhead? Mine's about 3-4" high.
It is right above the weld where the skirt meets the bottom of the keg.
You can see in the pic that it is almost right on top of the weld. About an 1/8th above.

I found that if you are going to solder everything inside on your pick up tube, make sure tha tit will all still line up, inside & out, when you screw it all together. I left the elbow unsoldered where it meets the longer tube so I could still rotate it and take it apart to clean it. If the joint doesn't stick together good enough, just squeeze with pliers a little bit and they should fit together snug enough to stay.

OP
Cheesefood

Cheesefood

Well-Known Member
Joined
Jul 4, 2005
Messages
6,740
Reaction score
53
Location
Poo-Poo Land
So what would you recommend, geniuses? Should I drill holes around the bottom, or how about cutting "teeth" into the bottom of the pickup tupe?

\/\/\/ - something like that? I have less than 1/4" of space between the bottom tube and the keggle bottom, so I think it jammed up too quickly.


WOP31

Well-Known Member
Joined
Feb 14, 2007
Messages
1,342
Reaction score
18
Are you using anything as a filter or hopstopper? if so I would say just hack about anouther 1/4 inch or so off of the pick up.


kladue

Senior Member
Lifetime Supporter
Joined
Dec 28, 2006
Messages
2,318
Reaction score
60
Location
Turner, Oregon
Would 1/2" stainless tubing be to small for your dip tube?, if not let me know as current installation job is coming to an end and there are fittings and tubing leftover.
