securing a cable plug enclosure

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

kokonutz

Well-Known Member
Joined
May 5, 2020
Messages
65
Reaction score
7
Location
Campbell River

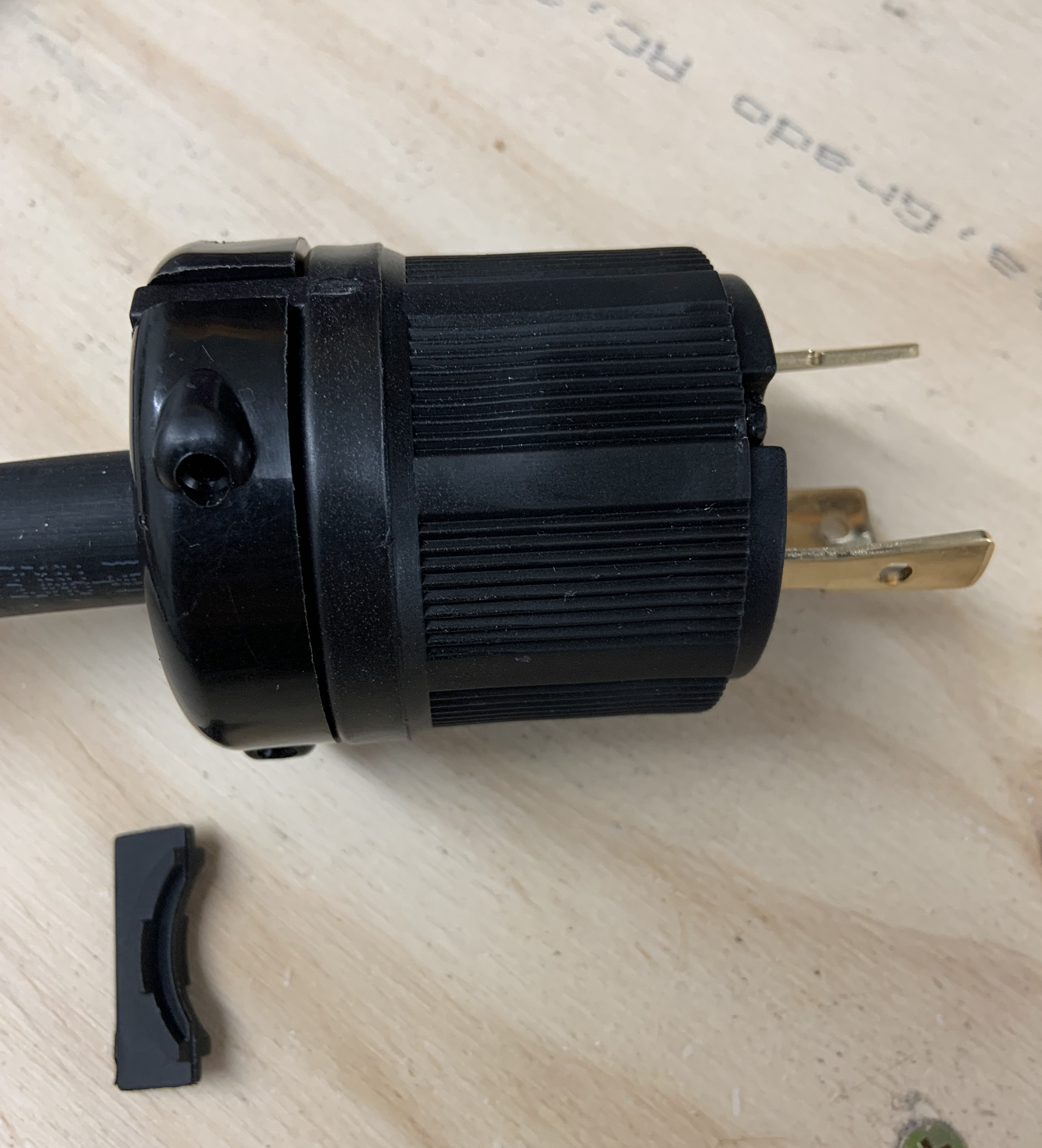

hi all - last steps on my box - getting super close - question. I've wired up a plug (NEMA L6-30P) for the element- however my cord is a bit thick and I had to remove a spacer where the cord enters the plug- is there a cleaner way to finish this off? I am sure in time it would begin to slice that cord on the plastic. If I need a piece, what is the industry name for that so I know what to ask for at the hardware store? Is it a type of cable "gland" - I'm still learning !


thanks


Joeywhat

Well-Known Member
Joined
Feb 10, 2009
Messages
280
Reaction score
77
Location
Farmington, MI
Look for a strain relief for whatever size cable that is. Might need to trim something to work with what you have, or use a smaller dinater cable (or a different plug that works with that cable).


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
Lifetime Supporter
Joined
May 14, 2014
Messages
11,162
Reaction score
7,304
Location
Renton
Does the plug shown plug into the element output on the control panel?

Brew on :mug:


RufusBrewer

Well-Known Member
Joined
Apr 3, 2015
Messages
310
Reaction score
99
Location
Nashville
Get some heat shrink tubing. Add concentric layers until the new OD works with the connector. Most shrink tubing shrinks up to 50% of the original size. Also, you can cut the shrink tubing extra long to create a sort of strain relief.
