Safe to drill through side of this fridge?

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum:

JTtilinfinity

Member
Joined
Jan 6, 2022
Messages
10
Reaction score
5

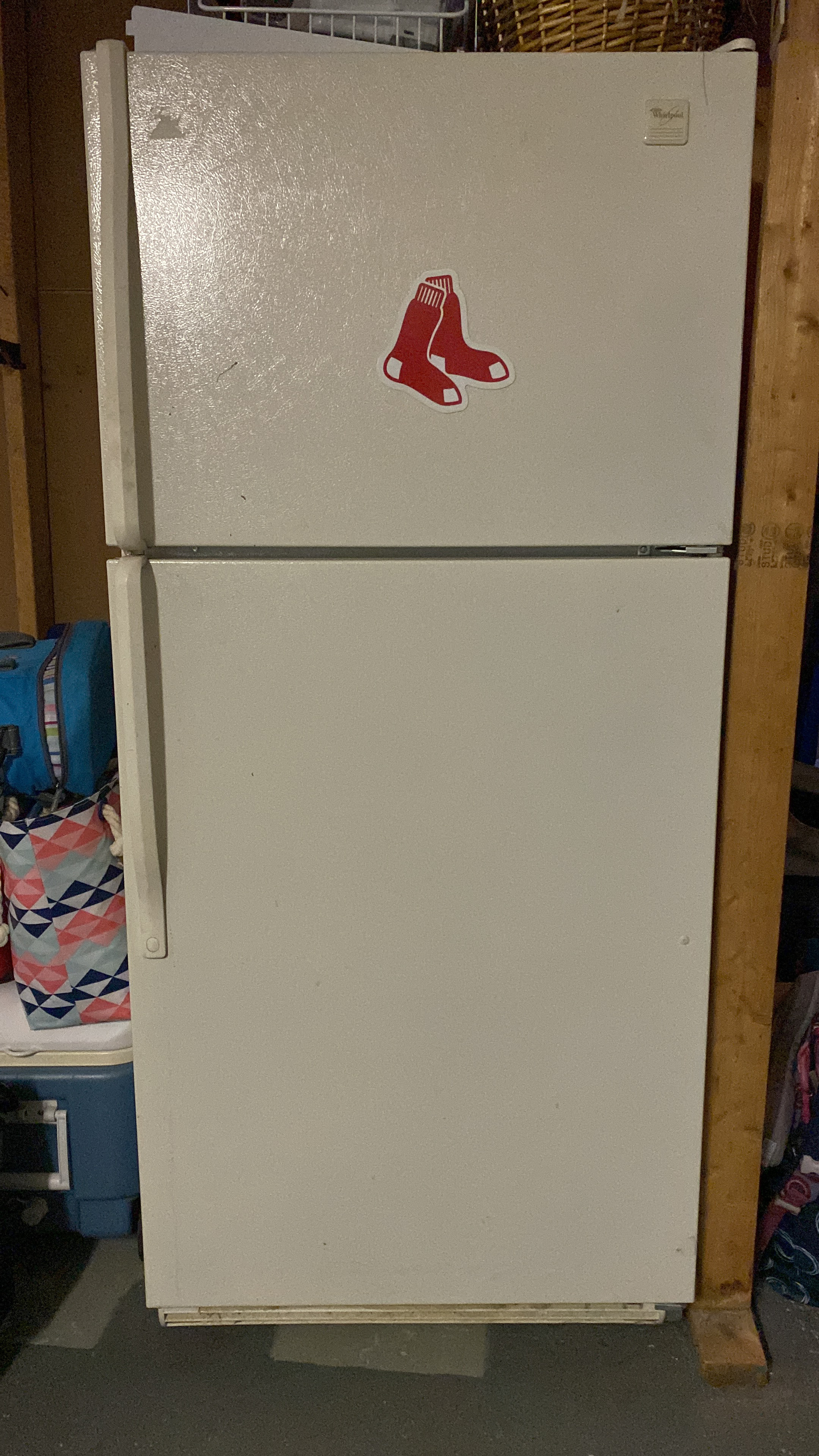

Looking to add a couple taps to the left side of this old fridge. What’s the best way to find out if this is safe (aside from drilling pilot holes and poking around)? I found the manual and diagrams but they don’t seem to help. Any advice?

EE9DF378-C0F1-4B67-A541-0A0C8363B778.jpeg 59F75BDD-22F6-407E-8DF7-AD079D895CA7.jpeg 200A4E1E-A67D-40F7-B788-87AF78EC1D65.jpeg

OP
OP
J

JTtilinfinity

Member
Joined
Jan 6, 2022
Messages
10
Reaction score
5

day_trippr

Structural Duct Tape Applications Engineer
Joined
May 31, 2011
Messages
39,240
Reaction score
22,537
Location
Stow, MA
If you look at the "Unit" diagram you'll spot the condenser element in the orientation it would reside relative to the "Cabinet" and "Liner" diagrams, at which point you'd realize there's only one location the condenser could exist :)

btw these are obviously the same drawings as found in your link - which I didn't notice until now...

Cheers!


Jonakr

Well-Known Member
Joined
Dec 21, 2012
Messages
100
Reaction score
83
When I drilled mine I did just what you said. Drilled a small hole just through the outer shell prodded around the inside of hole to ensure there was no cooling line and drilled a larger hole.
I went the other way: cut just through the lining on the inside, scraped the insulation out by hand, drilled through the outside metal.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
2,790
Reaction score
1,621
Location
Paremata New Zealand
IF the fridge has a condenser grid on the back , usually black and covered in dust then it's less likely to have lines in the side walls. They never have lines in the doors though.
But you won't regret the cautious approaches described above just going thru the skin and poking around, I used an allan key as a feeler.
If you have a flir camera they are easy to spot with that.

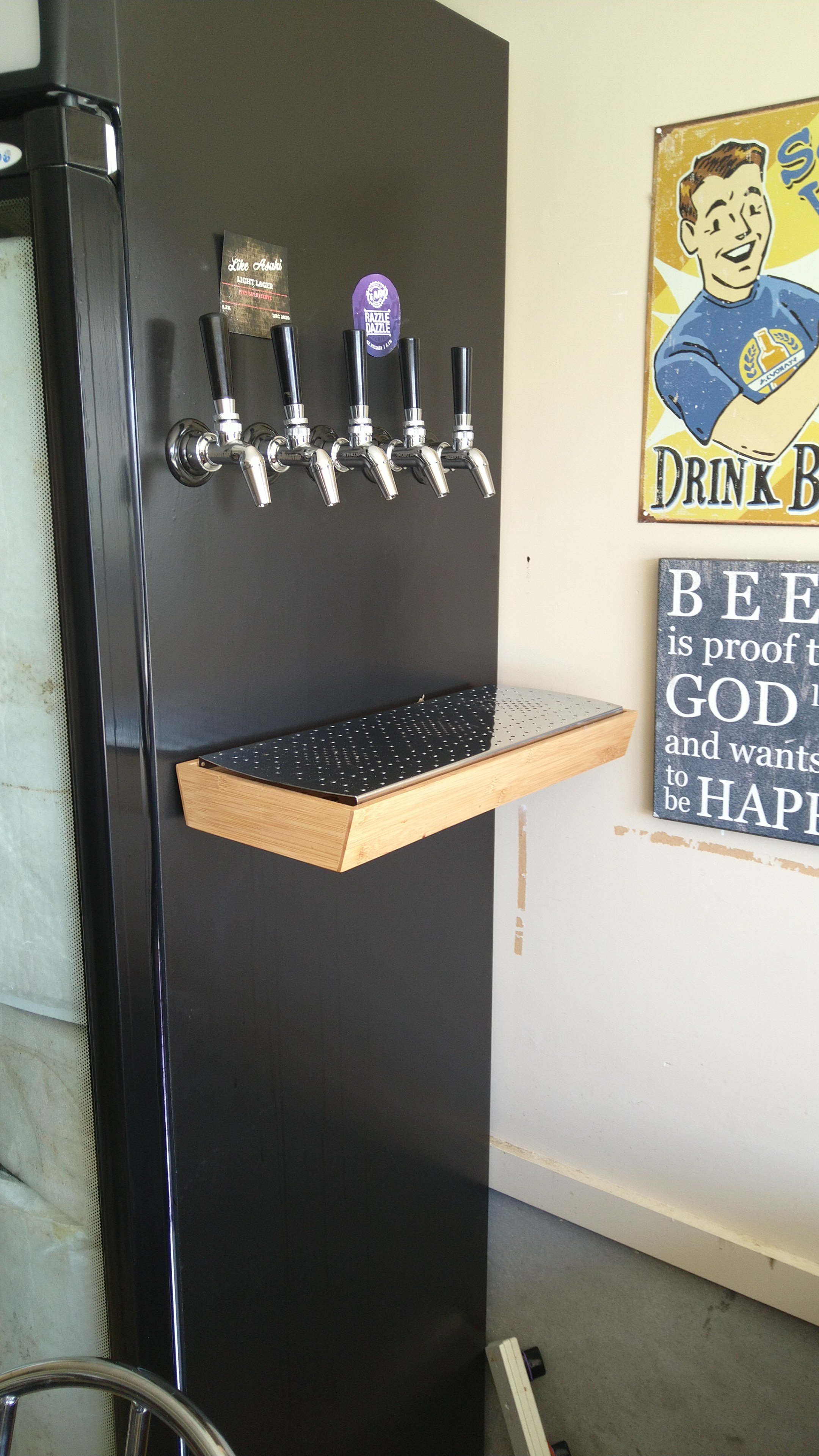

No lines in side of commercial fridge

flir_20210316T105952.jpg IMG-20210307-WA0007.jpeg

our freezer on the other hand bit of a puzzle

IMG_20210316_103757.jpg flir_20210316T103718.jpg IMG_20210316_103801.jpg flir_20210316T103742.jpg


OneInTheHand

Well-Known Member
Joined
Oct 7, 2015
Messages
54
Reaction score
11
I have a similar GE fridge. I drilled a hole on the side for co2, but keep the taps inside. I like it so I don’t get dust all over the taps and everything stays cold.
