Robobrew/Brewzilla Discussion

[GoodTruble]

I’ve been experimenting with BIAB in my Brewzilla and after crushing my false bottom I added a screw to act as support. Works great! I was able to use a rubber mallet to flatten the crushed false bottom.

Yep, that center bolt is almost exactly what I did as well. And yeah, my stock false bottom took a few beatings (especially before the bolt was added), but I have able to bend it back into good enough shape (so far).



[Sammy86]

I’ve been experimenting with BIAB in my Brewzilla and after crushing my false bottom I added a screw to act as support. Works great! I was able to use a rubber mallet to flatten the crushed false bottom.

What size screw is that?



[Henbrew]

What size screw is that?

M6, 40MM length, 304SS



[Henbrew]

M6, 40MM length, 304SS

Update on my support bolt for the false bottom.

First brew the support did the job but my brew yesterday it bent the false bottom a little. It's still doing a good job at keeping the bag away from the elements which is all I'm concerned about. For now I'll just keep bending it back as long as it doesn't get too bad.



[trarmer007]

Checking back in. I am 1.5 years and about a dozen brews into a 65L, 3.1.1, 220v. My biggest frustration was auto-shut downs at boiling due to scorch grain-gook on the bottom. My second was the piss poor efficiency (65%). Fixing either was a catch-22. By grinding grain further to get better effic., I created more 'dust' to stick to the bottom and scorch. So I went back to mashing in my cooler - no more scorched mess on the bottom and efficiency is in the high 80's. The 65l is a hot liquor tank, then I fly sparge into pots. When I'm out of HLT water, wort is ready to pour in from pots. I hit boil in 10-15 minutes. Honestly, I am happy even though the malt pipe does not function enough. There's 1.7 gallons of dead tun space which limits the amount of sparge/rinse water which can be used. I've no idea how to improve the grain dust/scorching issue. Anyway - a cross German-CAP pilsner will be ready in a few months and the fruit-cream ale in a few weeks. The Belgian Strong on tap just may last until then...Cheers



[cactusgarrett]

My biggest frustration was auto-shut downs at boiling due to scorch grain-gook on the bottom. My second was the piss poor efficiency (65%).

I used to get 70-75% with a cooler/burner, but just assumed the efficiency hit going over to the exact unit you have (65L, 220V). I was getting 65% for the longest time, and a slight tightening of the mill gap brought it to 70% reliably. I'm good with that; to me it's more important to be reliable than a high percentage. With 65%, you just needs an extra pound of base grain to make up for it. I haven't had any issues with scorching, even with the 100% maris otter or hefe grists I've done recently. Are you recircing during the mash? This helps with wort clarity at boil start.



[trarmer007]

I used to get 70-75% with a cooler/burner, but just assumed the efficiency hit going over to the exact unit you have (65L, 220V). I was getting 65% for the longest time, and a slight tightening of the mill gap brought it to 70% reliably. I'm good with that; to me it's more important to be reliable than a high percentage. With 65%, you just needs an extra pound of base grain to make up for it. I haven't had any issues with scorching, even with the 100% maris otter or hefe grists I've done recently. Are you recircing during the mash? This helps with wort clarity at boil start.

I run the recirc pump from moment I start heating water to about 10 minutes into the boil (sanitize for pump into ferm.) I always circ'd over the grain bed. For whatever reason I had a heck of time with scorching. I brew at sea level - so boil is 212 and not a penny less. I keep 2, sometimes 3, burners hot during the boil. I got the jacket and it helped some. Even with the cooler as mashtun there is a snake line of slightly cooked gook tracking the heating coil lines. post-boil. Maybe my unit got a less than stellar steel coating at the bottom. Being only 18 months or so post keg, propane and cooler - I still think brew day is breeze with the unit. The pump alone saves me probably an hour of racking. The rapid mash out to - boil is another hour of my life. The cooler mash step is not much different than the mash pipe too.



[Teufelhunde]

I've been brewing on a 35l 3.1.1 for about a year now, and have always wondered what the temperature in the malt pipe was in relation to the set temperature on the controller. I have previously checked the calibration on my controller using plain water in the unit and two other thermometers I have and found it to be accurate.

I recently came across a meat thermometer with waterproof probes, and, as it was inexpensive, bought it. I enlarged one of the holes in my top screen to allow for the probe to be slid through it. In this mornings mash (temp set to 147 degrees), the temp in what should be close to the center of the grain bed started out at 144 at the beginning of the mash. It slowly climbed to 149 at about 40 minutes in, then retreated to 148 where it remained until done. This gives me a little confidence that the unit is maintaining my set temperature pretty well as I figure a 5 degree variance around the set temp is not bad.

I have also been dialing in my new Maltzilla mill, this was my third brew doing my own milling rather that buying milled grain from Morebeer. Last time, I had the crush too fine and my mash stuck big time. This time, I opened the gap a little and was able to maintain recirc for the whole mash, albeit VERY slow. When I drained it prior to boil, I saw the issue (attached photo). Two thirds of my top screen was covered with an eight inch of dough, not allowing flow. Next time, I'll open the gap another "click", and hopefully, it will allow for better flow through the top screen. I am wondering, however, how improved flow through the top screen will alter the temperature, if at all.

YMMV

Lon



[Civilian]

Are you using any rice hulls?



[Henbrew]

I've been brewing on a 35l 3.1.1 for about a year now, and have always wondered what the temperature in the malt pipe was in relation to the set temperature on the controller. I have previously checked the calibration on my controller using plain water in the unit and two other thermometers I have and found it to be accurate.

I recently came across a meat thermometer with waterproof probes, and, as it was inexpensive, bought it. I enlarged one of the holes in my top screen to allow for the probe to be slid through it. In this mornings mash (temp set to 147 degrees), the temp in what should be close to the center of the grain bed started out at 144 at the beginning of the mash. It slowly climbed to 149 at about 40 minutes in, then retreated to 148 where it remained until done. This gives me a little confidence that the unit is maintaining my set temperature pretty well as I figure a 5 degree variance around the set temp is not bad.

I have also been dialing in my new Maltzilla mill, this was my third brew doing my own milling rather that buying milled grain from Morebeer. Last time, I had the crush too fine and my mash stuck big time. This time, I opened the gap a little and was able to maintain recirc for the whole mash, albeit VERY slow. When I drained it prior to boil, I saw the issue (attached photo). Two thirds of my top screen was covered with an eight inch of dough, not allowing flow. Next time, I'll open the gap another "click", and hopefully, it will allow for better flow through the top screen. I am wondering, however, how improved flow through the top screen will alter the temperature, if at all.

YMMV

Lon

I had issues with temperature uniformity and stuck sparges too when I first got my Brewzilla. Once you get the flow up it stays pretty consistent, maybe closer to 2-3F realistically. There's a lot of talk about milling grain more and more fine but with these units it doesn't really equate to improved efficiency, just headaches.

Grain conditioning is another step I've been sticking with as I've found it reduces fine particles in my crush.



[Teufelhunde]

Are you using any rice hulls?

Yep. Don't really measure them though, just throw a couple of handfuls in every time after I stop pouring grain in to stir it up a bit. This batch had probably a quarter to a third of a pound....



[Teufelhunde]

I had issues with temperature uniformity and stuck sparges too when I first got my Brewzilla. Once you get the flow up it stays pretty consistent, maybe closer to 2-3F realistically. There's a lot of talk about milling grain more and more fine but with these units it doesn't really equate to improved efficiency, just headaches.

Grain conditioning is another step I've been sticking with as I've found it reduces fine particles in my crush.

Yep, this brew was at 74%. I would gladly go down to 70% or even 65% as long as it was consistent and I could get a good flow for recirculation. I'll just keep opening up the gap one click at a time until I get there.....



[maltboy1]

I was able to recover over a gallon of dead mash space by removing the bottom plate and the support ring, and installing legs on the mash pipe brackets. The mash pipe sits about 1-1/4 inches from the bottom now. I use a block and tackle to slowly raise the pipe while sparging. I try to keep the bottom of the pipe submerged to control HSA. I put the bottom plate in for the last 5 minutes of the boil. I find there's less scorching and a more even boil without it.



[DuncB]

I've been brewing on a 35l 3.1.1 for about a year now, and have always wondered what the temperature in the malt pipe was in relation to the set temperature on the controller. I have previously checked the calibration on my controller using plain water in the unit and two other thermometers I have and found it to be accurate.

I recently came across a meat thermometer with waterproof probes, and, as it was inexpensive, bought it. I enlarged one of the holes in my top screen to allow for the probe to be slid through it. In this mornings mash (temp set to 147 degrees), the temp in what should be close to the center of the grain bed started out at 144 at the beginning of the mash. It slowly climbed to 149 at about 40 minutes in, then retreated to 148 where it remained until done. This gives me a little confidence that the unit is maintaining my set temperature pretty well as I figure a 5 degree variance around the set temp is not bad.

I have also been dialing in my new Maltzilla mill, this was my third brew doing my own milling rather that buying milled grain from Morebeer. Last time, I had the crush too fine and my mash stuck big time. This time, I opened the gap a little and was able to maintain recirc for the whole mash, albeit VERY slow. When I drained it prior to boil, I saw the issue (attached photo). Two thirds of my top screen was covered with an eight inch of dough, not allowing flow. Next time, I'll open the gap another "click", and hopefully, it will allow for better flow through the top screen. I am wondering, however, how improved flow through the top screen will alter the temperature, if at all.

YMMV

Lon

Never thought that I'd come across another Maltzilla user. I've been using mine a few years now and don't have problems with stuck mashes or sparges. Stuck sparge on an imperial stout where I milled the rye to the perfect size that filled every hole in the bottom of the malt pipe.
I do condition the grain with 2% by weight of water sprayed onto the grain and mixed during this process, leave for about 20 minutes to an hour before milling. Can't remember the gap I have set but it's pretty tight. I'd say that I struggle to keep liquid above the grain once the mash gets going. Efficiency of mash now 90%, brewhouse varies depending on hop load and other factors.

I haven't used that bottom screen in my brewzilla or the guten 70 for ages and just put the trubtrapper in. Haven't had problems with the scorched bottom either.
When I'm home I'll let you know the gap I'm using.

I did get trouble with a gummed up bearing on the freewheeling roller, Kegland said that I should be vacuuming or air blasting it out!



[Teufelhunde]

Never thought that I'd come across another Maltzilla user. I've been using mine a few years now and don't have problems with stuck mashes or sparges. Stuck sparge on an imperial stout where I milled the rye to the perfect size that filled every hole in the bottom of the malt pipe.
I do condition the grain with 2% by weight of water sprayed onto the grain and mixed during this process, leave for about 20 minutes to an hour before milling. Can't remember the gap I have set but it's pretty tight. I'd say that I struggle to keep liquid above the grain once the mash gets going. Efficiency of mash now 90%, brewhouse varies depending on hop load and other factors.

I haven't used that bottom screen in my brewzilla or the guten 70 for ages and just put the trubtrapper in. Haven't had problems with the scorched bottom either.
When I'm home I'll let you know the gap I'm using.

I did get trouble with a gummed up bearing on the freewheeling roller, Kegland said that I should be vacuuming or air blasting it out!

I'd appreciate knowing your gap setting. I have been air blasting mine everytime when I'm done with it, mostly because I mill on the back porch and don't want to bring all that dust in the house when I bring everything in....



[DuncB]

I'd appreciate knowing your gap setting. I have been air blasting mine everytime when I'm done with it, mostly because I mill on the back porch and don't want to bring all that dust in the house when I bring everything in....

Another 24 hours before I'm home. Will update.
I'll update you with some pictures here or ? start a Maltzilla thread.



[cactusgarrett]

There's a lot of talk about milling grain more and more fine but with these units it doesn't really equate to improved efficiency, just headaches.

Grain conditioning is another step I've been sticking with as I've found it reduces fine particles in my crush.

Two key points that everyone should note. I found milling finer has only netted me +5%, up to 70%. However, I needed to religiously condition the grain prior to milling, which I'm 100% fine with. That and rice hulls for every batch, regardless of grist composition.



[Teufelhunde]

Another 24 hours before I'm home. Will update.
I'll update you with some pictures here or ? start a Maltzilla thread.

Not sure if there are enough Maltzilla users to warrant it's own thread.....although it is a bit off topic here.....



[GoodTruble]

@maltboy1 - So you don't use the separate bottom screen during the mash and instead just use the screen on the bottom of the malt pipe only?



[maltboy1]

@maltboy1 - So you don't use the separate bottom screen during the mash and instead just use the screen on the bottom of the malt pipe only?

Correct. I only use the malt pipe false bottom for the mash. I slide the kettle false bottom in only for the last 5 minutes of the boil to catch trub during cooling. I was having problems with scorching and surging boils before I did that. I found that the kettle false bottom has a tendency to trap steam which causes surges.



[private4587]

@Bottoms_Up - If you sparge, you will get decent efficiency. But I also try to stay under 12-13 lbs of malt in the 35L. If there is more than that, I split it up and do a reiterated mash.

could you explain please how you worked out your water volumes for the various steps



[GoodTruble]

could you explain please how you worked out your water volumes for the various steps

I'm not sure I understand your question correctly, but I think the answer is "I wing it." (Or more accurately "eyeball it."). I don't do volume calculations. I usually aim for 7 gallon batches but am flexible about final volume (and gravity). I usually mash initially roughly in 6-7 gallons, sparge with 2 more gallons. If my volume is too low after sparge, I sparge a bit more. Mash again (with less grains the second time), and sparge to desired total volume. Add the extender before the boil.

I am flexible with volume because I usually do a pseudo partigyle and also take 1-2 gallons of wort at some point to use in a separate extra beer/recipe.

Here is an article that discusses the reiterated mash in more detail, but it doesn't give a specific way to calculate volume either. https://grainfather.com/reiterated-mashing/



[CUSTOM-441]

Checking back in!
Brewed a double batch of my annual rye ale yesterday using 100% maple sap as my brew water. Sap was 1.010 on it's own. Flaked & malted rye were ~21% of the grain bill. As an experiment I skipped the beta glucan rest this time and went straight to a single infusion mash. I used nearly 5oz of rice hulls and bumped my water/grist ratio. Absolutely no issues with mash or sparge on both batches. I have not changed my process in about a year and I vary between 70-75% efficiency.



[mashdar]

I’ve been experimenting with BIAB in my Brewzilla and after crushing my false bottom I added a screw to act as support. Works great! I was able to use a rubber mallet to flatten the crushed false bottom.

How does that line up with the drain? I assume just off center?



[DuncB]

How does that line up with the drain? I assume just off center?

This is the before 4 thread so the drain is on the side of the kettle and no crying about bad temperature control, stuck mashes etc.



[Henbrew]

How does that line up with the drain? I assume just off center?

For the Gen 3, the drain is off to the side so the screw in the center clears it no problem.



[GoodTruble]

This is the before 4 thread so the drain is on the side of the kettle and no crying about bad temperature control, stuck mashes etc.

Yeah, sounds like a lot of Gen 4 issues are coming up. I can't tell if there are more issues than the Gen 3, or just more people discovering more of the same types of problems.

I'm glad to see KegLand has commented directly in that thread (as it has for awhile on the Australian homebrew site). But I wonder if they now regret doing so. Posters on this site seem a bit less laid back than the Australian forum with their comments.



[ShaneB]

Hey I'm new to homebrewing,

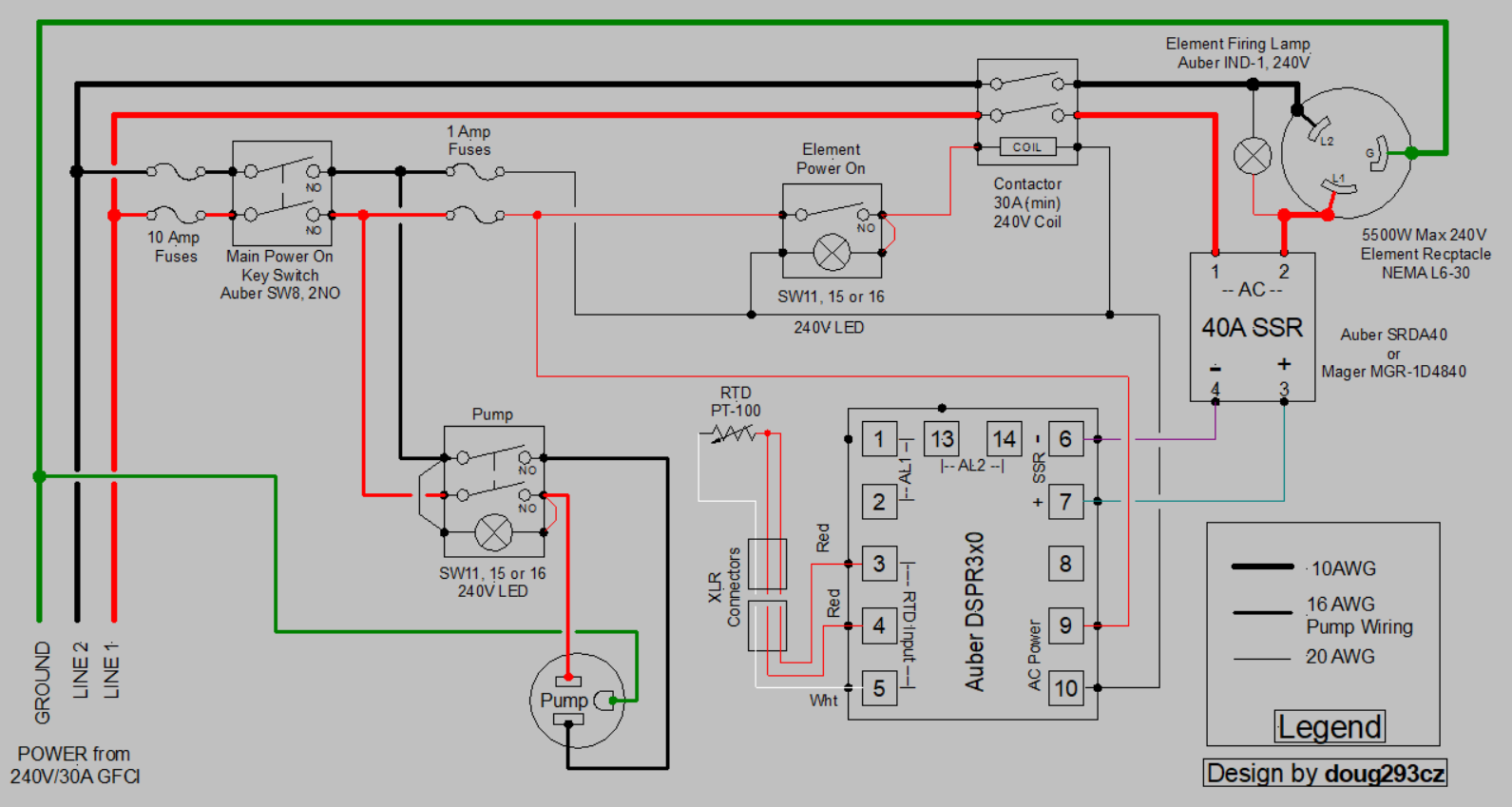

I have a 220v (split phase us power) digimash coming in the mail and I'm interested in retrofitting my own Arduino or ESP32 like microcontroller to do PID temperature control. I'm hoping I can get better temperature precision and it's just fun to tinker with things. Craftbeerpi looks like it can do this stuff.

I found a few resources online:
Digiboil hacks

retrofit kit Store – SmartPID

Has anyone done this with a digiboil/digimash? The split phase (2 hot, 1 ground) complicates things in my head. I'm pretty sure I can use a normal 110-220v ac/dc powersupply to get 5v and hook up hot1 and hot2 to hot and neutral on the ac/dc powersupply. I'm a bit confused on the SSR setup, would I just hook up 1 hot to the SSR and treat the other one as neutral? Then each half phase the SSR is alternating between switching hot and neutral?



Maybe a contactor is more appropriate? What about using 2 SSR, 1 for each half phase, that would also help distribute heat.



[DuncB]

Hey I'm new to homebrewing,

I have a 220v (split phase us power) digimash coming in the mail and I'm interested in retrofitting my own Arduino or ESP32 like microcontroller to do PID temperature control. I'm hoping I can get better temperature precision and it's just fun to tinker with things. Craftbeerpi looks like it can do this stuff.

I found a few resources online:
Digiboil hacks

retrofit kit Store – SmartPID

Has anyone done this with a digiboil/digimash? The split phase (2 hot, 1 ground) complicates things in my head. I'm pretty sure I can use a normal 110-220v ac/dc powersupply to get 5v and hook up hot1 and hot2 to hot and neutral on the ac/dc powersupply. I'm a bit confused on the SSR setup, would I just hook up 1 hot to the SSR and treat the other one as neutral? Then each half phase the SSR is alternating between switching hot and neutral?



Maybe a contactor is more appropriate? What about using 2 SSR, 1 for each half phase, that would also help distribute heat.

I've fitted a smartpid to my guten, have helped another user fit the smartpid to their digiboil and added pump. Have a look at smartpid.com
