Regulator question

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

moboy

Well-Known Member
Joined
Feb 9, 2012
Messages
79
Reaction score
3
Location
Lebanon

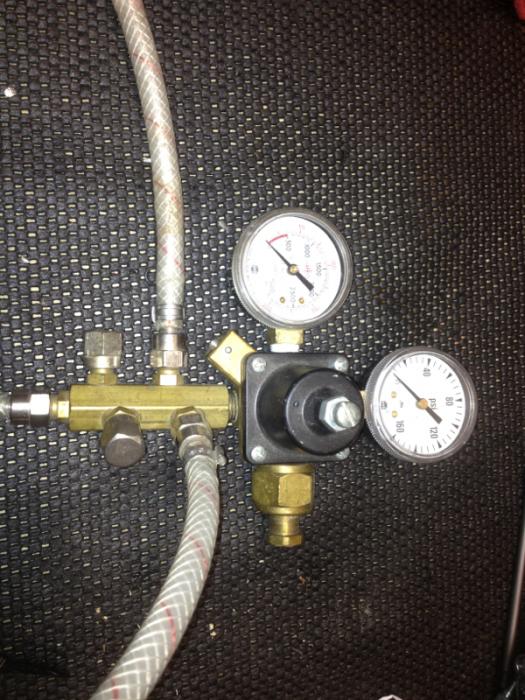

I pick up this regulator at a garage sale last weekend for $4.00. Any reason this wouldn't work for my transition for bottles to kegs.
Thanks



benbradford

Well-Known Member
Joined
May 23, 2007
Messages
1,016
Reaction score
36
Location
Denver
If it has the correct mount to screw onto a co2 tank... it will work fine. The top gauge should really only go from 0 to 60, but other than that, good to go. Your choice about using that splitter off of the bottom of the regulator. Most beer regs have a valve and a hose barb.

OP
moboy

moboy

Well-Known Member
Joined
Feb 9, 2012
Messages
79
Reaction score
3
Location
Lebanon
I didn't add the splitter but plan on using it if possible.


beaksnbeer

Well-Known Member
Lifetime Supporter
Joined
May 4, 2011
Messages
2,854
Reaction score
518
Location
New Port Richey
Yes, the flare fittings on the splitter should have check valves built into them, that is a soda set up the reason for the higher readings on the low pressure gauge. You don't have to change anything the flared connections may be the same as those going to QD's (ballock)


Golddiggie

Well-Known Member
Joined
Dec 14, 2010
Messages
12,581
Reaction score
938
Location
Living free in the 603
Replace the top gauge (that goes to 160 psi now) with one that goes no higher than 60 psi. IF you cannot locate one that works for the regulator body, then I would NOT use it. For kegging, you'll use the range of under 20psi most of the time (unless you serve really warm). So, you need accuracy in the 0-20 range at the very least.

I also wouldn't use the splitter that's connected to the body. IMO/IME, better to have a shutoff valve there. You can get/make a manifold to connect to the regulator inside the brew fridge/kegorator/keezer to split the gas feed to the kegs. Make sure that also has shutoff valves for each feed.

Personally, if I had seen that at a garage sale, I would have passed on it.

OP
moboy

moboy

Well-Known Member
Joined
Feb 9, 2012
Messages
79
Reaction score
3
Location
Lebanon
I found a 60 psi gauge for $10 that will fit.

You would pass on a $4.00 regulator with two ball lock connectors attached. Not this guy.

OP
moboy

moboy

Well-Known Member
Joined
Feb 9, 2012
Messages
79
Reaction score
3
Location
Lebanon
I found a 60 psi regulator for $10.00..

You would pass up a regulator with two ball lock connectors for $4.00. Not this guy?


Golddiggie

Well-Known Member
Joined
Dec 14, 2010
Messages
12,581
Reaction score
938
Location
Living free in the 603
Without being able to have tested it before buying it, yes I would pass. Besides, I have two normal regulators (one single and one dual body) one of them being a 100% TapRite regulator (the other is a TapRite body, with other make gauges). I also have one that was made to connect to paintball gun bottles and another that's a Leland regulator. Besides, the way it's set up to connect to kegs is beyond ghetto IMO. :drunk:


acidrain

Well-Known Member
Joined
Jul 31, 2012
Messages
2,199
Reaction score
226
Location
Seattle
Without being able to have tested it before buying it, yes I would pass. Besides, I have two normal regulators (one single and one dual body) one of them being a 100% TapRite regulator (the other is a TapRite body, with other make gauges). I also have one that was made to connect to paintball gun bottles and another that's a Leland regulator. Besides, the way it's set up to connect to kegs is beyond ghetto IMO. :drunk:
Your opinion.
To me, it's not ghetto, it's set up for soda and will be fine. I'd buy it in a heart beat.
Paintball tank... now that's ghetto.


Assoc

Active Member
Joined
Feb 17, 2012
Messages
31
Reaction score
0
Location
Lebanon
Ghetto? Let me tell you something, I can do without your snarky comments. If you have nothing constructive to say, say nothing at all IMO.


SweetSounds

Well-Known Member
Joined
Jan 18, 2010
Messages
1,425
Reaction score
22
Location
Des Moines, Iowa
There's nothing wrong with that regulator - Assuming it's in good working order.

I agree replacing the low pressure gauge with something that you can more accurately set in the 10-20 PSI range is a good idea.

I have a couple of those splitters on some regulators. They work great. The flare fitting is the same as corny QD's (Obviously, that's what they hooked up to for soda)

They may or may not have check valves. I have a few that do and some that don't - Either way, all you have to do is cap the ones you don't use. Either with a flare cap and washer (Should have them at your LHBS) or just remove the ones you don't want and use a pipe plug and some teflon tape.

Hmm - Dual reg, manifold, = $$$. This is $4! :ban:
Damn right I'd use it

Don't forget the seal between the gauge and the Co2 tank - VERY important!
On the end of the tank fitting there should be a groove with an o-ring in it.
If the o-ring isn't there, just go to the hardware store and buy a hard nylon washer that just fits inside of the nut on the regulator. It'll seal right up.

OP
moboy

moboy

Well-Known Member
Joined
Feb 9, 2012
Messages
79
Reaction score
3
Location
Lebanon
I appreciate your help. I'll check all the seals before I hook up.
Matt


biohaz7331

Well-Known Member
Joined
Aug 13, 2012
Messages
297
Reaction score
11
Hopefully the gauges are accurate though. I have run into used gauges that have been dropped a few times and they are off. It may help if you could find a way to compare it to someone elses's regulator if possible. Otherwise you could just run it and see how it ends up, if it's fine then all the better. Good luck with it!
