Putting together an O2 system... question

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
So, I just ordered a regulator off of eBay, went through my left over fittings and have most of what I need to make an in line oxygenation set up type doo hickey type dealy to inject oxygen during the transfer from CFC to fermenter using a chugger pump... (just need to get a screw in SS stone)

The question I am wondering about, is if we are only supposed to inject oxygen for a minute, but the transfer takes longer than that, what keeps the wort from going through the stone and up into the 1/4" line when the stone/line is not pressurized? I would think the pump would want to push it up the line some bit..

Do you guys install another valve at the stone to close off the line, or is this not an issue?


Riot

Well-Known Member
Joined
Jul 25, 2013
Messages
716
Reaction score
99
I've never put an O2 rig together but I would think a simple check valve should make flow into the oxygen line a non issue


dthompson79

Well-Known Member
Joined
Jan 21, 2016
Messages
147
Reaction score
46
I does back flow if there isn't something to stop it. I am interested to see what solution you find.

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
The check valve idea sounded like a simple solution, so I ordered a couple off of eBay...


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,284
Reaction score
2,280
Location
North Tonawanda NY
I've never put an O2 rig together but I would think a simple check valve should make flow into the oxygen line a non issue
Yeah the check valve doesn't work.. tried a couple since I'm having the very issue the op mentioned... My current plan was to elevate the oxgen stone in a tee with camlocks that will be placed higher than the kettle with the gas line going up even higher to further aid in preventing the wort from entering the oxygen line and creating a possible infection..
Im also going to put a manual on off valve right next to the hose barb for the stone.. If anyone else has a better idea I'm all ears? Pinching /clamping the line is a good idea but Im thinking long term a valve might be better no?


dthompson79

Well-Known Member
Joined
Jan 21, 2016
Messages
147
Reaction score
46
Would burping the line with O2 to create a little positive pressure work? Or just feeding it at a very slow rate the entire transfer are all I can think of other than augiedoggy's idea of a valve with less tubing to clean after


mredge73

Well-Known Member
Joined
May 21, 2011
Messages
1,332
Reaction score
231
Location
La Porte
Isn't the purpose of building one of those doo hickeys to inject O2 continuously; do you have pictures of your device?
I built a little venturi gadget that continuously injects air; I have thought about modifying it with pure O2.


Sparger

Well-Known Member
Joined
Jul 1, 2016
Messages
85
Reaction score
18
I turn on my O2 before inserting my 02 wand into the wort. I keep it on when I pull it out, give it a rinse in water (still on), then give it a rinse in starsan (still on, but I turn off the O2 while it's in the star san - you'll get serious bubbles otherwise). Then most important of all, I make sure the 02 bottle is turned off and the regulator is turned off. I am very attentive to that last step - don't blow your house up with a pilot light - O2 interaction. I then dry the wand. Before I use it again I give it a soak in starsan during the entire boil - no O2 obviously.

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
Isn't the purpose of building one of those doo hickeys to inject O2 continuously; do you have pictures of your device?
I built a little venturi gadget that continuously injects air; I have thought about modifying it with pure O2.

Everything I've read is that it is very important not to over oxygenate the wort when using pure oxygen.. This is not an issue with regular atmospheric air...

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
I turn on my O2 before inserting my 02 wand into the wort. I keep it on when I pull it out, give it a rinse in water (still on), then give it a rinse in starsan (still on, but I turn off the O2 while it's in the star san - you'll get serious bubbles otherwise). Then most important of all, I make sure the 02 bottle is turned off and the regulator is turned off. I am very attentive to that last step - don't blow your house up with a pilot light - O2 interaction. I then dry the wand. Before I use it again I give it a soak in starsan during the entire boil - no O2 obviously.
But this is 'in line'.. Not possible to remove the stone before or after the oxygen is turned on and then off...

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
Yeah the check valve doesn't work.. tried a couple since I'm having the very issue the op mentioned... My current plan was to elevate the oxgen stone in a tee with camlocks that will be placed higher than the kettle with the gas line going up even higher to further aid in preventing the wort from entering the oxygen line and creating a possible infection..
Im also going to put a manual on off valve right next to the hose barb for the stone.. If anyone else has a better idea I'm all ears? Pinching /clamping the line is a good idea but Im thinking long term a valve might be better no?
Well, then I guess I just wasted a few bucks on 1/4" check valves..

Better order a ball valve or two instead..

One nice thing about being on my third brewery build, I have built up a quite impressive stock of 'extra fittings' that I'll probably never have a use for around the home.. lol

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
I'm pretty sure I have a few of those 1/4" in line shut off valves for drip irrigation systems.. I wonder if they would work?

I'm not sure they are 1/4" ID though... Might be OD...


IslandLizard

Progressive Brewing
Staff member
Mod
Lifetime Supporter
Joined
Jan 9, 2013
Messages
17,875
Reaction score
7,977
Location
Pasadena, MD
Why not simply use an oxygen wand?

Inline systems rely heavily on a certain dosing for each volume of wort that passes by to obtain 8-12 ppm of O2. Much more complicated, and the only advantage is that it looks cool as heck.

Ideally you should inject the yeast at that point too.

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
Why not simply use an oxygen wand?

Inline systems rely heavily on a certain dosing for each volume of wort that passes by to obtain 8-12 ppm of O2. Much more complicated, and the only advantage is that it looks cool as heck.

Because i don't like opening and closing that big lid on the Speidel.. It's a PITA, and creates yet another opportunity for infection..

But I have definitely thought about it....


Ideally you should inject the yeast at that point too.
at what point? are you talking about a physical location or a point in time?


The_Bishop

Supporting Member
HBT Supporter
Joined
Dec 8, 2013
Messages
2,099
Reaction score
673
If your spidel is using an airlock bung on the top, you could use the wand through that opening and avoid the main lid.

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown
If your spidel is using an airlock bung on the top, you could use the wand through that opening and avoid the main lid.

I'd have to slide it halfway out of the freezer, with 12-13 gallons in it, and 'hold it like that' while I took the airlock apart (has a thermowell and blow off port, plus tubing attached to it), and then slide it in, turn on the valve, wait a minute, turn off the valve, take it out, slide the thermowell, etc, back in, and then slide the fermenter back into the freezer...


The only reasonable way to use a wand would be to oxygenate in the kettle, prior to transfer to the fermenter.. But I don't know if the pump action and travel through the 50' of tubing to the fermenter would scrub the oxygen back out at all or what...

On a related note, would using an air stone and aquarium pump for ten or 15 minutes in the kettle, prior to oxygenating with pure O2 during transfer, still put me in risk of over-oxygenating the wort?

Or should I just stick to one or the other?

OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown

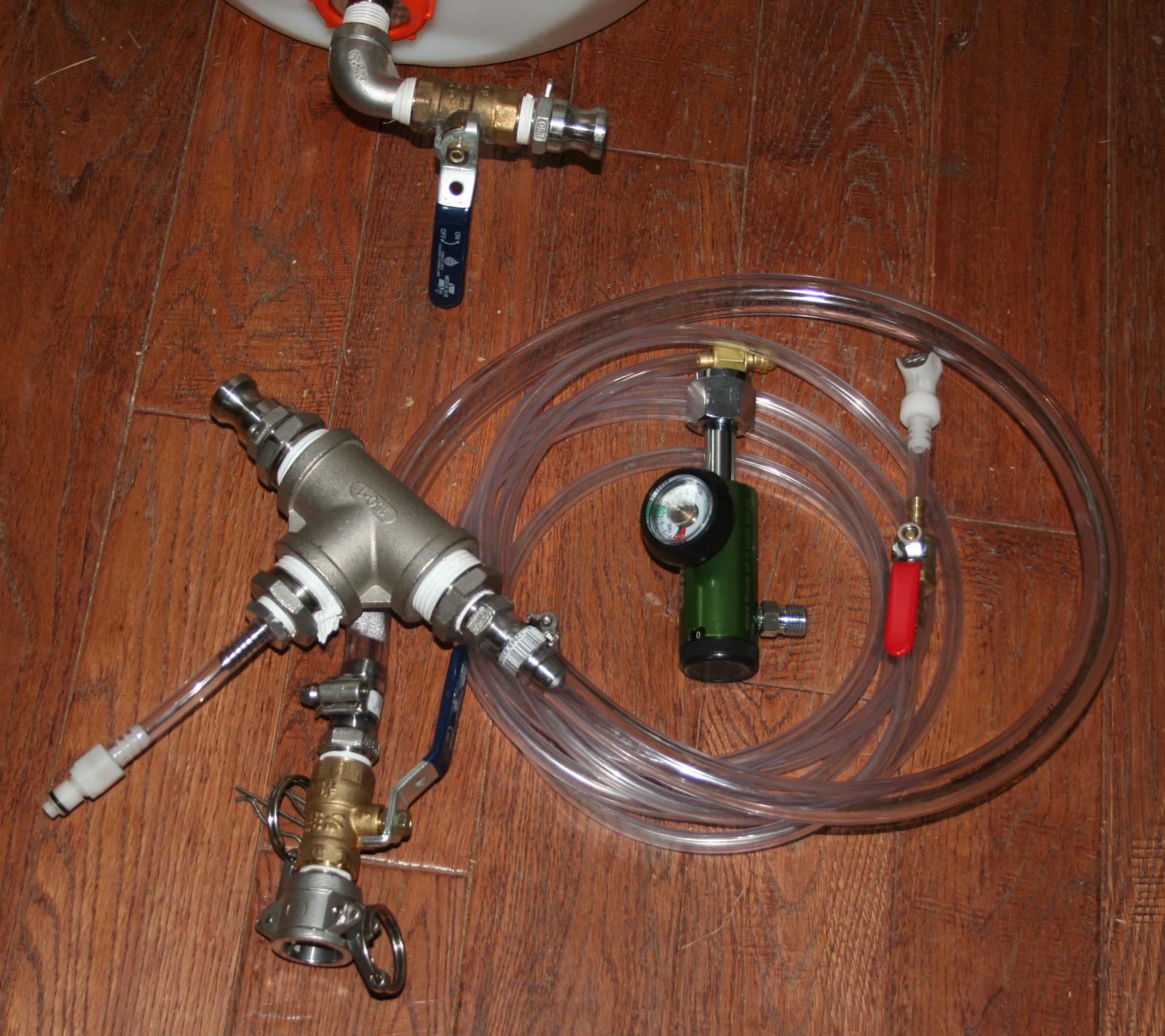

So, the 1" Tee, and the (3) 1" x 1/2" reducers finally arrived yesterday, and I put the in line oxygenation system together... (shown in disconnected ready to store mode)


OP
R

r8rphan

Well-Known Member
Joined
Dec 5, 2010
Messages
2,104
Reaction score
59
Location
Shingletown

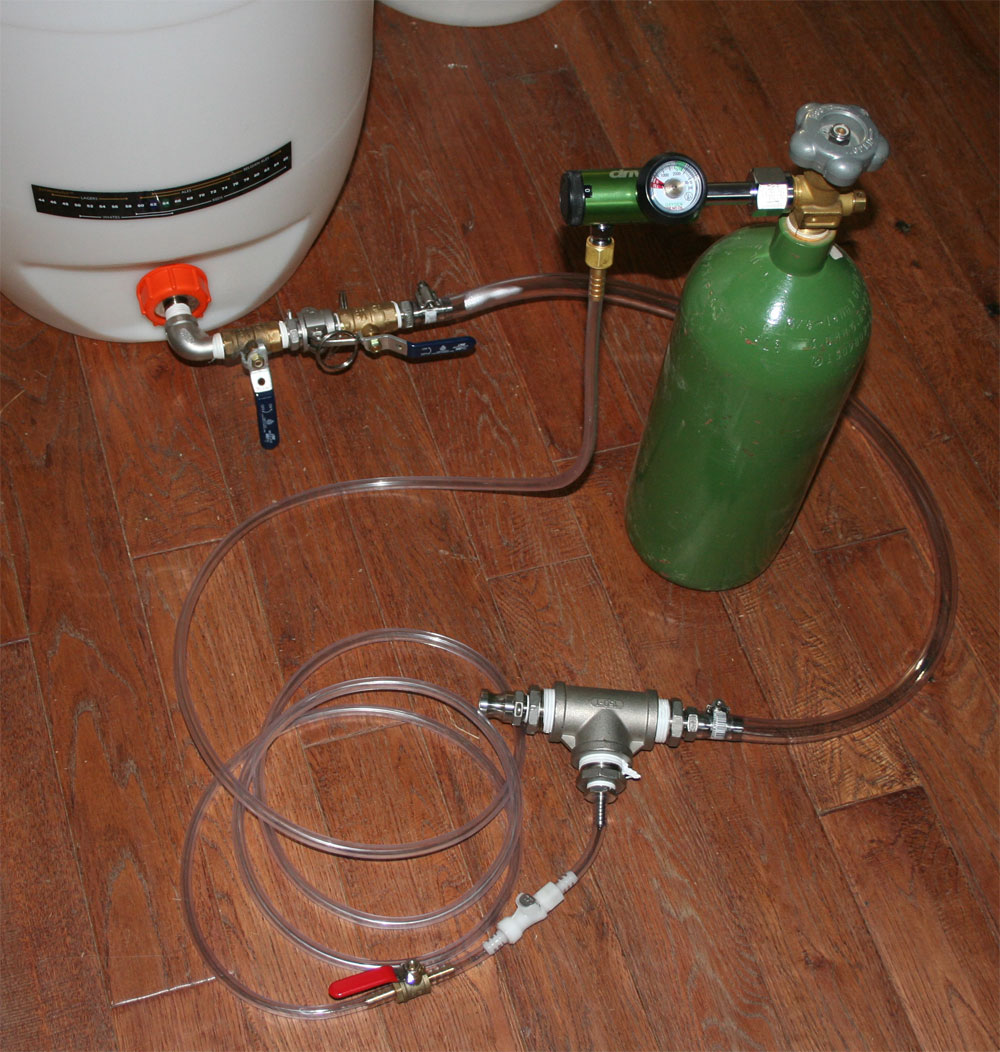

Here it is all hooked up... The 1/2" line that is used to pump the finished wort from the brewery to the fermenter will be hooked up to the cam lock connector on the other (left side in the above picture) end of the 1" Tee, and there is a 0.5 micron Stainless Steel air stone inside the tee hooked to the 1/4" line coming from the oxygen cylinder regulator...

This will be used to inject oxygen into the wort so that the yeast will be happy and 'completely' ferment...

I have all the stuff to make the CFC anti freeze heating system (to protect any liquid that might still be lurking in the pipes from freezing and bursting the copper tube) during the winter ('I've just got a 100w light bulb underneath it right now).. and then I have to either get a small pressure booster pump for the RO water filter, or change out the flow restricter in it to account for the lower system pressure of my new pressure pump out in the well pump house, that feeds water to mi casa....

Then I'm ready to try brewing another batch!
