Pump for immersion chiller

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

Flic

Well-Known Member
Joined
Aug 2, 2008
Messages
121
Reaction score
2
Location
Florida
I have to improve my AG cooling methods due to the fact our tap water is over 80. I have been running tap water through a pre-chiller placed in a cooler of ice water then over to the immersion chiller until it gets down to about 110 (10-15 mins). I'm not sure the pre-chiller is very effective. I then switch to a battery powered sump pump and recirculate the ice water through the IC but the pump is pretty weak so the entire cooling process takes about 45 minutes to get to 65 degrees. I wanted to get a sump pump to use in place of this battery powered thing I have but they seem to be 1000+ GPH which seems like way too much for what I need. Does anyone have a pump recommendation?? Thanks!


HometownHoosier

Well-Known Member
Joined
May 14, 2010
Messages
62
Reaction score
1
Location
Washington DC
I use the 258 GPH pump from harbor freight. I just use tap water to get to 100 then I hook up the pump. Works great.


HometownHoosier

Well-Known Member
Joined
May 14, 2010
Messages
62
Reaction score
1
Location
Washington DC
I went with the Harbor Freight one mainly because it is inexpensive and it was easy to attach to the Garden hose fitting on my IC.

As long as there is water inside the IC, I would imagine a smaller pump would work okay. I do have to pull a little vacuum with the 258GPH to get it flowing though, but I'm sure that is just due to my setup.


glenn514

Supporting Member
HBT Supporter
Joined
Jan 11, 2010
Messages
1,431
Reaction score
405
Location
Marengo
I use a 1/4hp, 115v submersible pump from Harbor Freight. I bought it to help me move water from my cellar [old farm-style of foundation walls which are extremely porous] to the sump crock. Works equally well to circulate chilled/iced water through my immersion chiller.

glenn514:mug:


starrfish

Well-Known Member
Joined
Oct 27, 2008
Messages
1,978
Reaction score
36
Location
Florence, SC
I use the 258 GPH pump from harbor freight. I just use tap water to get to 100 then I hook up the pump. Works great.
Doing this Over the Weekend for first time, getting my pump tonight, brewing Sunday. Last weekends boil I could only get down to 110° with plain tap water.


2pugbrews

Well-Known Member
Joined
Sep 9, 2005
Messages
100
Reaction score
0
Location
Loveland, CO
Doing this Over the Weekend for first time, getting my pump tonight, brewing Sunday. Last weekends boil I could only get down to 110° with plain tap water.

Before I got my immersion chiller I had started to freeze 2 or 3 gallon plastic milk jugs of water; then breaking the ice up with an ice pick; cutting the jug open and dumping it into a sink full of water. Cooled almost as fast as my IC later


SwampassJ

Well-Known Member
Joined
Mar 8, 2010
Messages
2,157
Reaction score
48
Location
Coral Springs, FL
I bought a 190gph pump from harbor freight two weeks ago. I can hit 60 degrees on the wort but it still takes some time.

My problem is that I have a 3/8" IC, I should of made a 1/2" but I was being cheap so the water flow is a bit reduced because of the size of the IC.


HometownHoosier

Well-Known Member
Joined
May 14, 2010
Messages
62
Reaction score
1
Location
Washington DC
I have a 25' 3/8" IC and use the submersible pump. It takes about 15 to 20 minutes to get down to pitching temp. The pump definitely speeds things up.


Sudz

Supporting Member
HBT Supporter
Joined
May 9, 2008
Messages
366
Reaction score
31
Location
OKC America
I'm using a Fountain pump running about 300 GPH. I made up a simple copper pipe manifold which allows me to select water from the tap or water from the pump.

I use tap water to get down to about 100F then which to the pump. The trick here is I put the pump in my 48 gal MLT picnic cooler to which I previously added two bags of ice and filled with tap water. I simply pump the ice water through my IC at a very slow flow, controlled by a ball valve on my manifold. My manifold also has provisions for topping up the cooler from the tap if my water runs low. So far, I haven't needed to add water to my cooler.

The slow flow is the secret and it's very efficient at sucking up the BTU's at the low flow rate.

I can take 6 1/2 gals from flameout to 60's in 17 minutes with 80+ tap water using my 1/2 IC.


starrfish

Well-Known Member
Joined
Oct 27, 2008
Messages
1,978
Reaction score
36
Location
Florence, SC
I'm using a Fountain pump running about 300 GPH. I made up a simple copper pipe manifold which allows me to select water from the tap or water from the pump.

I use tap water to get down to about 100F then which to the pump. The trick here is I put the pump in my 48 gal MLT picnic cooler to which I previously added two bags of ice and filled with tap water. I simply pump the ice water through my IC at a very slow flow, controlled by a ball valve on my manifold. My manifold also has provisions for topping up the cooler from the tap if my water runs low. So far, I haven't needed to add water to my cooler.

The slow flow is the secret and it's very efficient at sucking up the BTU's at the low flow rate.

I can take 6 1/2 gals from flameout to 60's in 17 minutes with 80+ tap water using my 1/2 IC.
Can you post pics? was thinking about something similar using a "Y" hose splitter with 2 cut offs on splitter. Using this method it's flicking a 2 cut off / ons and no dis/reconnecting. thanks!

Oh yeah... "a new twice the ice" vending machine opened about 1 mile from house! 20lbs of ice $1.49!


Sudz

Supporting Member
HBT Supporter
Joined
May 9, 2008
Messages
366
Reaction score
31
Location
OKC America
Can you post pics? was thinking about something similar using a "Y" hose splitter with 2 cut offs on splitter. Using this method it's flicking a 2 cut off / ons and no dis/reconnecting. thanks!

Oh yeah... "a new twice the ice" vending machine opened about 1 mile from house! 20lbs of ice $1.49!
I'll make an attempt at the pics this weekend. Sure wish I had a cheap source of ice around my digs...


maskednegator

Well-Known Member
Joined
Sep 22, 2009
Messages
322
Reaction score
12
Location
san diego
I'm using a Fountain pump running about 300 GPH. I made up a simple copper pipe manifold which allows me to select water from the tap or water from the pump.

I use tap water to get down to about 100F then which to the pump. The trick here is I put the pump in my 48 gal MLT picnic cooler to which I previously added two bags of ice and filled with tap water. I simply pump the ice water through my IC at a very slow flow, controlled by a ball valve on my manifold. My manifold also has provisions for topping up the cooler from the tap if my water runs low. So far, I haven't needed to add water to my cooler.

The slow flow is the secret and it's very efficient at sucking up the BTU's at the low flow rate.

I can take 6 1/2 gals from flameout to 60's in 17 minutes with 80+ tap water using my 1/2 IC.
Your coil would cool more quickly at a higher flow rate. The higher the flow rate, the higher the gradient between the coolant and the free stream temperature of the wort.

Joined
Aug 16, 2010
Messages
1,360
Reaction score
35
Location
Lemon Grove, CA
Got a 396 GPH for like 20 bucks off Amazon... will be using it for the first time next brew. I already set my pot in an ice bath so I'll just drop the pump into the ice bath too and suck the cold water from the bath while replenishing it from the tap. Beats hell out of the warm water I normally get from the tap usually.


Sudz

Supporting Member
HBT Supporter
Joined
May 9, 2008
Messages
366
Reaction score
31
Location
OKC America
Your coil would cool more quickly at a higher flow rate. The higher the flow rate, the higher the gradient between the coolant and the free stream temperature of the wort.
Not necessarily.

There's an optimum flow rate for each set of conditions with each set up of given hardware. Too fast a flow can actually be less efficient on a water cooled heat exchanger. Admittedly my rate may be too slow for optimum heat transfer but it utilizes my ice more efficiently and I'm perfectly happy with my 17 minutes.

Clearly there's a lot of room for playing around.


maskednegator

Well-Known Member
Joined
Sep 22, 2009
Messages
322
Reaction score
12
Location
san diego
Higher flow rates mean more thermal mass through the exchanger, more turbulence and a higher gradient in temperature. There are no situations in which a normally-operating heat exchanger will cool more quickly if you throttle back the flow.
You may be perfectly happy with your cooling times, and frankly 17 minutes is a great time, I just want to make sure that a noob reading this doesn't try to shorten their cooling times by reducing flow through their IC.


Sudz

Supporting Member
HBT Supporter
Joined
May 9, 2008
Messages
366
Reaction score
31
Location
OKC America
There are no situations in which a normally-operating heat exchanger will cool more quickly if you throttle back the flow.
Blowing though your ice water in the first few minutes will leave you with warm Wort. If you have a endless supply of ice water, you are correct.


maskednegator

Well-Known Member
Joined
Sep 22, 2009
Messages
322
Reaction score
12
Location
san diego
Blowing though your ice water in the first few minutes will leave you with warm Wort. If you have a endless supply of ice water, you are correct.
If you are recirculating your IC water and have the ice in the supply at the beginning, then throttling your IC water still does nothing. The ice in your water has a given thermal mass, and changing flow rate through the IC does not change that. The final temperature of your supply water will be the same, regardless of the flow rate throught the IC. It's more or less a closed system.
If you are switching from tap to an ice bath with a pump in it, then you should rocket first the tap water and then the ice water through the IC at as high a flow rate as possible (if your desire is simply to reduce to pitching temp asap).


Fletch78

Well-Known Member
Joined
Feb 16, 2010
Messages
1,343
Reaction score
32
Location
Athens GA
Harbor Freight has cheaper pumps, submersion Bilge Pumps but they don't plug into a standard outlet, you need a car or deep cycle battery in the room. In your garage, no problem. In your kitchen, not ideal. I just wanted to throw that out there. Search Harbor Freight for "Bilge Pump".


MDRex

Well-Known Member
Joined
Sep 8, 2010
Messages
104
Reaction score
0
Location
Baltimore, MD
If you are switching from tap to an ice bath with a pump in it, then you should rocket first the tap water and then the ice water through the IC at as high a flow rate as possible (if your desire is simply to reduce to pitching temp asap).
That's my plan. Just picked up a 250gph HF pump and will see how well that works today.


bmckee56

Well-Known Member
Joined
Sep 29, 2008
Messages
911
Reaction score
4
Location
Coraopolis, PA (Near Pittsburgh)
I have posted this several times to different threads and will do so again here. No pump necessary!

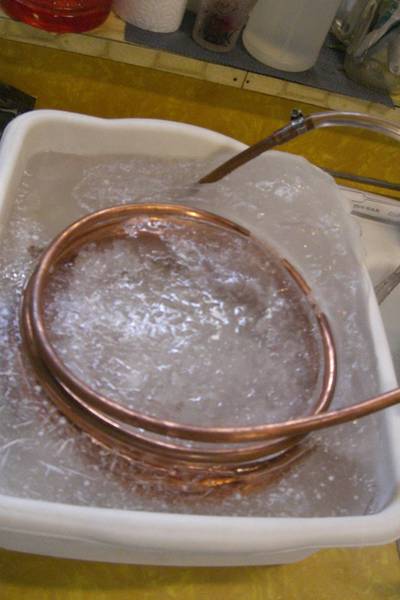

I freeze my pre-chiller tubing in a pan of water overnight and circulate water from the tap to the frozen coil, then to my wort chiller. I have recorded temperatures of 38F. out of the pre-chiller using 75 degree water from the tap. It works great and is easy to construct and re-fill when needed.

Only word of caution here is to ensure you do not run any water into the pre-chiller prior to hooking up your wort chiller or it will freeze up and stop flow. Hook up all lines before moving water through. Also make certain the pre-chiller is liquid free before freezing overnight.



Salute! :mug:


smakudwn

Well-Known Member
Joined
Mar 16, 2009
Messages
852
Reaction score
27
Location
St.Charles, MO
I use my LG pump on my brew stand to pump tap and icewater through my IC. I first fill up my MLT with just tap water, run about 7 gallons of that through my IC and then back to HLT (i use this for cleaning) Then i add 20 LB of ice into the MLT cooler, then start recirc that though the IC and back into MLT. Then when its done i use the water to fill up milk jugs to freeze to use for the next beers cooling.
