Pressure limit of mason jars?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

petrolSpice

Well-Known Member
Joined
Dec 31, 2013
Messages
833
Reaction score
98
Has anyone tested a mason jar under pressure (not vacuum) to see if it will handle carbonation pressure without leaking or exploding? I think it's around 30-40psi.

I know they are meant for vacuum, but I want to use one as a test jar to know when my beer is done carbonating (let alone carbonating at all).

The mason jar is nice because it's easy to clean, has a decent seal, and is easy to install a pressure gauge into.

I'm thinking about pressure testing one to failure, in a safe environment of course, and/or under water to detect leaks.


timdillon36

Well-Known Member
Joined
Mar 25, 2015
Messages
329
Reaction score
97
The lids have failed first in my experience. I doubt it will hold much pressure.


Kjay

Well-Known Member
Joined
Feb 1, 2011
Messages
53
Reaction score
5
Location
Wellington County
Why not use a PET bottle? And use the rudimentary squeeze test? When I used to bottle I would bottle 3-4 bottles using plastic bottles. Using plastic bottles every 10-12 bottles to know where in the bucket the beer was from. I would be able to check femenation as the bottle would get harder. Pretty crude but did the job.


alexnova

Well-Known Member
Lifetime Supporter
Joined
Jul 2, 2012
Messages
244
Reaction score
45
Location
Arlington
I imagine it will hold some pressure, but the weak link is the lid and the screw top ring. My gut feeling is it won't hold anything close to 30psi.


cshamilton

Well-Known Member
Joined
Mar 19, 2011
Messages
359
Reaction score
40
Location
South Central Michigan

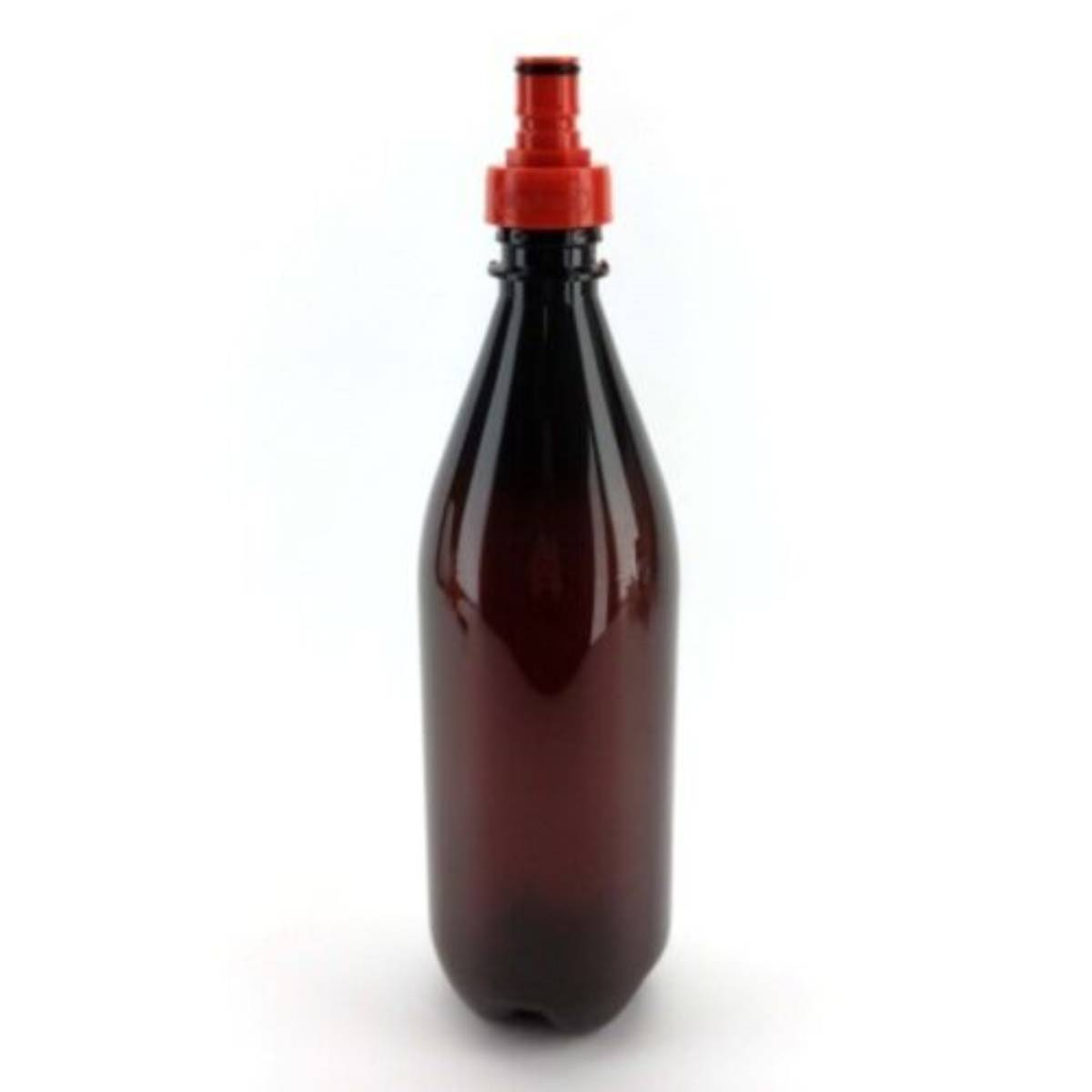

As Kjay said - use PET. Clean and sanitize a used 16 oz pop bottle and cap. Not pretty, but it works. Mason jars are not meant to hold pressure.


PurpleJeepXJ

Ah... Leafy Goodness
Lifetime Supporter
Joined
Dec 10, 2010
Messages
651
Reaction score
46
Location
Acworth
I actually have tested this!! I tried to use a mason jar as an inline hop infuser on my draught system. The ring would stay on the jar and not blow off, but I was not able to get the glass over about 3 or 4 psi. Now I was using quart jars which could have been the problem. You may be able to use an 8oz or smaller jar with better results. Though, as a disclaimer, I DO NOT RECOMMEND PRESSURING A GLASS JAR!! IT CAN AND WILL BREAK AT UNKNOWN TIMES AND WILL SEND GLASS SHARDS FLYING!!


Auger

Supporting Member
HBT Supporter
Joined
Aug 19, 2014
Messages
7,271
Reaction score
2,673
Location
South Windsor, CT
The lids have failed first in my experience. I doubt it will hold much pressure.
This is accurate. I tried pre-mixing a bunch of whiskey and gingers one time and put them in mason jars in a backpack. I got about 15 steps before the agitation from walking gassed up the soda to the point where the lid deformed and started leaking. The lids are not robust enough to hold any kind of pressure and deform easily. That may be by design to prevent a dangerous situation of a glass vessel building up enough pressure to burst.
