Please Critique my Top Tier set up

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

arborman

Well-Known Member
Joined
Jan 9, 2013
Messages
446
Reaction score
34
I just set up my 3 tiered Blichmann brew tower. This is my first set up, and I am looking for advice from the more experienced brewers out there before I commit to installing the gas manifold....

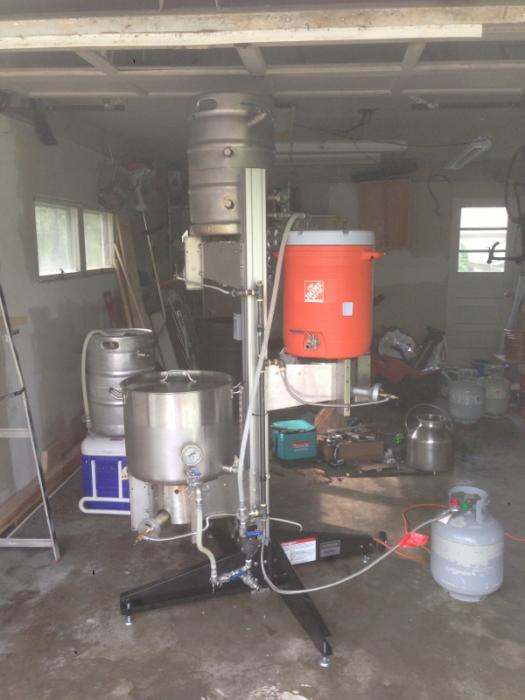

So, as you can see, I have it set up with a 10g HLT at the top left, my 10g mash tun on the right middle, and my boil kettle on the front bottom.

I wanted to set it up so I could drain from my HLT to my MT without using a hose, but that set up did not work for me becuase the HLT had to be on the top, but in the front channel. I was bumping into it since it was laid out in the front along with the boil kettle.

Sometime in the next month or two, I would like to add a pump so I can do a whirlpool while chilling.

Are any of you seeing anything not right with this set up? Any improvements I can make with the layout to make it a better gravity system?

Thanks for any advice! :mug:



JJFlash

Member
Joined
Aug 2, 2008
Messages
23
Reaction score
1
Setup look fine. Be prepared for changes. I must have reset my Top Tier about twenty times before I hit upon my current configuration. Switched burners around, which is a pain. Changed burner height, not a pain. As you add gear to the setup, the arrangement will evolve in ways you cannot anticipate. By the way, love my Top Tier. Good luck.

OP
arborman

arborman

Well-Known Member
Joined
Jan 9, 2013
Messages
446
Reaction score
34
JJFlash said:
Setup look fine. Be prepared for changes. I must have reset my Top Tier about twenty times before I hit upon my current configuration. Switched burners around, which is a pain. Changed burner height, not a pain. As you add gear to the setup, the arrangement will evolve in ways you cannot anticipate. By the way, love my Top Tier. Good luck.
Oh man, I can see this already. Just made a change where now I can use gravity with no hoses. Had to take both burners and the shelf off:(


Paloaf

Well-Known Member
Joined
Oct 21, 2012
Messages
62
Reaction score
2

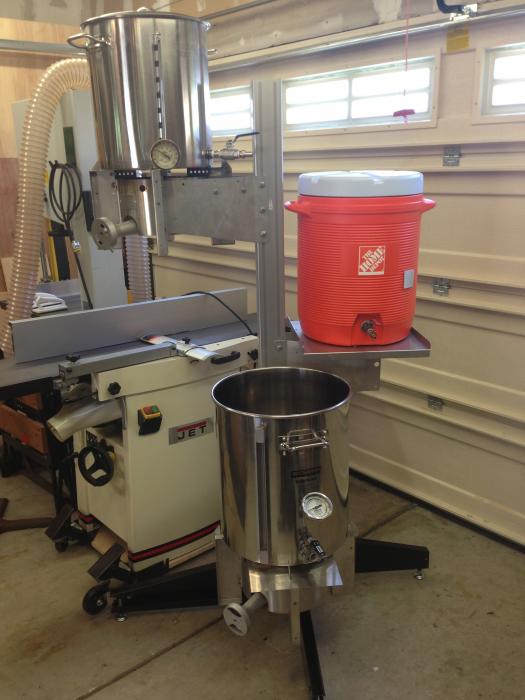

This is how I have my TopTier setup. I have the HLT up top facing away from the front. This way I can have my MLT and BK on either side of my manifold which I've found makes it easier to do everything from one spot.

You're setup looks great though. Let us know how it works for you.






LuiInIdaho

Well-Known Member
Lifetime Supporter
Joined
Feb 12, 2011
Messages
435
Reaction score
30
Location
Ponderay
Oh man, I can see this already. Just made a change where now I can use gravity with no hoses. Had to take both burners and the shelf off:(
I don't have a Top Tier, so please feel free to take that into consideration for my comments. I am not sure why you don't want a hose to gravity drain your vessels. With the hose you will be able to create a siphon action and drain more liquid from one vessel to the another. Without the hose, you have no chance to create the siphon action and draining will stop when your liquid level gets to the level of the ball valves.

By the way, I love your setup.

Mark


Paloaf

Well-Known Member
Joined
Oct 21, 2012
Messages
62
Reaction score
2
I don't have a Top Tier, so please feel free to take that into consideration for my comments. I am not sure why you don't want a hose to gravity drain your vessels. With the hose you will be able to create a siphon action and drain more liquid from one vessel to the another. Without the hose, you have no chance to create the siphon action and draining will stop when your liquid level gets to the level of the ball valves.

By the way, I love your setup.

Mark
Mark, this is a great point. I've only used my Top Tier for two batches but I quickly learned on my first batch that hoses are a must to create the maximum flow rate. It is easy to have the MLT setup directly beneath your ball valve on the HLT but without a hose it takes longer to drain and there is a risk that you won't get the last 1-3 gallons out of the pot. Also, the water can splash and you can get burned.

I have one hose setup with a quick disconnect on one end and bare hose on the other. I can use this to drain my HLT and MLT and then drop it in a bucket of sanitzer to use to drain my BK after the chill.
