As far a Fahrenheit working. I changed the Celsius boil temp from 108 to 221. After uploading and changing to F, I was able to set the boil temp to 212 F.

After a test with a small pot and hot plate, I'd say this will get Deg F to work.

Here is what changed.

//Setting 8 Stages
float p_C[] ={ 75.00, 20.00, 0.25, 55.00, 25.00, 0.25, 50.00, 35.00, 0.25, 60.00, 45.00, 0.25, 70.00, 50.00, 0.25, 76.00, 50.00, 0.25, 76.00, 50.00, 0.25, 80.00, 50.00, 0.25 };
float p_F[] ={ 167.00, 68.00, 0.25, 131.00, 77.00, 0.25, 122.00, 95.00, 0.25, 140.00, 113.00, 0.25, 158.00, 122.00, 0.25, 168.75, 122.00, 0.25, 176.00, 122.00, 0.25, 176.00, 122.00, 0.25 };

//byte p_PID[] ={ 1, 0, 1, 200, 0, 1, 255, 0, 1, 200, 0, 1, 30, 9, 1, 100, 0, 1, 100, 0, 1, 100, 0, 1 };
// Use Gas kP kI kD Win Size %PWM Boil Calibration Hysteresi
byte p_PID[] ={ 1, 0, 1, 200, 0, 1, 255, 0, 1, 200, 0, 1, 14, 6, 1, 30, 0, 1, 100, 0, 1, 100, 0, 1, 100, 0, 1 };
// Use Gas kP kI kD SampleTIme Win Size %PWM Boil Calibration Hysteresi

byte p_Unit[] ={ 1, 0, 1, 1, 0, 1, 221, 90, 1, 221, 194, 1, 15, 5, 1, 5, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 221, 80, 1, 221, 176, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 90, 0, 1, 2, 0, 1};
// Scala ° Sensore Boil °C Boil °F Ciclo Pmp Pausa Pmp PreMash on Mash MashOut on Boil Fermo °C Fermo °F PID Pipe Sk.Add Sk.Remove Iodine TimeIodio Whirlpool

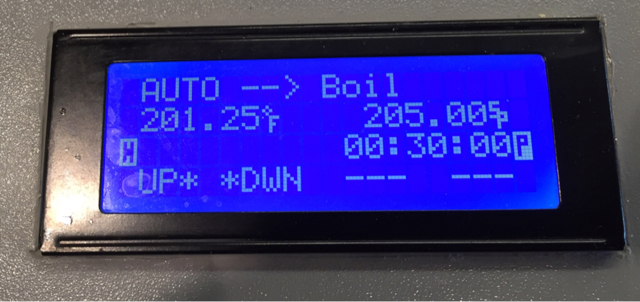

View attachment ImageUploadedByHome Brew1481473365.921921.jpg

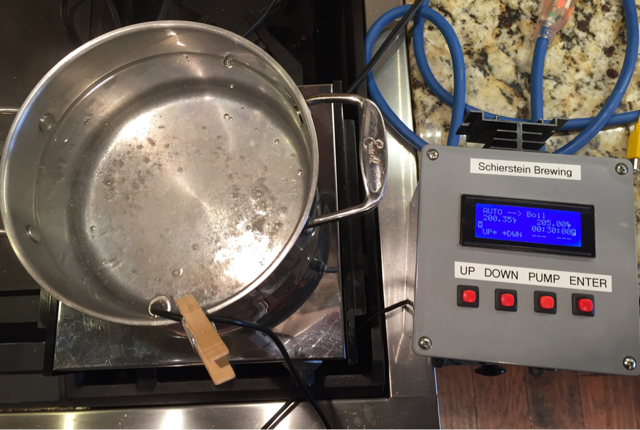

View attachment ImageUploadedByHome Brew1481473377.993375.jpg


gophergoat

Active Member
Joined
Oct 20, 2015
Messages
31
Reaction score
3
Location
Effingham
Do you still actively use ardbir? My buddy wrote a basic code for an Arduino to go to one single temperature that I'd actively have to alter throughout the brewday on my laptop. Looking for some smoother software (not me altering the code 3 times per use) and hopefully it's own power (not run off my laptop) and an LCD.

OP
schiersteinbrewing
Joined
Mar 25, 2013
Messages
619
Reaction score
139
Location
Stanton
Do you still actively use ardbir? My buddy wrote a basic code for an Arduino to go to one single temperature that I'd actively have to alter throughout the brewday on my laptop. Looking for some smoother software (not me altering the code 3 times per use) and hopefully it's own power (not run off my laptop) and an LCD.
No I now just use a PID.
