Northern Brewer's stainless counterflow chiller

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum:

Boydric

Active Member
Joined
Sep 15, 2014
Messages
43
Reaction score
8
Location
Madison

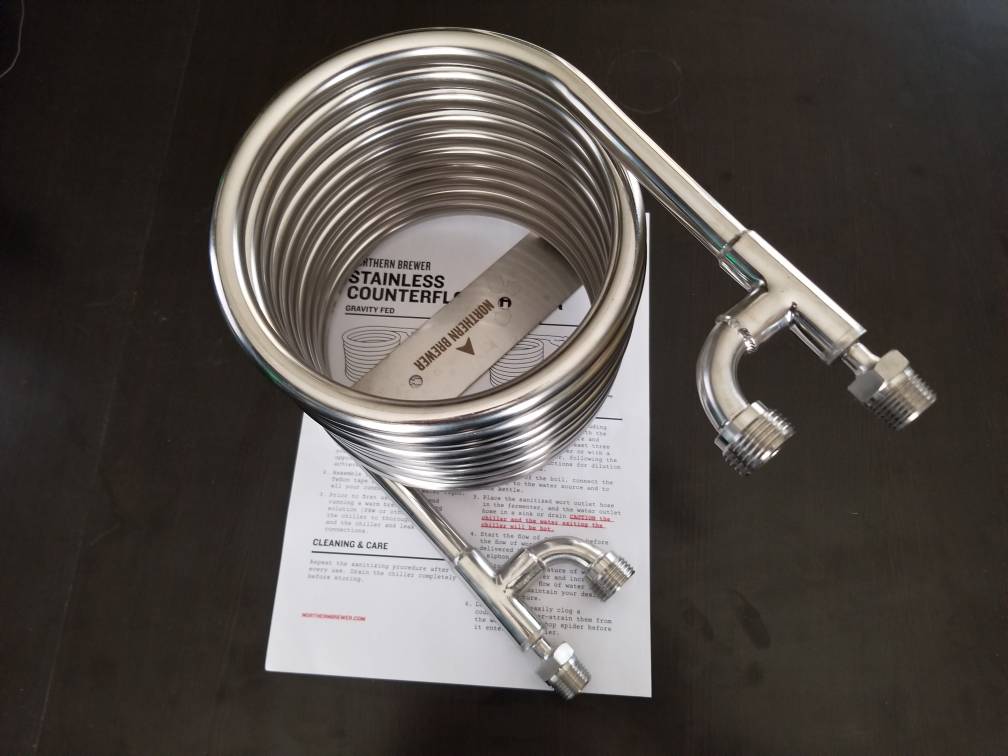

I bought one have not used it yet. It is a solid piece of hardware and like that it came with a mounting bracket.


Stand

Well-Known Member
Joined
Jan 16, 2011
Messages
704
Reaction score
360
Location
Indian Trail
I feel inbevalent about it, bud it might sell out. They've sold their soulutions before.

OP
OP
S

stevehaun

Supporting Member
HBT Supporter
Joined
Dec 25, 2006
Messages
973
Reaction score
142
Location
Hudson
Why? The resistance through a plate chiller is likely higher. I have always had to ramp back my wort flow significantly to maintain temps < 70F and I am blessed with 55F well water in northern WI. I think it would be fine for 5 to 15 gallon batches.


Dog House Brew

Supporting Member
HBT Supporter
Joined
Jun 10, 2008
Messages
1,881
Reaction score
1,091
Location
Indiana
I use a 1/2” copper tube that is surrounded with a 1” Goodyear Horizon hose. The flow is too low. I’m going to make my own. We will see, but it has to be as good as anything I’ve seen.


Wizard_of_Frobozz

Well-Known Member
Joined
Dec 22, 2016
Messages
358
Reaction score
162
Location
Salisbury
Nice to see another stainless counterflow chiller arrive on the market, but my preference (when the money is available...) is the one from Stout

31 ft long tube vs. 18 ft. Wort tube is 10 mm (ID), which is significantly bigger than 3/8" (OD). Tri-Clamp fittings can be nice, but do cost more for the clamps, gaskets, and fittings, so that could be viewed as a positive or negative, depending on your preferences. The Stout one is around $50 more, but the difference in size and capacity seems worth it to me.

See this thread for some pictures and reports from people who have bought the one from Stout.


tofuguy

Well-Known Member
Joined
Nov 1, 2015
Messages
220
Reaction score
109
Location
Canton, MI
I pulled the trigger on this cooler and it comes tomorrow. I was trying to decide between this and the stout. I when for this due to the price and I only run 5 gallon batches. Also I run with camlocks versus tri-clamps, so the 1/2 npts actually were a plus for me. I am coming from a 25 ft copper immersion chiller I had for 6 years, so I am pretty stoked.


Wizard_of_Frobozz

Well-Known Member
Joined
Dec 22, 2016
Messages
358
Reaction score
162
Location
Salisbury
I pulled the trigger on this cooler and it comes tomorrow. I was trying to decide between this and the stout. I when for this due to the price and I only run 5 gallon batches. Also I run with camlocks versus tri-clamps, so the 1/2 npts actually were a plus for me. I am coming from a 25 ft copper immersion chiller I had for 6 years, so I am pretty stoked.

Excellent! Report back when you've had a chance to use it and let everyone know how it performs.


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,104
Reaction score
8,045
Location
Platteville, WI
@Wizard_of_Frobozz has pointed out a big difference between them--the NB offering is much shorter in length, 18' versus 31'.

I have the Stout offering, and even then, I'm rather disappointed in its ability to chill rapidly. That's always a function of the temp of the water, but when recirculating about 6 gallons of boiling wort it takes a good 20 minutes plus for me to get it down to 70 degrees. Considering it used to take my Jaded Hydra about 5 minutes at these water temps, it's...disappointing.

I'm doing LODO stuff so that's why the stainless, but clearly you give up something when going w/ SS.

I can't imagine how the NB offering would compare, but I can't imagine it's going to be anything but slower.


BrewerBrad82

Well-Known Member
Joined
Jun 13, 2013
Messages
1,449
Reaction score
1,284
Location
Minneapolis
The 3/8” is a killer for me.

I use a 1/2” copper tube that is surrounded with a 1” Goodyear Horizon hose. The flow is too low. I’m going to make my own. We will see, but it has to be as good as anything I’ve seen

I would have to disagree. 3/8" tubing will offer a greater ratio of surface area to volume of wort compared to 1/2" tubing. The higher surface area to volume ratio will chill the beer more rapidly, as there is less overall wort to chill in the same amount of surface area when using 3/8".

@Dog House Brew are you using gravity or a pump?


tofuguy

Well-Known Member
Joined
Nov 1, 2015
Messages
220
Reaction score
109
Location
Canton, MI
It has arrived! Overall build quality is spot on. I have to wait for my fittings to arrive from BobbyM then I will run a test run with 6 gallons of water at boil to pitch temp. I have too much beer in the backlog right now to brew anything (2 fermenters filled currently). So this is my best compromise.


EmmtBot

Member
Joined
Aug 20, 2015
Messages
12
Reaction score
3
Location
Buffalo
Hopefully the NB chiller doesn't suffer the same fault I discovered on the Kegco counterflow I just bought.

Looking a couple inches inside either end of the wort line on the Kegco there is a visible weld ring with some rust on it where the tee fitting was welded on (the outside). It appears the inside of the tube wasn't backgassed while the outside was welded, causing the inside to lose corrosion resistance. Might be worth a peek with a flashlight.


tofuguy

Well-Known Member
Joined
Nov 1, 2015
Messages
220
Reaction score
109
Location
Canton, MI
Hopefully the NB chiller doesn't suffer the same fault I discovered on the Kegco counterflow I just bought.

Looking a couple inches inside either end of the wort line on the Kegco there is a visible weld ring with some rust on it where the tee fitting was welded on (the outside). It appears the inside of the tube wasn't backgassed while the outside was welded, causing the inside to lose corrosion resistance. Might be worth a peek with a flashlight.
I just got back home and checked this evening, I did not see any corrosion or rust. Now I could only see 1-2 inches inside.


tofuguy

Well-Known Member
Joined
Nov 1, 2015
Messages
220
Reaction score
109
Location
Canton, MI

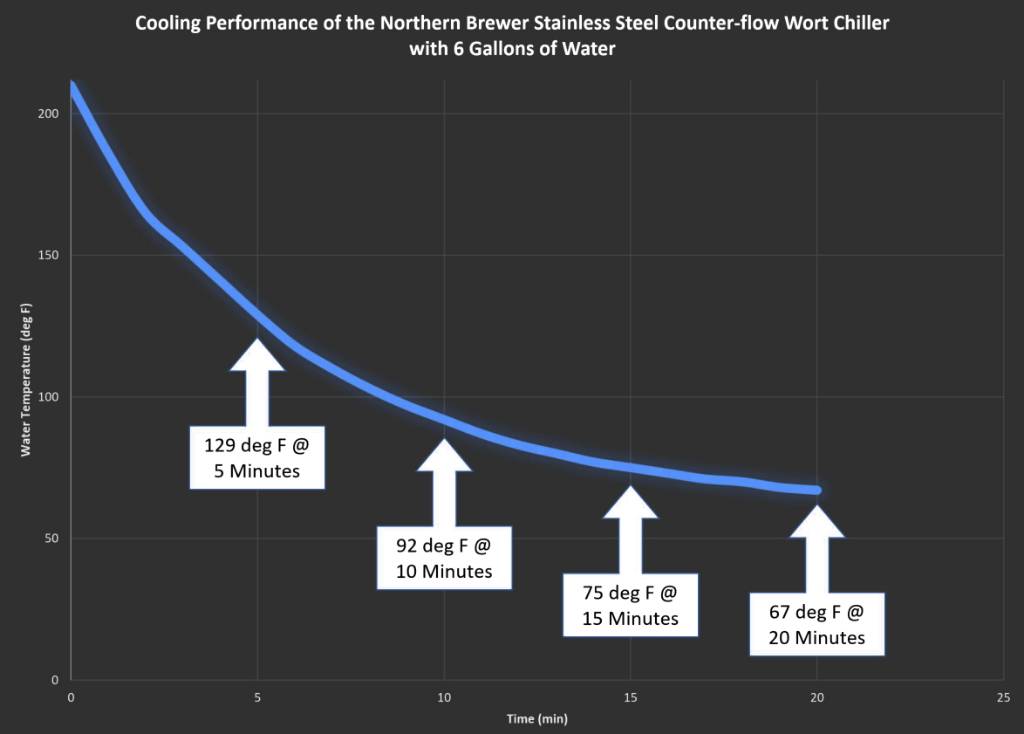

So I ran a performance check on the chiller with 6 gallons of water starting at boiling with recirculating the water for 5 minutes at boiling to simulate a standard sterilization process. Then I cut the power to my element, and turned on the tap water (58 degF) and began recirculating. I then recorded the temperature from my controller every minute. Below is a plot of the performance.


Edit:
I produced a video to document my results of this CFC. It can be found here:

Last edited:
