Here are some picts of the new beer stand I made.

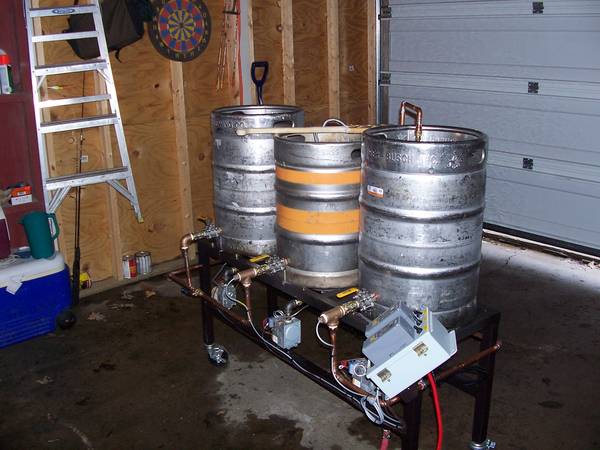

Front

Back

Mash Tun

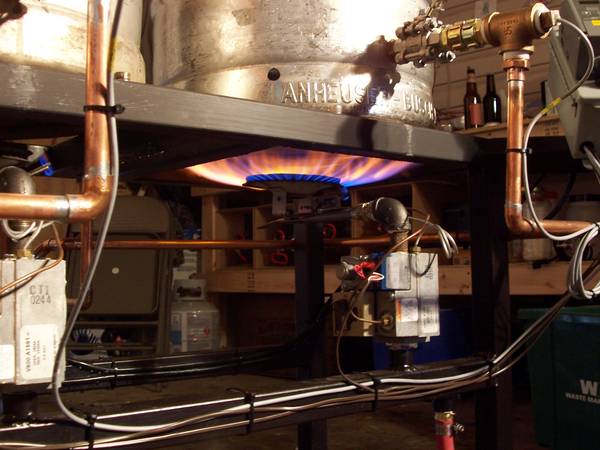

One of three old water heater burner.

I used old water heater burners and use the natural gas from the house as fuel. I found that the burners work well, a little slow on the boil. Eventuly I would like to upgrade to a better burner. I had a buddy from work help with the welding and the buddy I brew with helped with the piping. I used old furnace gas valves and refrigeration thermostats to control the HLT and MASH temps. I figure we have around $300.00 invested. All in all I am very happy with the way it works.


TerapinChef

Well-Known Member
Joined
Oct 31, 2007
Messages
996
Reaction score
9
Location
St. Clair Shores, MI
Eventuly I would like to upgrade to a newer CAMERA.
*Fixed that for you.
Seriously it looks really good. If I put my nose against the screen and squint a little bit. This feels like trying to watch porn on the squiggly channel.
"Is that a march pump? I don't know, I can't tell, but I think I'm excited. Oh damn, it's just the cat."

OP
earlyd

earlyd

Active Member
Joined
Jan 7, 2008
Messages
36
Reaction score
0
Location
Dexter, MI
The camera is a little dated I know. I could not figure out how to inlarge the picts. The pumps are little giant pumps that I bought from Grainger. They work well once they are primed.

OP
earlyd

earlyd

Active Member
Joined
Jan 7, 2008
Messages
36
Reaction score
0
Location
Dexter, MI
Ok, Ok, My dumb A$$ figured out how to make the pictures larger.


TerapinChef

Well-Known Member
Joined
Oct 31, 2007
Messages
996
Reaction score
9
Location
St. Clair Shores, MI
Wow I was less intimidated when the pictures were smaller. That looks like a really sweet rig for a really really low price.


samc

Well-Known Member
Joined
Aug 11, 2008
Messages
5,369
Reaction score
75
Location
Portland OR
Awesome work - looks great , but $300 ? I would think the pumps alone would be pushing that money total up higher. A quick scan of pumps on Grainger shows 150F max temperature, which model are you using?

OP
earlyd

earlyd

Active Member
Joined
Jan 7, 2008
Messages
36
Reaction score
0
Location
Dexter, MI
Awesome work - looks great , but $300 ? I would think the pumps alone would be pushing that money total up higher. A quick scan of pumps on Grainger shows 150F max temperature, which model are you using?

I have had these pumps for a long time so I guess I forgot to add them to the total. ($300.00 sounds good to the wife I guess) I beleve the part number I have is the 2p039 rated for 200F. I may not be correct however.
